Customizable Battery Sleeve/Adapter, 18650 26650
Print Profile(1)
Description

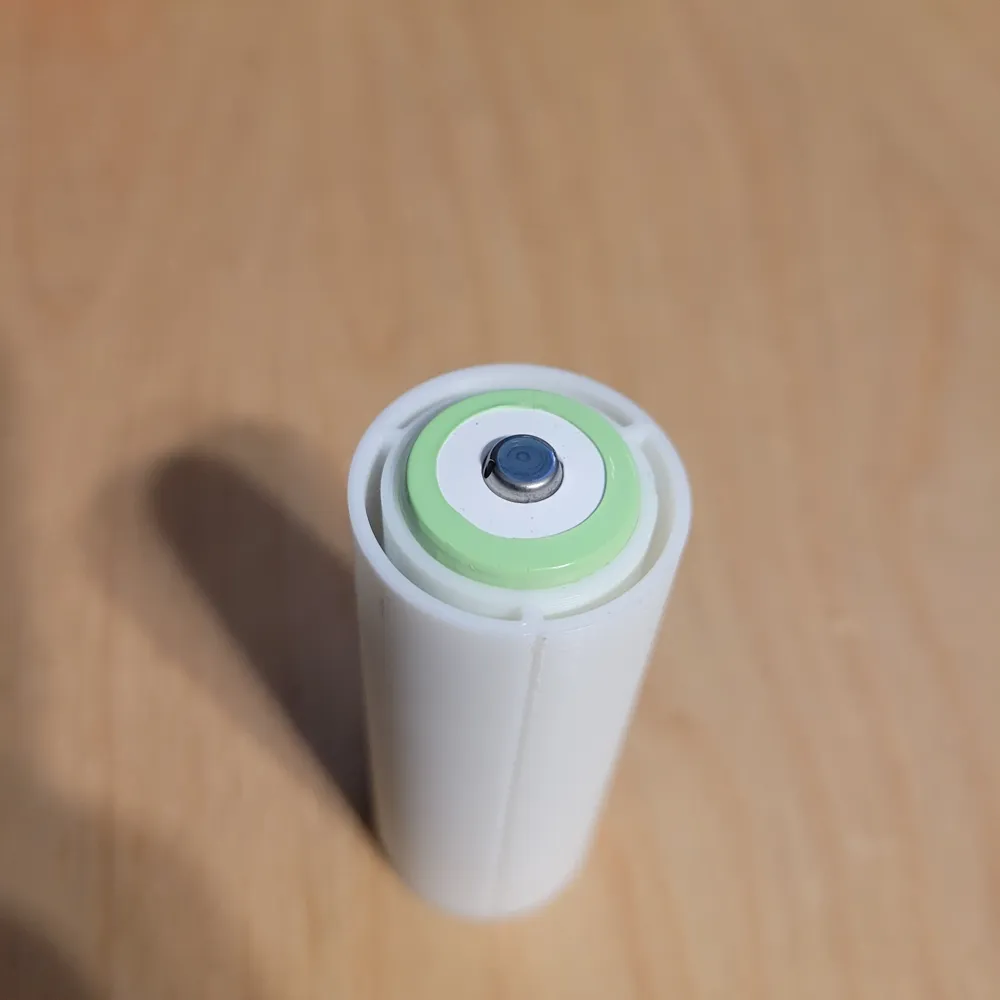

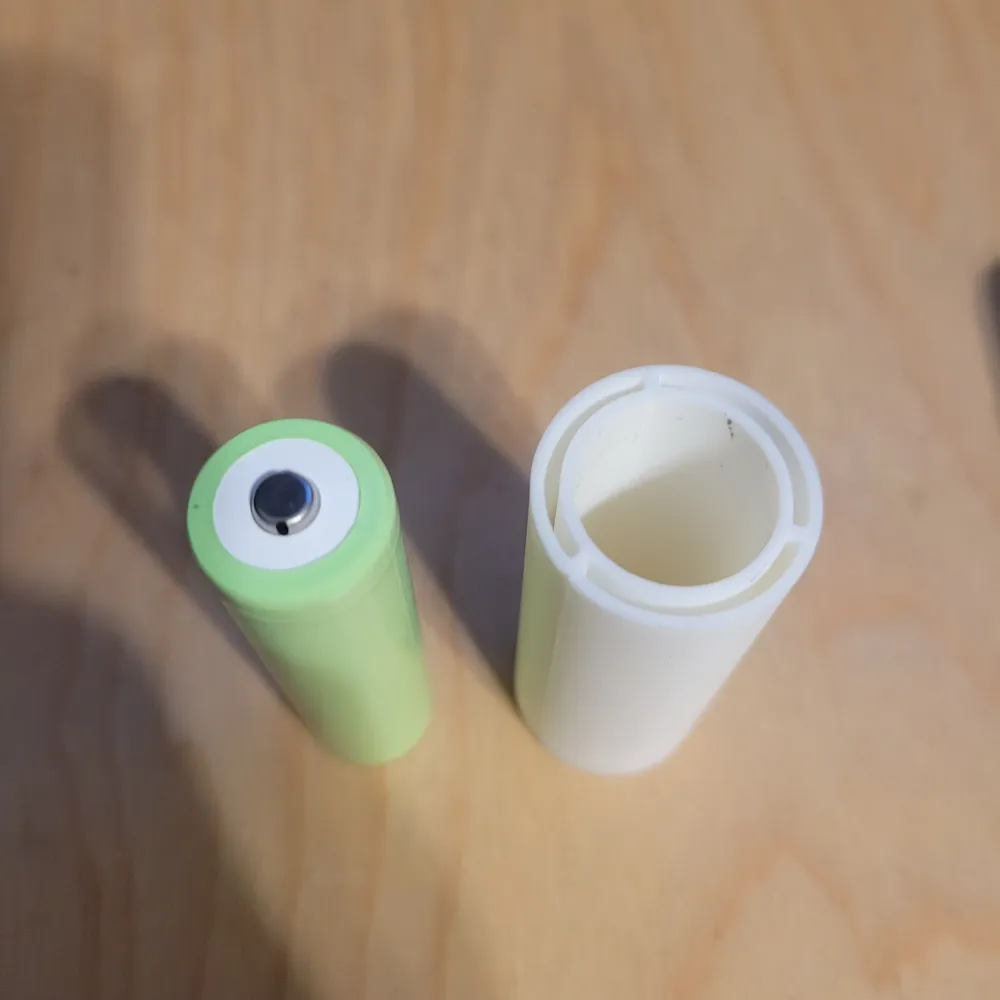

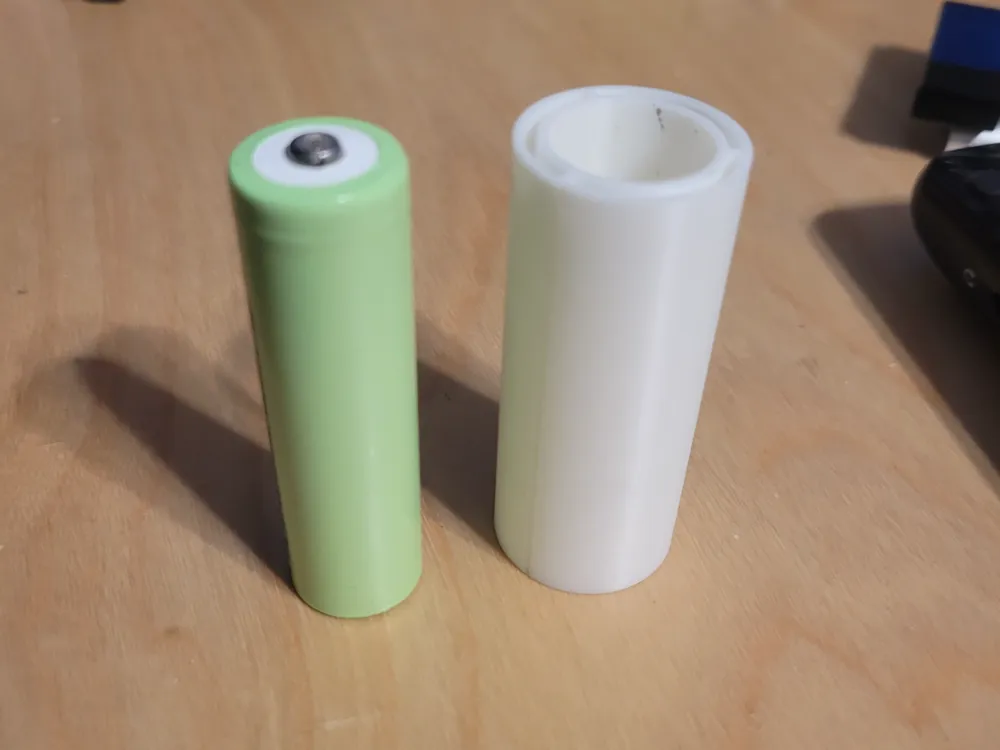

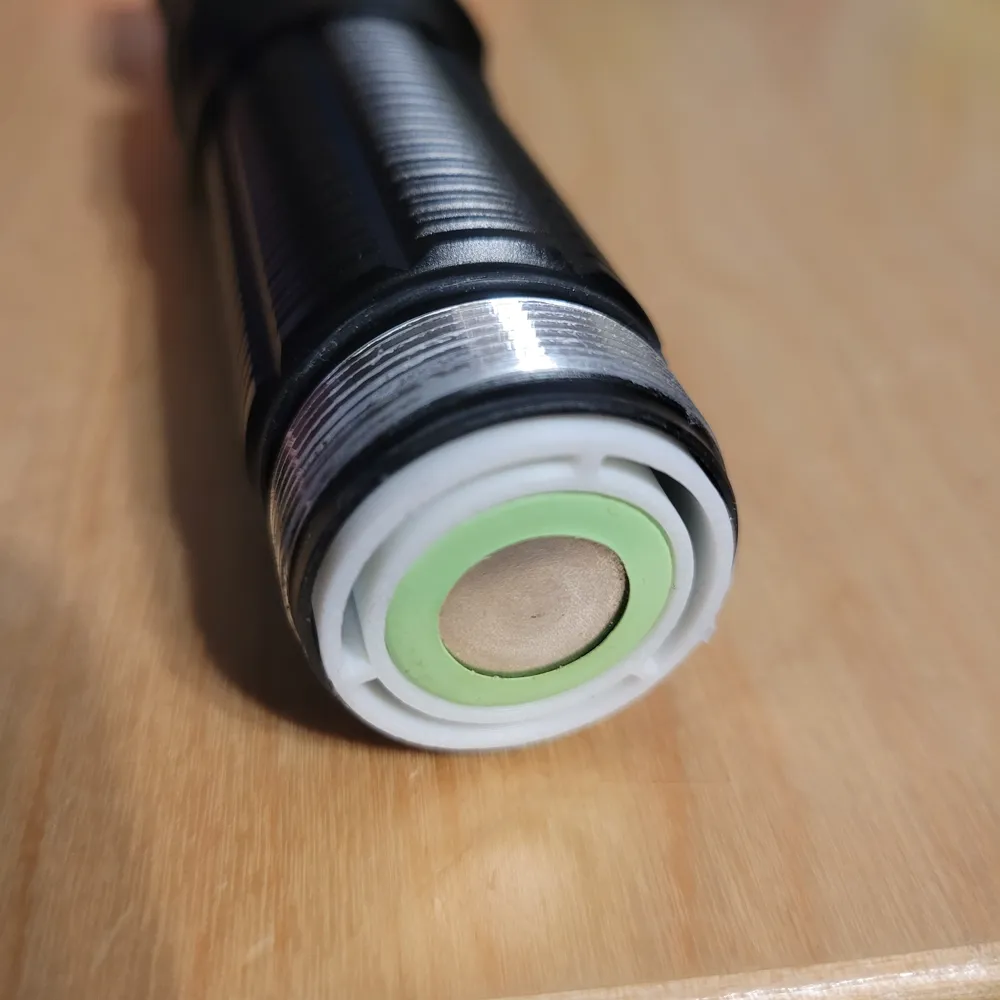

Have some flash lights, where the plastic adapters didn't hold the battery properly, so they would slide off the contacts. So I needed something that would adapt a 18650 battery to a 26mm flash light. I usually use OpenSCAD for my designs, so they end up being parametric. So basically you can create any sleeve you need with any size batteries. I created a 18650 to 26xxx, but you can do a 14650 to 27xxx or anything you need. You could do AA to C, etc.
Parameters:
- Inside Dia - Inside Diameter of the adapter, or diameter of the battery (mm).
- Outside Dia - Outside Diameter of the adapter, or inside of the Flashlight (mm).
- Height - Height of the adapter (mm).
Note: when I printed this, I measured the battery at 18.3mm , so I went with 18.8mm with shrinknage. It still was tight. So I suggest going to the next mm for the inner diameter, and round down on the Outisde Dia.
