3030 European standard aluminum profile (2.0mm) wire clip cable organizer cable tie hook

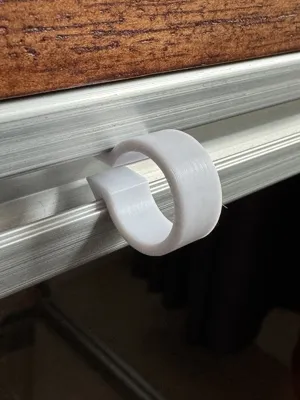

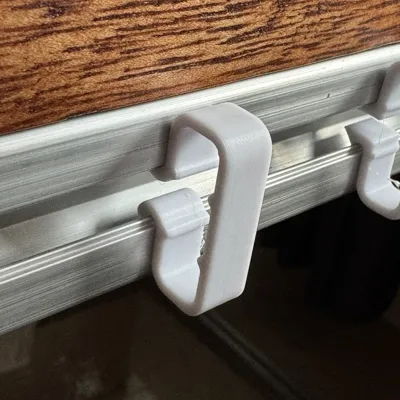

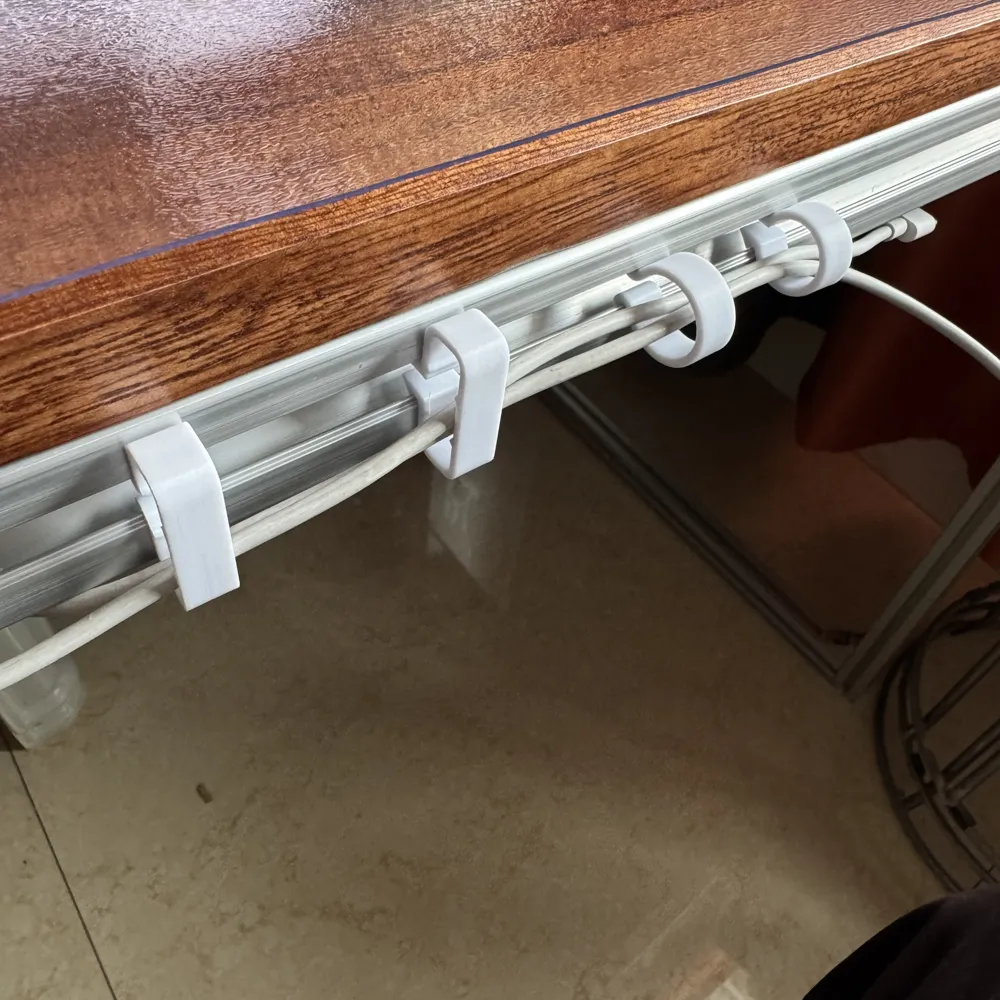

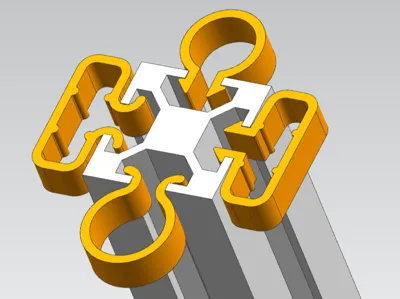

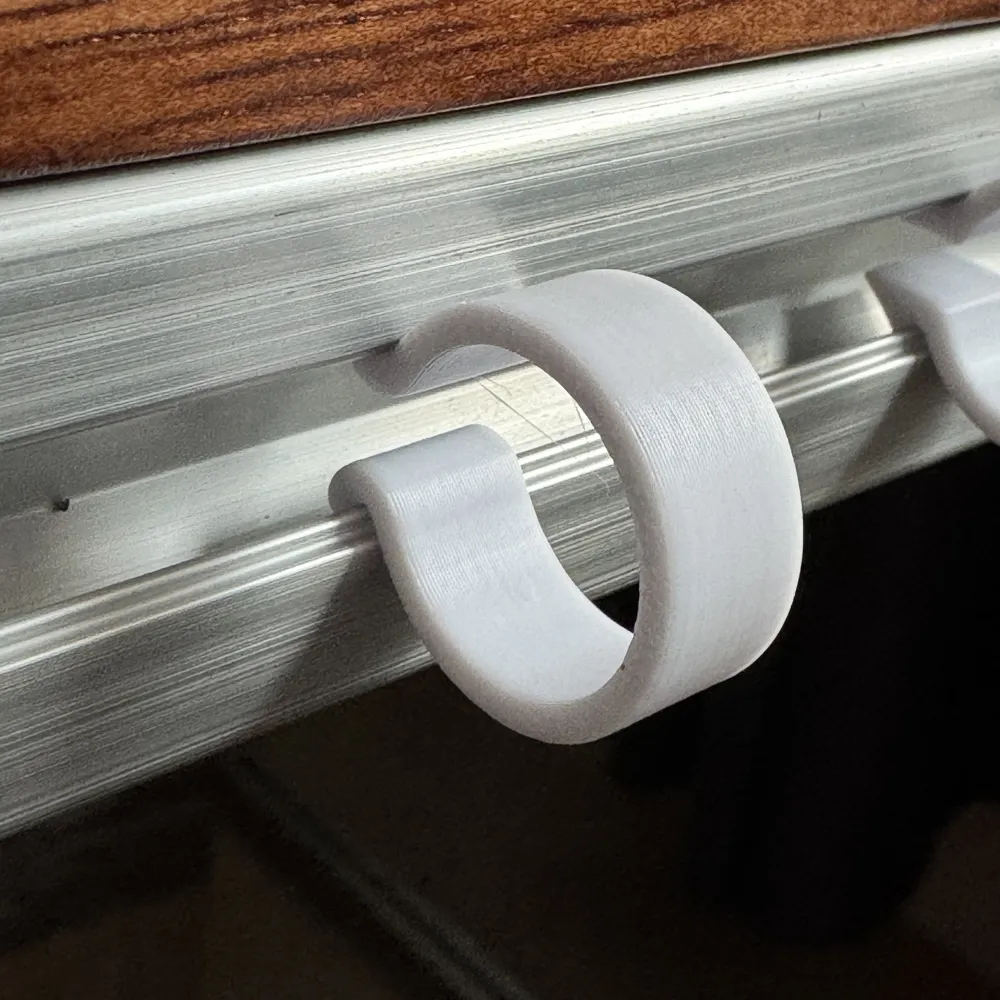

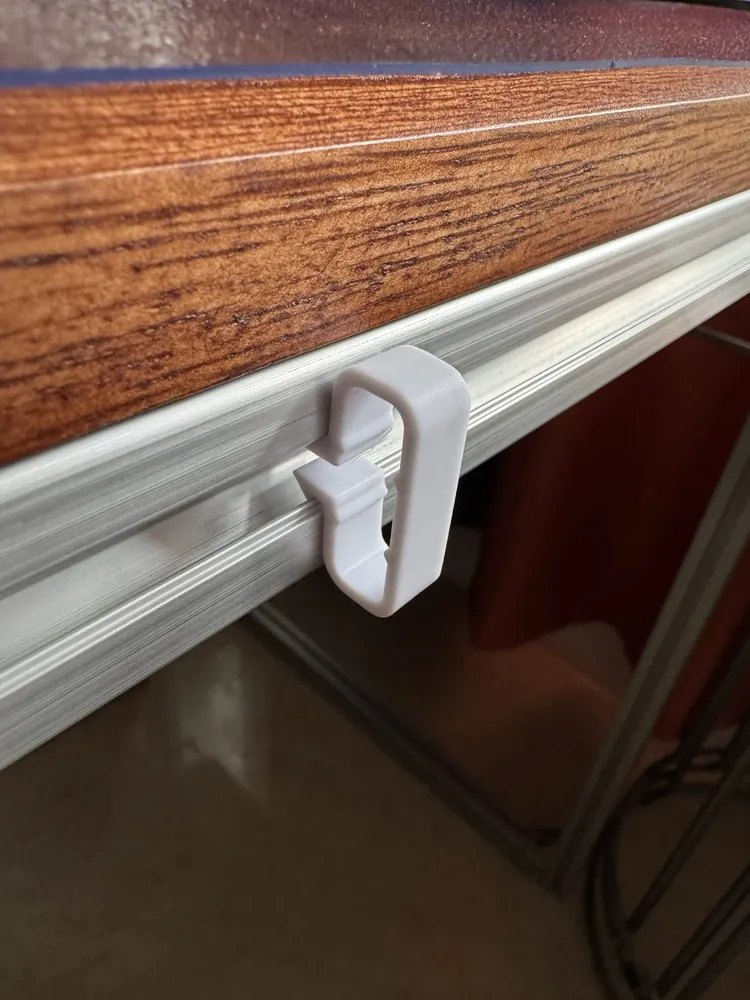

Four wire clip models are provided, suitable for 3030 European standard aluminum profiles (2.0 wall thickness), to solve the problem of messy wire harnesses.

Four wire clip models are provided, which are suitable for 3030 European standard aluminum profiles (with a wall thickness of 2.0), solving the problem of messy wire harnesses.

In addition, it can also be used as a hook;

In addition, it can also be used as a hook.

Press-type: When installing, first place the wire harness into the hole, press both sides of the wire clip to insert it into the groove, then release. The same applies when removing it;

Press - type: When installing, first put the wire harness into the hole, press the wire clip into the slot and then release your hand. The same principle applies when taking it out.

Insert-type: When installing, first place the wire harness into the hole, align the claw side with the slot, and press the wire clip to insert it into the aluminum profile slot. When removing it, squeeze both sides to take it out;

Insert - type: When installing, first put the wire harness into the hole, align the claw - side with the slot, and press the wire clip to insert it into the aluminum profile slot. When taking it out, squeeze both sides to remove it.

The four models are suitable for wire harnesses with a wire diameter of less than 8mm (when the wire diameter is slightly larger, it can be barely squeezed in);

The four models are suitable for wire harnesses with a wire diameter of less than 8mm (when the wire diameter is slightly larger, it can be barely squeezed in).

For aluminum profiles of different thicknesses, the models can be appropriately scaled for adaptation. All experts are welcome to upload printing parameter configurations, thanks~~~

For aluminum profiles of different thicknesses, the models can be appropriately scaled for adaptation. I welcome all experts to upload the printing parameter configurations，thanks~~~~
