TrailCurrent Milepost Enclosure

TrailCurrent

Printable parts for vehicles.

A collection of 3D printable enclosures, mounts, and accessories for RVs, overland rigs, trailers, and work trucks. Parts share a consistent design language and common fasteners so they stack and mount together cleanly.

👉 Browse the full collection: https://makerworld.com/en/@trailcurrent

Enclosure and wall mount plate for the Waveshare ESP32-S3-Touch-LCD-7B 7" touch display module.

What's included:

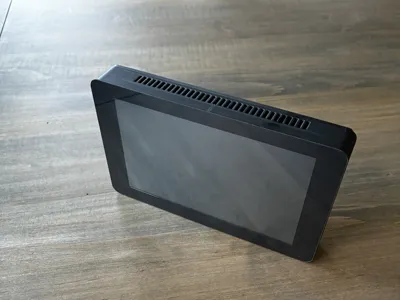

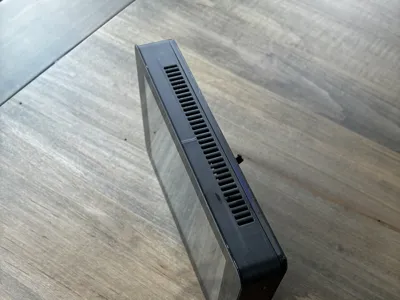

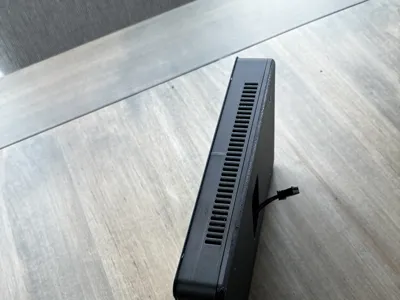

• Main enclosure body: houses the display module with a front screen opening and top ventilation slots for airflow

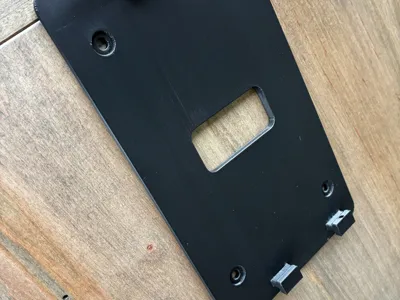

• Wall mount plate: mounts to the wall with four clip tabs; the enclosure snaps onto the plate for easy removal

Designed for:

Waveshare ESP32-S3-Touch-LCD-7B (800x480, 7" capacitive touch, RGB interface)

Print settings:


• Material: ABS
• Layer height: 0.2mm
• Supports: Tree (auto) supports required for the enclosure body
• Infill: 15%
• Nozzle: 0.4mm
• The two parts are on separate plates; print them one at a time

Notes:

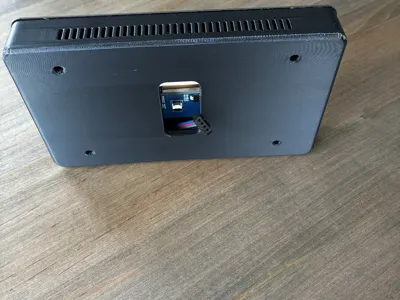

• Cable access is through the rear of the enclosure body
• The wall plate cutout provides clearance for wall anchors or cable pass-through

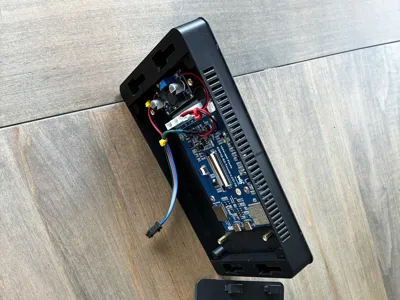

• Assembly requires M3 screws to secure the display module inside the enclosure body


About this model

This part belongs to the TrailCurrent collection — a growing set of 3D printable designs for vehicle builds. If you're fitting out a camper, overland truck, trailer, or work rig, browse the rest of the collection on my profile for matching parts. Everything is designed to print cleanly on standard FDM printers without exotic materials or supports where avoidable.

Print it, share it

If you print this, please drop a photo in the Makes tab — it helps other makers discover the design and gives me feedback for the next revision. Comments, questions, and remixes are always welcome.

License

Unless otherwise noted on the individual model page, all TrailCurrent printable files are released under Creative Commons — Attribution 4.0 International (CC BY 4.0). You're free to remix, modify, and print for personal or commercial use. Please credit TrailCurrent when you share a derivative.
