Adjustable MLOK Bipod 1.0
Print Profile(1)
Description

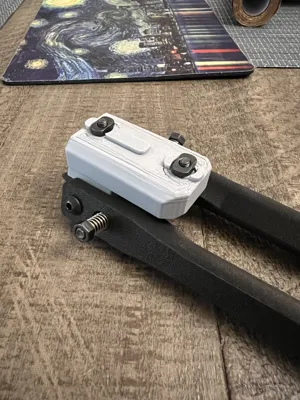

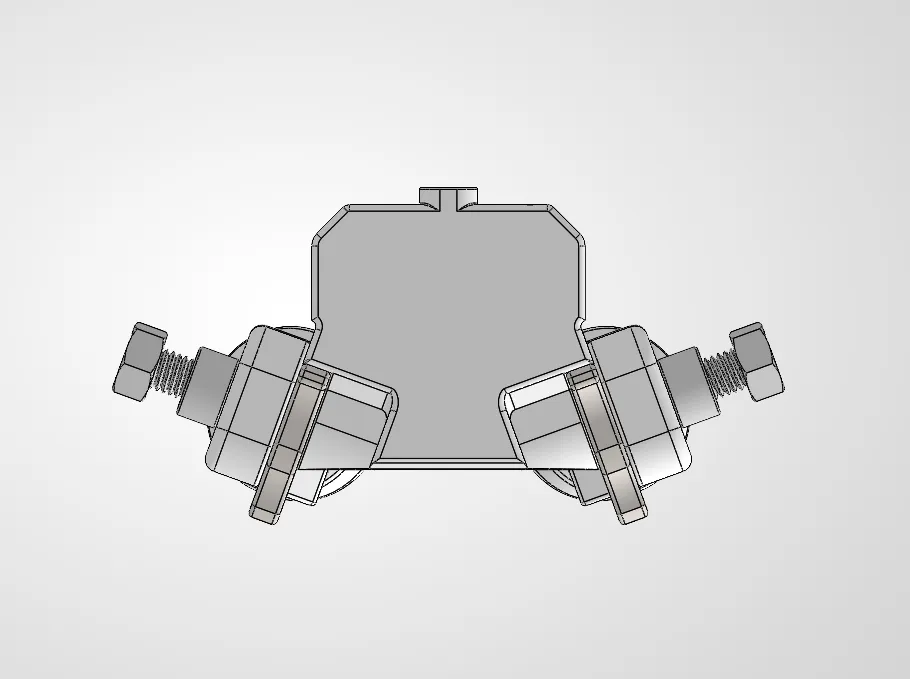

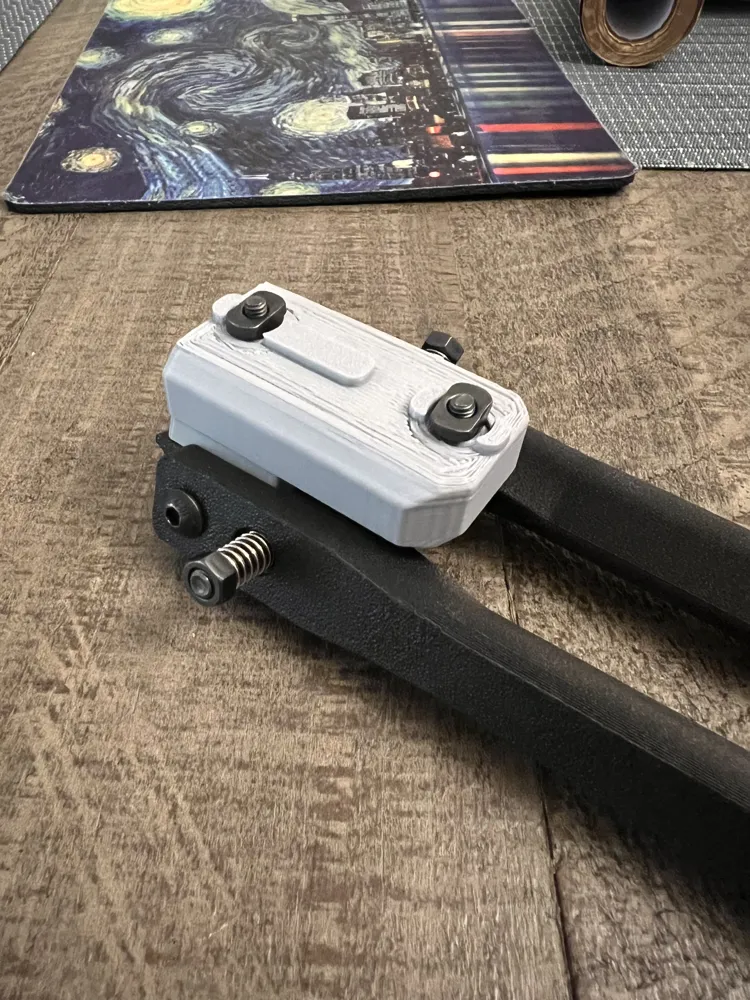

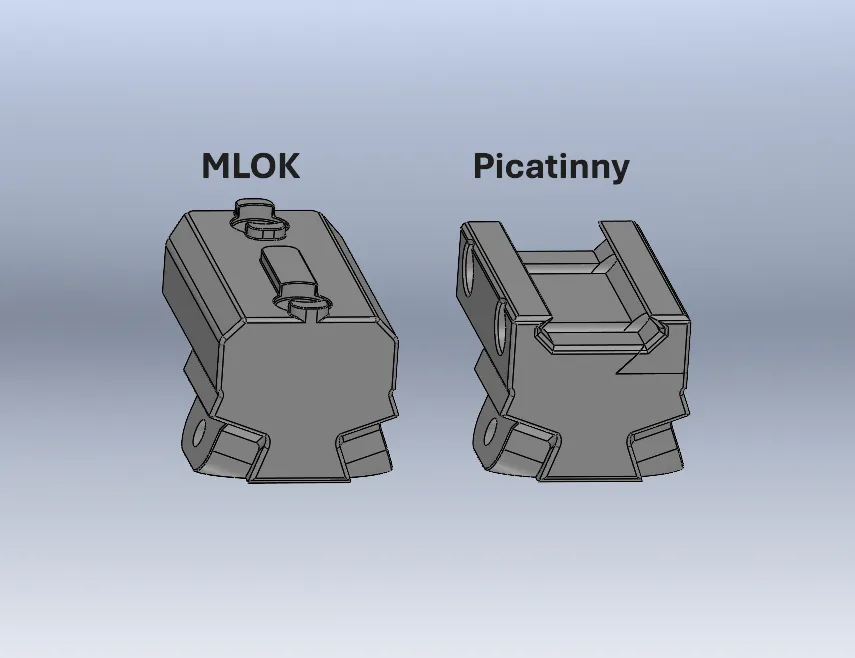

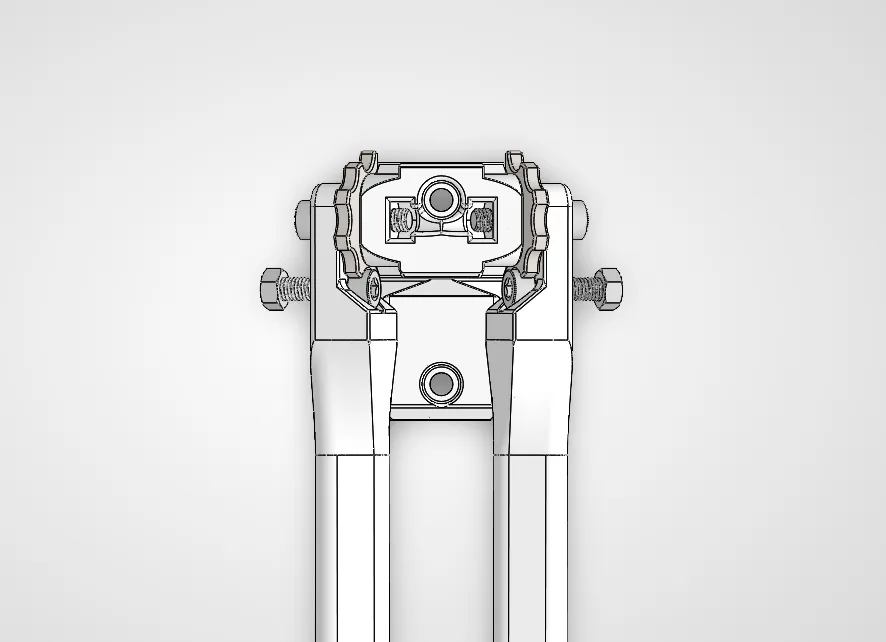

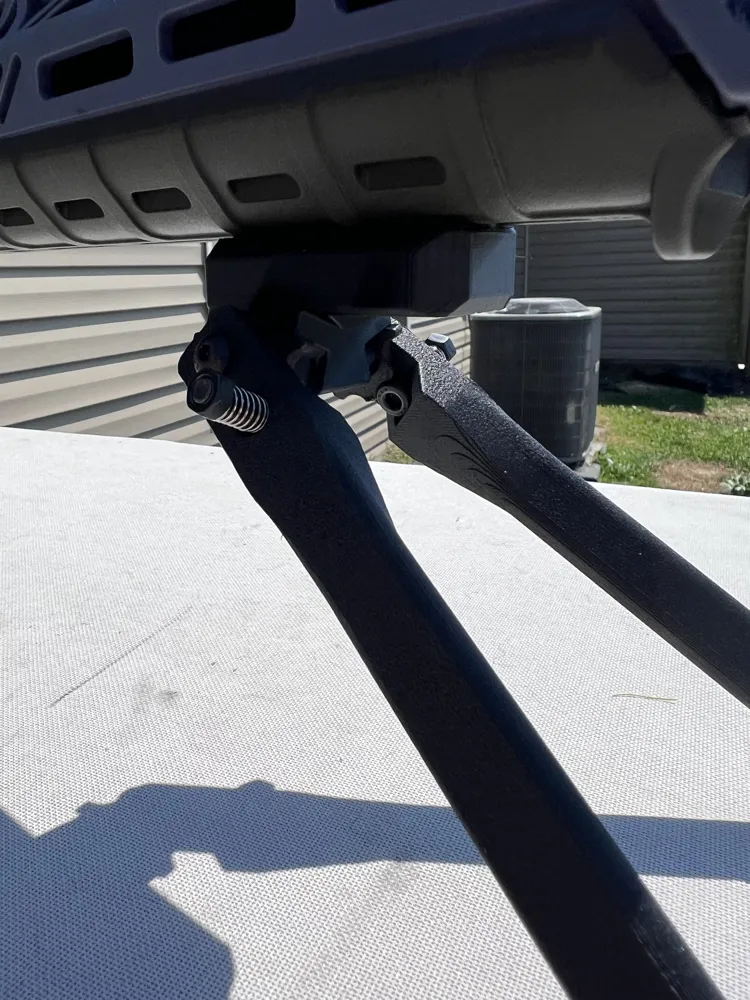

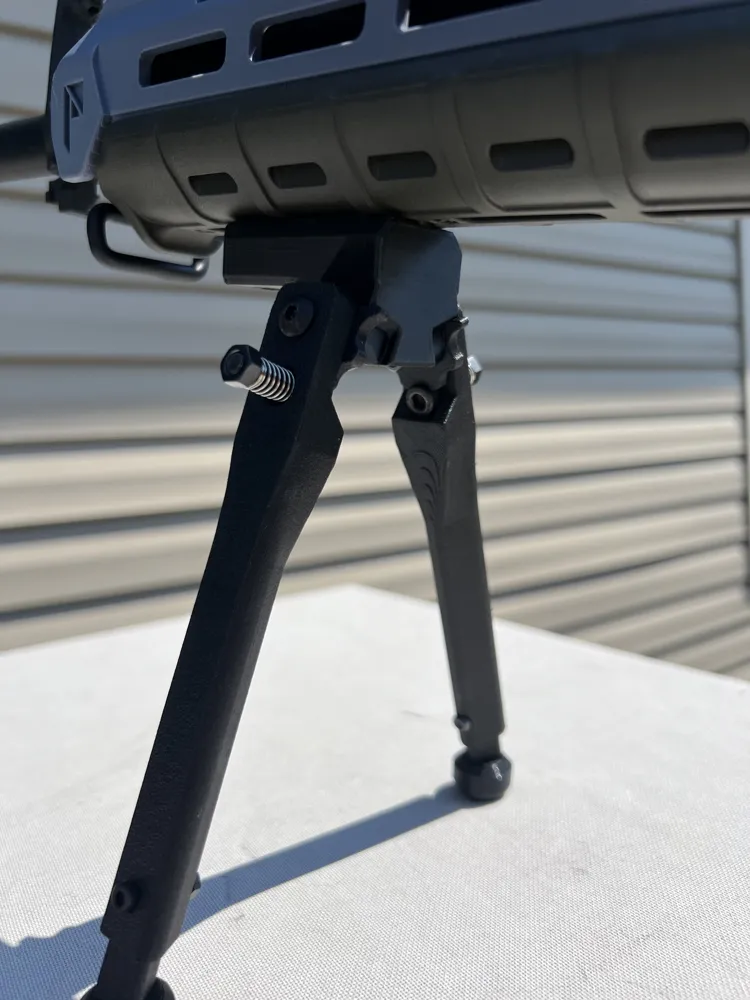

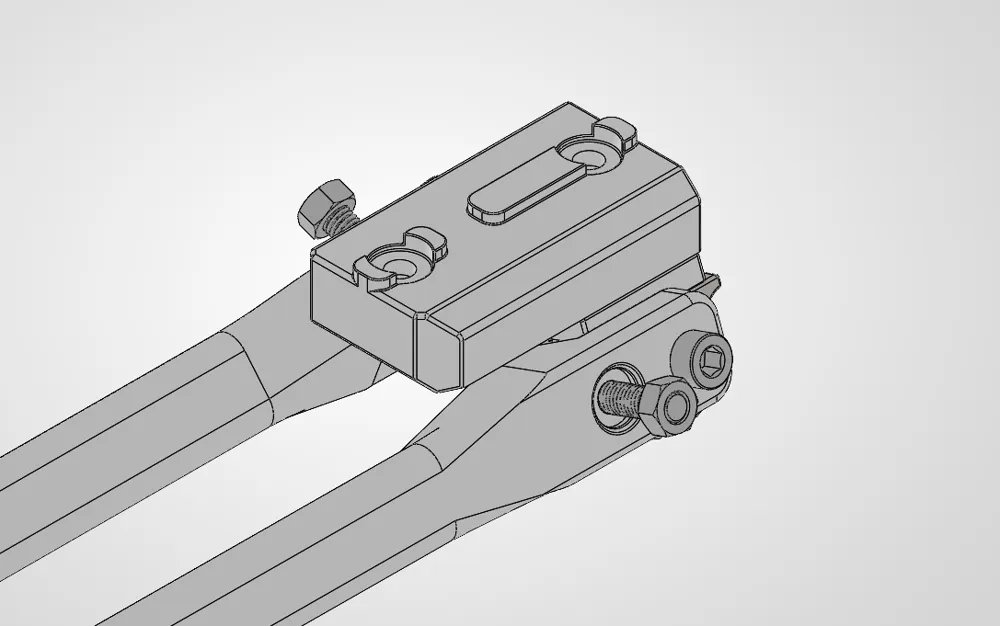

New MLOK version of my 5 position adjustable bipod. All the same hardware requirements except instead of the two M5x30s, you need two T-Nuts and screws for the MLOK mounting system. The base was extended by about 5mm to make the mounting area stronger. Besides that, its very similar to my original picatinny bipod with a few aesthetic and performance modifications.

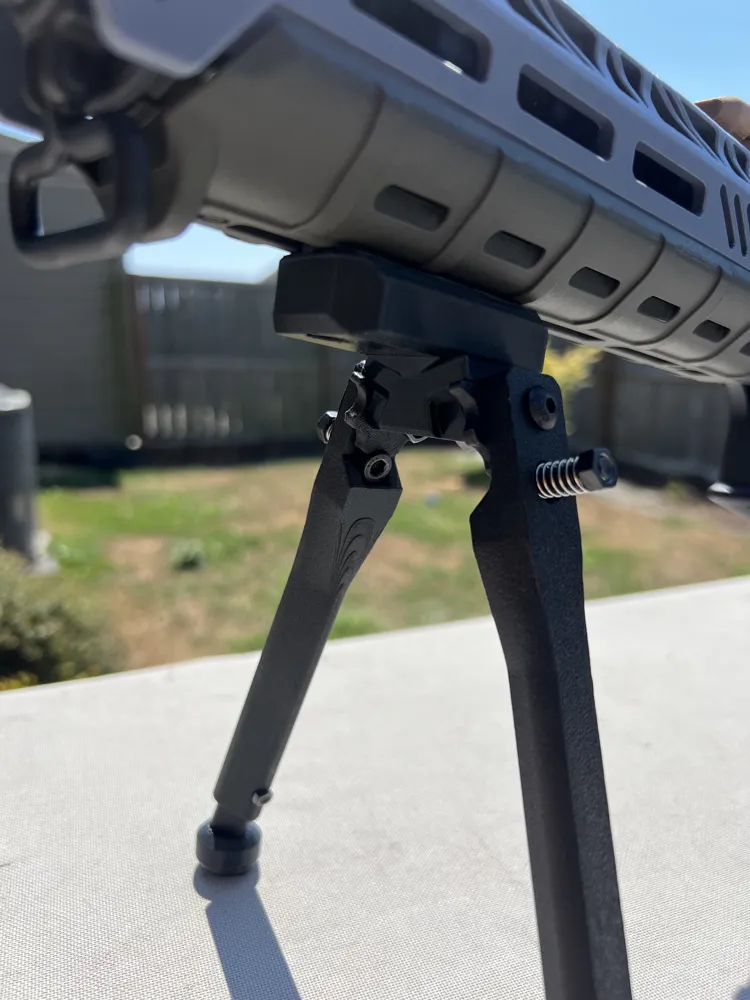

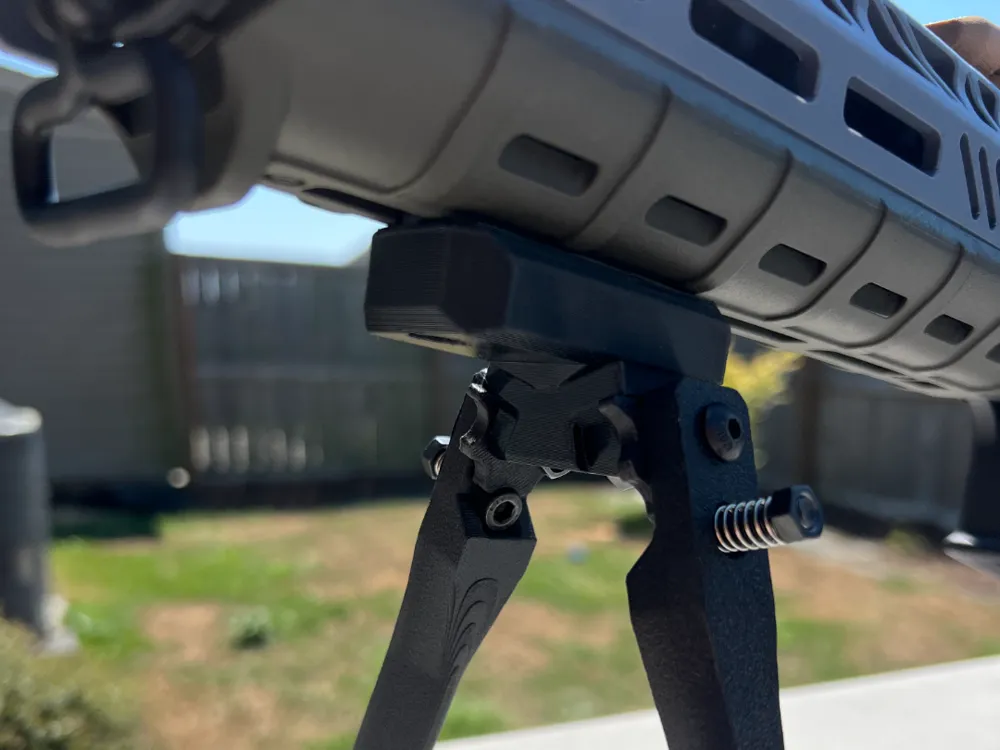

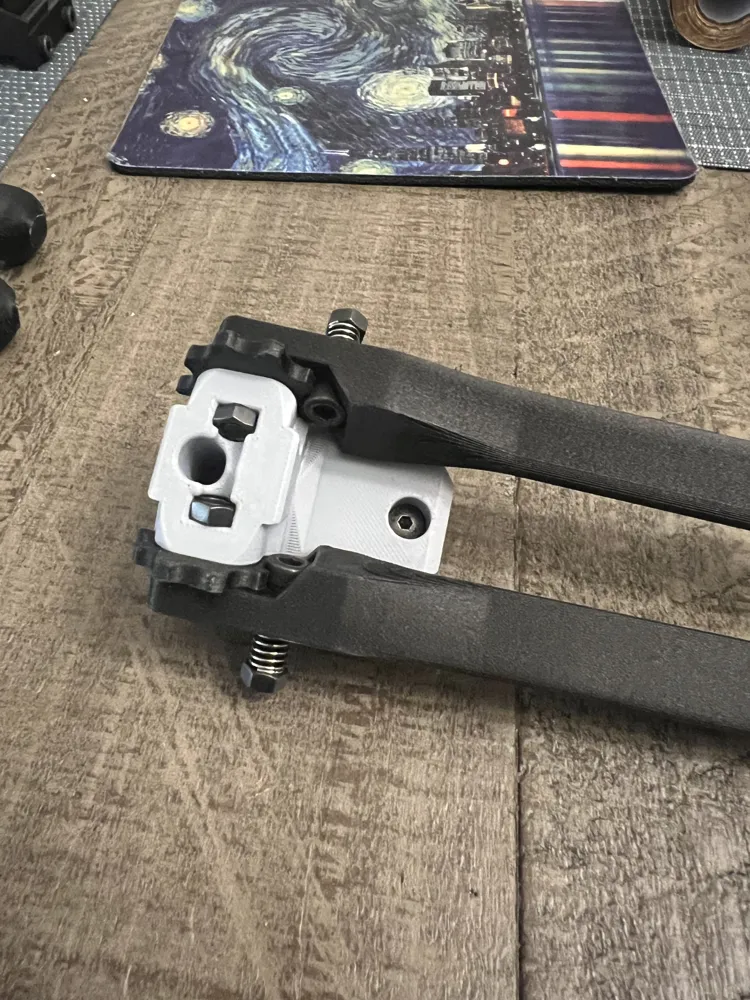

For best results, use Loctite thread locker on the two T-Nut screws and the two m5x20s that connect the legs to the base. This model also features updated tpu pads that flush with the ground when the bipod is deployed at 90 degrees. Enjoy!
See the original version here:
https://makerworld.com/en/models/1670598-adjustable-picatinny-bipod-1-0#profileId-1768691
Parts Required:
2 – MLOK T-Nut and screw
4 – M5x20 screw (2 of them MUST be socket head screws)
4 – M5 Hex Nuts
2 – M3x16 screw
2 – M3 Hex Nuts
2 – 0.7x7x15mm spring (or similar)
1 – Super Glue (Used to glue on TPU pads)
