A320 Brake Accu Press Indicator Gauge Mount (Desk + Winctrl Mount)

This file includes two different mounting solutions designed for my A320 Brake Accu Press Indicator Gauge (DeltaHC):

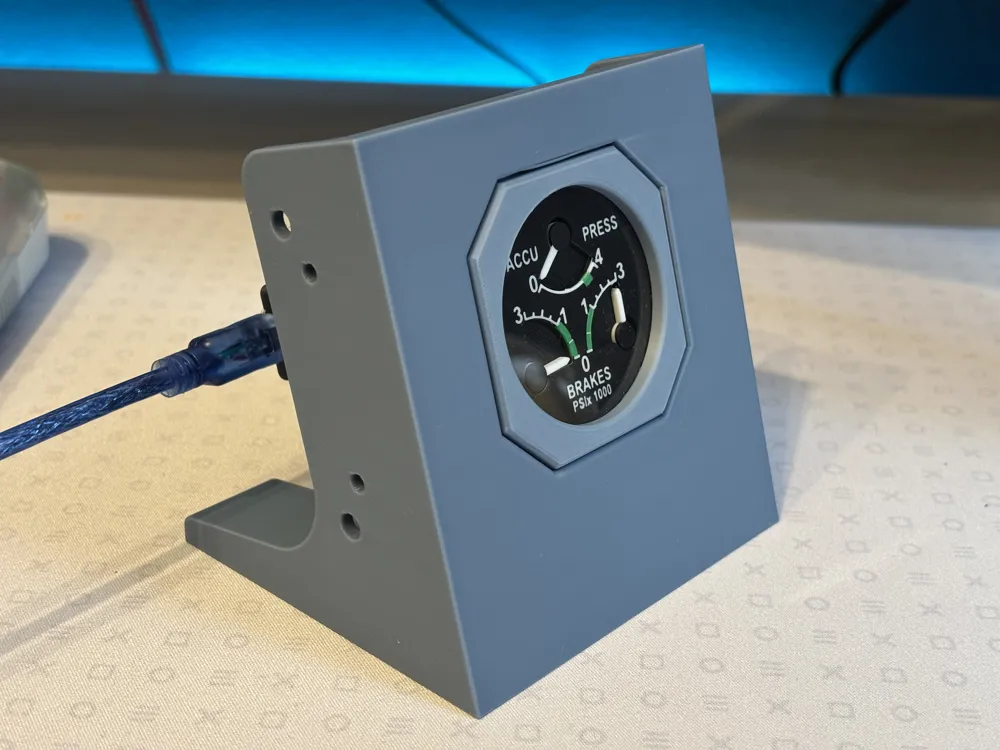

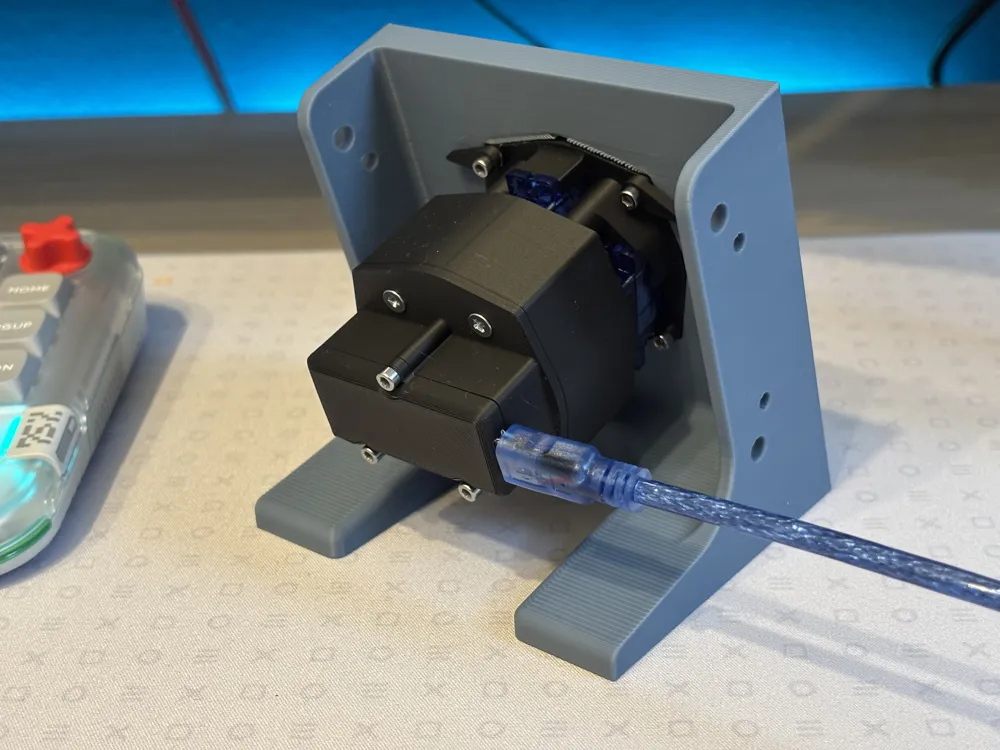

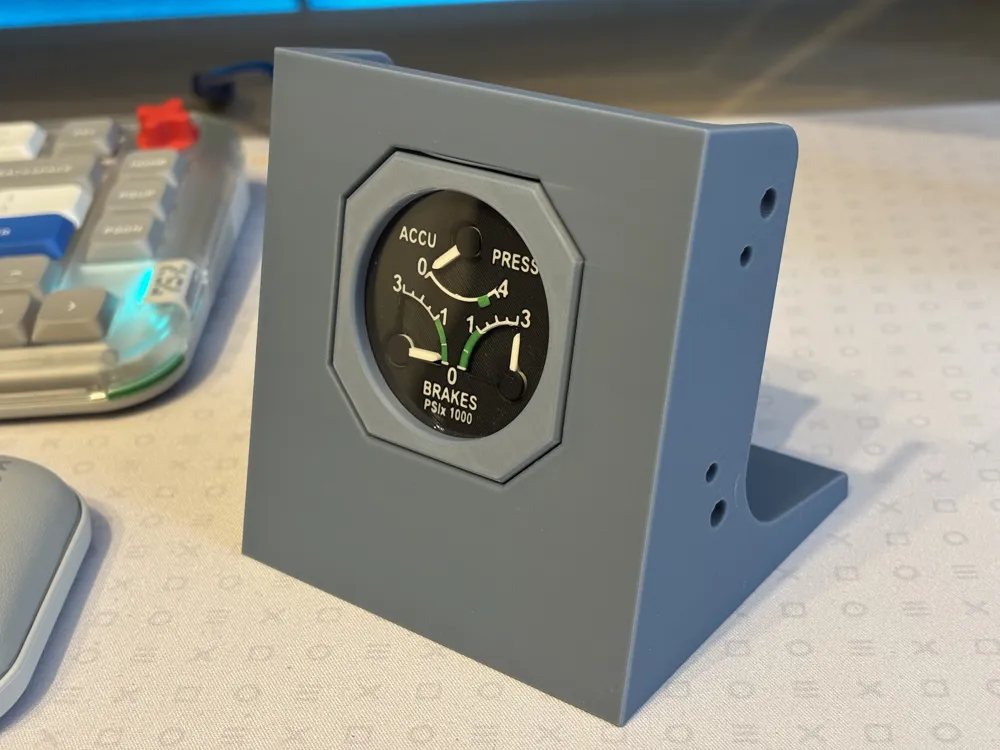

Desk Stand → a simple desktop mount, perfect for users without a home cockpit or MIP

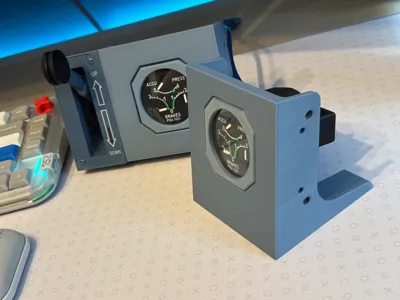

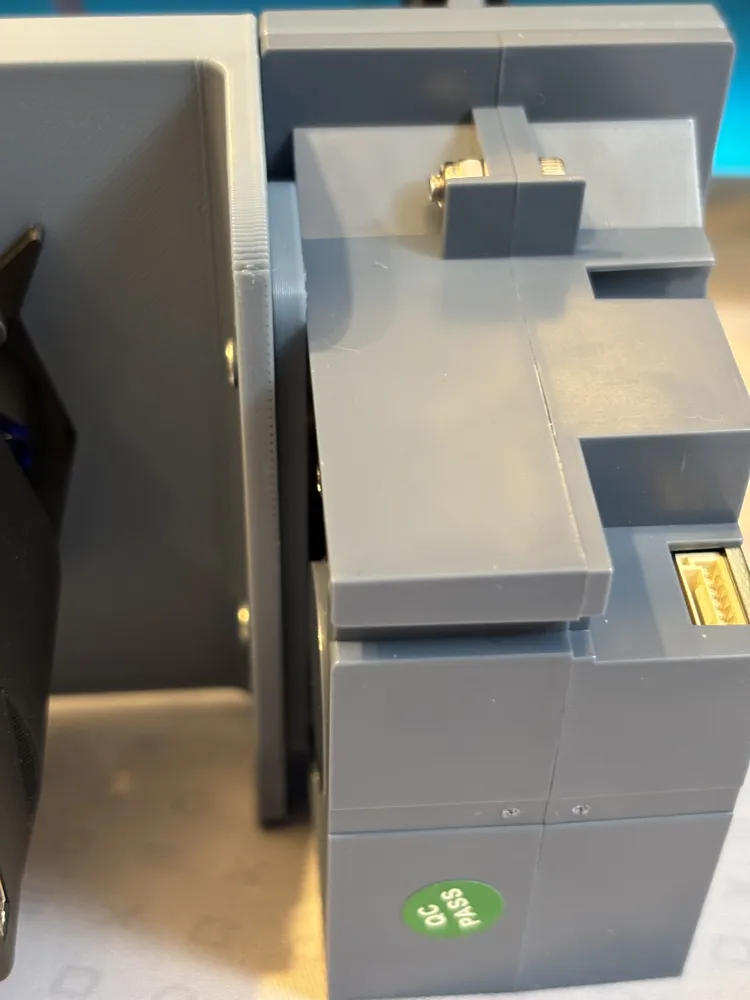

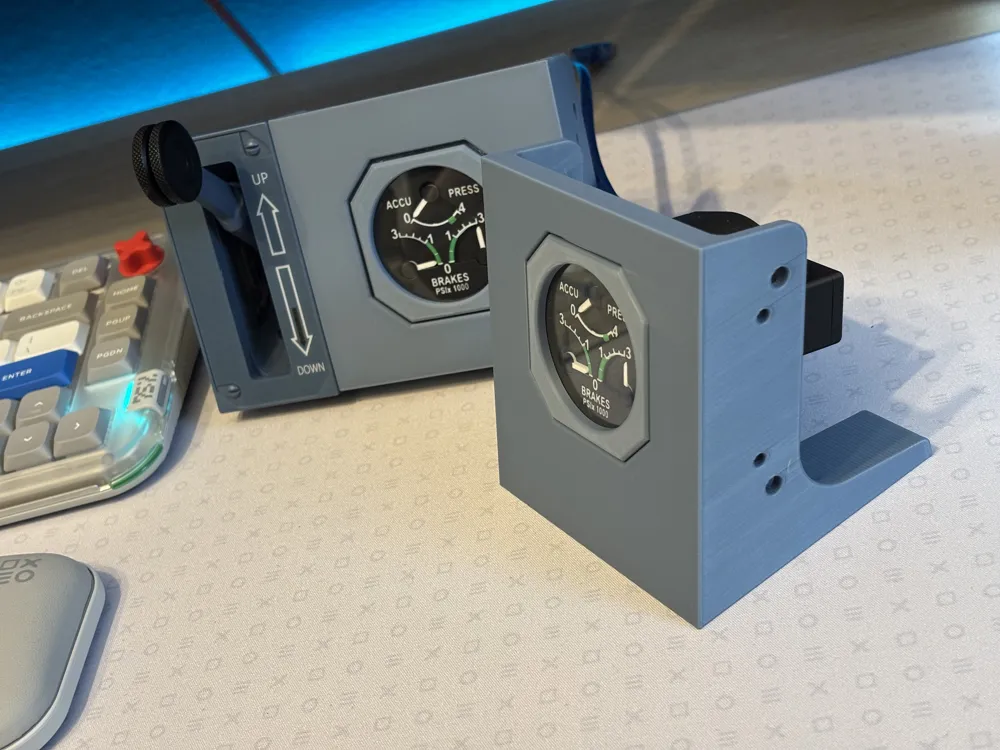

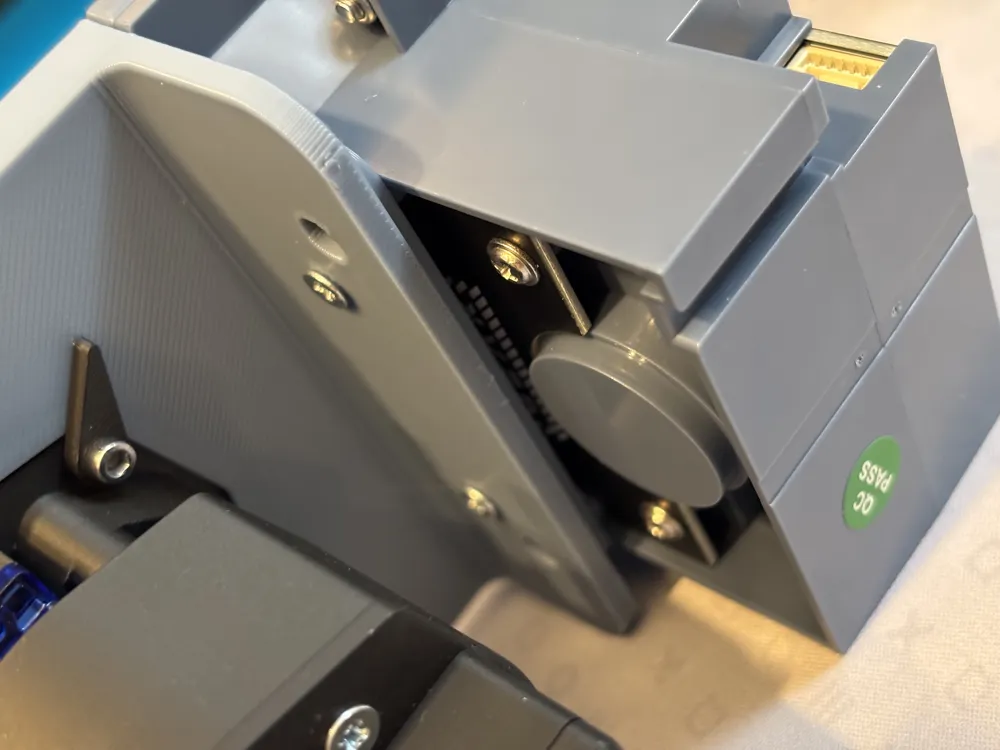

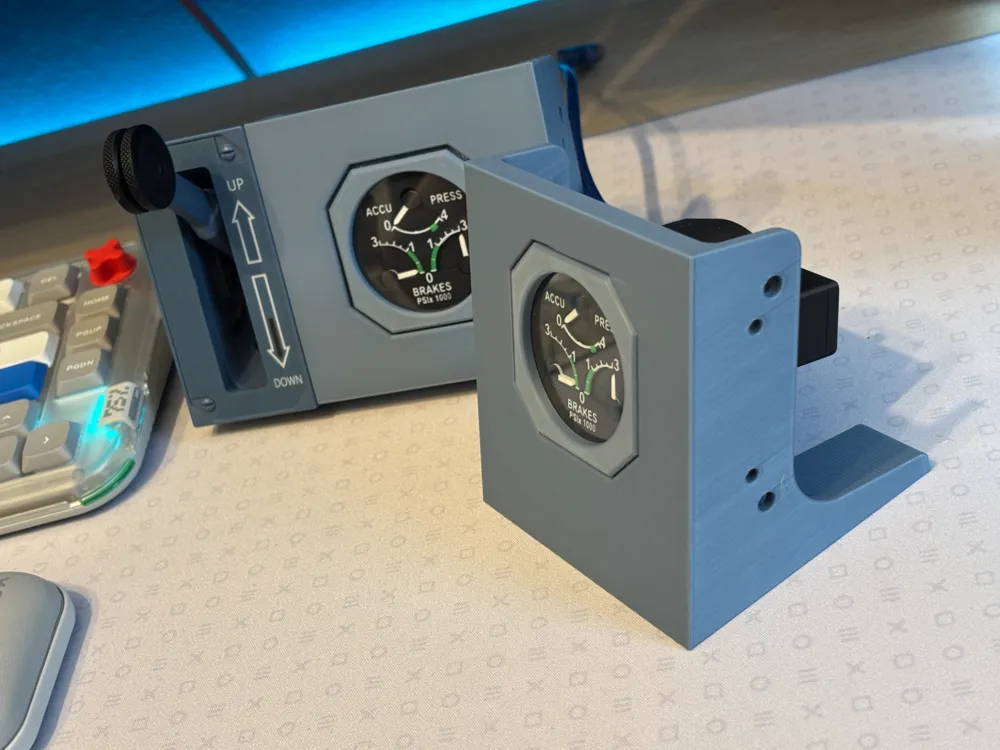

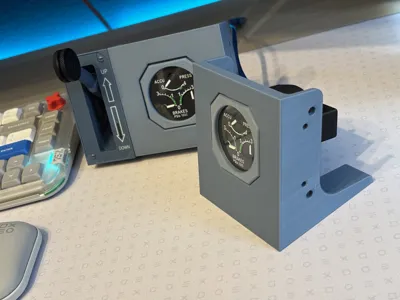

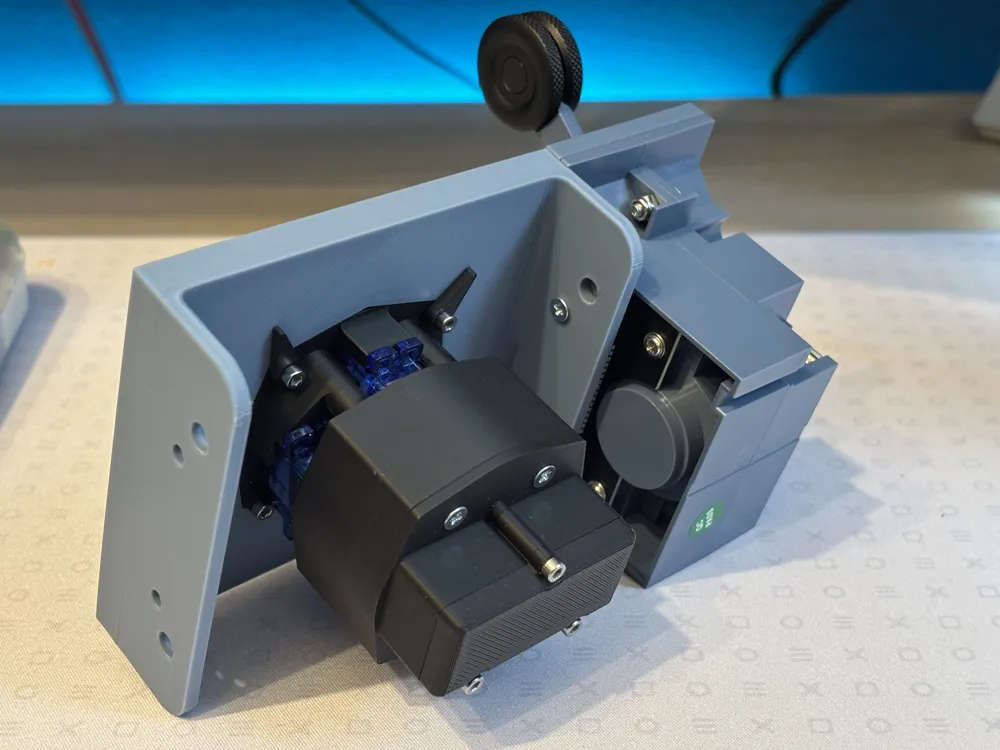

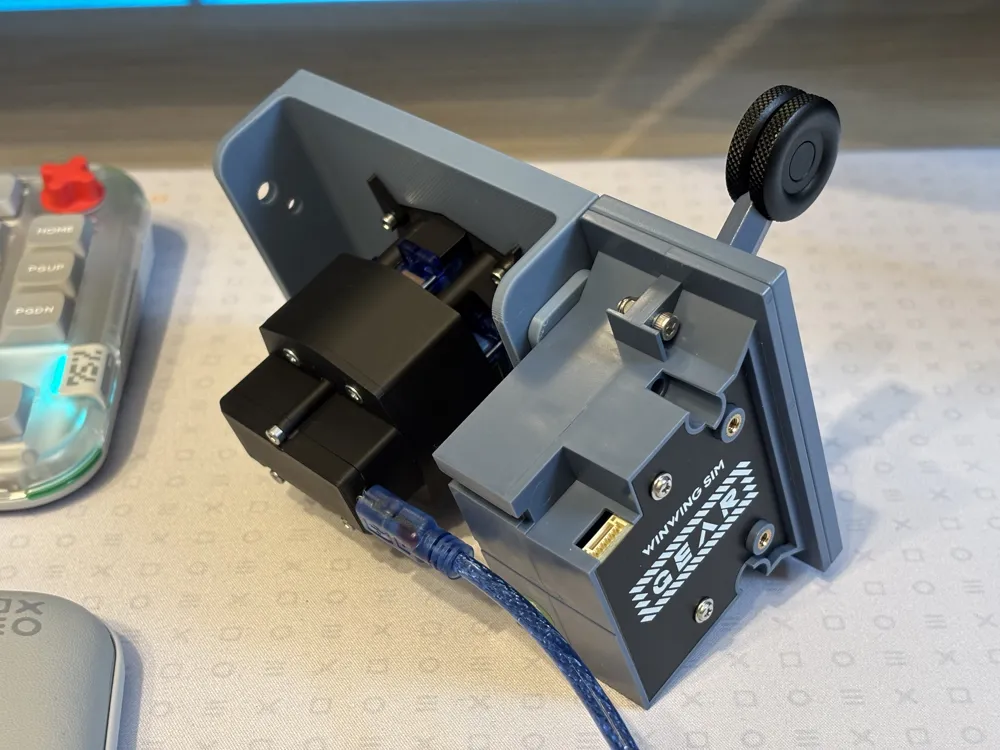

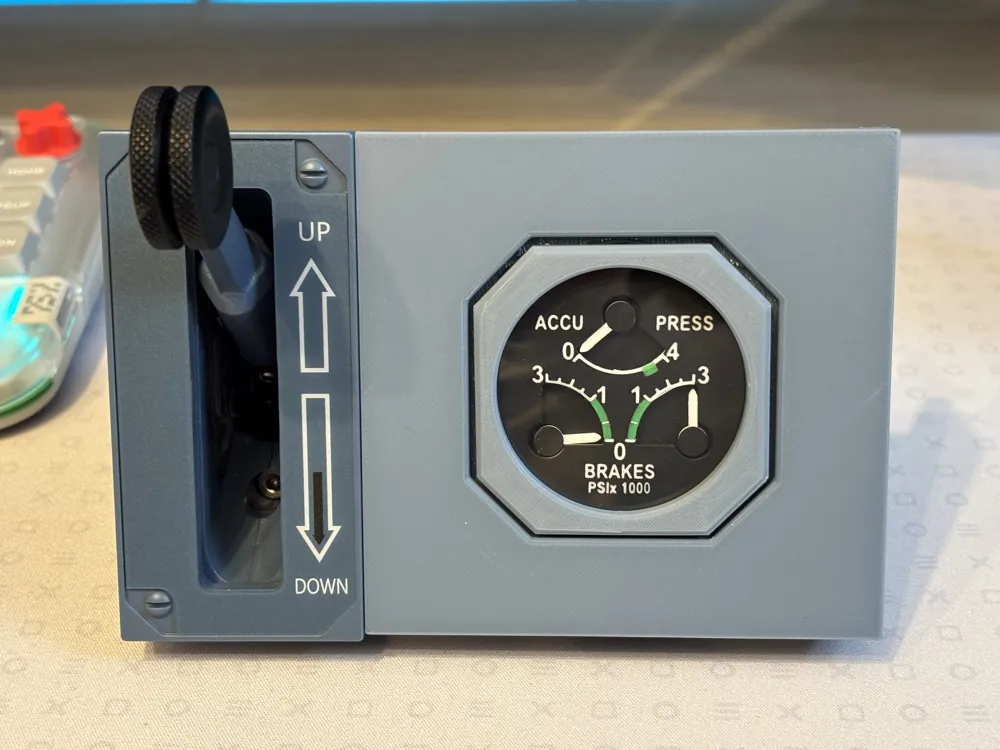

Winctrl Brake Lever Mount → designed to be mounted directly onto the Winctrl brake lever block

Both models are designed to provide a clean and stable way to mount the gauge, keeping a layout consistent with an Airbus-style setup.

Print Settings

Nozzle: 0.4 mm
Layer height: 0.2 mm

Notes

Both versions are included in the same file—just choose the one that best fits your setup.

Interested in the gauge?

The Brake Accu Press Indicator Gauge is my own project (DeltaHC).
If you're interested and want more infos, feel free to leave a comment below—I’ll reach out to you privately 😊
