Dyson V8 Motor High-Power Fan_Worx Big Foot Battery Handle and Battery Compartment
Print Profile(1)
Description
This project is a MOD for the Dyson V8 Motor High-Power Fan, it only includes the handle and Worx Big Foot battery connector, for other parts, please refer to the original author:

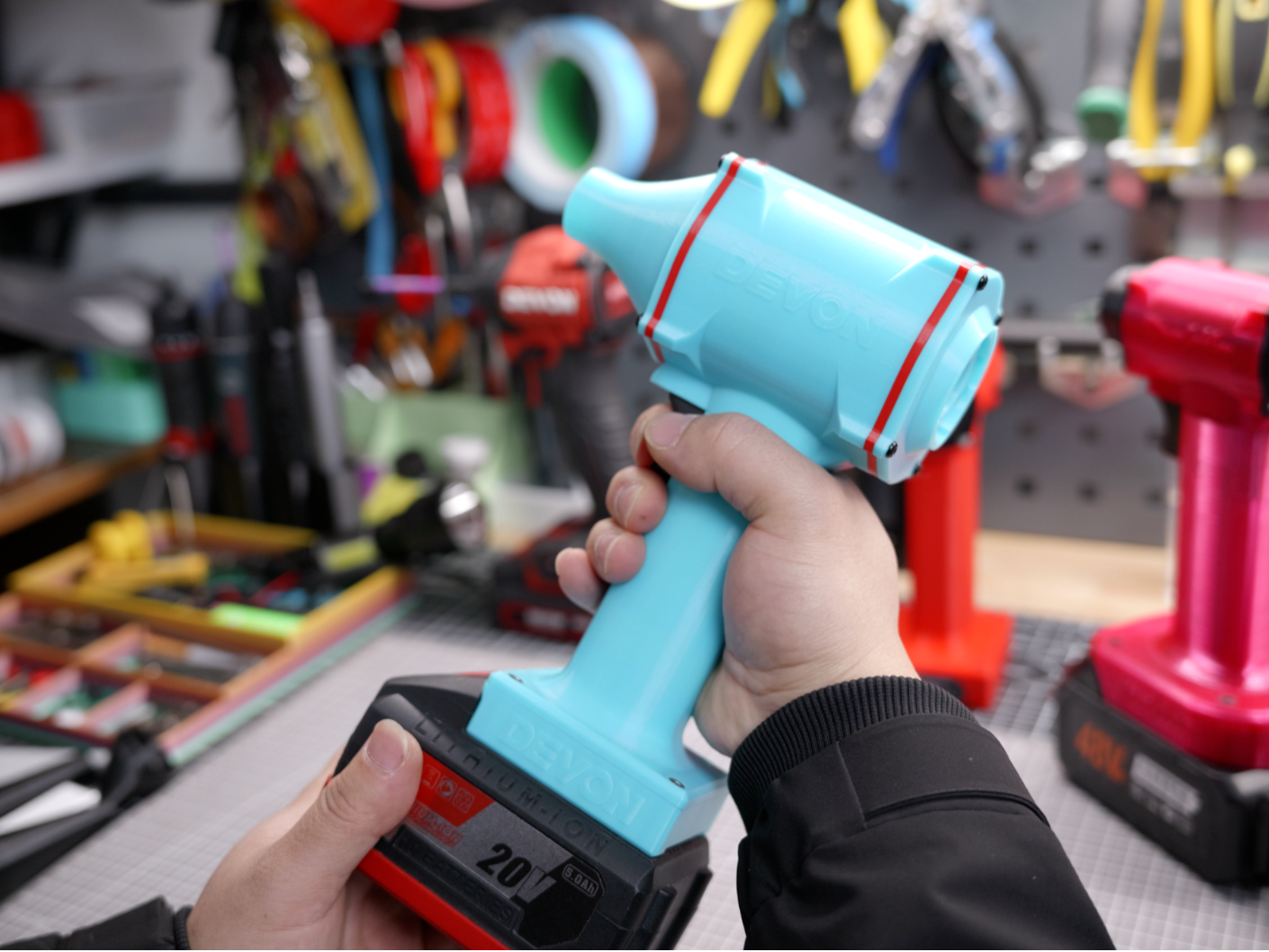

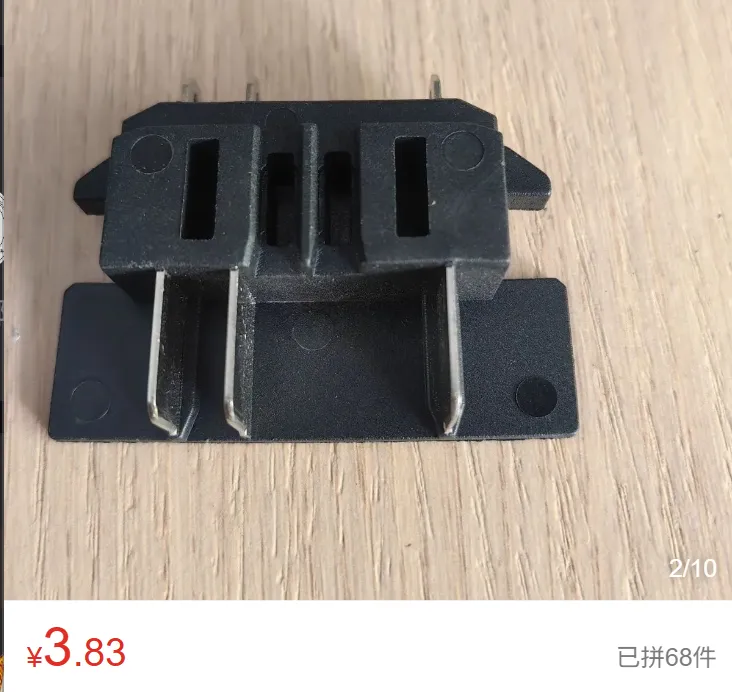

Worx Big Foot battery connector, can be bought from PDD

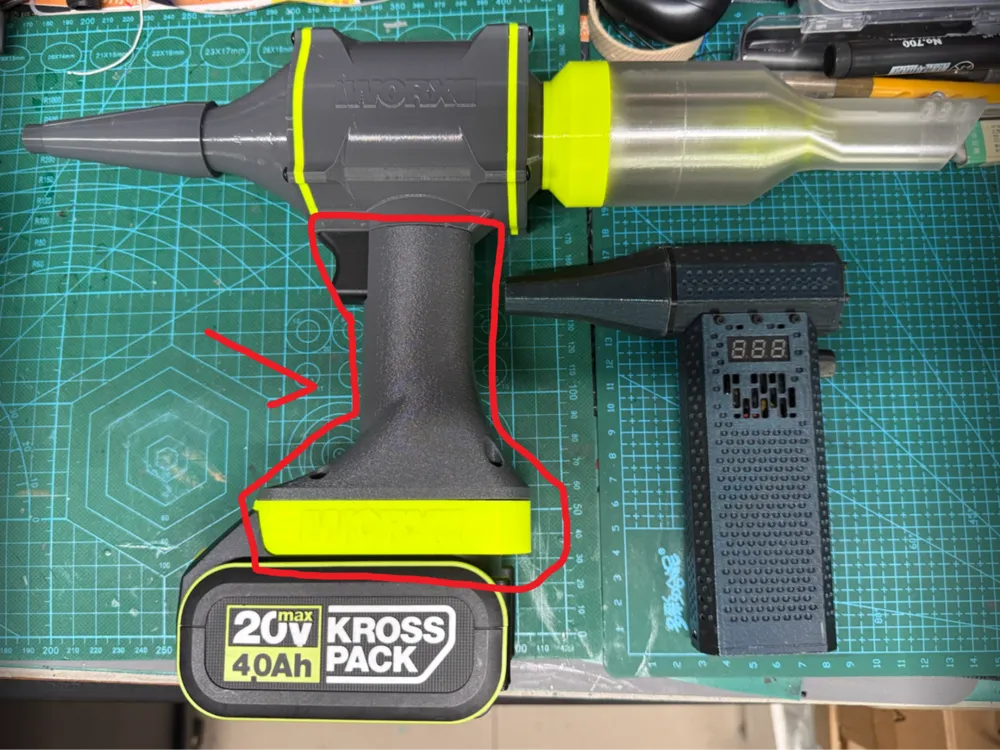

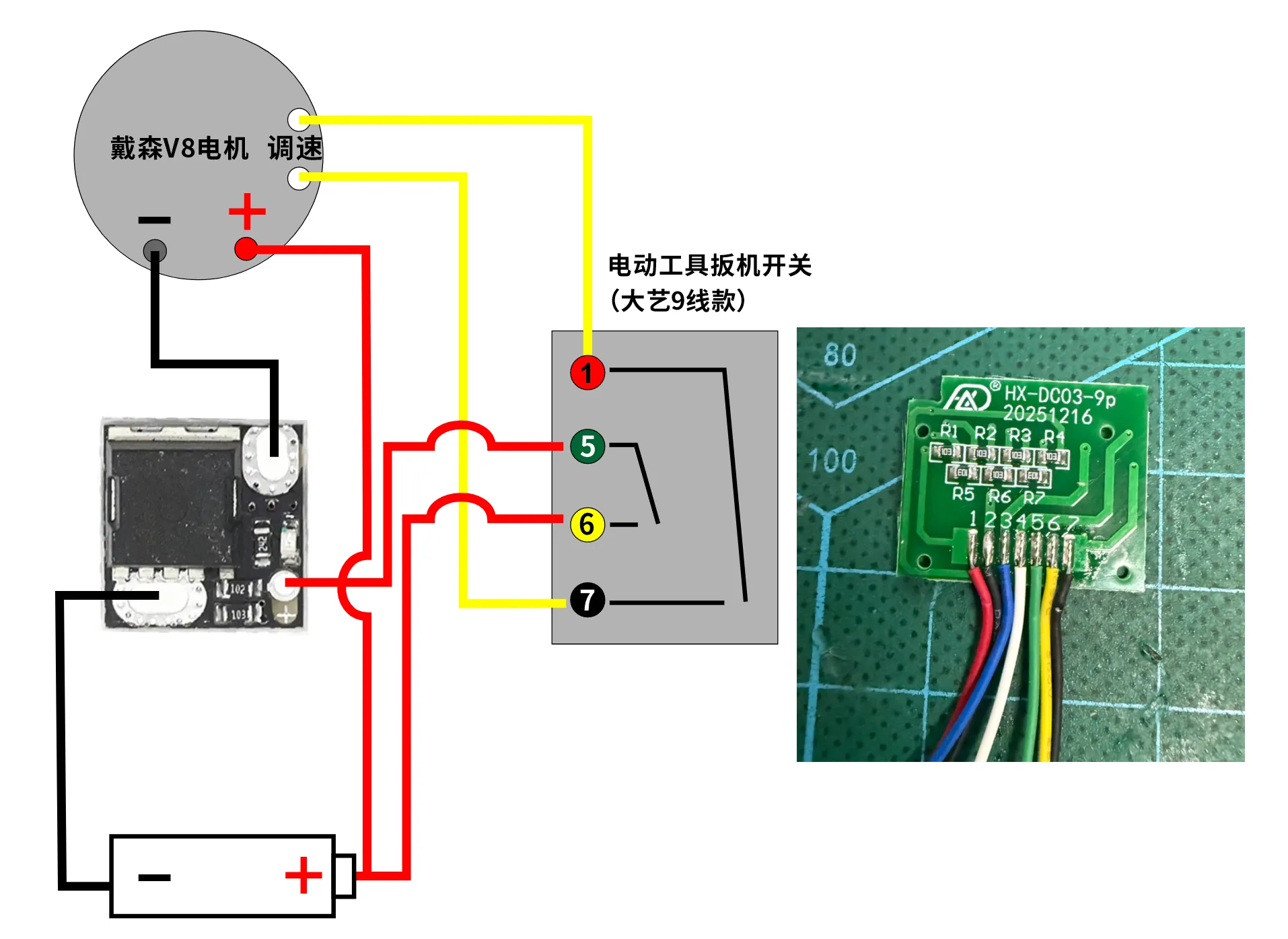

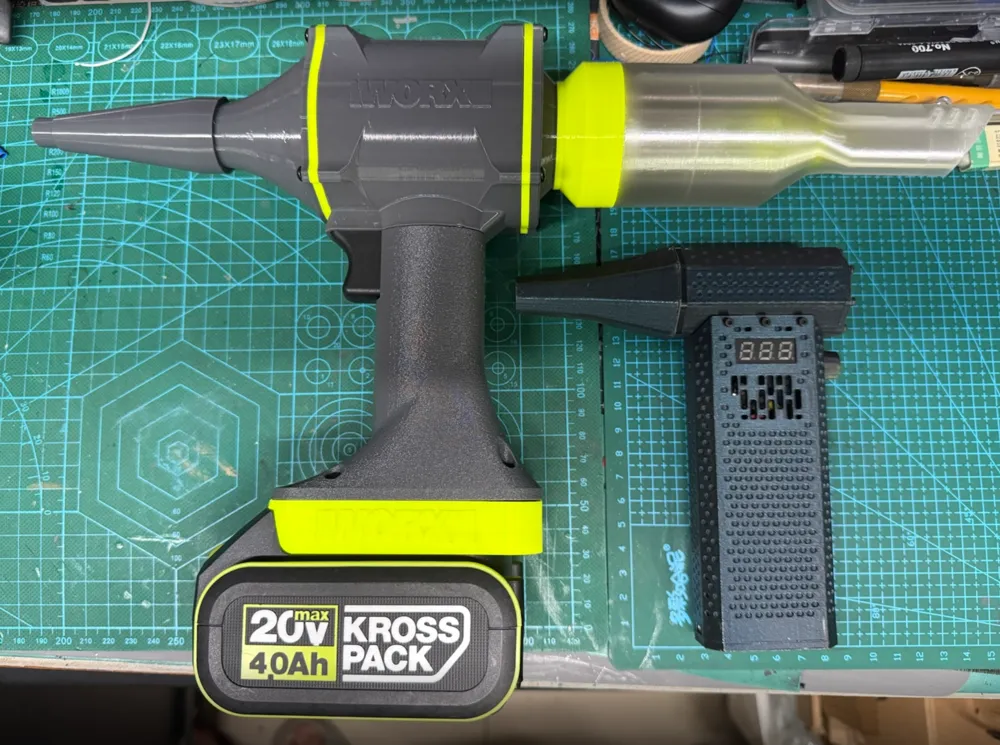

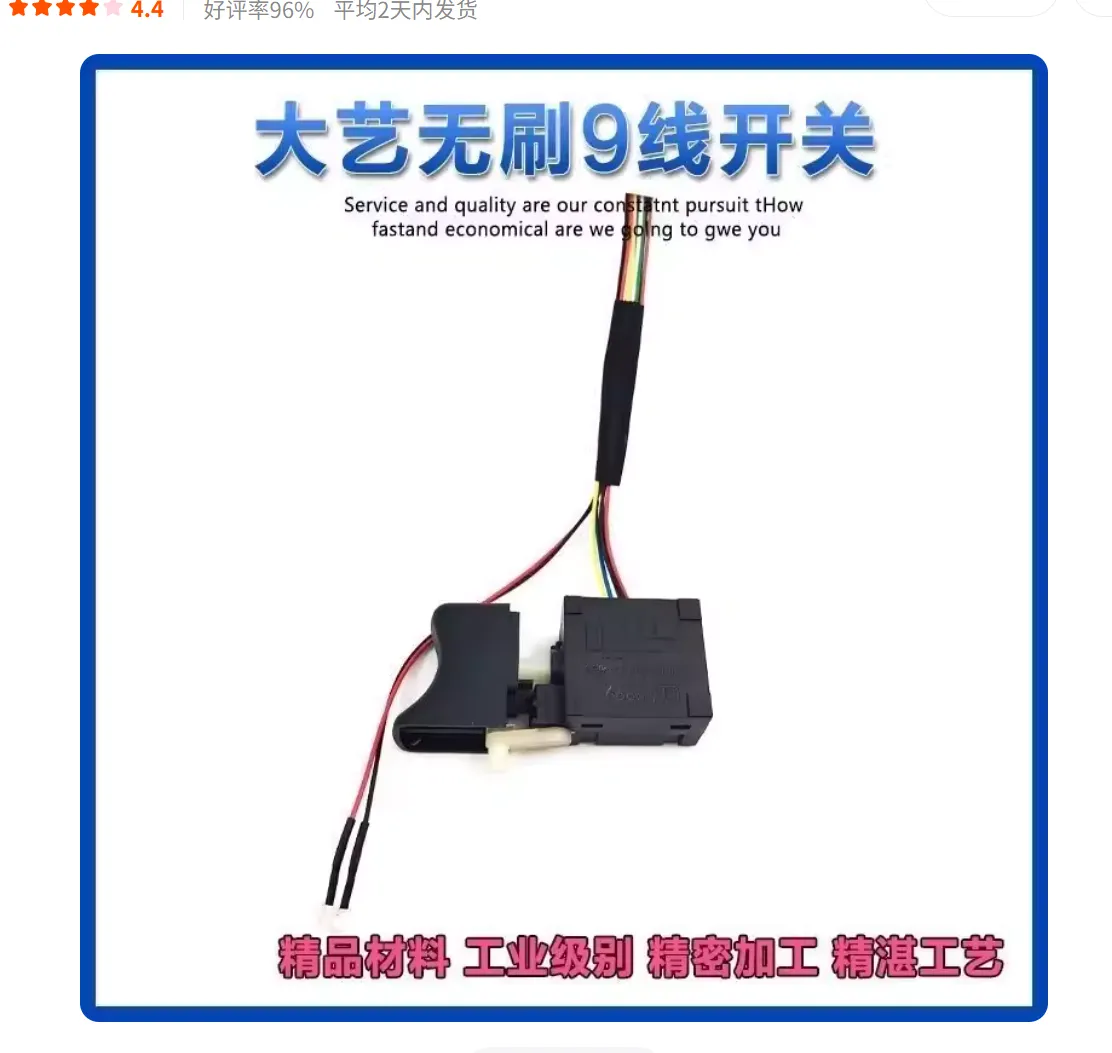

2. I used this electric wrench switch, the interface wire color arrangement is: 1. Red/2. Black/3. Blue/4. White/5. Green/6. Yellow/7. Black/ (Red/Black LED, not needed),
1 Red and 7 Black connect to the motor's speed control wire (polarity not differentiated)
5 Green and 6 Yellow connect to the MOS switch
All other wires can be cut off
This remix is based on
