Medal Display W/Locking Lanyard Roller
Print Profile(1)
Description
Show off your favorite medal with this unique hexagon-shaped medal display, designed to neatly present the medal while cleanly managing the lanyard. This display uses a 3-piece design that allows the lanyard to be rolled up and tensioned for a clean, professional look.

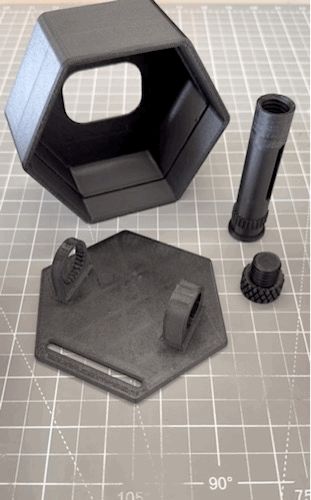

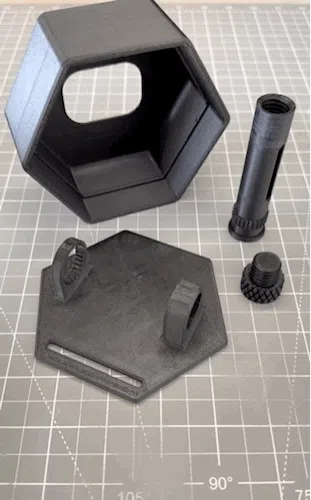

The assembly includes a roller, a face plate, and a hexagonal housing. The medal lanyard feeds through a slit in the top of the face plate, wraps around the roller, and can be tightened by rotating the roller from the back. The roller features an integrated locking system: it slides to disengage the teeth for adjustment, then slides back to lock into place and hold the lanyard where you want it.

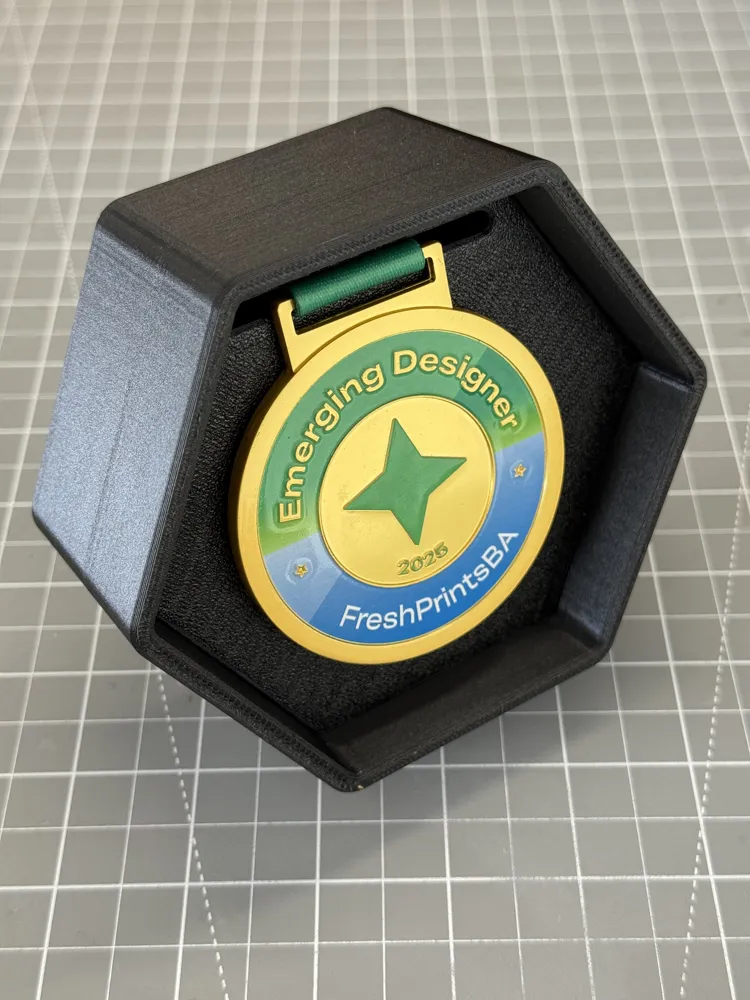

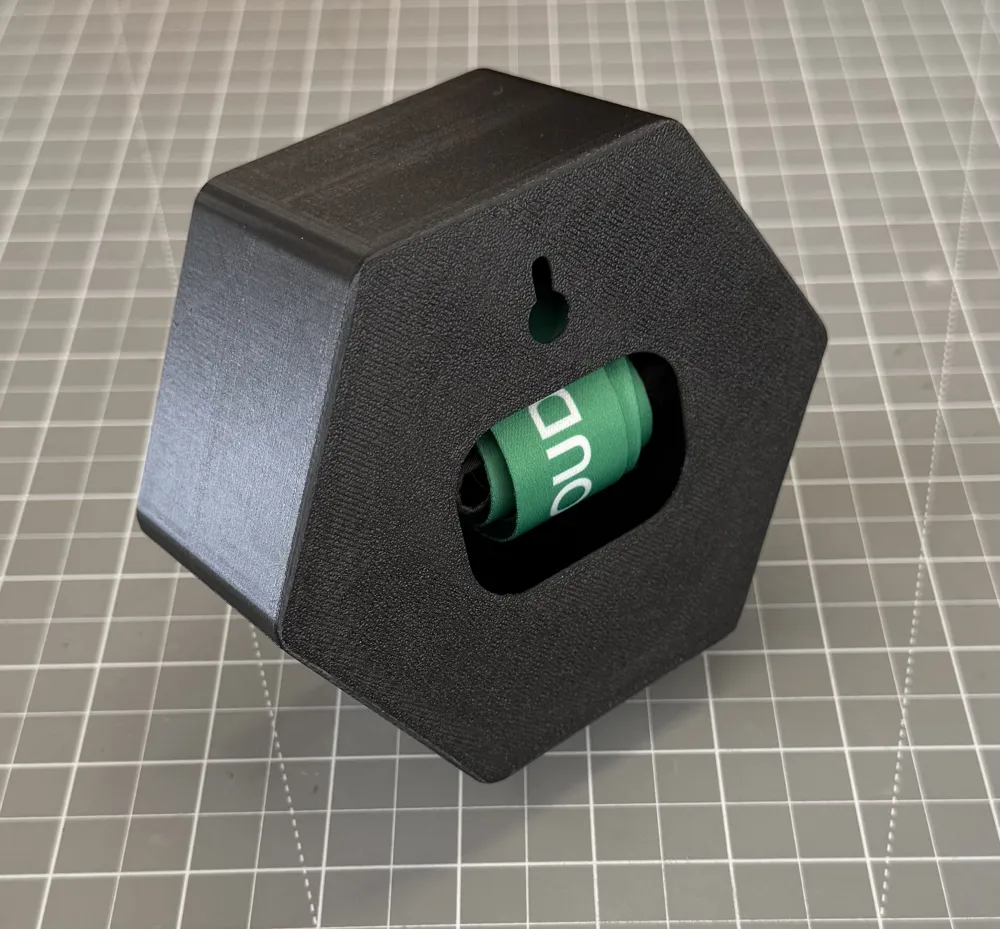

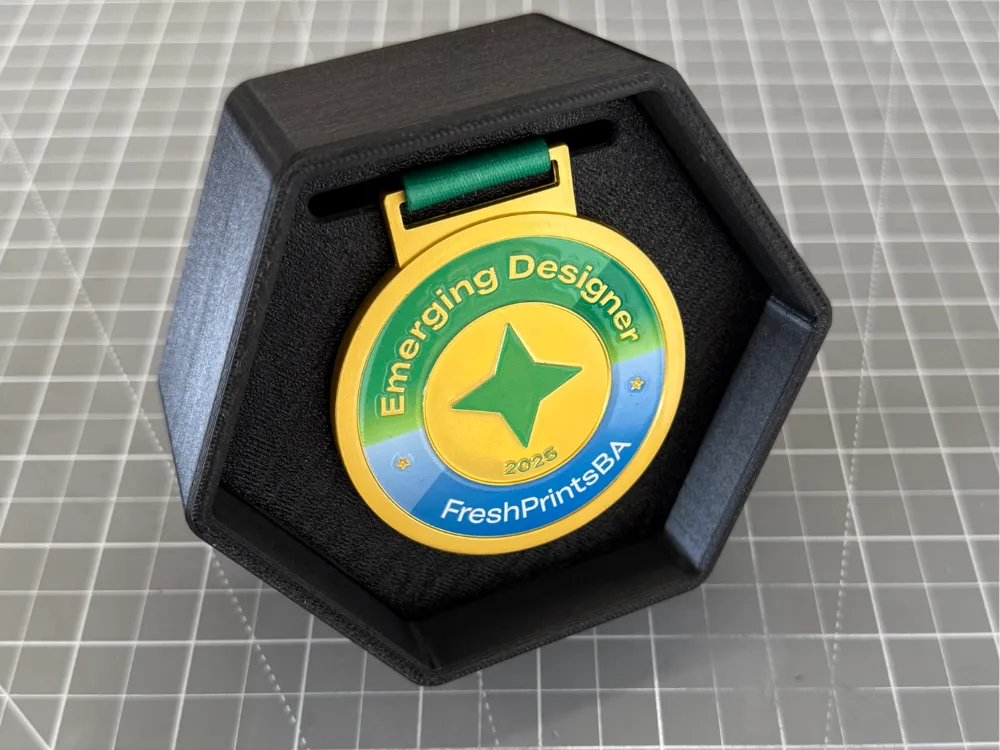

Once the medal is mounted, the face plate slides into the hexagonal display housing and rests securely on an internal ledge. The housing can be hung on a wall using the rear keyhole slot or displayed on a shelf. A rear access hole also makes it easy to push the insert back out whenever you want to swap medals.
Designed to accommodate medals up to 75 mm in diameter. The model can be uniformly scaled to fit larger medals if needed (scale all parts equally for proper fit).
Print Notes
Supports - None
Layer Height - 0.16mm for threads all other areas 0.2mm
