AXS Pod Magura Shiftmix Mount
Print Profile(1)
Description

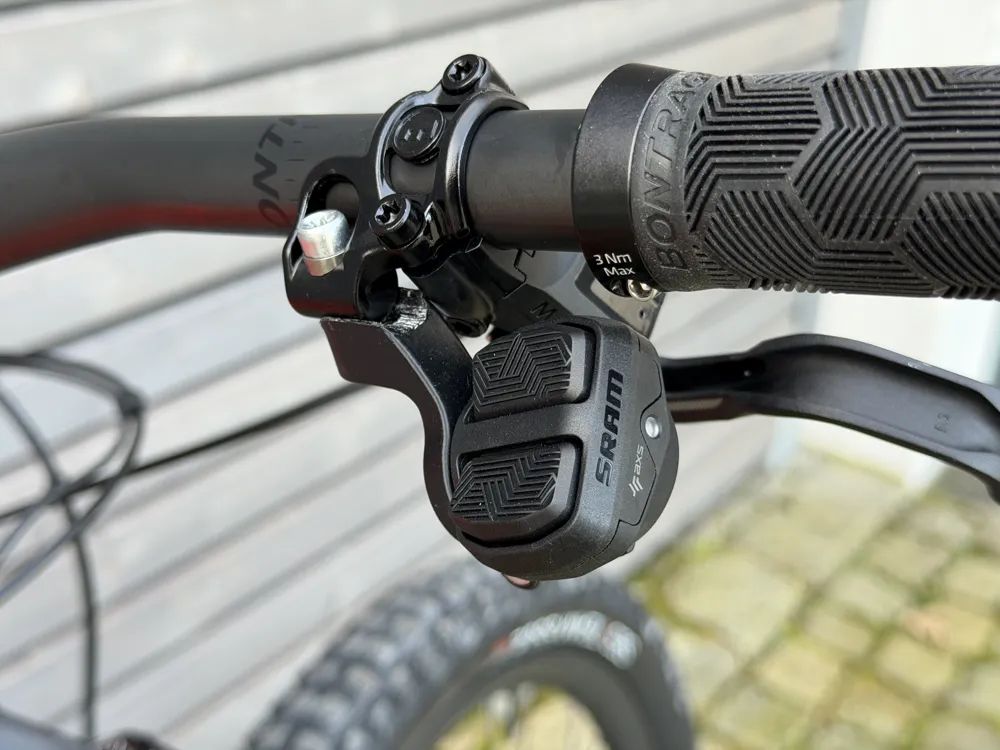

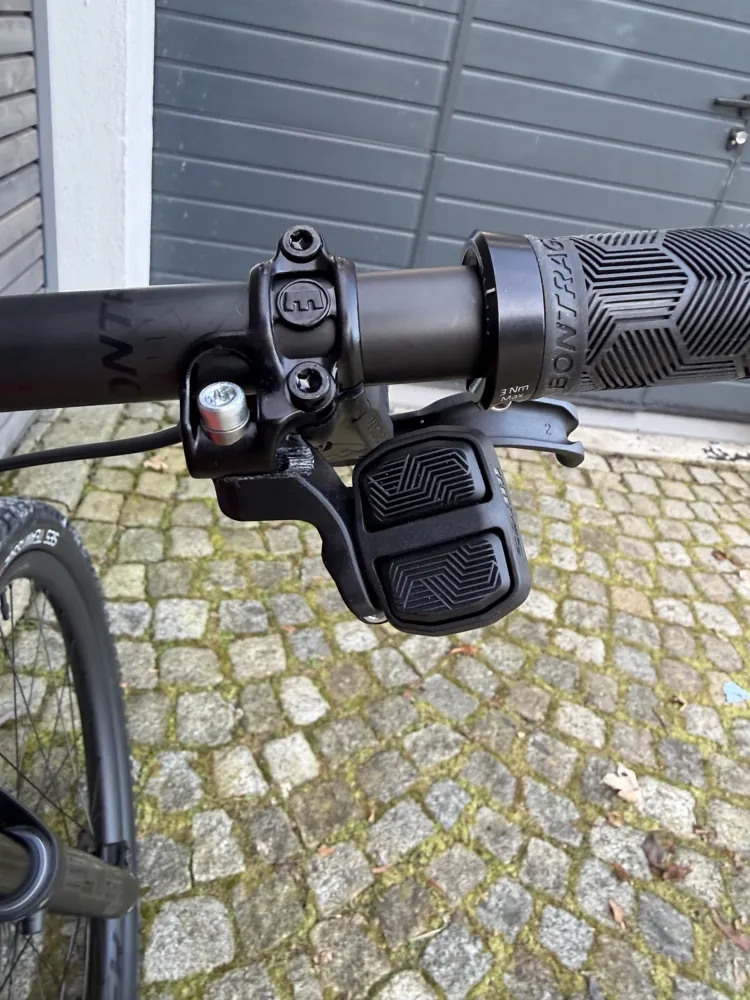

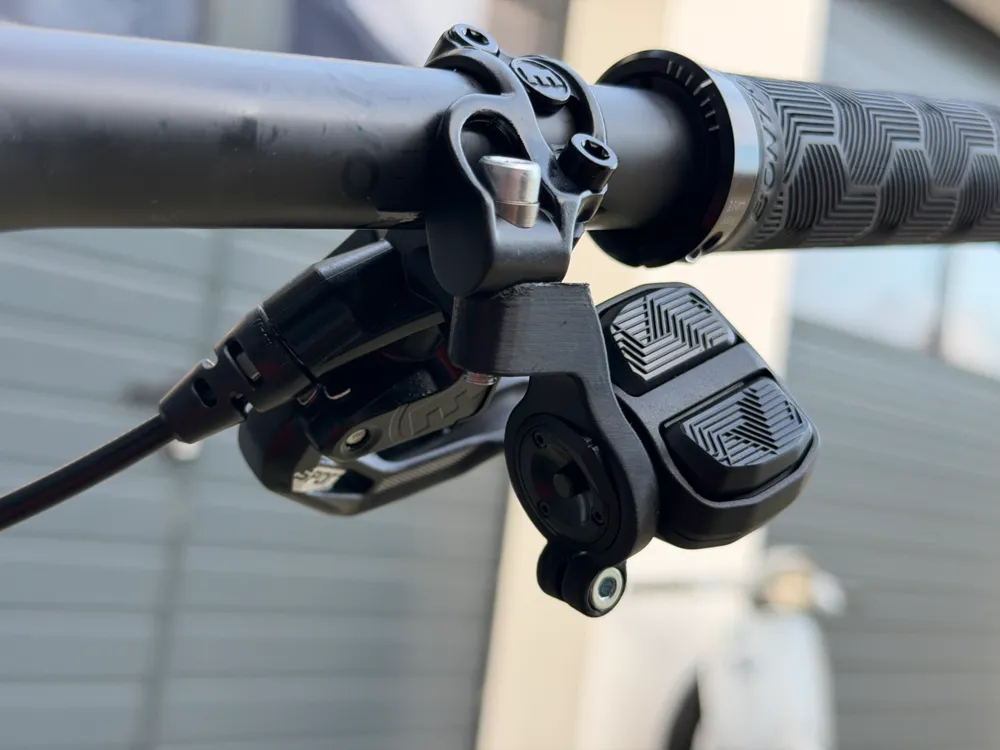

Since there was no solution to attach the AXS-Pod to a Magura, I designed a mount.
For the Magura Shiftmix clamp for SRAM (Shiftmix 3), you remove the small adapter plate and screw the adapter directly with the included screw. The curvature allows you to adjust the tilt to a certain extent.
To clamp the pod, you will also need an M4x12 hex screw and a suitable nut.
I designed two different lengths, you have to try what fits.
The longer one naturally flexes a bit more.
I first printed the sample in PETG, later in PETG-CF.
