Imperial Drill Bit Trays - 32-Piece - Gridfinity
Print Profile(2)
Description
Boost Me (for free)
If you liked this model please consider boosting it. I welcome modification ideas to make it better than it already is.

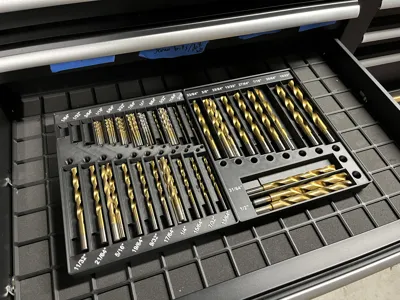

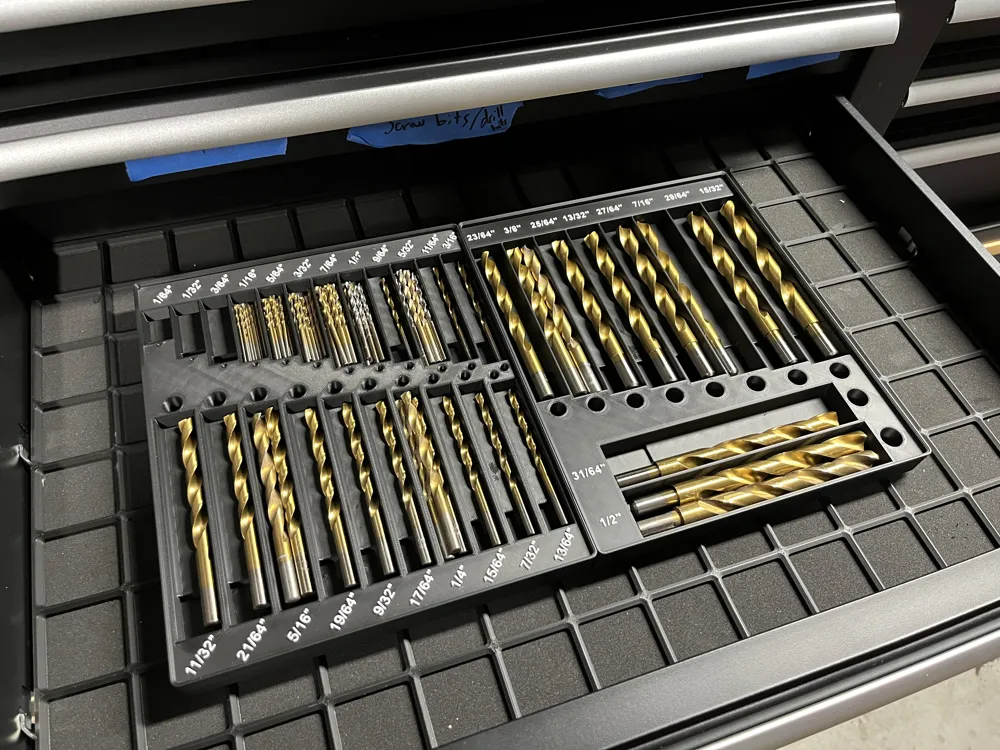

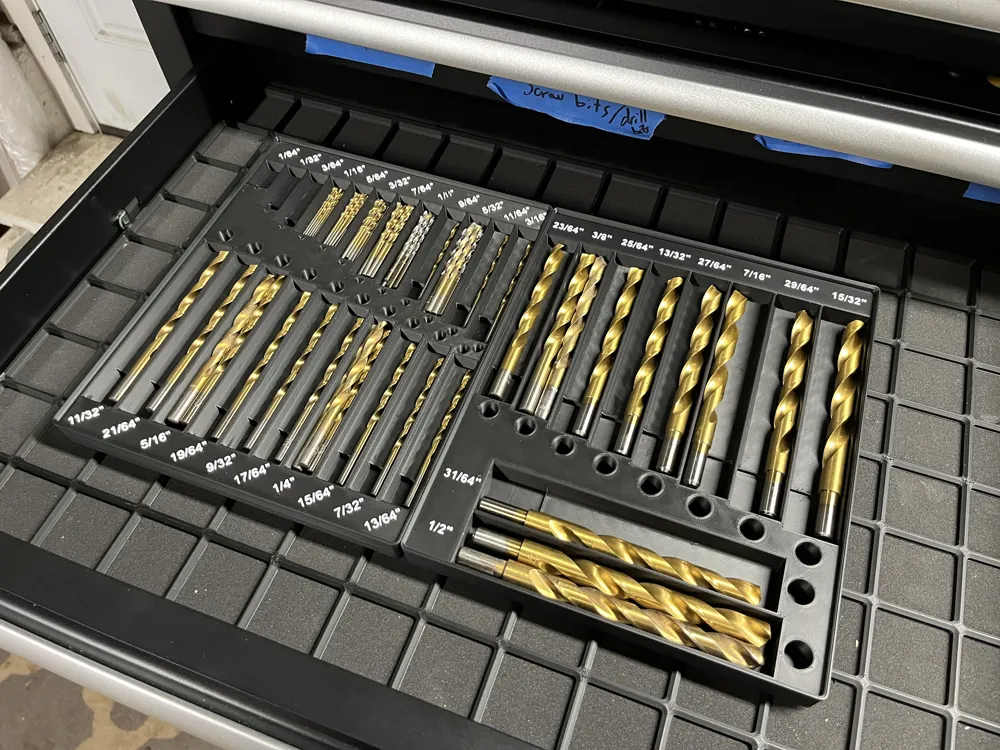

5x6x3u (WxLxH) (standard 42mm grid and 7mm height units). Shorter so you can stack and still fit in most standard tool chest drawers.
Compartments are designed to Jobber bit lengths with clearance.

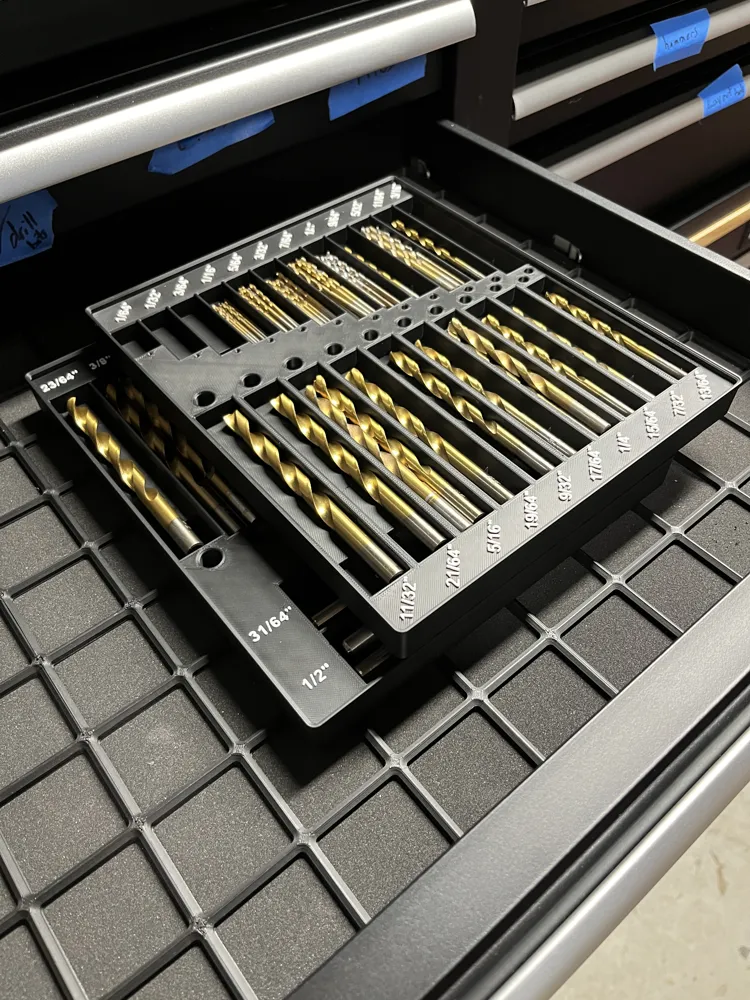

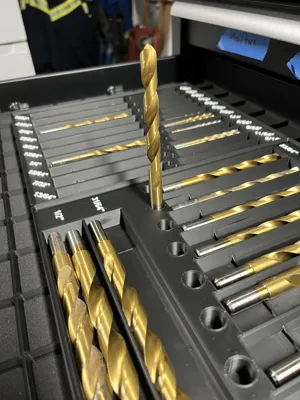

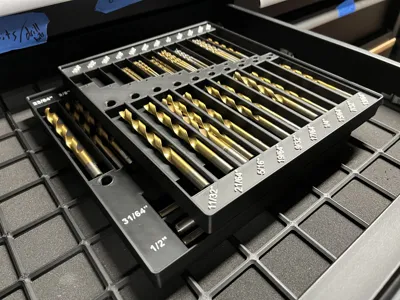

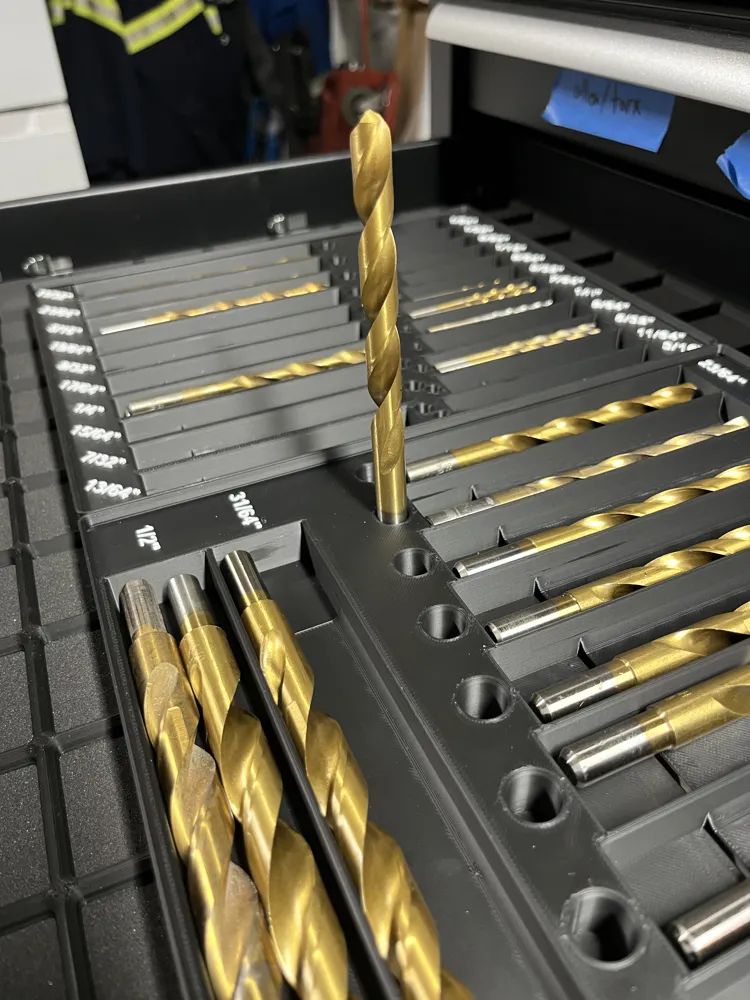

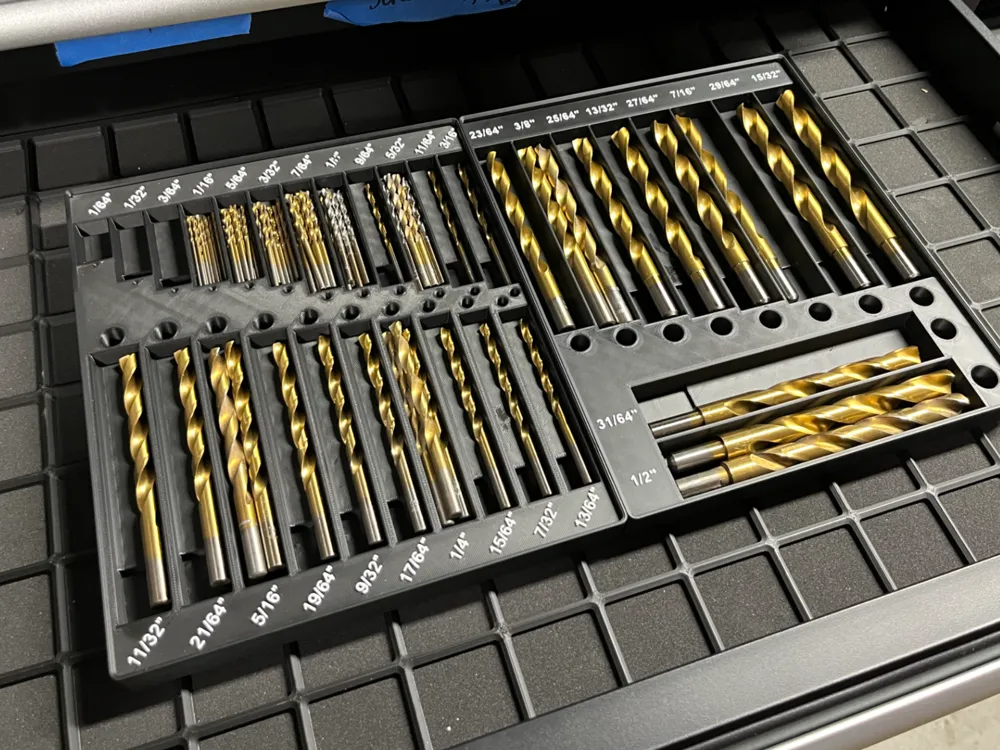

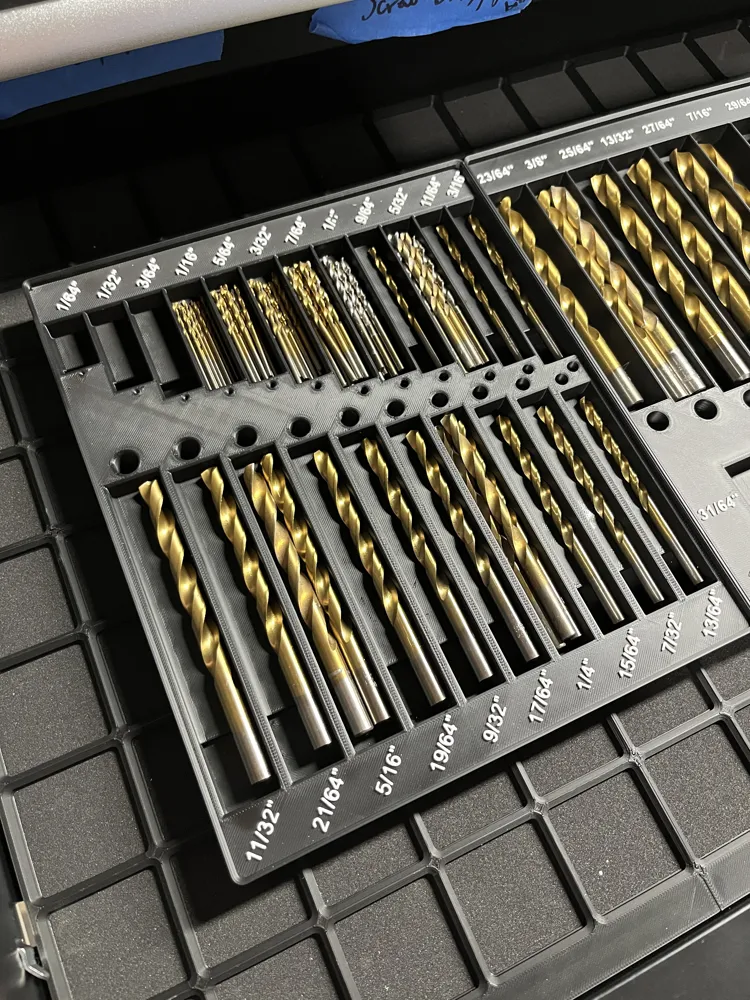

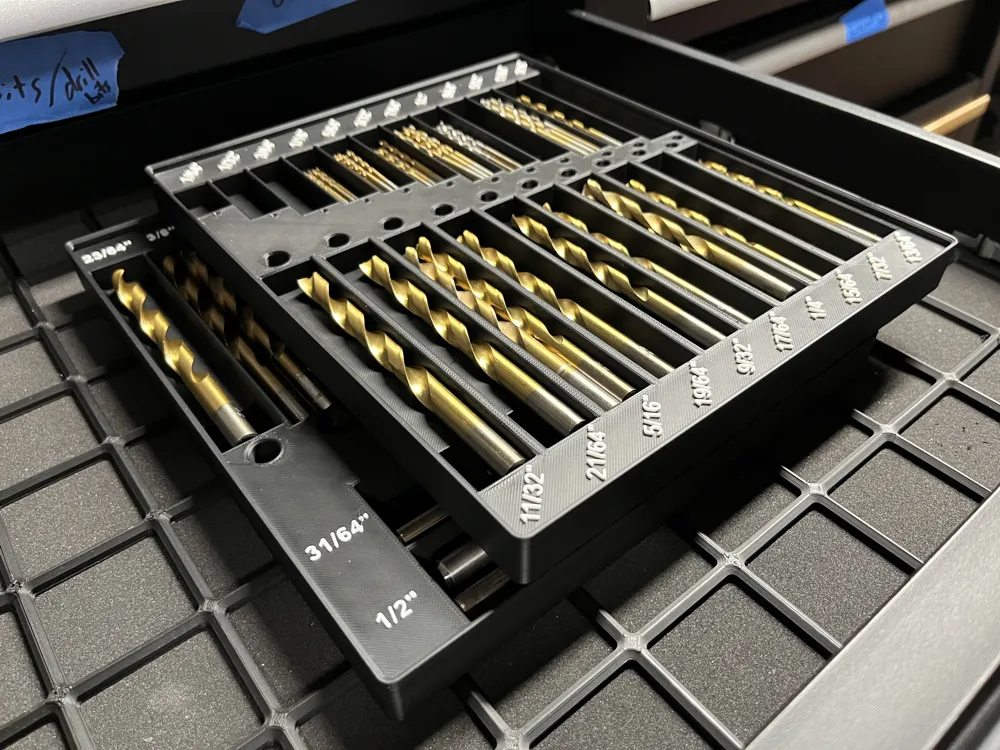

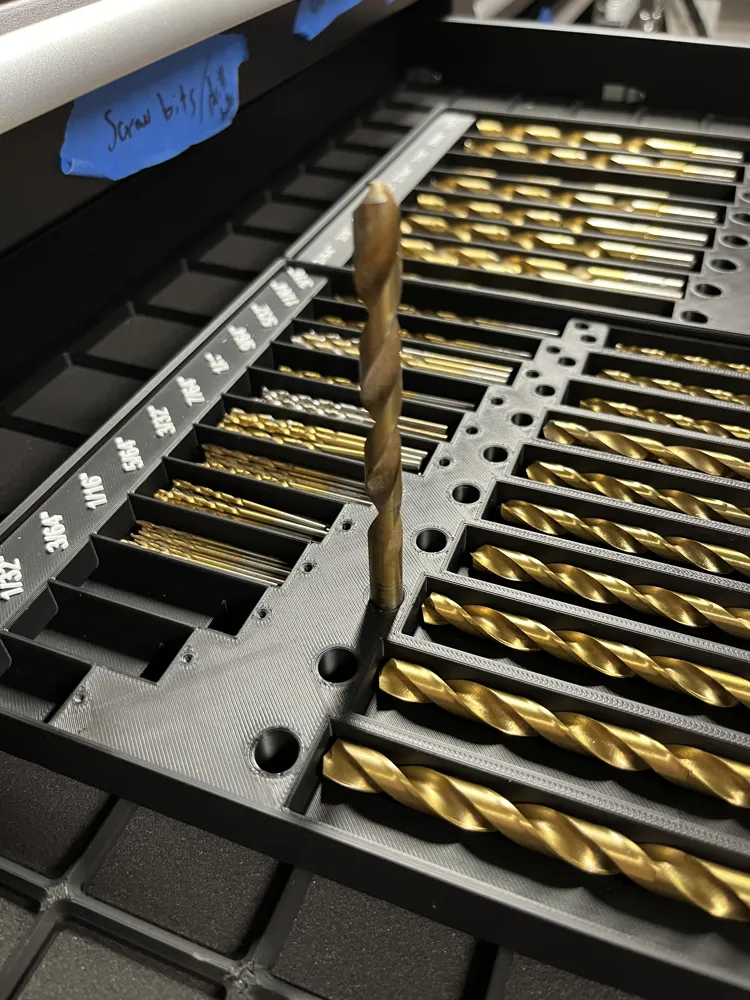

Trays house a total of 32 sizes with incorporated bit sizing holes so you return the bit to the right compartment. The tray is stackable too!
Each compartment has a recessed area to help lift drill bits from the tray.
Half grid base (21mm)
Printed with 0.4mm nozzle to keep text clean.

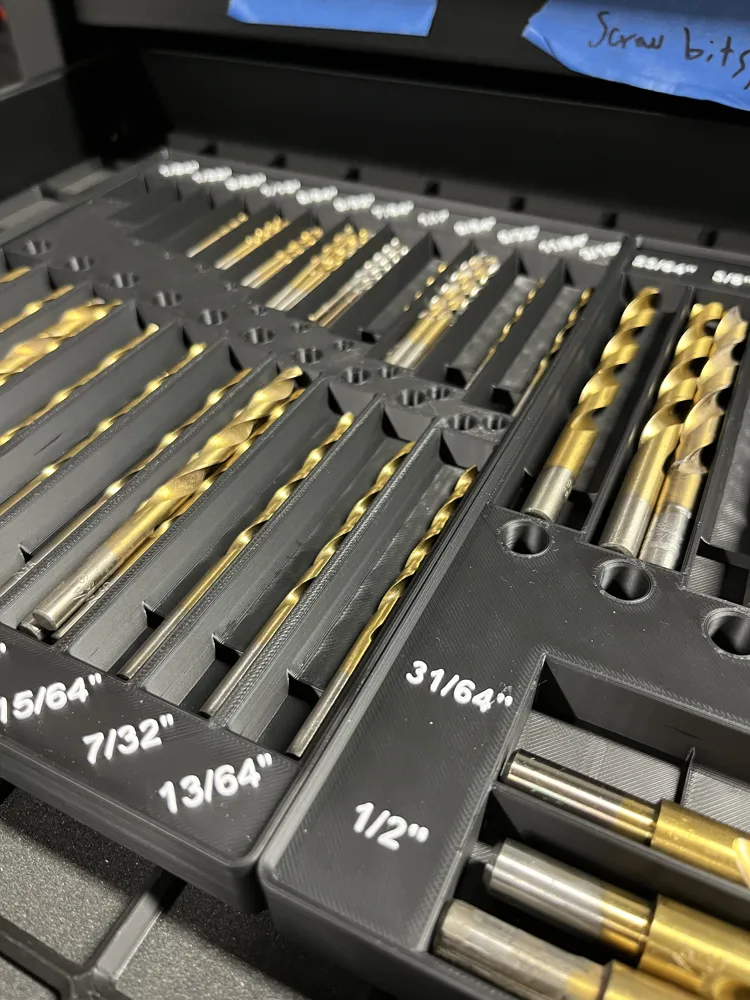

1/64, 1/32, 3/64, 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2"
