Description

UPDATE: V1.5 As per some comments, I made a small modification to the outer frame to slightly squeeze the end and help prevent any rattling.

Please let me know if it works! If you find it too tight, you can always use V1.4 — the 3D file is still included in the project files.

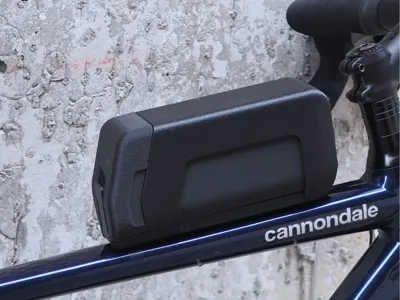

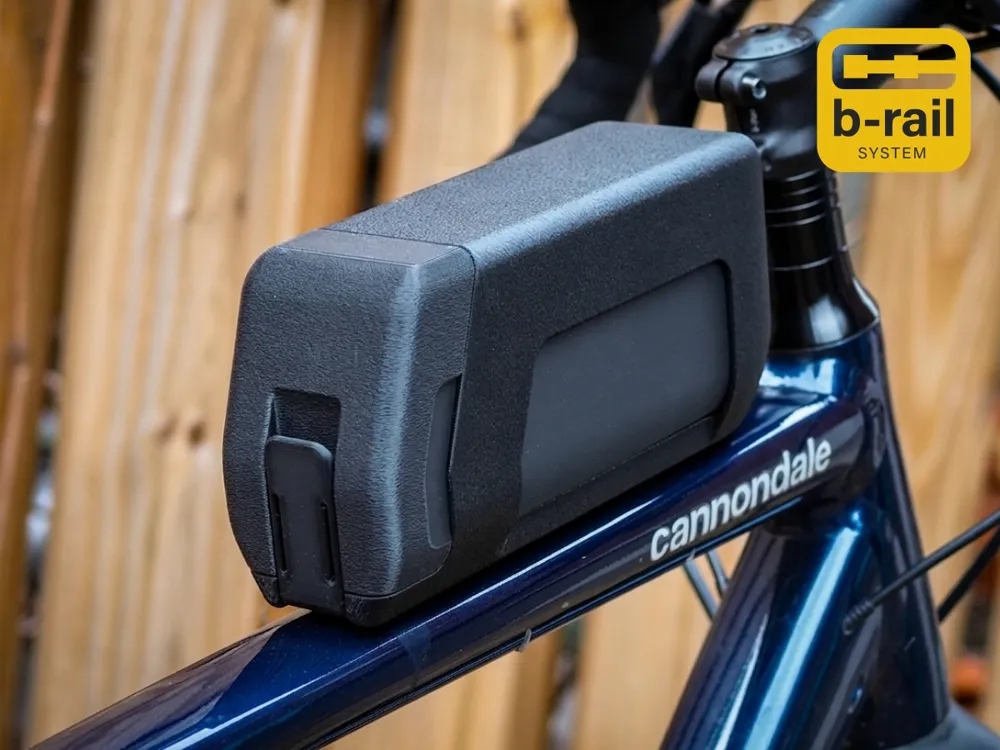

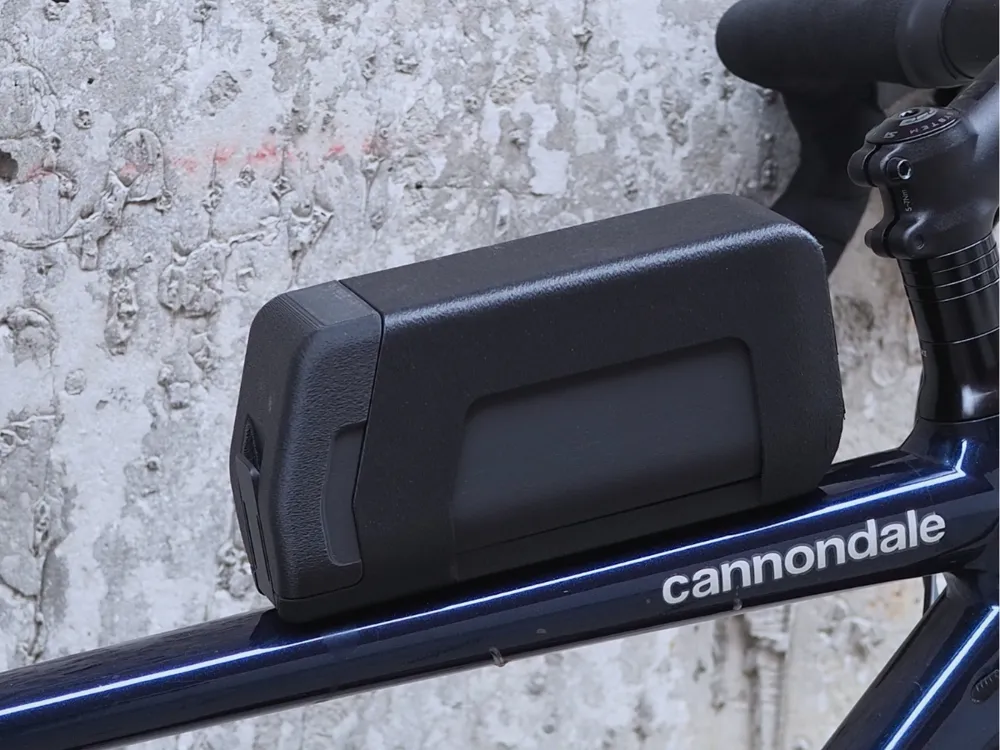

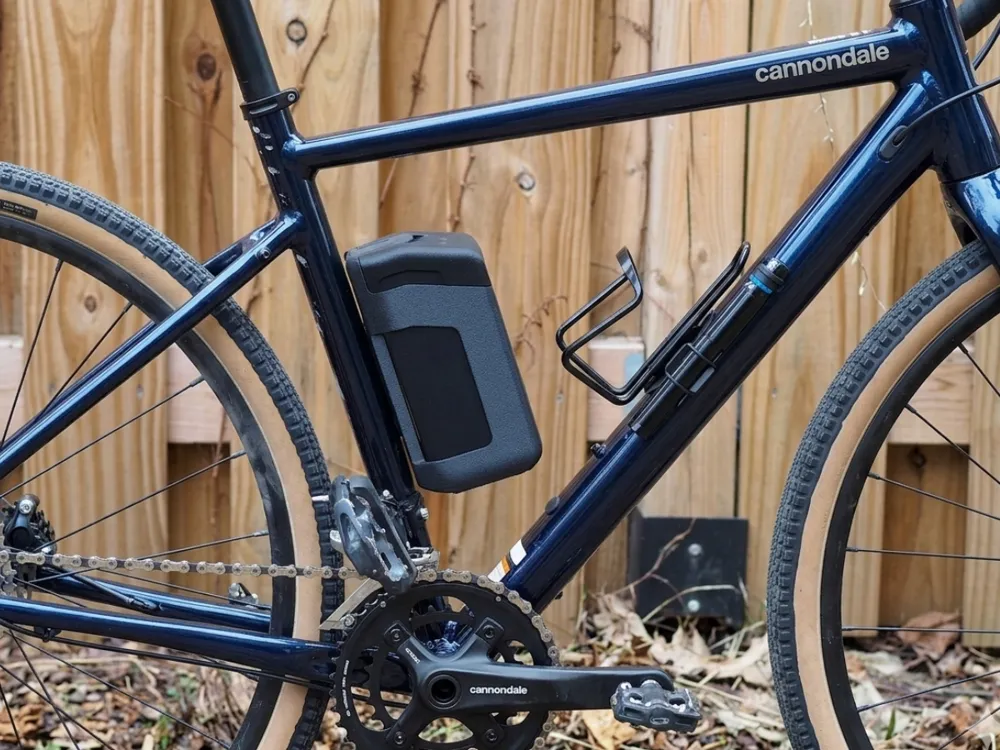

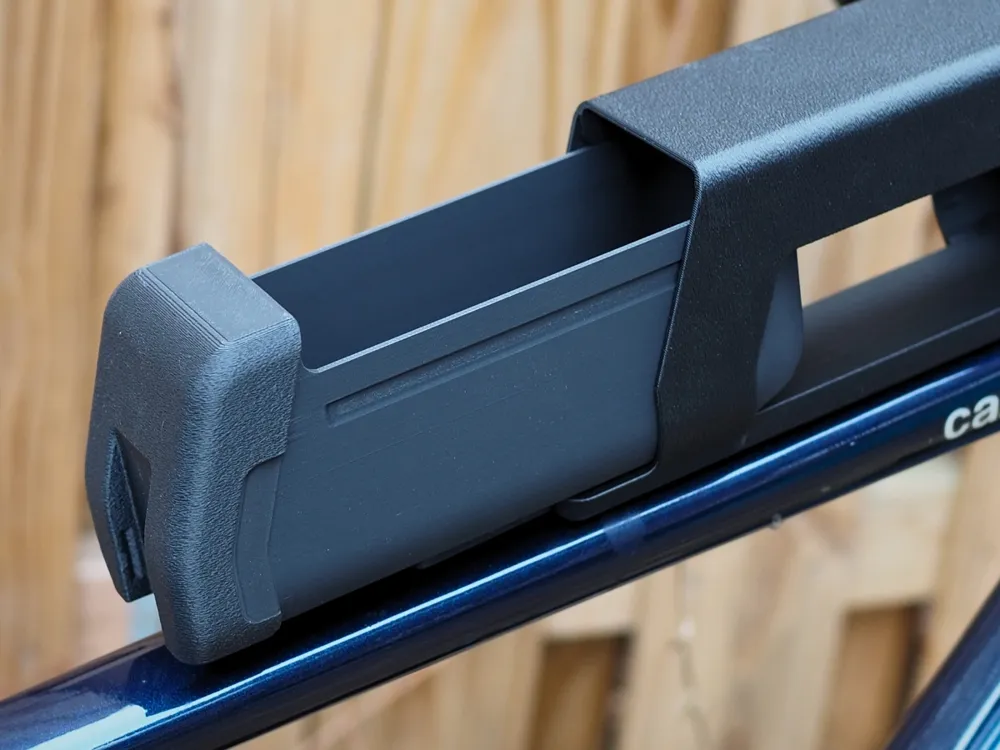

This model is an alternate version of the Sliding Bike Case with Phone Mount, designed for the B-Rail System. It retains the same convenient sliding design, locking tab, and secure fit on the rail, but removes the phone holder for a cleaner, more compact setup—ideal if you already use a separate phone mount (like this one).

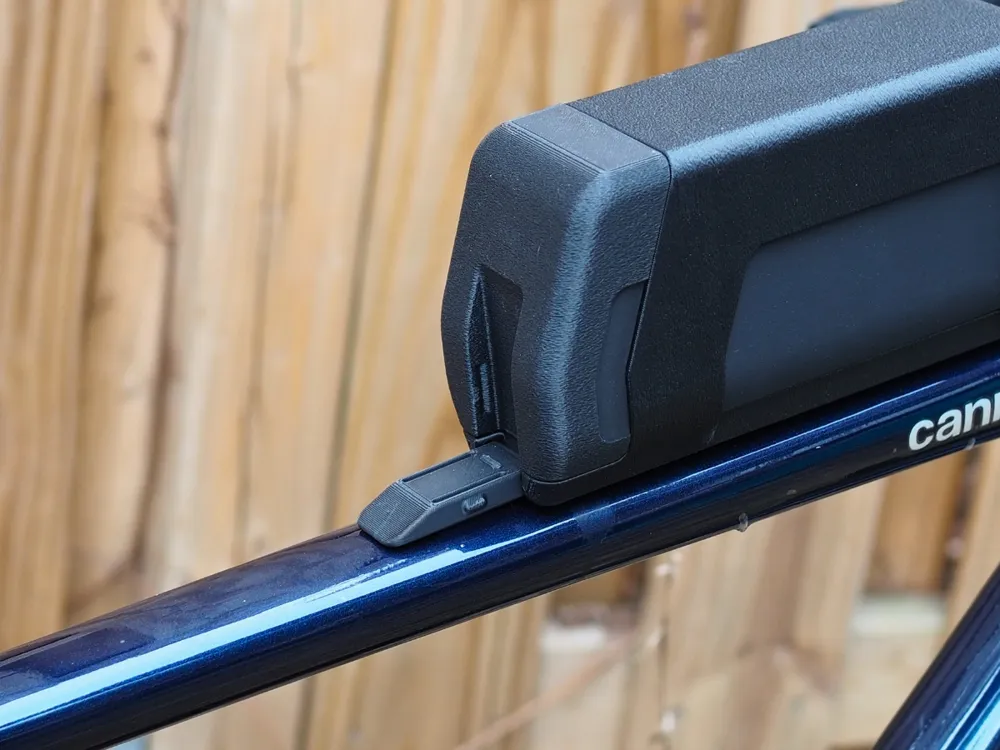

Please note that I printed the model in the photos with fuzzy skin finish on some surfaces. While it gives a nice look, I would not recommended fuzzy skin on the sliding surfaces and on the areas where the locking tab engages. (The print profile does not have fuzzy skin).

For the full list of compatible accessories, check out the Official B-Rail Mounting Rail.

We’re always improving the B-Rail ecosystem—if you have ideas or suggestions for new accessories, feel free to share them in the comments.

Enjoy your new sliding container!

Membership

Unlock the Commercial Printing License! Sell 3D prints of all my designs, including the B-Rail system, and even request custom parts or accessories while subscribed.

Join

Comment & Rating (17)

@terrain3d

Boosted

Print Profile

V1.5

Works great. A little rattle when riding, but tolerable.

The profile uploader has replied

@geoffroy.eric

is the rattle between the box and the frame, or between the frame and the rail? thanks

@terrain3d

Boosted

Replying to @geoffroy.eric :

Between the sliding component, and the sliding components frame. The mount and attachment fit is solid, and the mount to the bike is solid.

@geoffroy.eric

Replying to @terrain3d :

thank very much! i’ll make a new version to improve on that. Cheers

@user_3969006894

Hello could you design a TPU insert for the box? Things rattle a lot when driving(

Show original

@user_3365518408

this is fantastic, thank you. is there anyway to get a latch/tab that has a little bump that stops it from being completely flush with the container? I'm unable to open it without a flathead or pry tool.

(Edited)

@user_3365518408

I printed v2 btw

(Edited)

@chookaboy_4

Boosted

thank you for the model :)

@stephcime

Congratulations on all these creations, I have a Cannondale Topstone (also) and I feel like I've found all the solutions for my storage needs

Show original

@gondaire

How can I print this model if I have a single-filament printer? How can I split the parts of this .step project?

(Edited)

@Muffins999

This is awesome! Will definitely be printing one :)

@nhege

Print Profile

V1.5

@dashtalks

Print Profile

V1.5

@bastistmpfl

Print Profile

V1.5
