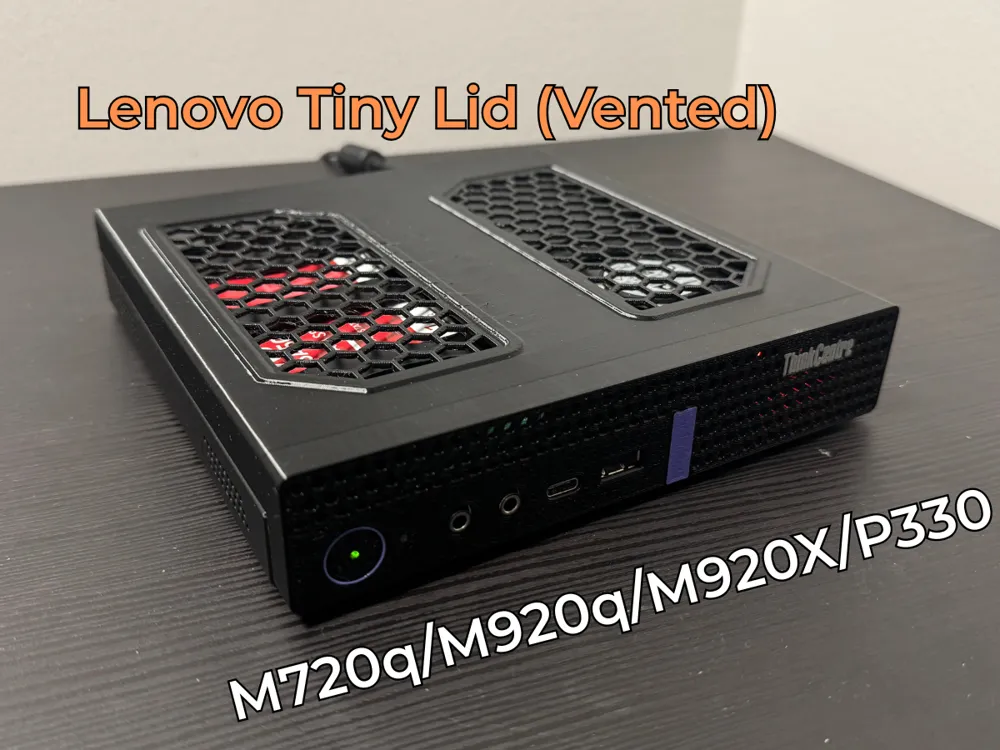

Lenovo ThinkCentre Tiny — Vented Lid
The stock lid on ThinkCentre Tinies has very limited airflow. This replacement lid improves airflow directly to the CPU cooler fan.
Compatibility
- M720Q ✓
- M920Q ✓
- M920X ✓
- P330 ✓
- M75q ✓ (chassis is identical to Intel Tiny models)
Variants
Two intake styles, each available in Simple and Detailed:
- Fan intake — single circular opening positioned directly over the CPU cooler fan

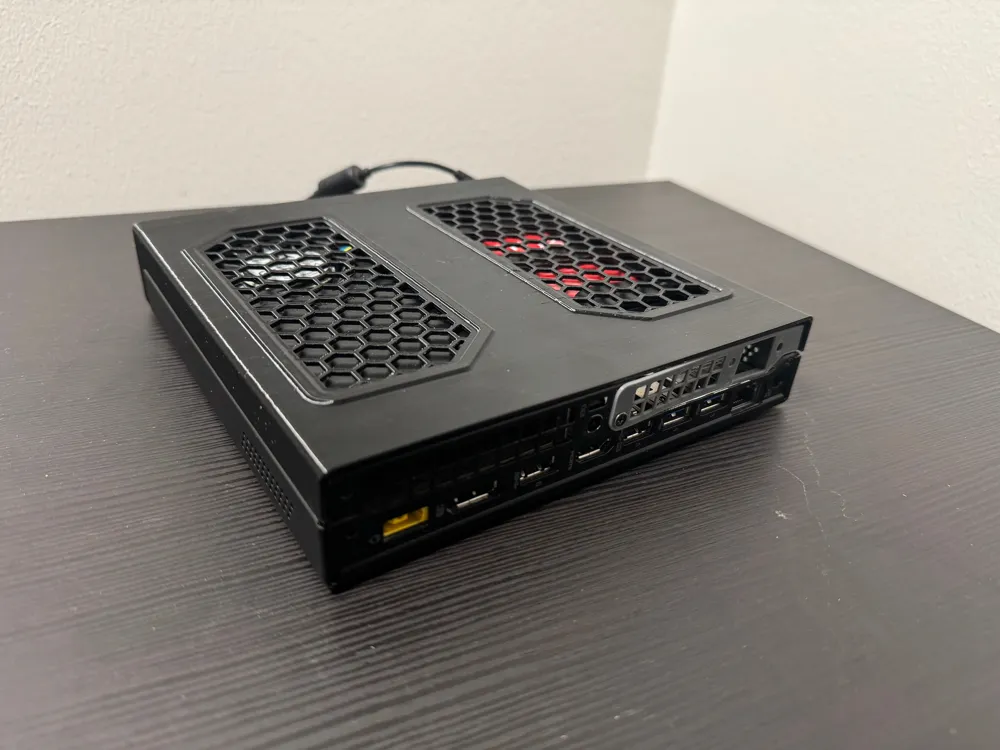

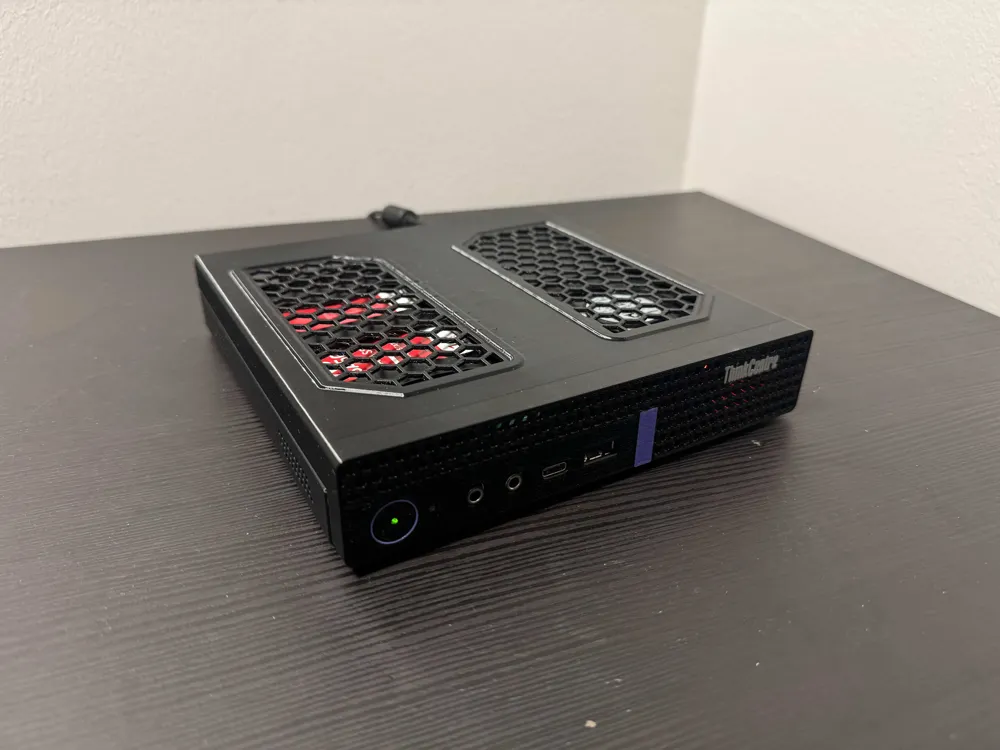

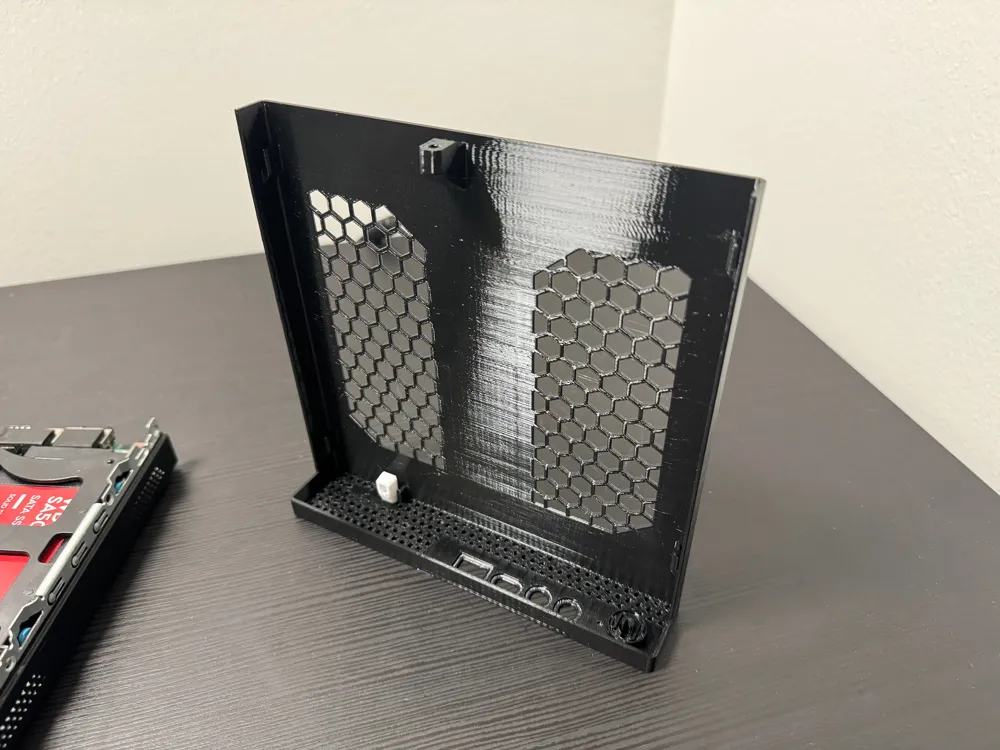

- Vented — large honeycomb openings on both sides for increased airflow

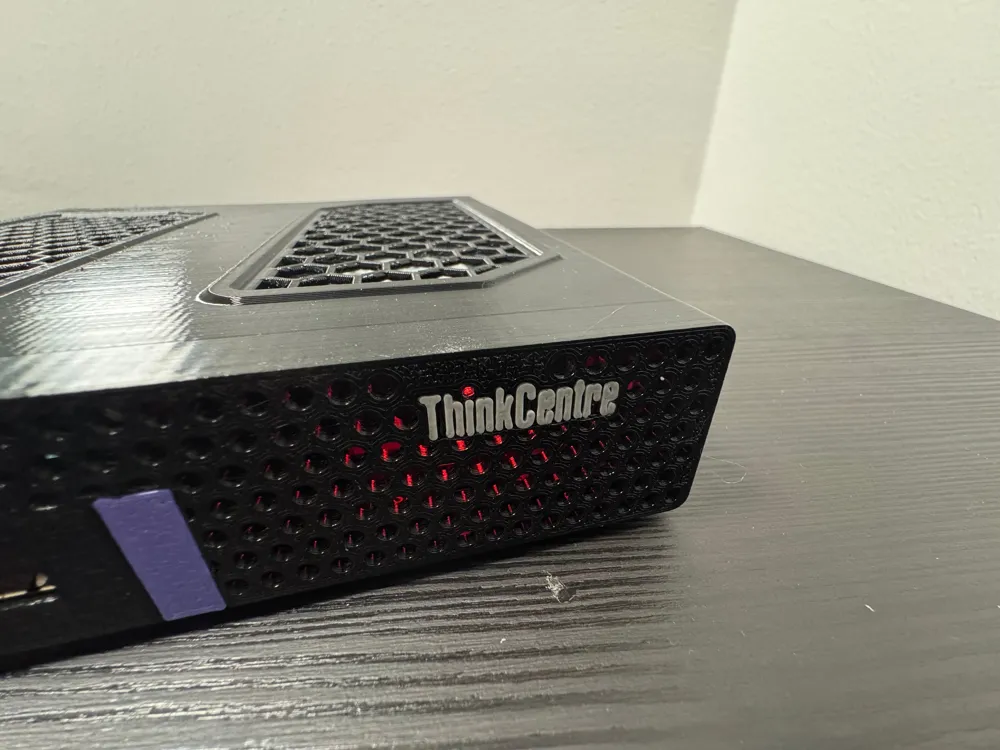

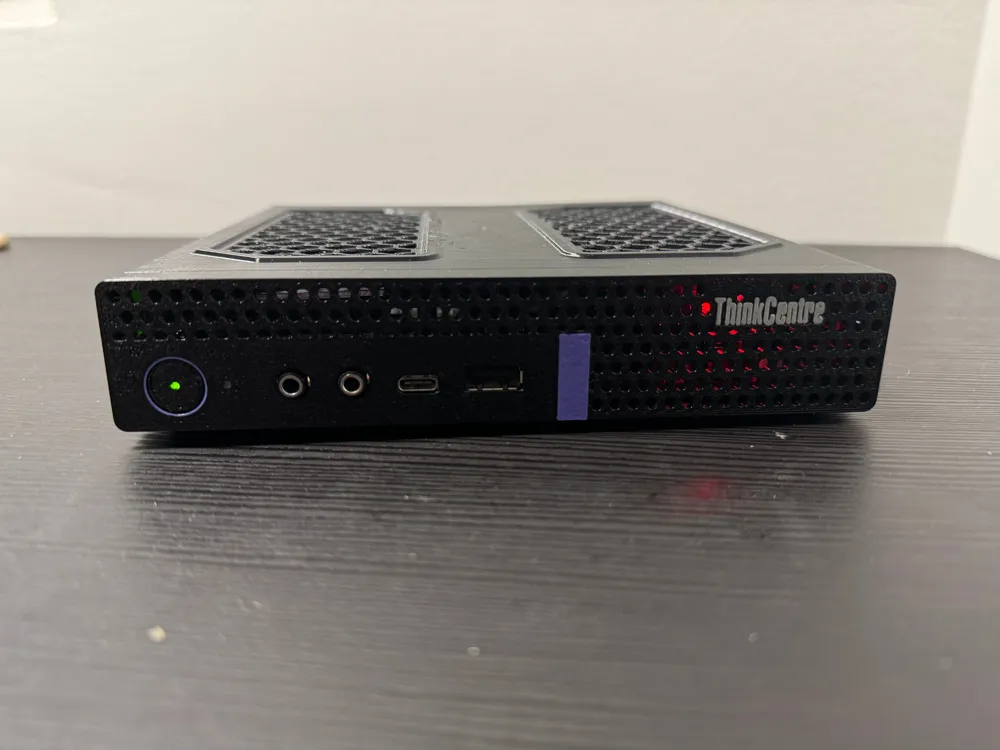

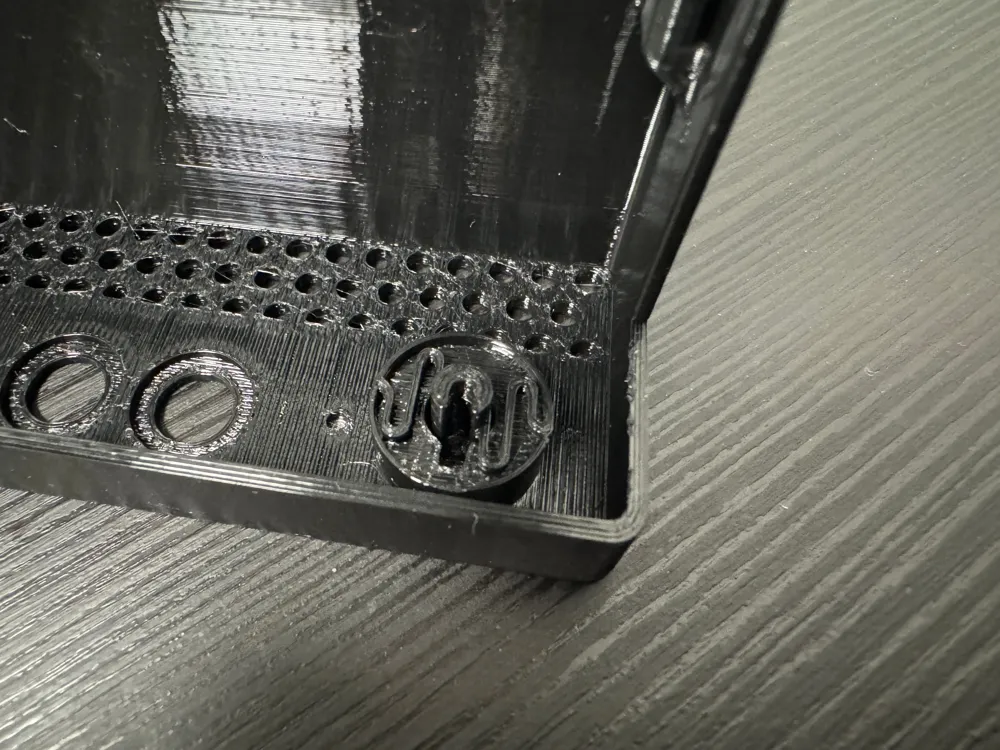

The Detailed version includes ThinkCentre text and deflectors built into the lid — the deflector parts need to be printed in translucent PETG. It also includes a separate reflector part that needs to be printed in white PETG and requires some force to push fully into place.
Print settings
- Material: PETG recommended or higher to avoid heat deformation — PETG HF may have adhesion issues on small text details
- Layer height: 0.2mm
- Infill: 10% Gyroid
- Wall generator: Arachne
- PETG on smooth PEI: use a release agent like hairspray or glue stick to protect your plate
- 3mf file with preconfigured settings is included.
Changelog
6/16/2026
- Uploaded .STEP files — feel free to tinker!
