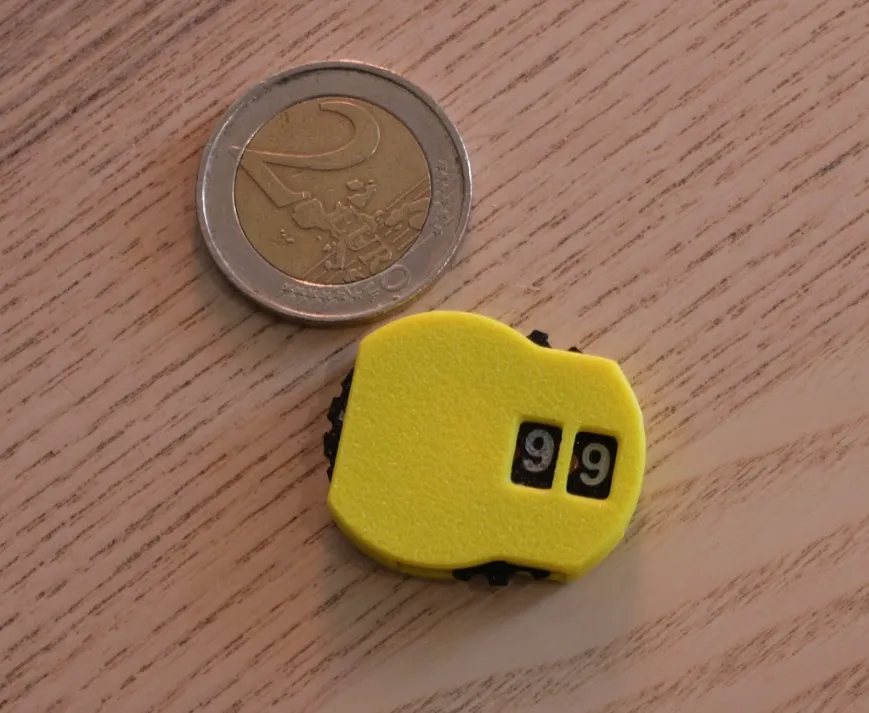

ClickCounter v1, coin sized, No AMS needed!
Print Profile(2)
Description
New version of the popular MiniCounter, now with clicks! Non-AMS dials are available as well!
Scroll down for assembly instructions.
Based on my previous original designs.
Useful as counters on MtG or any board game you might think of.
0.2 nozzle recommended for printing the dials, 0.4mm works too. Print chassis with 0.4 to save time.
Can be printed fully with PLA. Using for examble PETG for the clickers gives them a different feel and they will potentially last longer.

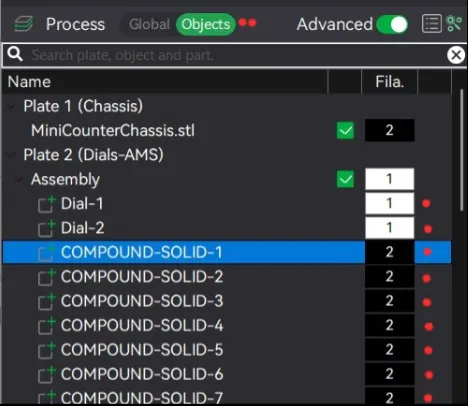

In slicer:
Choose “Objects” and select the colors you want!
Assembly:

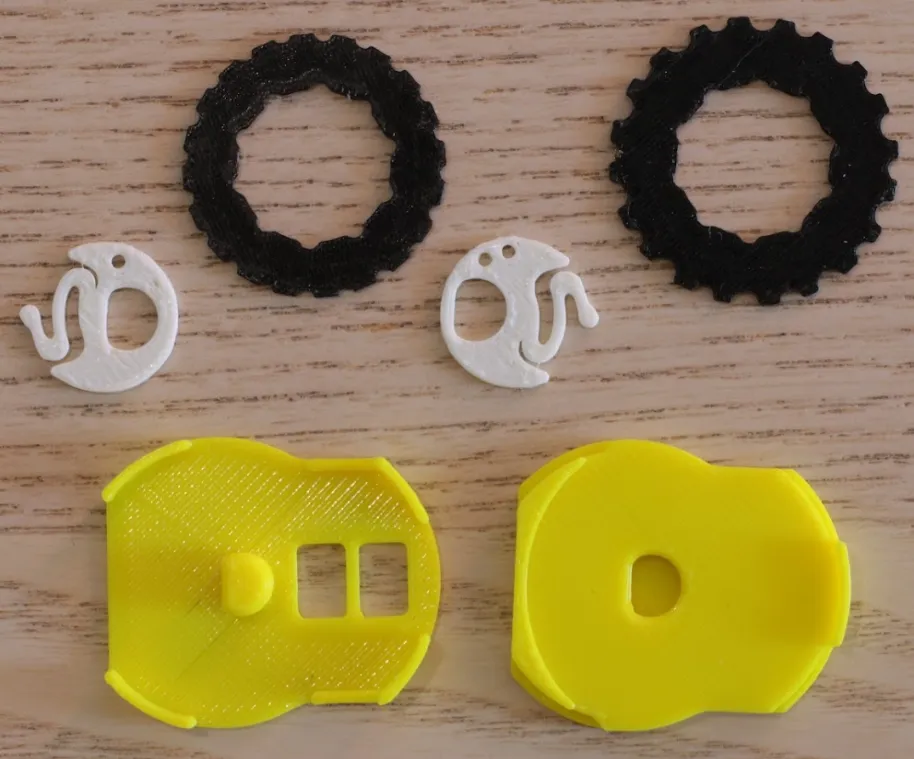

1: Note that the dials are different sizes. Clickers one and two are marked with dots.

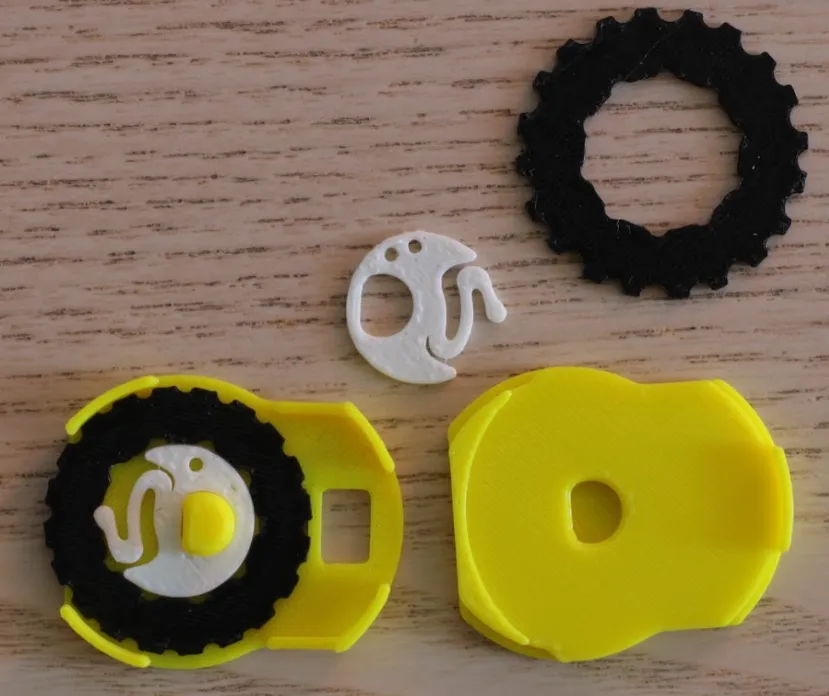

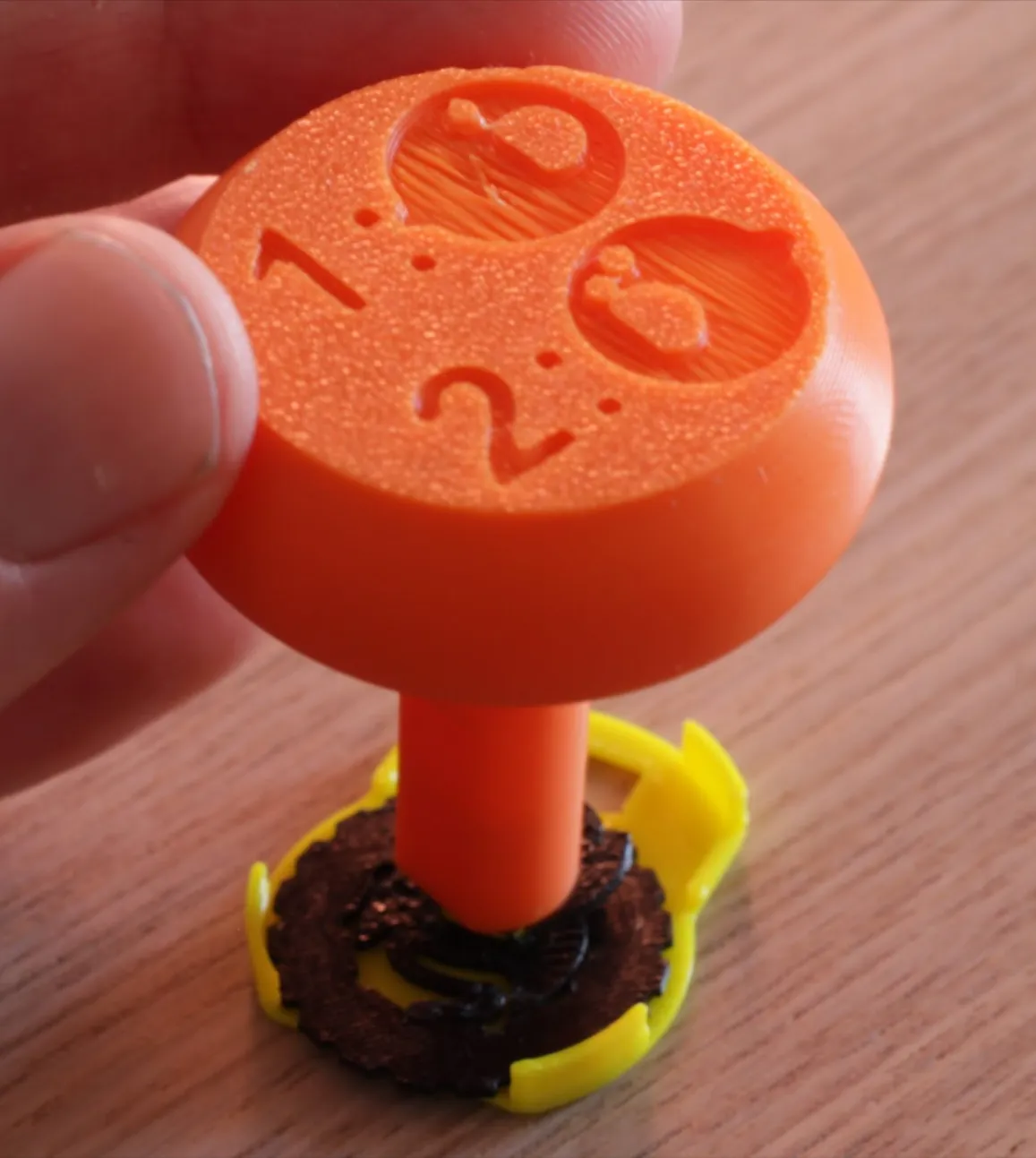

2: Place clicker one on the peg on the cover piece. Press it all the way down. If tight, print and use the provided assembly tool. Place the smaller dial face down around the clicker one so it sits flush.

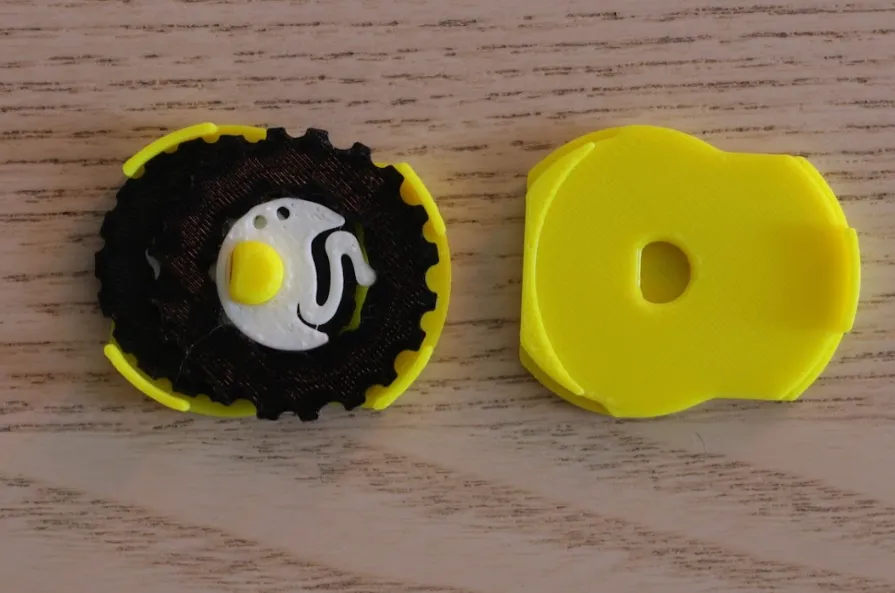

3: Place clicker two and the bigger dial face down on the peg on top of the other parts.

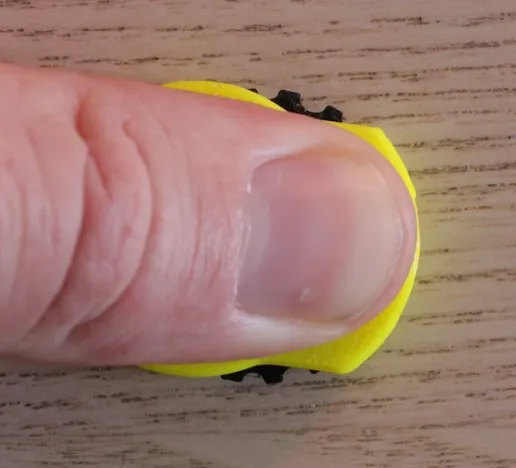

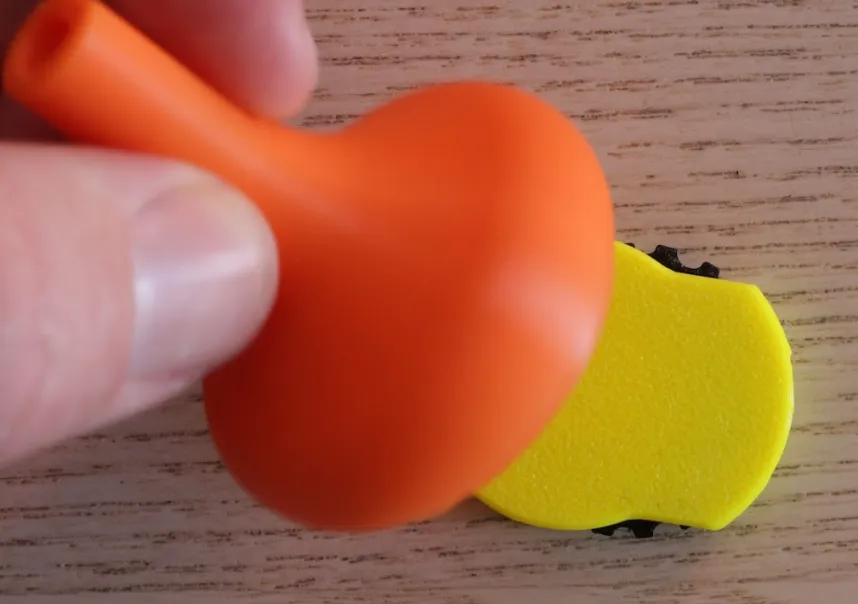

4: Use a hard surface, press the base on the assembly. You can use your thumb or base of the provided assembly tool.
And you're done, have fun!
