Battery holder for MZ RT 125 & Simson

Practical holder for securely mounting a gel battery in vehicles such as MZ RT 125 and various Simson models

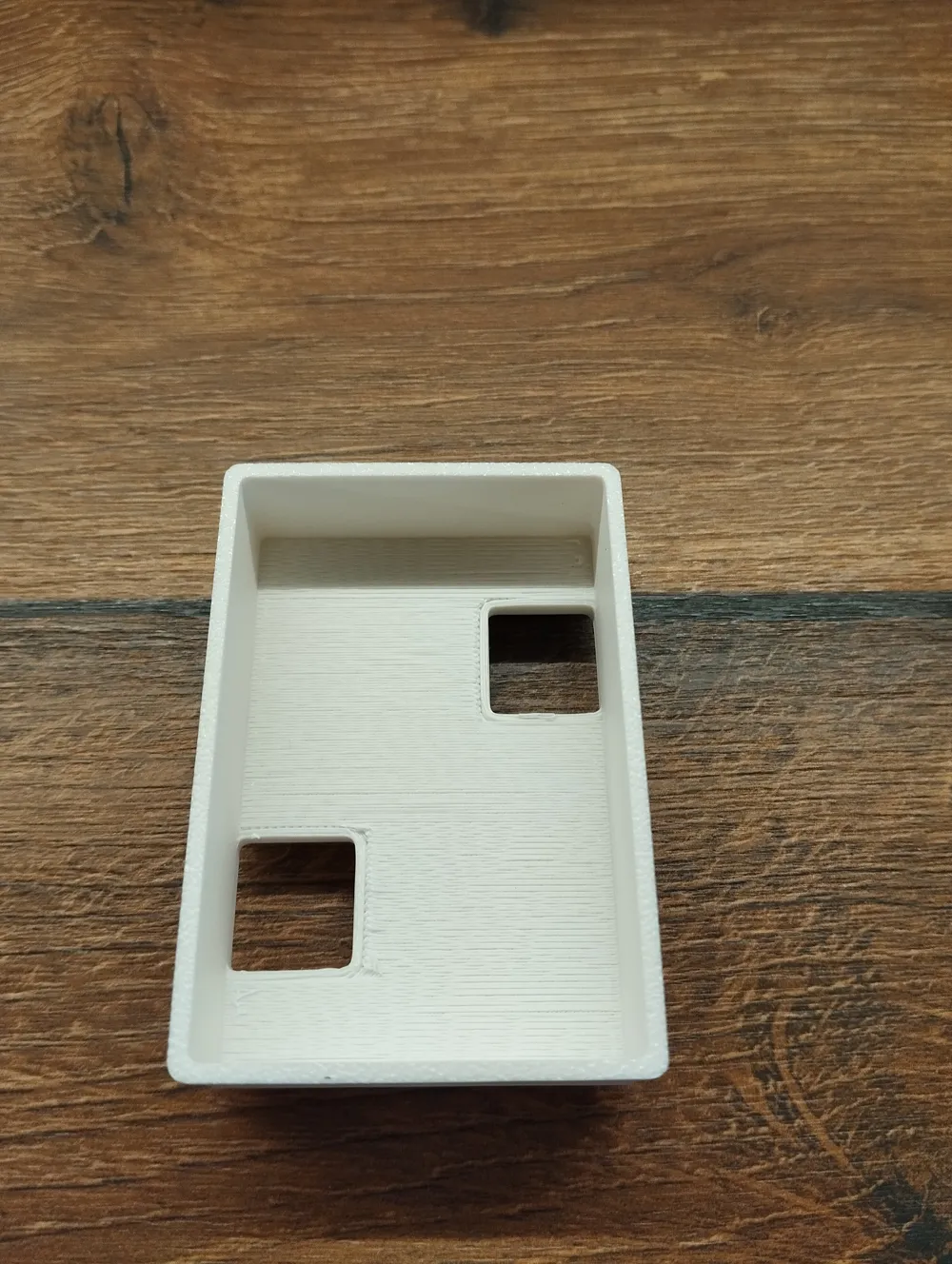

The holder was specially developed for use with a gel battery with approximate dimensions of 100 × 70 × 50 mm It ensures stable and low-vibration mounting

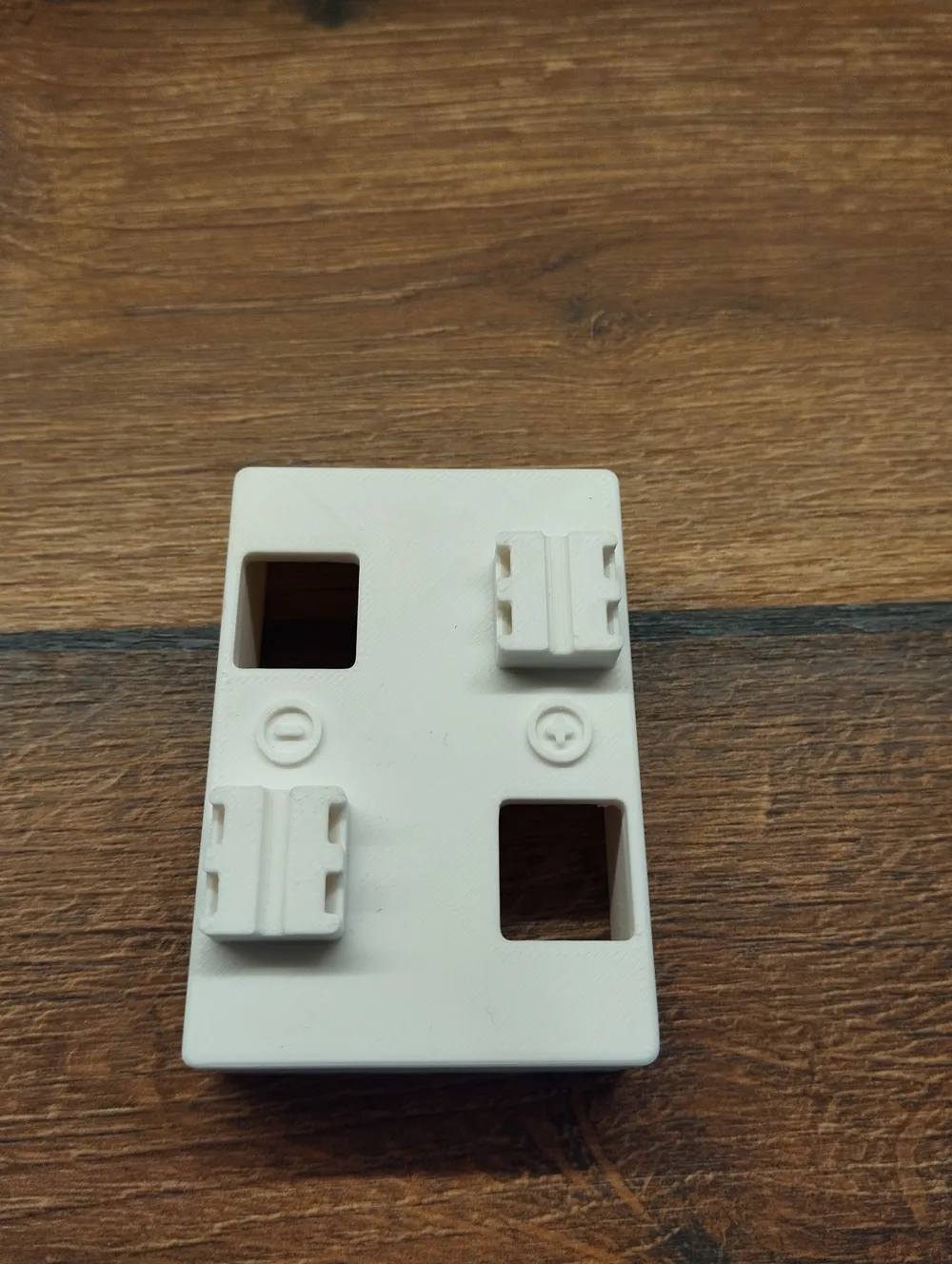

A special feature is the integrated strain relief for the cables:

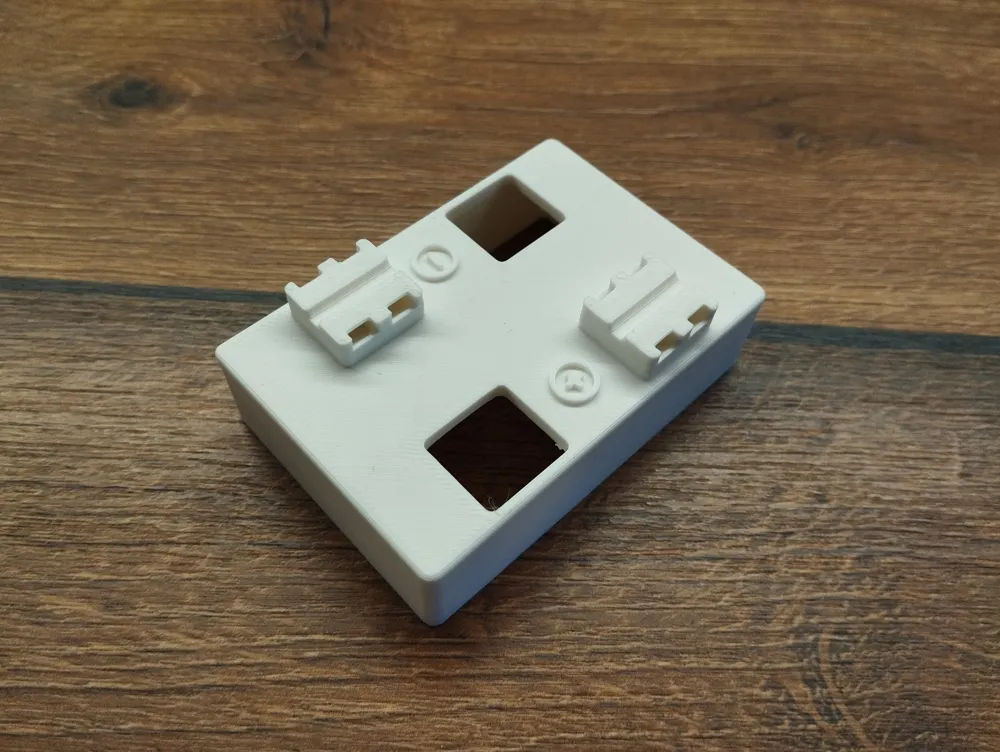

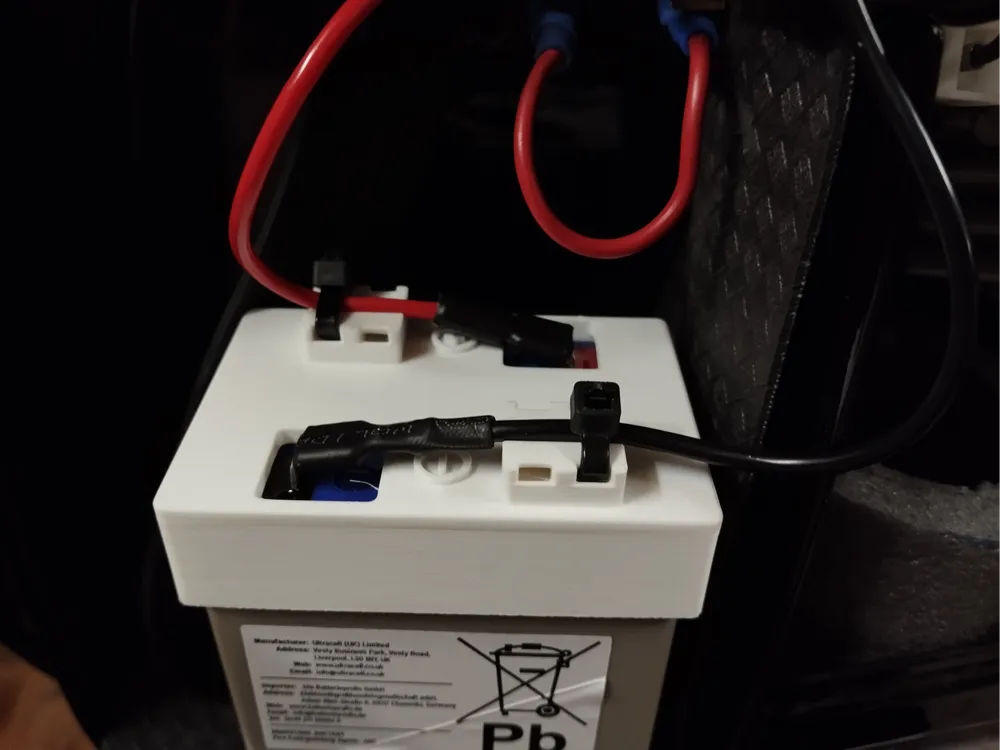

The design secures the Faston connectors, so they sit securely and cannot come loose This reliably prevents contact problems Simply fix with cable ties

The holder is easily attached to the top of the battery with some double-sided adhesive tape

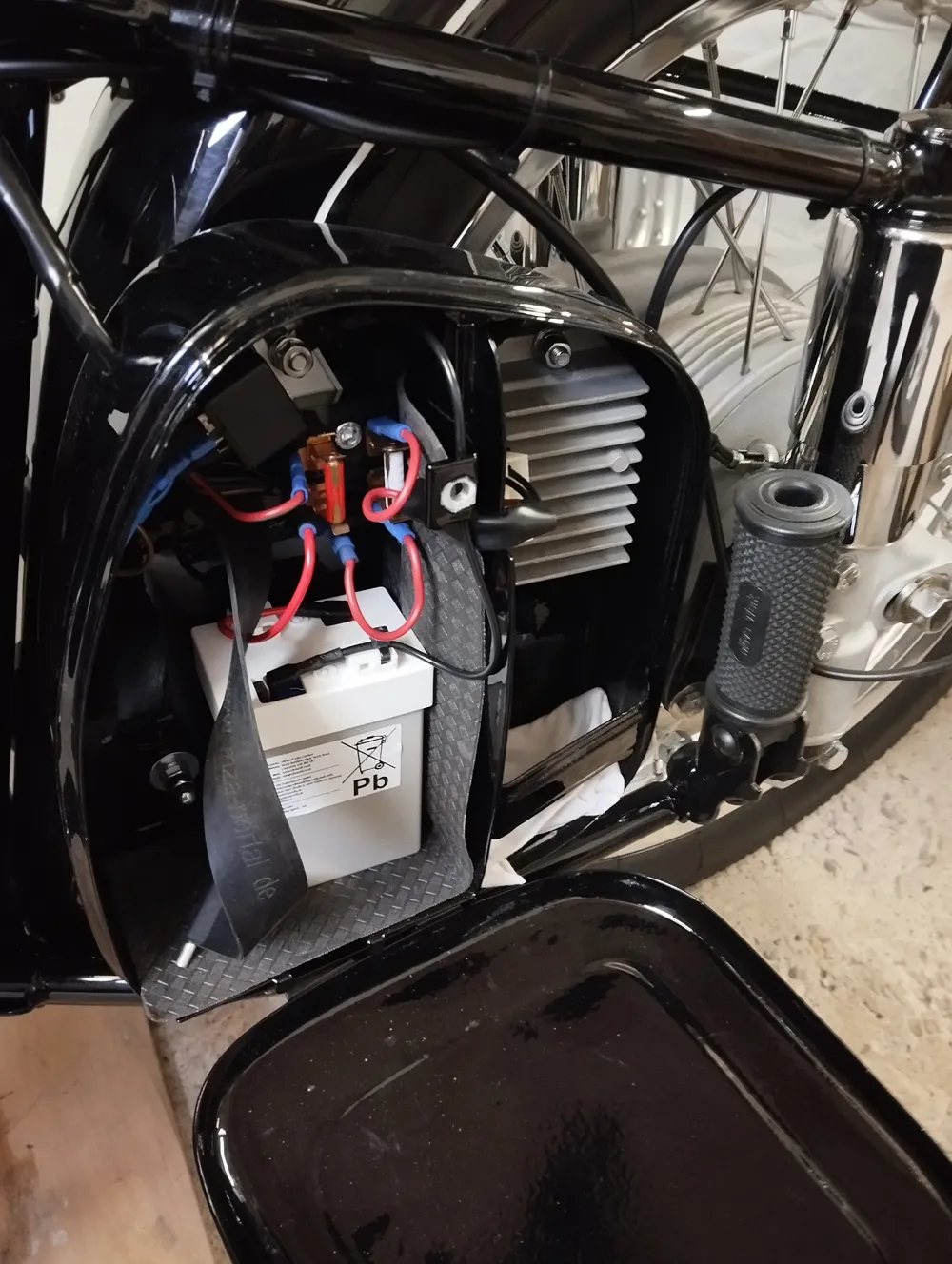

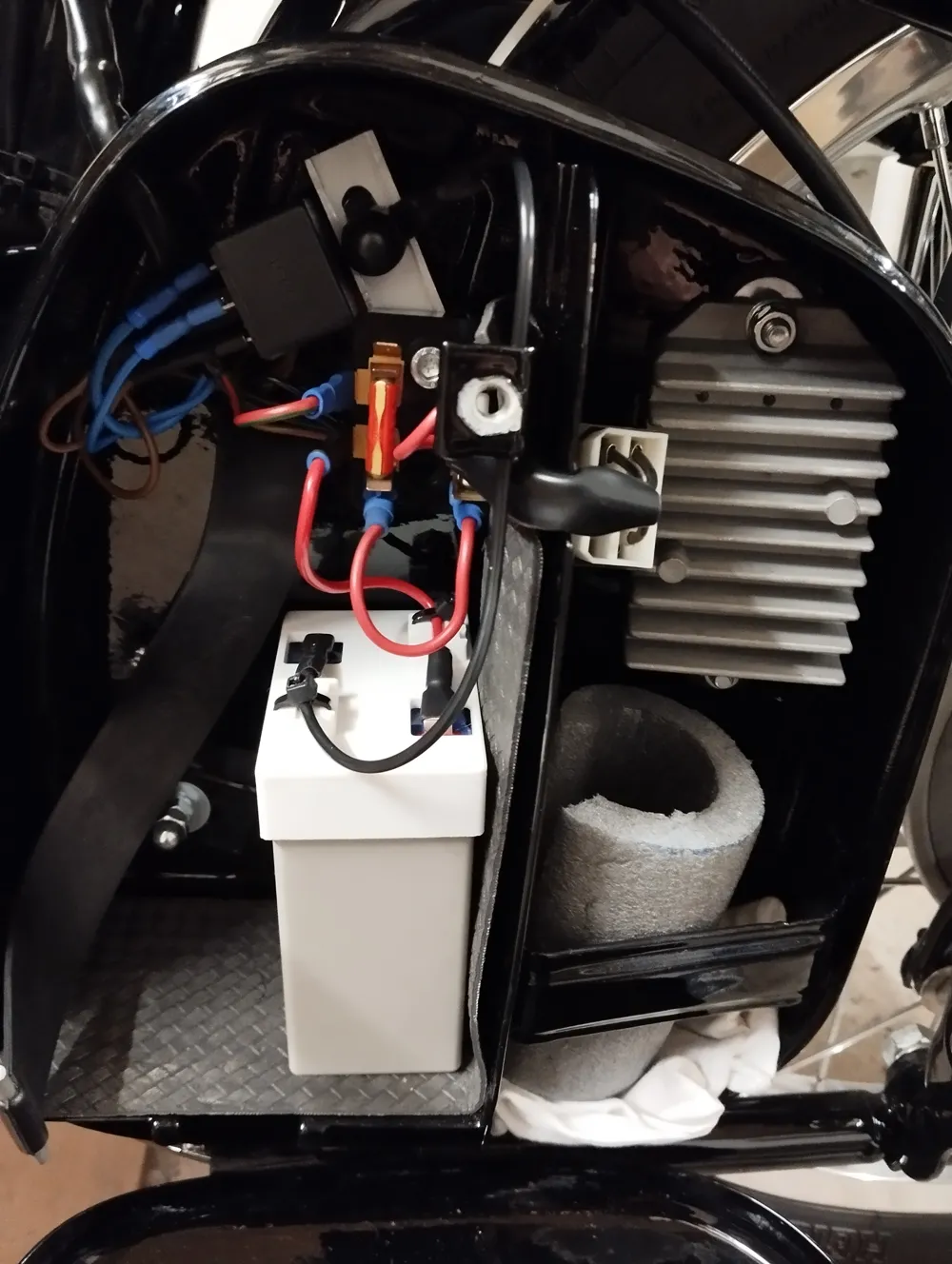

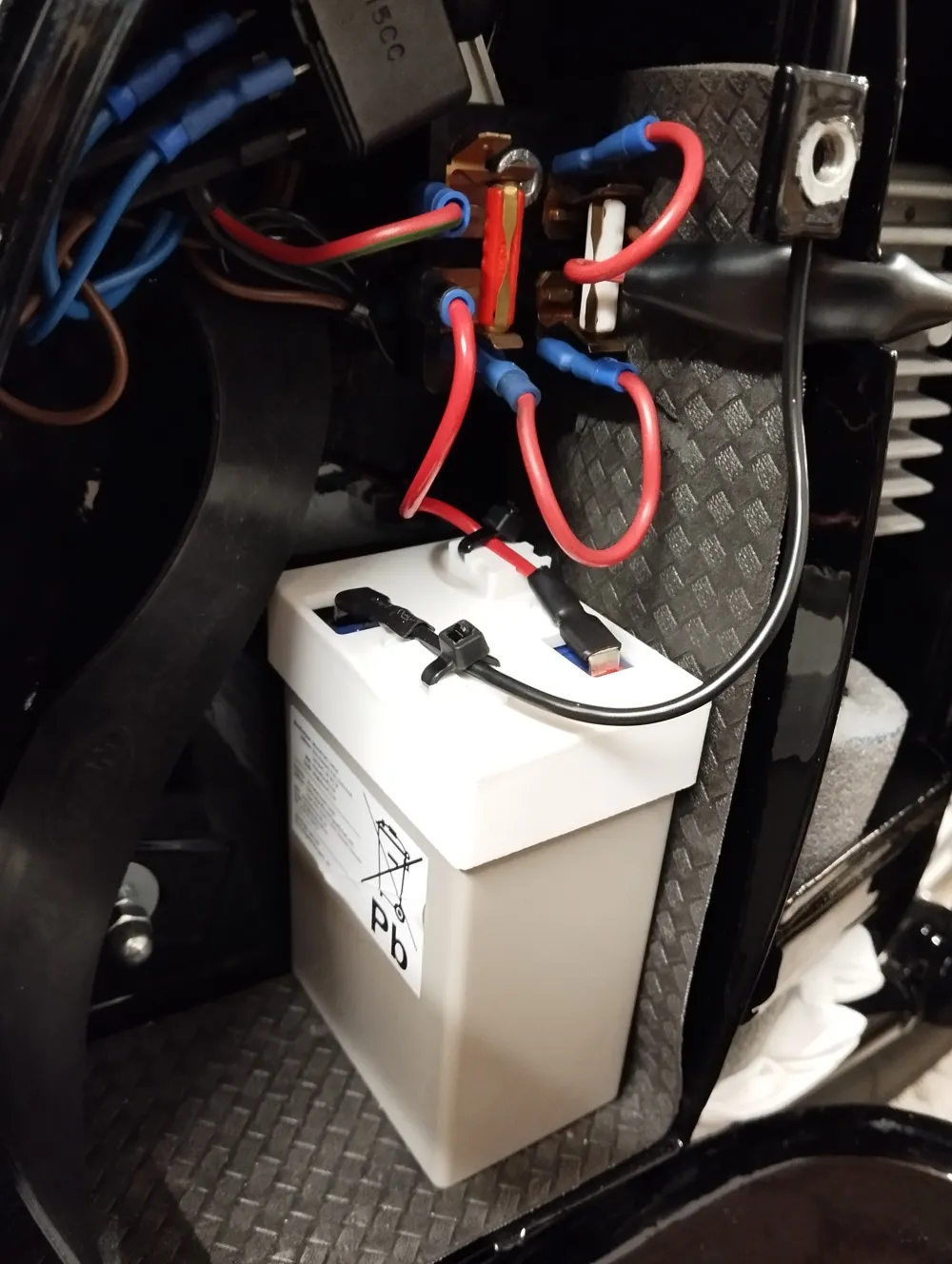

I deliberately provided two cables permanently attached to the battery This facilitates removal, for example, for winter storage or maintenance, as the connections can be quickly disconnected

Print instructions:

• Material: PLA
• Easy to print, no special settings required
