<h2>🖨️ Print Profile (Recommended)</h2>Layer Height: 0.2mm Walls (Perimeters): 2 Top/Bottom Layers: 3 Infill: 15% (Gyroid or Grid)Supports:<ul><li>Not required (designed to print support-free)</li></ul>Brim:<ul><li>Optional (use if you have bed adhesion issues)</li></ul>Material: PLA<h2>🔩 Thread / Tension Parts Tip</h2><ul><li>Use 0.2mm or 0.16mm layer height for smoother threads</li><li>Ensure good cooling for clean detail</li></ul><h2>🚀 Printer-Specific Note</h2>Includes dedicated A1 Mini and P1S profiles, but works perfectly with standard settings too.

Hands-Free Fishing Spool Holder (Easy Print Profile)



🖨️ Print Profile (Recommended)Layer Height: 0.2mm Walls (Perimeters): 2 Top/Bottom Layers: 3 Infill: 15% (Gyroid or Grid)Supports:Not required (designed to print support-free)Brim:Optional (use if you have bed adhesion issues)Material: PLA🔩 Thread / Tension Parts TipUse 0.2mm or 0.16mm layer height for smoother threadsEnsure good cooling for clean detail

A1 Mini -Hands-Free Fishing Spool Holder (Easy Print )


<h2>⚙️ Core Settings (dialled for strength)</h2>Layer Height:<ul><li>0.2mm</li></ul>Walls:<ul><li>4 walls (key for strength)</li></ul>Top/Bottom:<ul><li>5 top / 4 bottom</li></ul>Infill:<ul><li>25–30%</li><li>Gyroid or Grid</li></ul>

Hands-Free Fishing Spool Holder (Easy Print Profile PETG)

Layer Height: 0.2mmWalls (Perimeters): 2Top/Bottom Layers: 4Infill: 15% (Gyroid or Grid)Nozzle Temp: 235–245°C (tune to your filament)Bed Temp: 70–80°CPrint Speed: 40–60 mm/sSupports: Not required (designed support-free)Brim: Optional (use if adhesion is an issue)<h3>⚙️ Important Tweaks for PETG</h3><ul><li>Cooling Fan: 30–50% (avoid full fan, keeps layer bonding strong)</li><li>Retraction: Lower than PLA (PETG strings more)</li><li>Z-Hop: Optional, helps avoid dragging on taller parts</li><li>First Layer Speed: ~20 mm/s for good adhesion</li></ul>

A1 Mini Fishing Spool Holder (Easy Print PETG Profile)

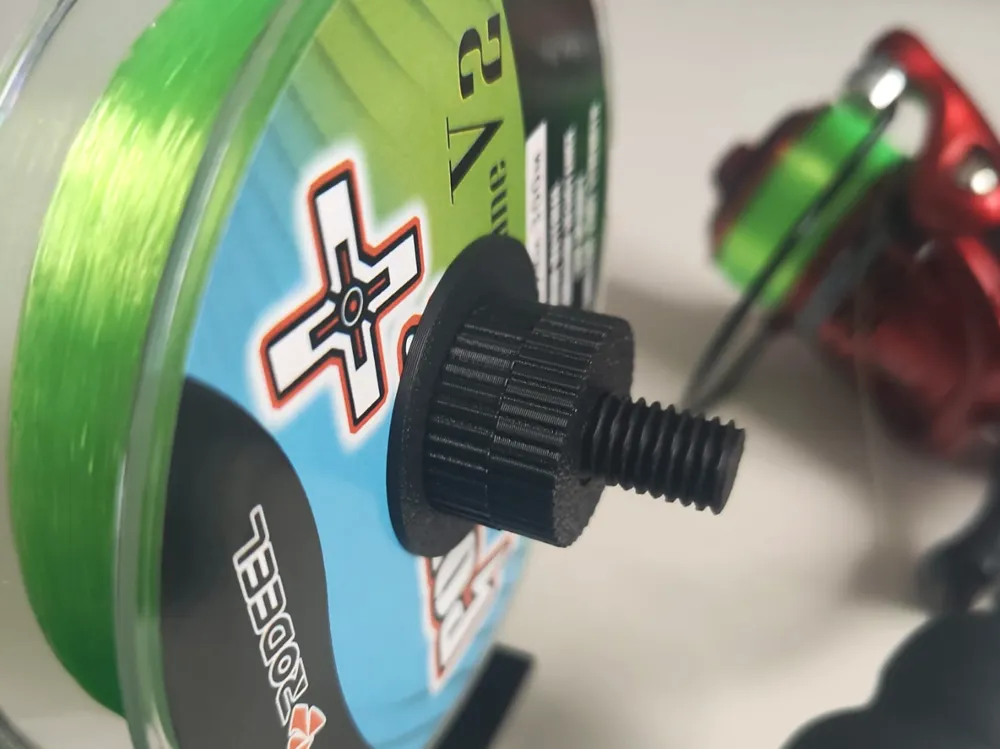

🖨️ Print Profile – Strength (Threaded Arm Focus)<ul><li>Layer Height: 0.2mm (0.16mm recommended for threads)</li><li>Walls: 2 (adds extra strength to threaded areas)</li><li>Top/Bottom: 4</li><li>Infill: 30% </li><li>Supports: Not required</li><li>Brim: Optional (for adhesion issues)</li><li>Material: PLA</li></ul>🔩 Thread Strength Notes<ul><li>30% infill improves durability on the threaded arm</li><li>Use good cooling for clean, reliable threads</li><li>Slow outer walls slightly for better thread definition</li></ul>

100mm Hands-Free Spool Holder – 30% Infill

🖨️ Print Profile – Strength (Threaded Arm Focus)<ul><li>Layer Height: 0.2mm (0.16mm recommended for threads)</li><li>Walls: 2</li><li>Top/Bottom: 4</li><li>Infill: 30% </li><li>Supports: Not required</li><li>Brim: Optional (for adhesion issues)</li><li>Material: PLA</li></ul>🔩 Thread Strength Notes<ul><li>30% infill improves durability on the threaded arm</li><li>Use good cooling for clean, reliable threads</li><li>Slow outer walls slightly for better thread definition</li></ul>

100mm A1 Mini - Hands-Free Spool Holder – 30% Infill

JoshR19

Screenshot 2026-04-17 at 16.06.09.png

Screenshot 2026-04-17 at 16.07.20.png

Adjusted each part for significantly more strength without sacrificing too much print time. Added large modifier to strengthen the mouth of the clamp by a considerable amount without using a lot more plastic.

Reinforced/Stronger Profile

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

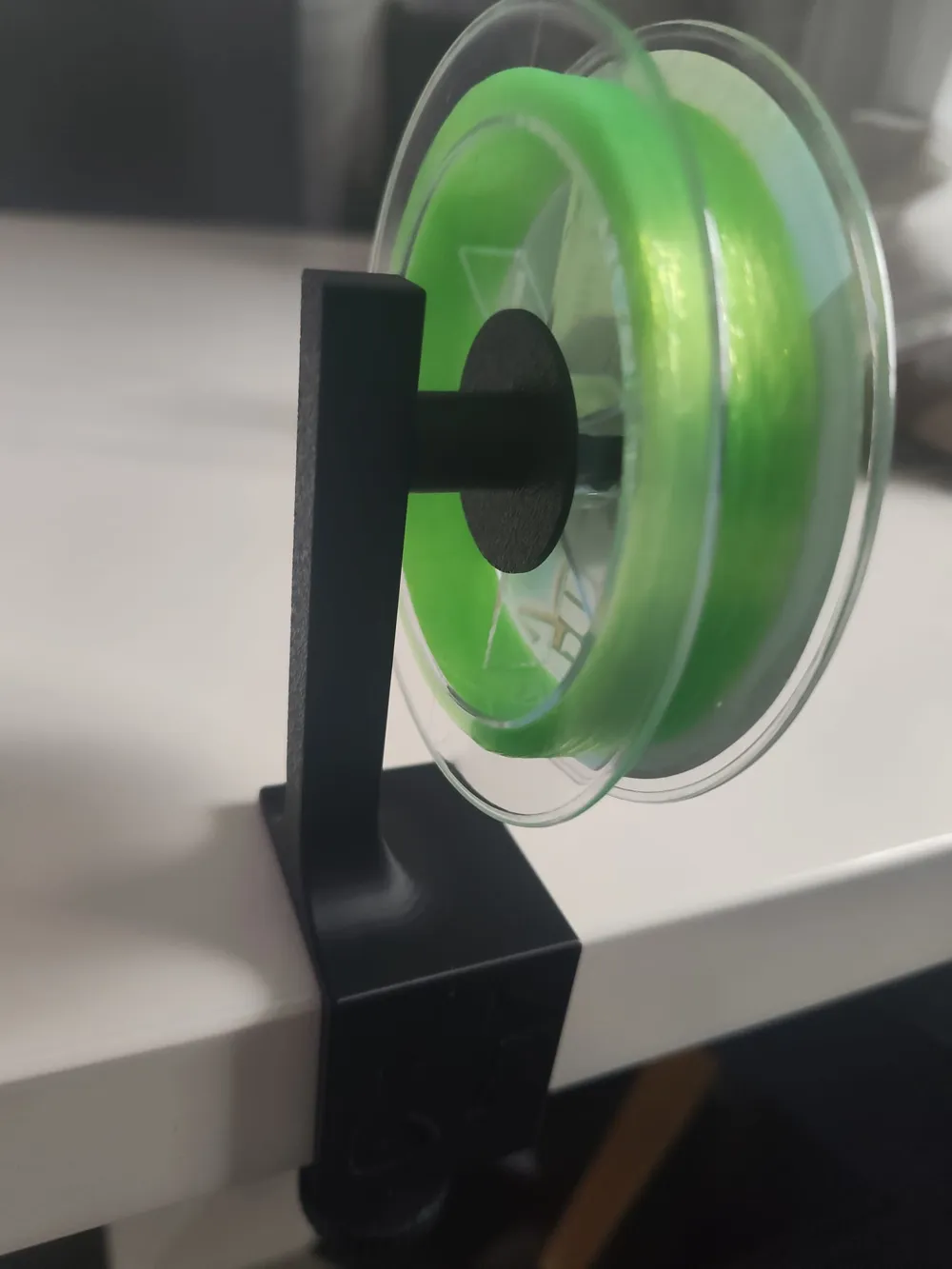

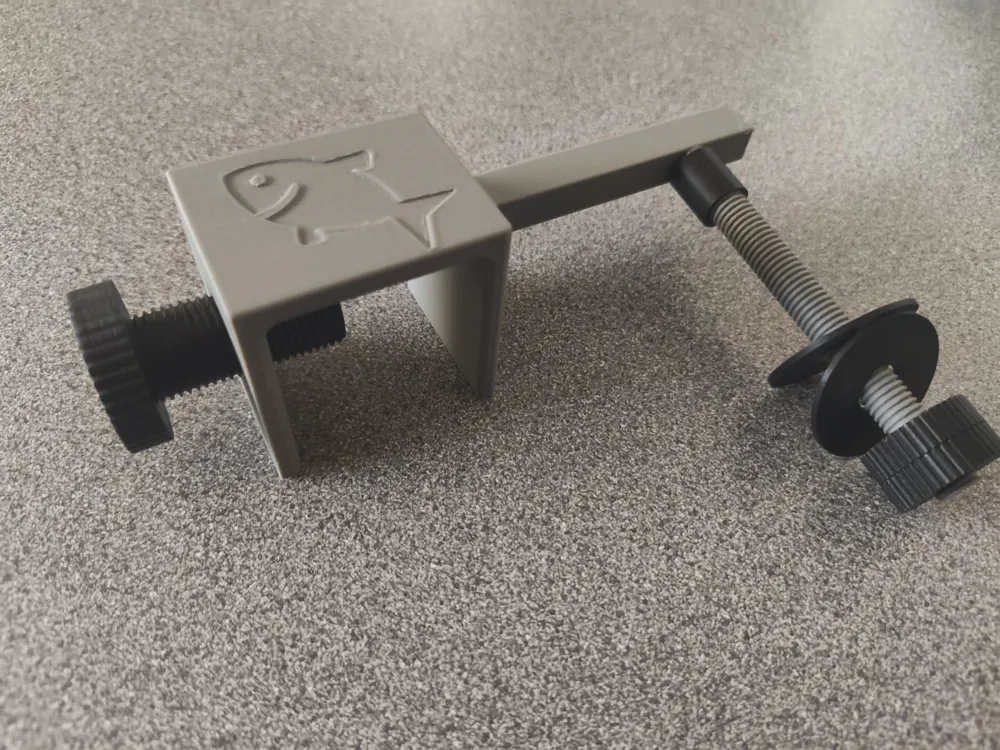

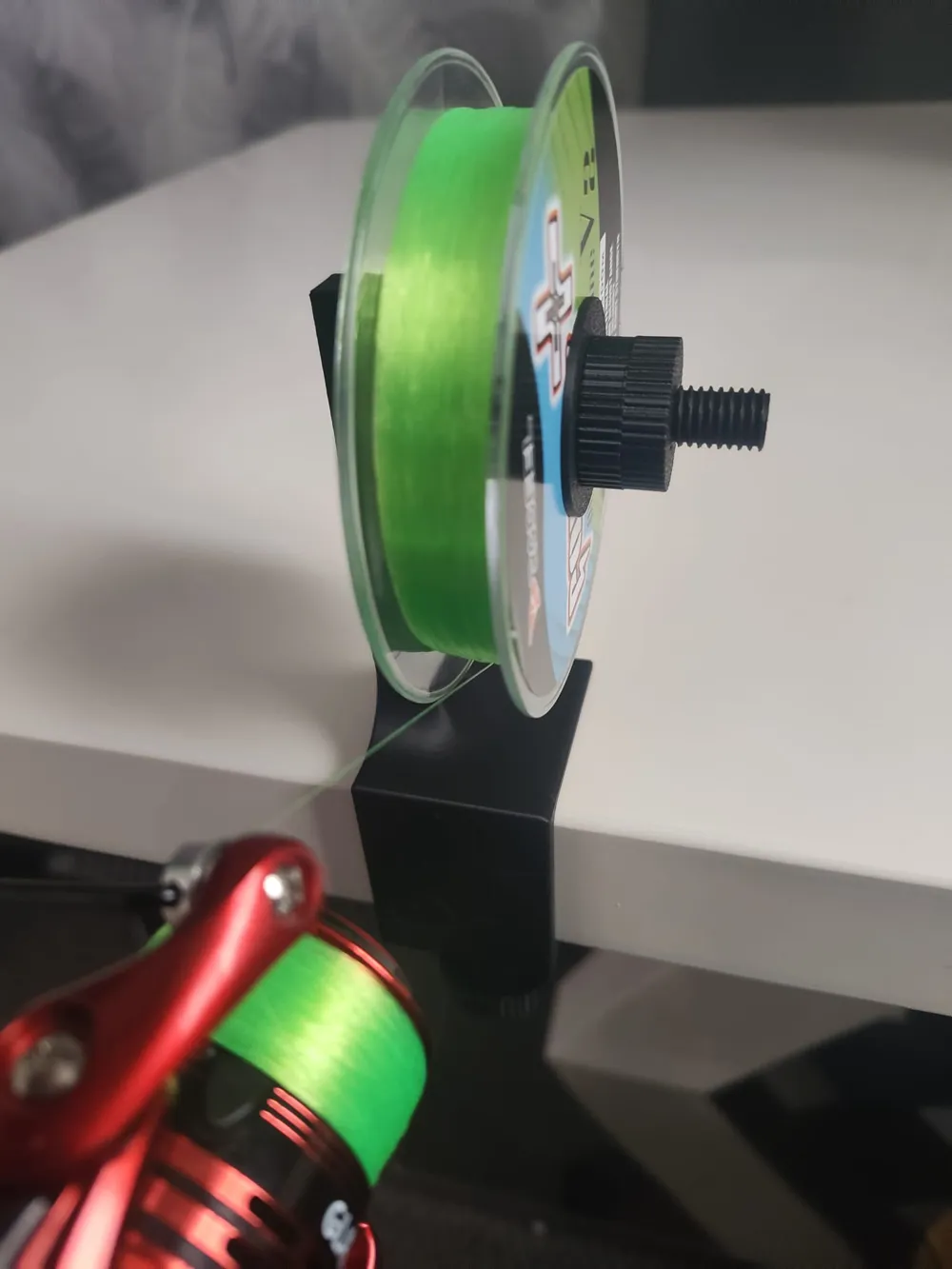

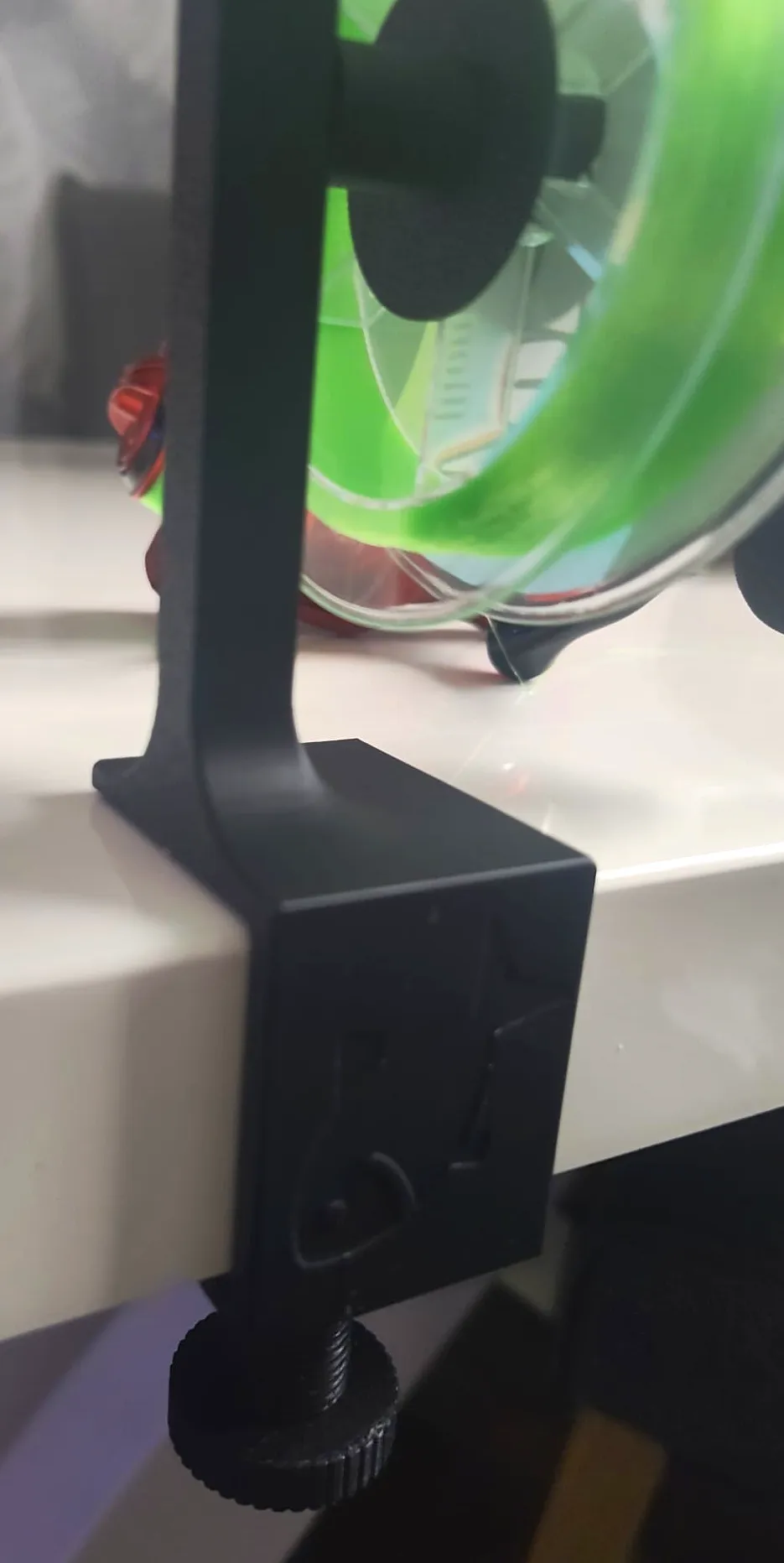

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Say goodbye to birds nests… and hello to tight lines 🎣</boostcontent></boostme>Fully adjustable tension lets you dial in the perfect resistance for smooth, consistent spooling every time. Unlike most spool holders that spin freely and cause loose line, tangles, or birds nests, this design gives you full control — so your line lays clean and tight on the reel.No extra hands needed — load your fishing reel solo with this simple and effective clamp-on spool holder.I designed this because I didn’t always have someone around to help hold the spool while loading line. This solves that problem by giving you full control over tension and alignment, so you can get a clean, professional wind every time.<h3>🔧 Key Features:</h3><ul><li>Clamp-on design for tables, benches, or shelves</li><li>Adjustable tension with dual locking nuts</li><li>Locks in place — no loosening while winding</li><li>Smooth rotation for clean, even spooling</li><li>Compact and easy to store&nbsp;Optimised for A1 Mini with a dedicated print profile for reliable, hassle-free results.</li></ul>Tight lines 🎣&nbsp;Update: A larger version has been added to support fishing line spools up to 100mm wide. Strength has also been improved by increasing infill to 30%. Includes an A1 Mini print profile. (Pictured Grey in photos)Note: If you’ve already downloaded the smaller version, the fittings are fully compatible with the larger version.&nbsp;If you enjoy practical 3D printable designs, be sure to follow me on MakerWorld. I regularly release functional prints, flying toys, PC accessories, household solutions, and unique maker projects, so you won&#39;t miss future uploads and updates.<commercialme><commercialtitle>Membership</commercialtitle><commercialcontent> Want to sell these prints? Join my Membership/Commercial Club to get full commercial rights to sell physical versions of this pack and all my other models!</commercialcontent></commercialme>
