Roof Ridge Mount Bracket | Low Profile

Stop messing around with flimsy roof mounts that weren’t made for real conditions.

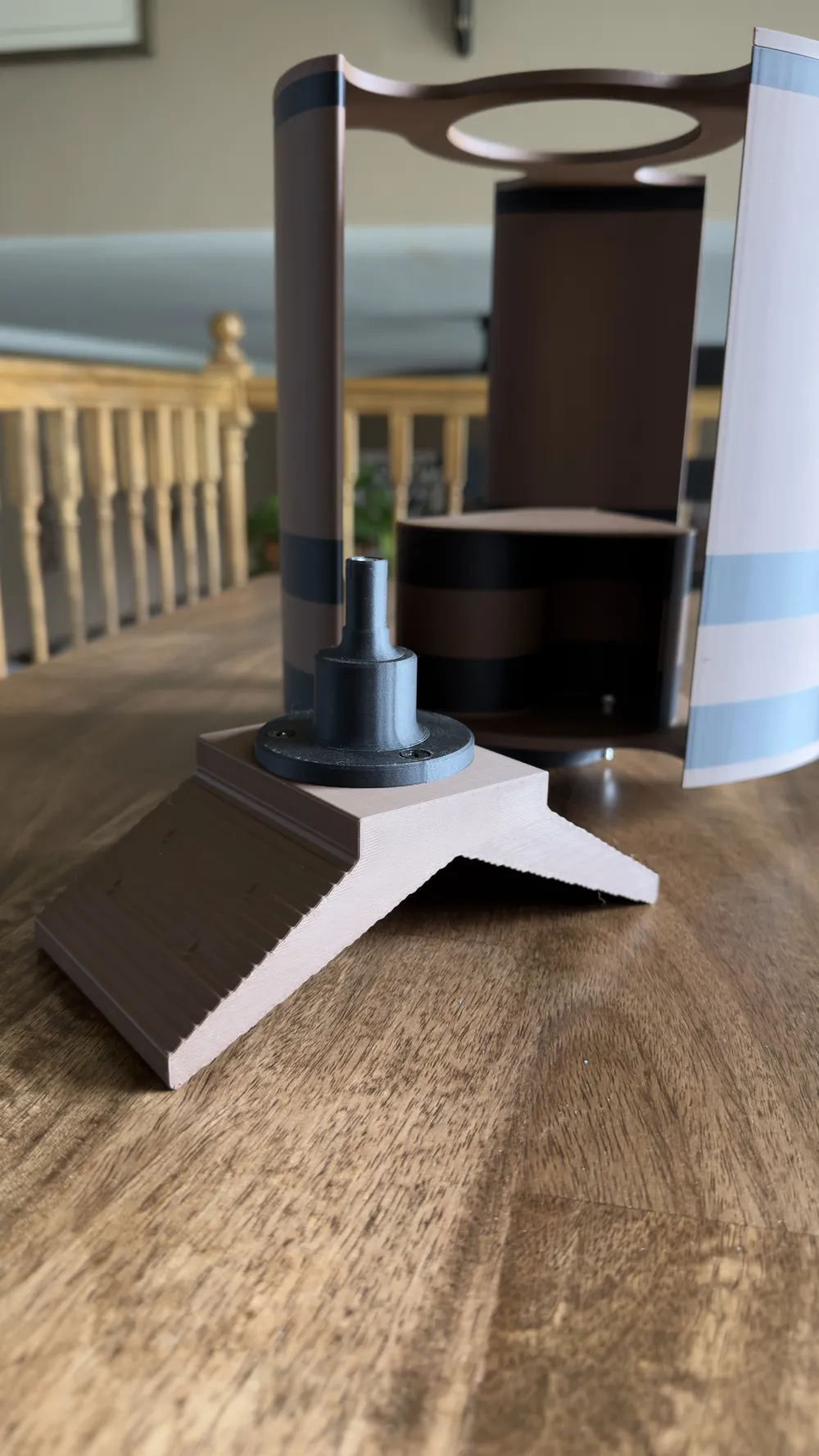

This roof ridge mount bracket is designed to lock onto the peak of your roof and stay there. Built around a 132° saddle, it sits tight, low, and solid—exactly how it should. No wobble. No unnecessary height. Just a clean, strong mounting platform that does its job. Resize how you feel fit.

The extended legs give you more room to fasten it down properly, so you’re not relying on a couple of weak screw points. Whether you’re mounting a windmill, weather station, antenna, or custom setup, this thing is built to hold.

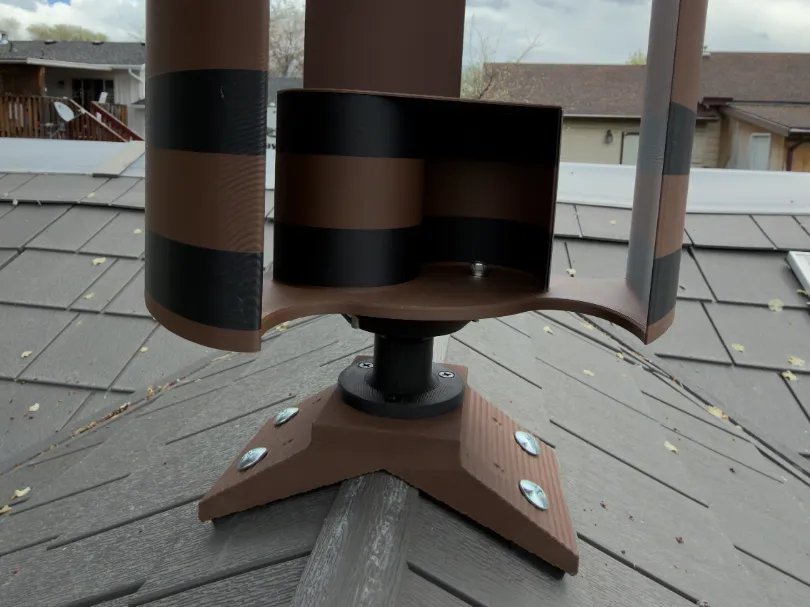

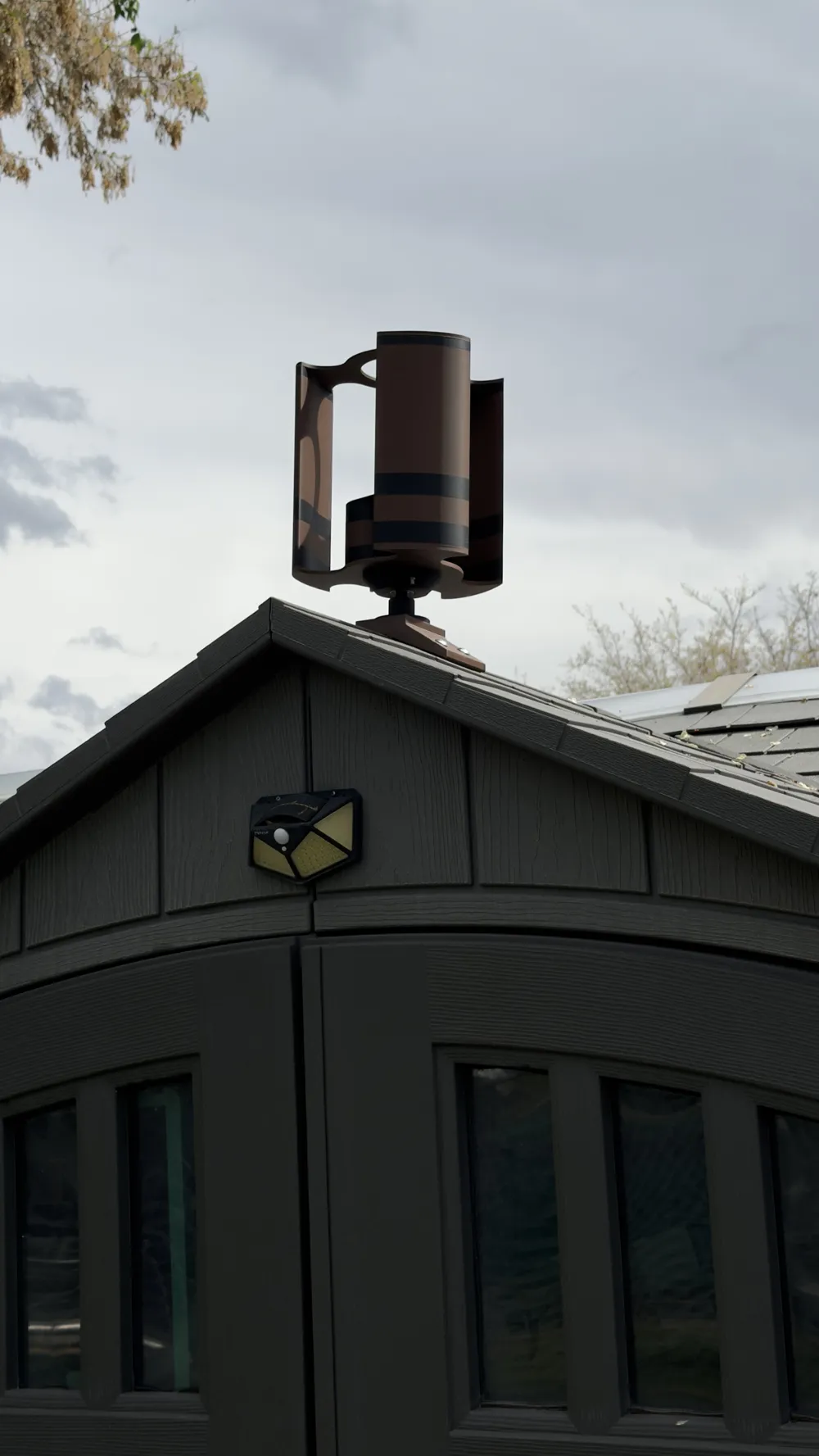

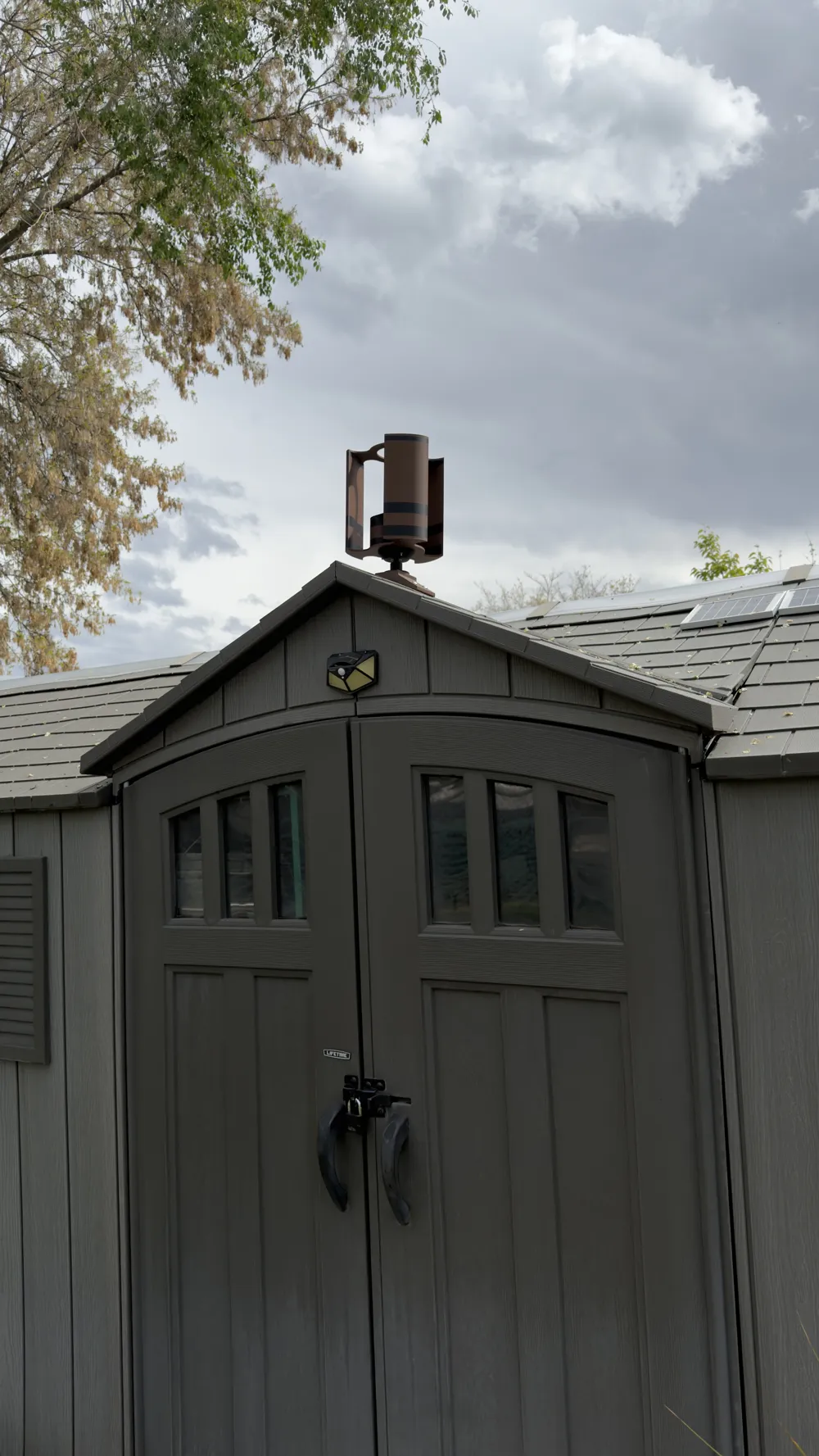

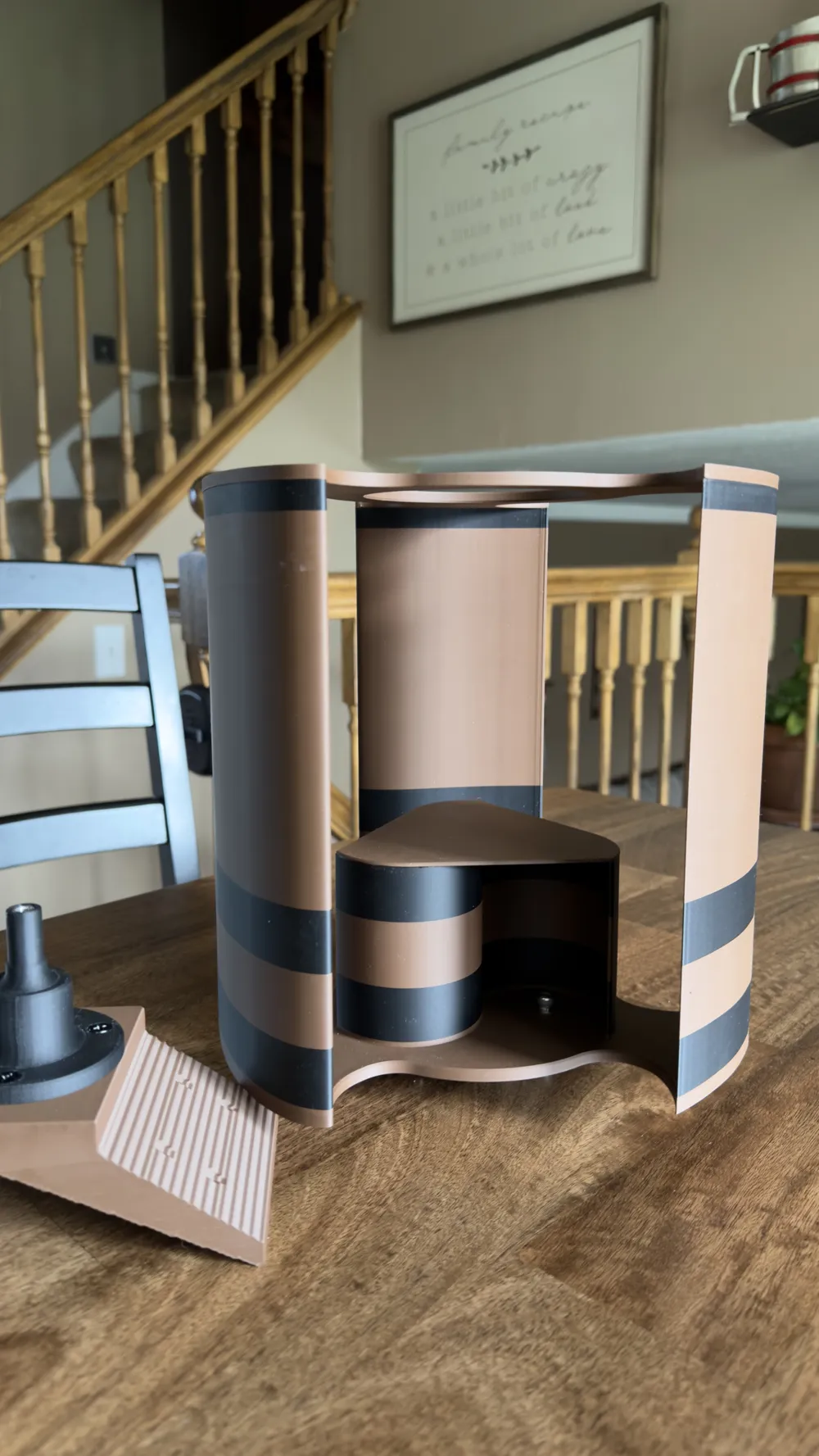

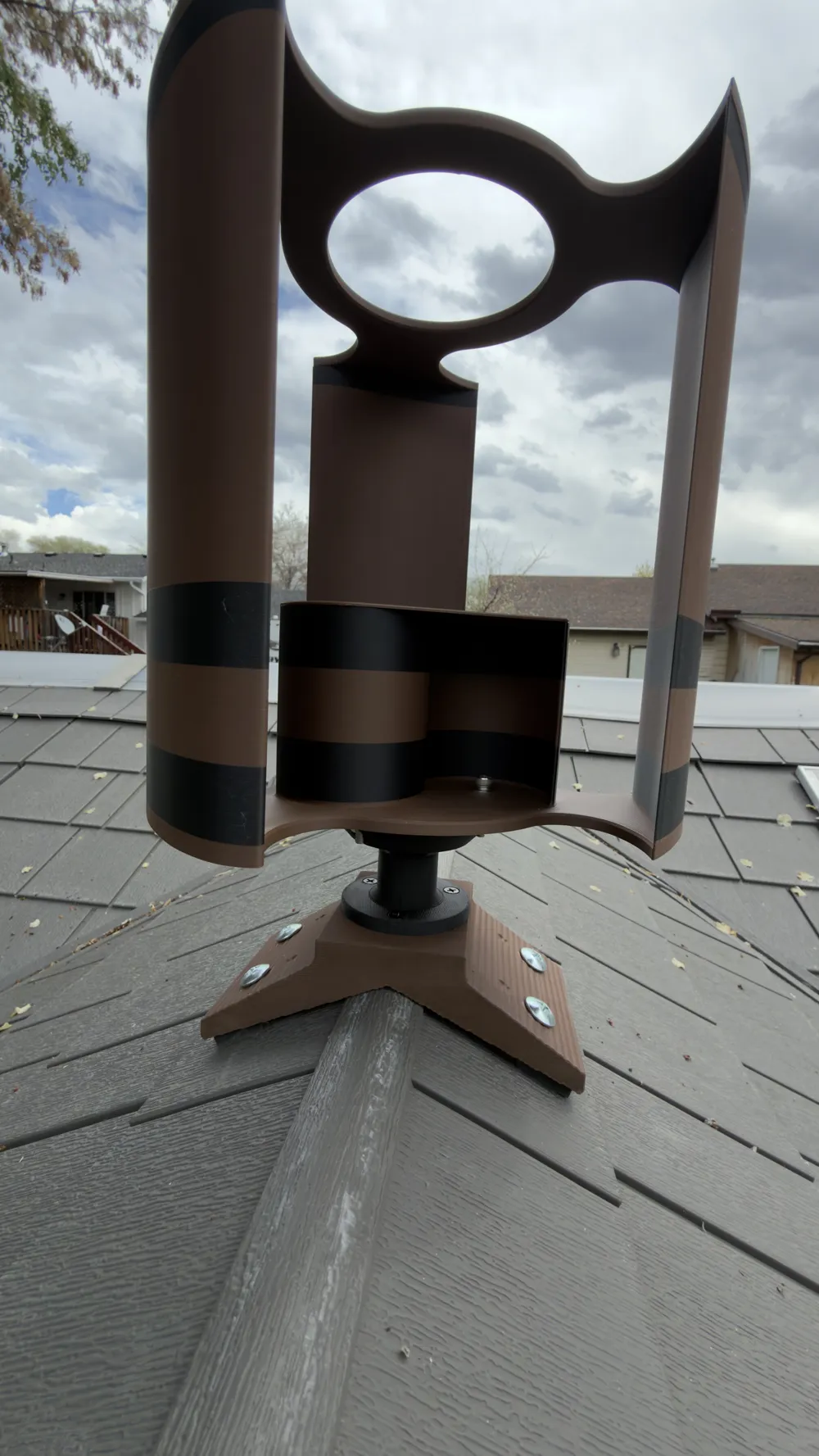

This model is currently installed on a Lifetime shed roof and paired with a vertical Darrieus windmill from @Staprin3D. The fit is solid, the profile stays low, and it holds steady in real-world conditions.

Model Here:

Vertical Wind Turbine (Darrieus) - Free 3D Print Model - MakerWorld

What sets it apart:
- Low-profile design that keeps everything tight to the roofline

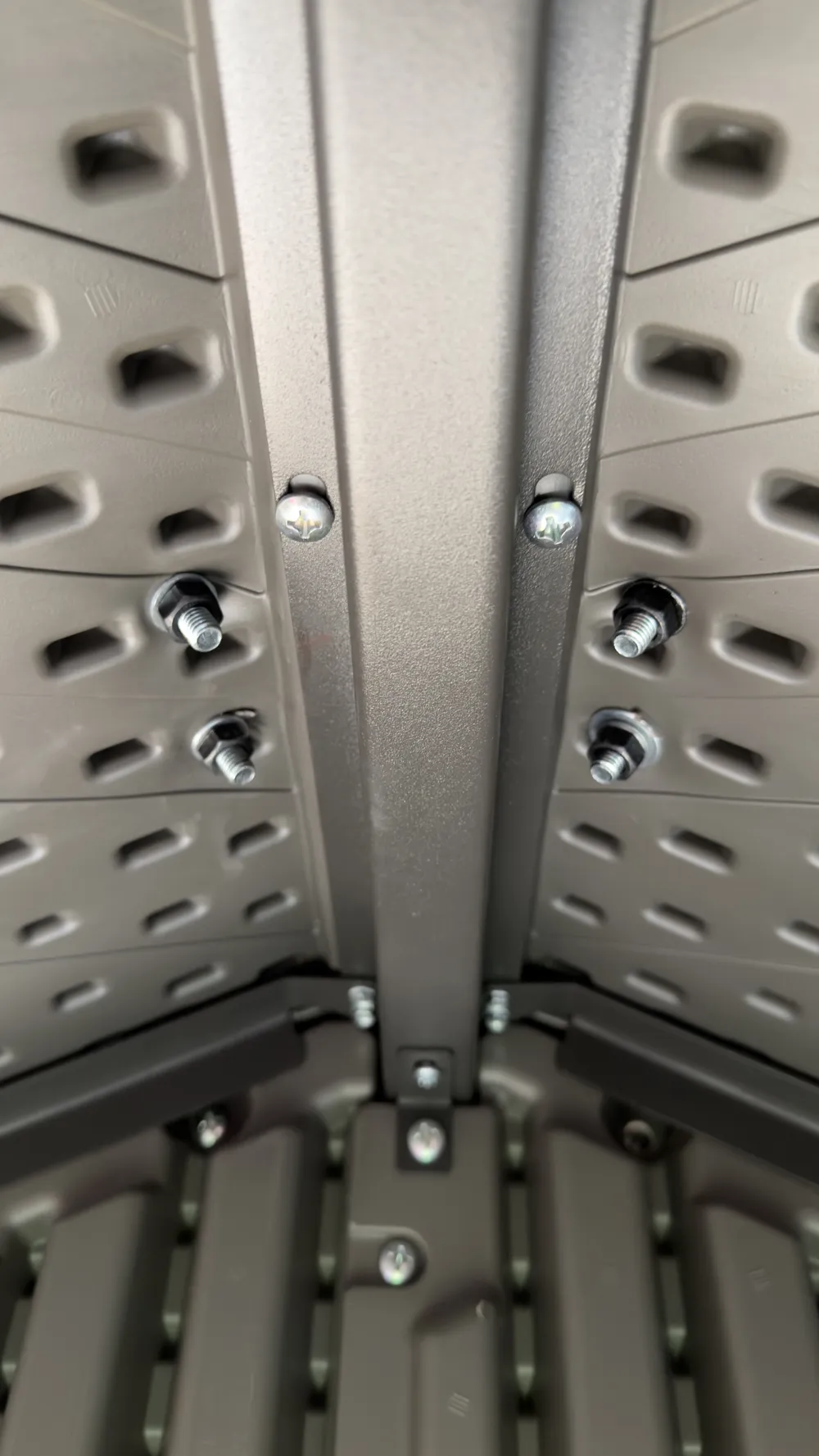

- Saddle fit optimized for ~132° roof angles. I also added foam door weather stripping over the bottom side, screw holes for padding and to seal the holes from rain etc. Then drilled through. Used M8 Bolts / Nuts. Feel free to use the bolt of your choice.
- Extended legs for serious hold and better load distribution
- Solid construction made to handle outdoor conditions
- Clean flat top for mounting whatever you need

Print it right, install it right, and it’s not going anywhere.

Recommended materials: PETG, ASA, or ABS
I used PLA HT (high-temp PLA), up to 150C Resistance.

(Standard PLA will not hold up outdoors long-term.)

If you need something that actually works and doesn’t look like an afterthought, this is it.
