5mm Shelf Pin Drill Jig – Cabinet Guide
IP Report
Print Profile(1)
0.16mm layer, 4 walls, 15% infill
Designer
4 h
1 plate
Open in Bambu Studio
Boost
10
36
0
1
23
16
Released
Description

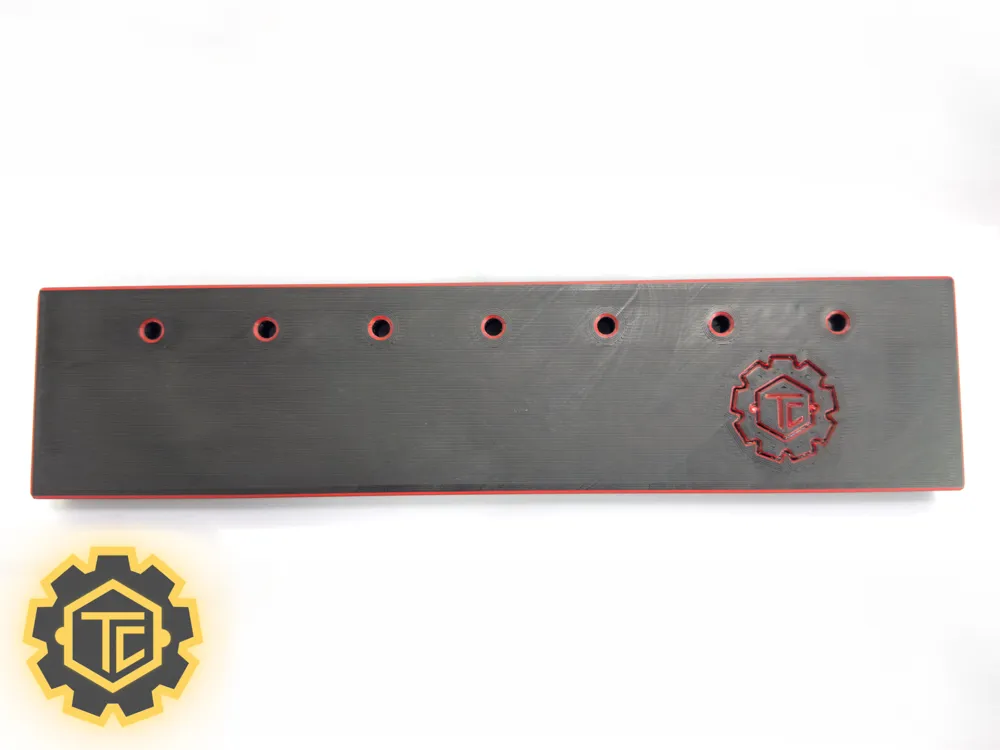

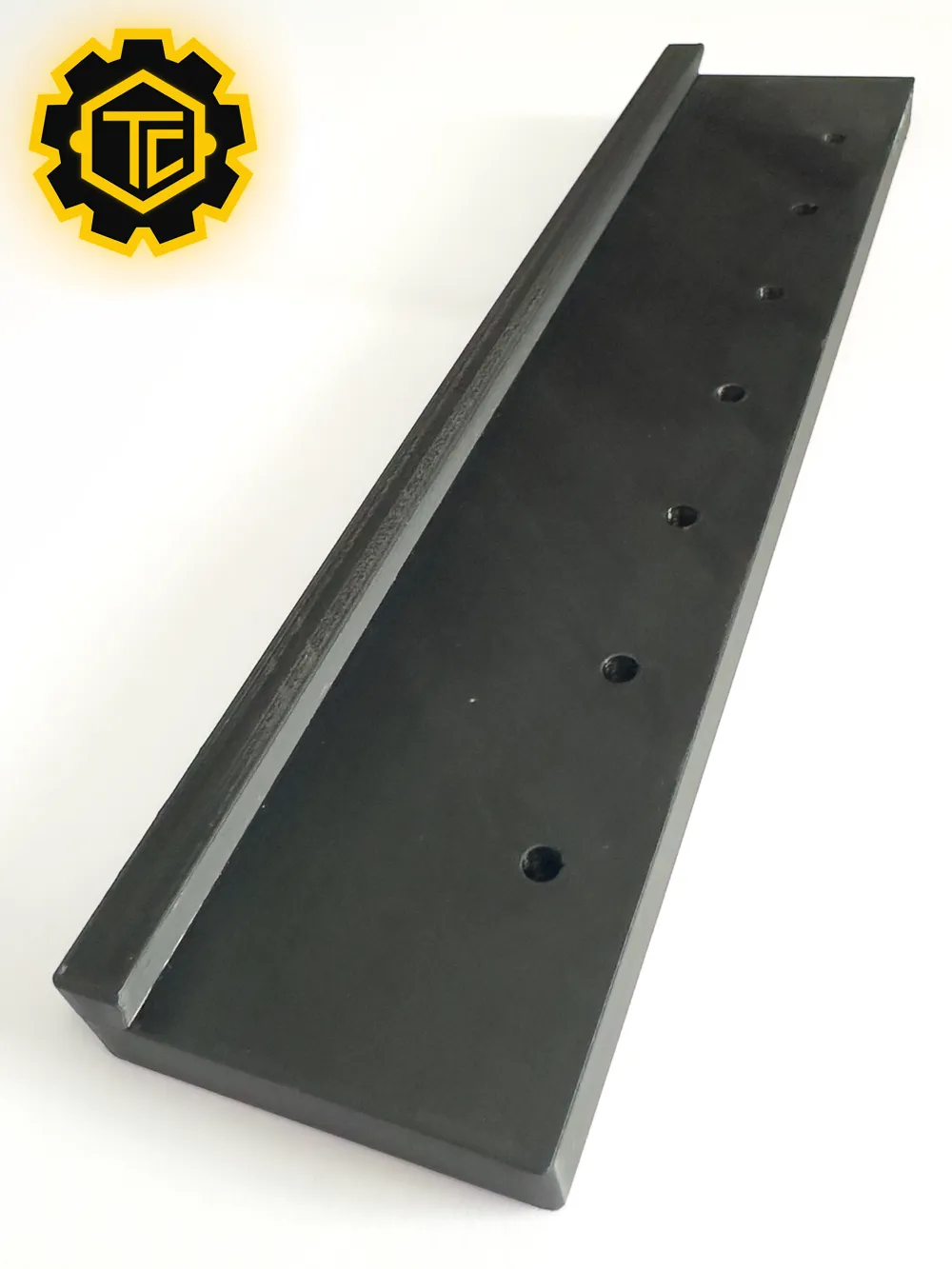

Use this compact drill jig to accurately drill 5mm shelf pin holes for cabinets and cupboards.
Designed for repeatable spacing, clean alignment, and easy use against board edges.
This version is AMS multi-colour friendly, with recessed logo and chamfered edges for clean colour swaps.
Perfect for:
- Cabinet makers
- Shopfitters
- DIY cupboard builds
- Shelf pin alignment
- 32mm system layouts
