Description
Boost Me (for free)

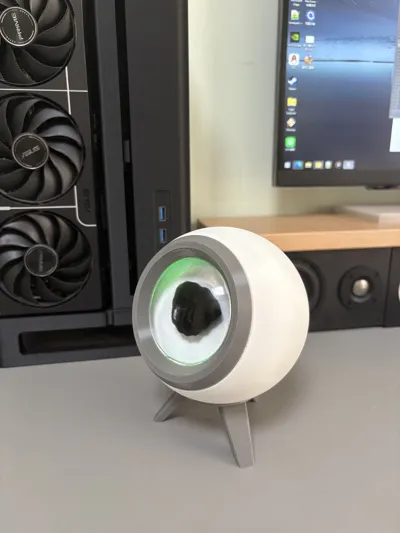

Recently, I haven't been tinkering with computer cases. In my spare time, I made a ferrofluid audio pickup, fixed with only 3 screws at the bottom, with a total cost of about 100 yuan
Installation video:
https://www.bilibili.com/video/BV1hhQtB4E1z/?share_source=copy_web&vd_source=fe86c3adef23c24cebbfde5ed5e2e25e
Components used:
Electromagnet 35 to 45KG, 5V
https://e.tb.cn/h.inoo304CvZJym4z?tk=xttU5UzFcV1
Pickup (app controllable):
https://e.tb.cn/h.iLZ2qDsv8rzvLOG?tk=0LSI5Uzu1W7
RGB light strip:
https://e.tb.cn/h.inoNC5UV2fLiS2i?tk=RWyV5UztKjM
Type-C female connector:
https://e.tb.cn/h.iMw8KVUPDGpTrKC?tk=hH2b5UzHORa
Also requires 8 M3*5*5 heat-set inserts, 8 M3*8 hex socket screws, 3 M3*12 screws
Note, the light strip voltage must match the input voltage
The main Type-C port has a complete first layer to eliminate the need for supports. After printing, just trim it with a utility knife

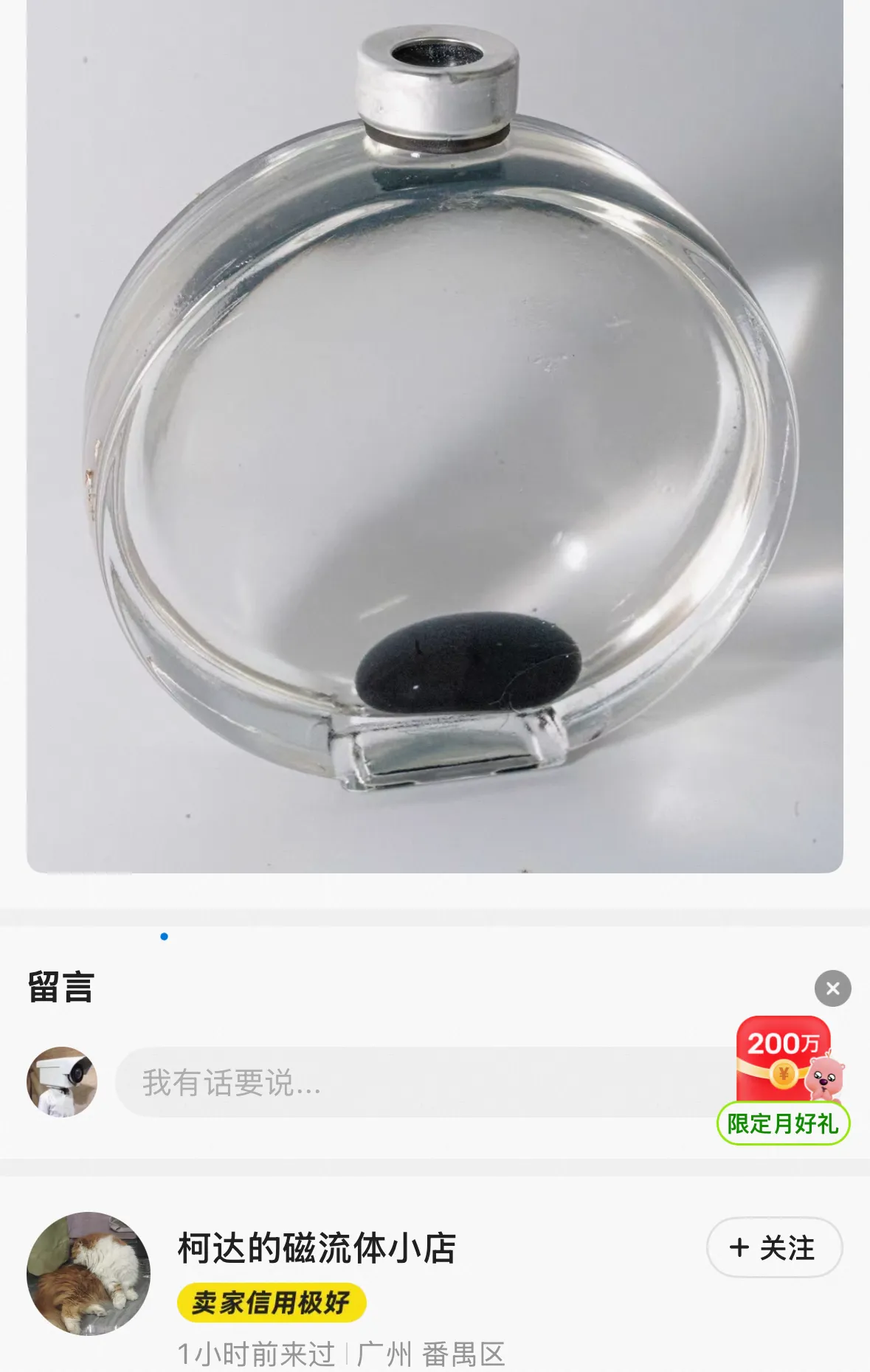

5ml ferrofluid, available on Xianyu. Note: bottle diameter 76mm, edge thickness 21mm

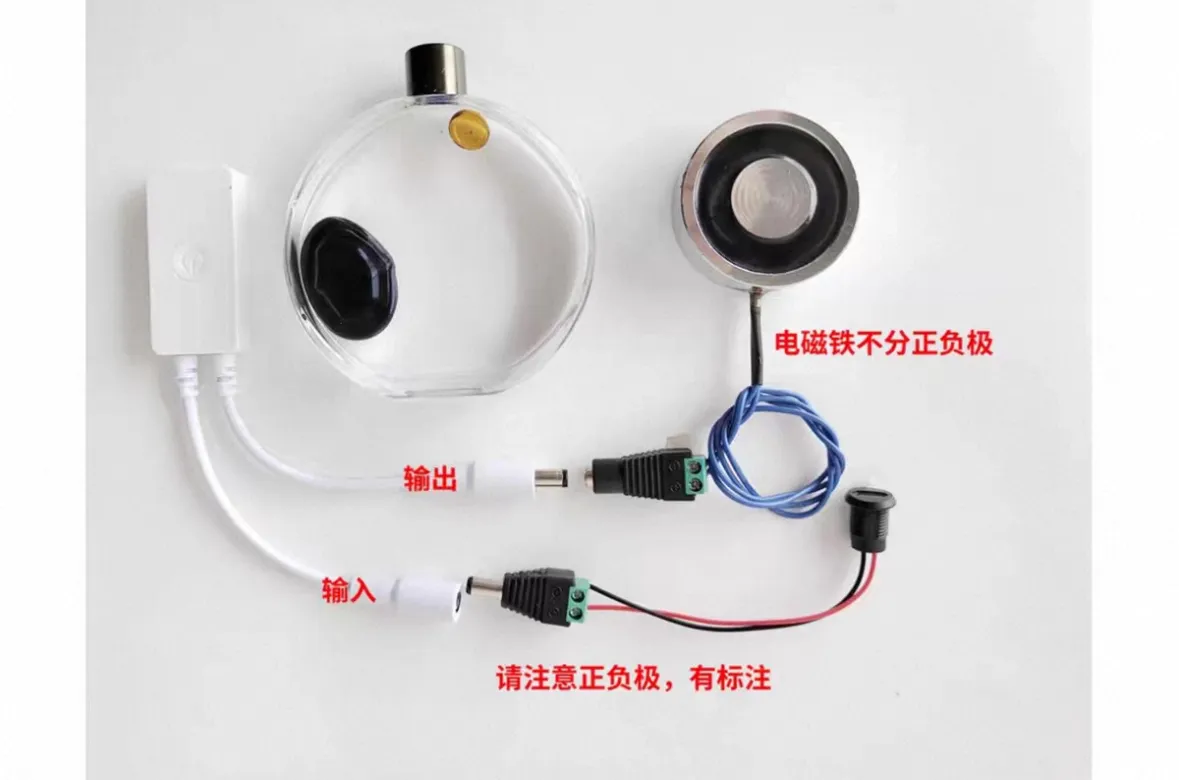

Wiring diagram:
