Parametric Exhaust Tube Generator
Print Profile(1)
Description

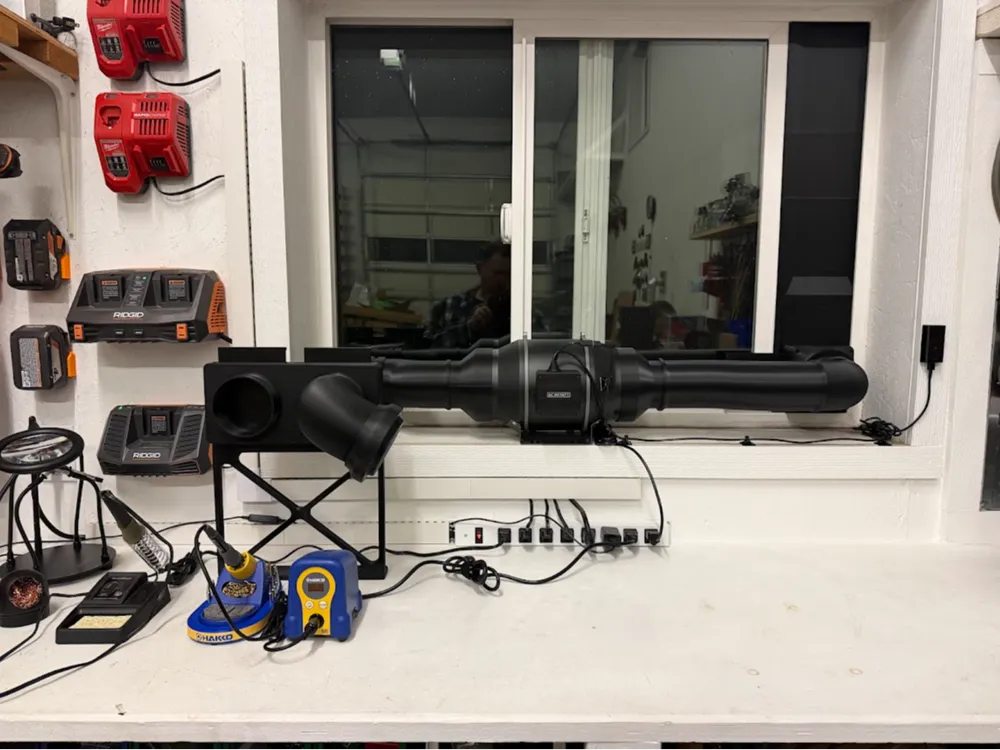

This exhaust tube generator is designed to integrate seamlessly with my V2 4-inch window extraction system. It provides a parametric option for creating custom pipe sections that snap securely onto the rest of the system components.
Two generator variations are included:
- Straight Tube Generator – Ideal for producing standard straight sections used to connect various parts of the system.
- Offset Tube Generator – Allows for the creation of offset sections to accommodate more complex routing requirements.
When using the offset generator, some experimentation may be required to achieve optimal results. Longer sections tend to perform better with larger offsets. For best print quality and airflow performance, it is recommended to keep offsets at or below 40 mm, as larger offsets will require additional support material at the bend.

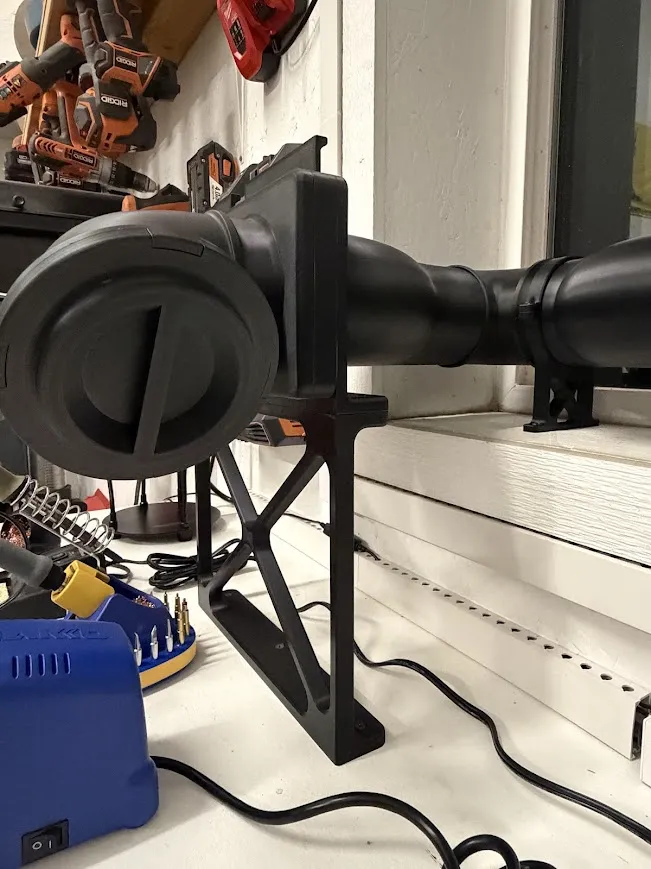

A support bracket is also included, designed specifically for use with an AC Infinity fan. Compatibility with other fan models has not been verified.

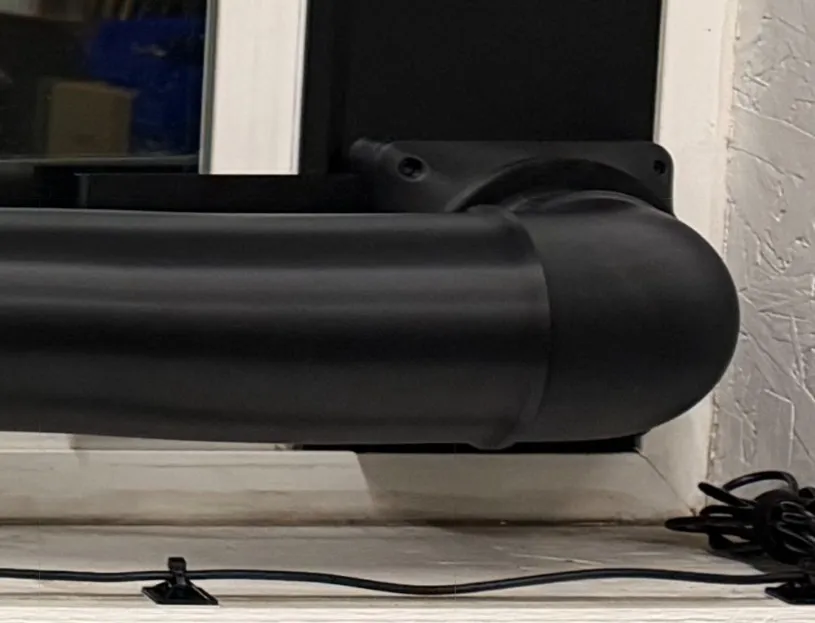

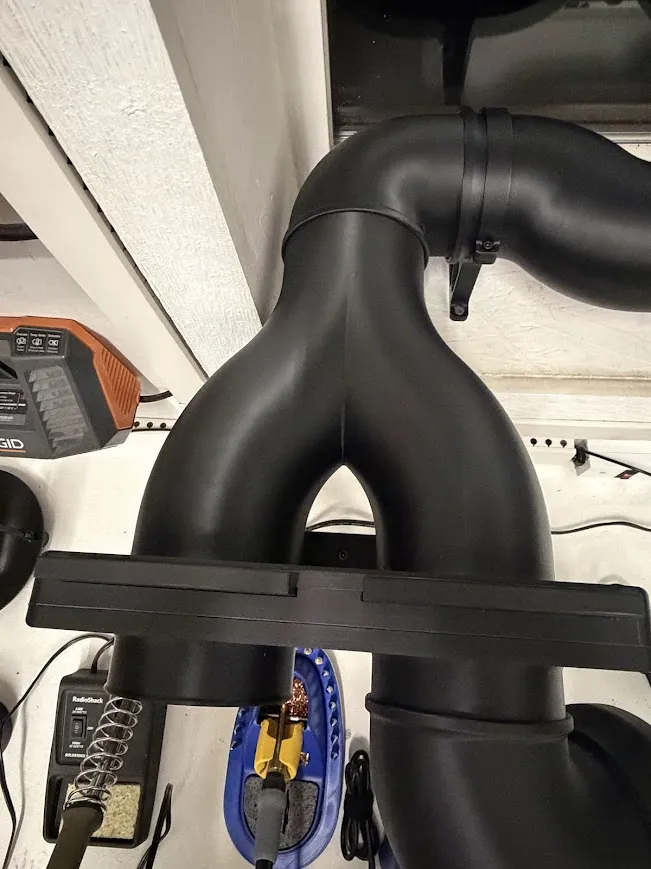

These components are designed to interface with the elbows, Y-splitter, window blast gate, and the AC Infinity 6" to 4" reducer. The primary goal of this system is to provide smooth transitions between parts while maintaining a rigid pipe structure for improved airflow efficiency.
When generating parts, the specified length is measured between the two end faces shown below. This represents the exact distance between the components you intend to connect with the tubing.
⚠️ Note: The overall printed length will be the generated value plus an additional 12 mm. Be sure to account for this when working near your printer’s maximum build height.
You can find my other models associated with this tubing generator below.
- X-Tool S1 Collection All models I used in the project are linked in this collection
- If you would like a smoother, step version of your generated part, feel free to message me directly. Provide the required dimensions, and I can generate a custom version for you.
Boost Me (for free)
I design practical, well-tested models and share them to help the community. Boosts help support continued development, testing, and future improvements.
Parts:

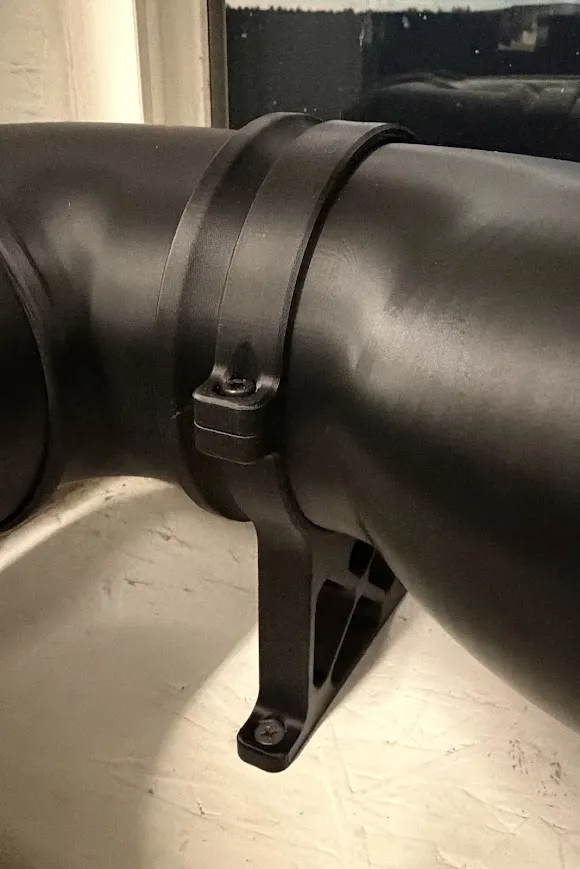

- M4x6 Heat set Inserts (2 required per tube support)
- M4x8 Cap Screw with Flat Washer (2 of each required per tube support)
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
