Description

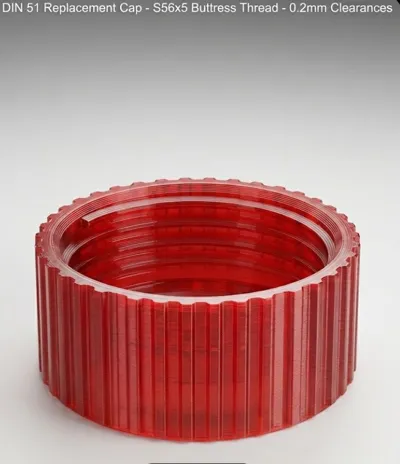

This is a functional replacement cap designed for industrial canisters and containers commonly found in Europe and globally. The model is engineered with 3D printing tolerances in mind to ensure a smooth fit out of the box.
Thread Profile & Dimensions
- Thread Type: Buttress Thread (S-Thread / Sawtooth)
- Standard: DIN 51 (Commonly used for 5L, 10L, and 25L canisters)
- Major Diameter (Male/Canister): 56.0 mm
- Minor Diameter (Male/Canister): 51.0 mm
- Pitch: 5.0 mm
- Thread Profile: Asymmetrical (Buttress) with a flat crest for high pressure and load resistance.
- Clearance (Tolerances): The model includes a 0.2 mm - 0.3 mm offset on thread flanks to account for typical 3D printer "over-extrusion" and friction.
- Internal Minor Diameter: Designed at 52.0 mm to provide a 0.5 mm radial clearance over the canister neck.
- Entry Chamfer: A 1.0 mm lead-in chamfer is added to the base for easy alignment when starting to thread the cap.
- Grip: Vertical knurling/ribbing on the exterior for easy operation even with gloves or wet hands.
- Rubber gasket or TPU needed to prevent leaking from canister.
