Pump and CO2 Holder (under bottle cage, Lezyne)

Pump and CO2 Holder (under bottle cage, for Ripmo V3)

Say thank you, on Ko-Fi: https://ko-fi.com/gooddoog

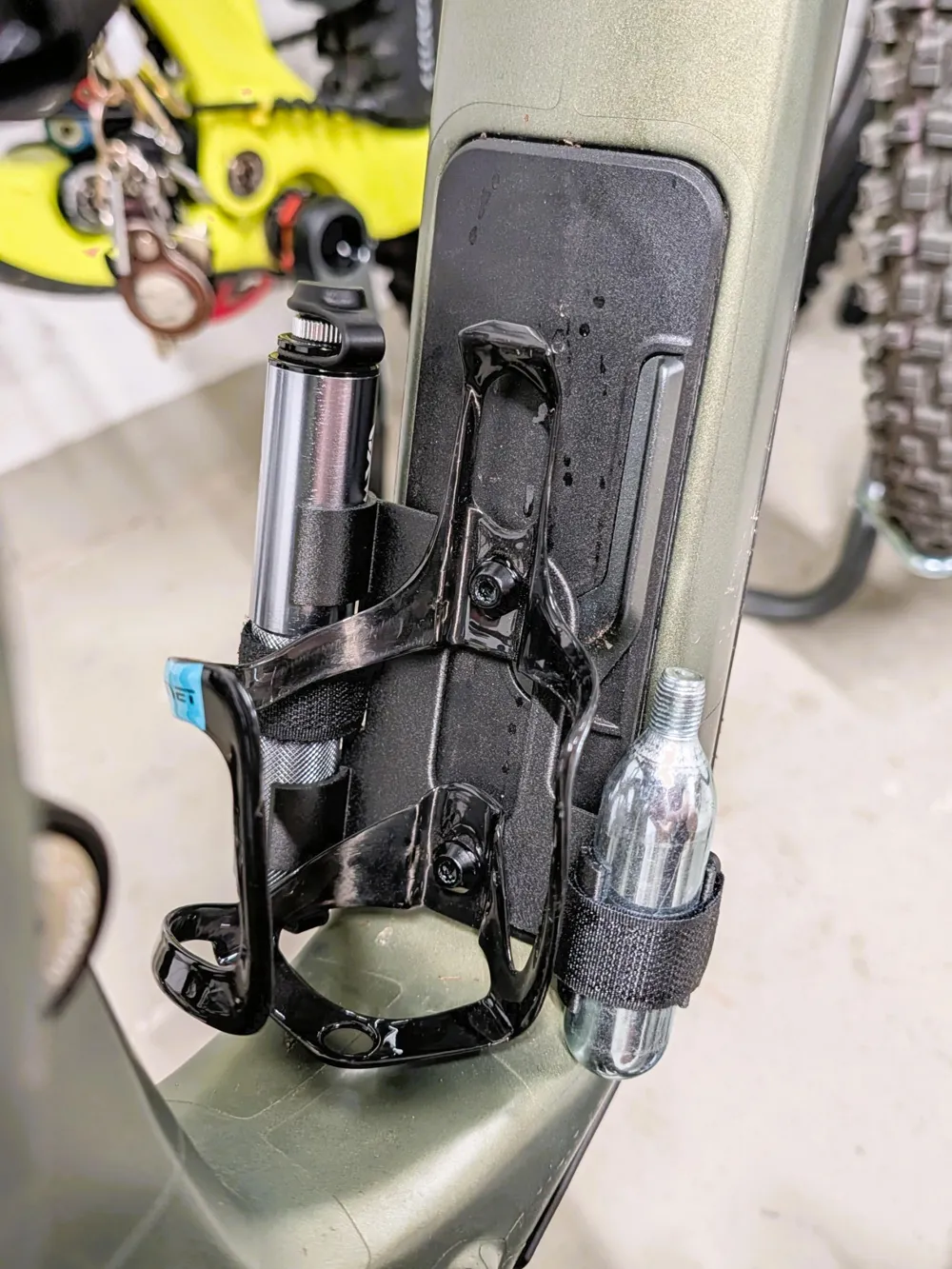

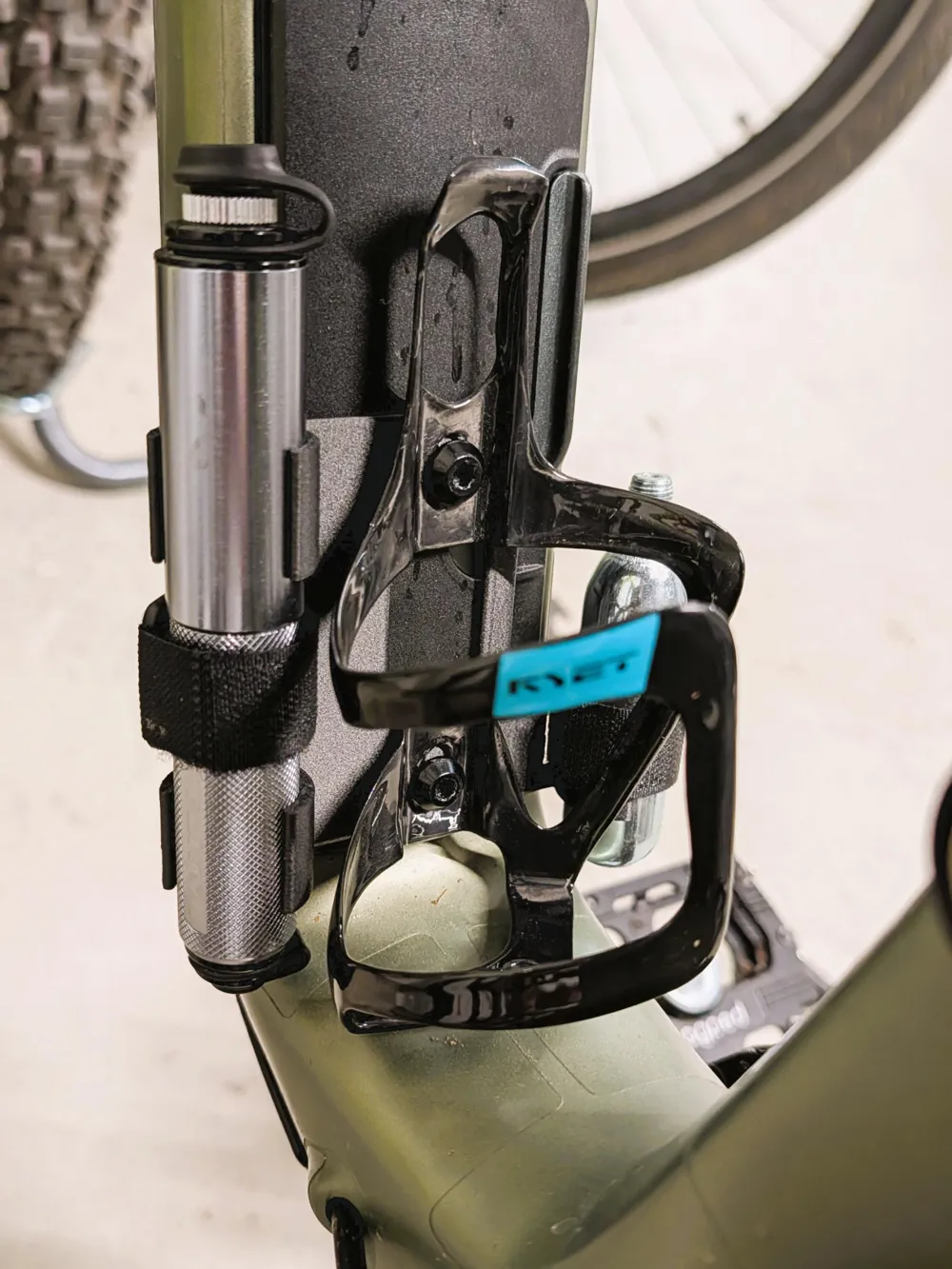

I have an Ibis Ripmo V3 and the bottom tube is quite flat and wide at the bottle cage mount, due to the frame storage.

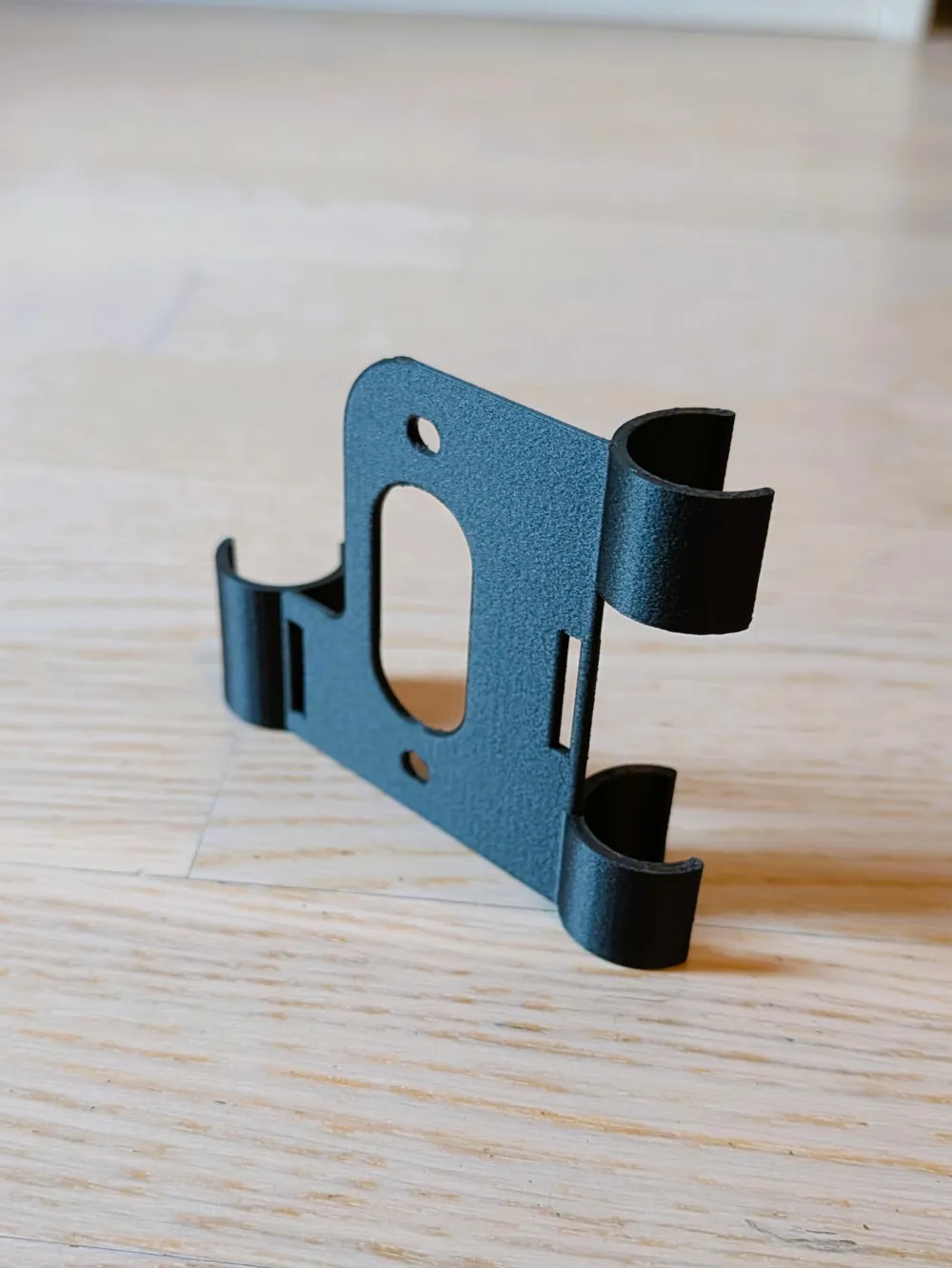

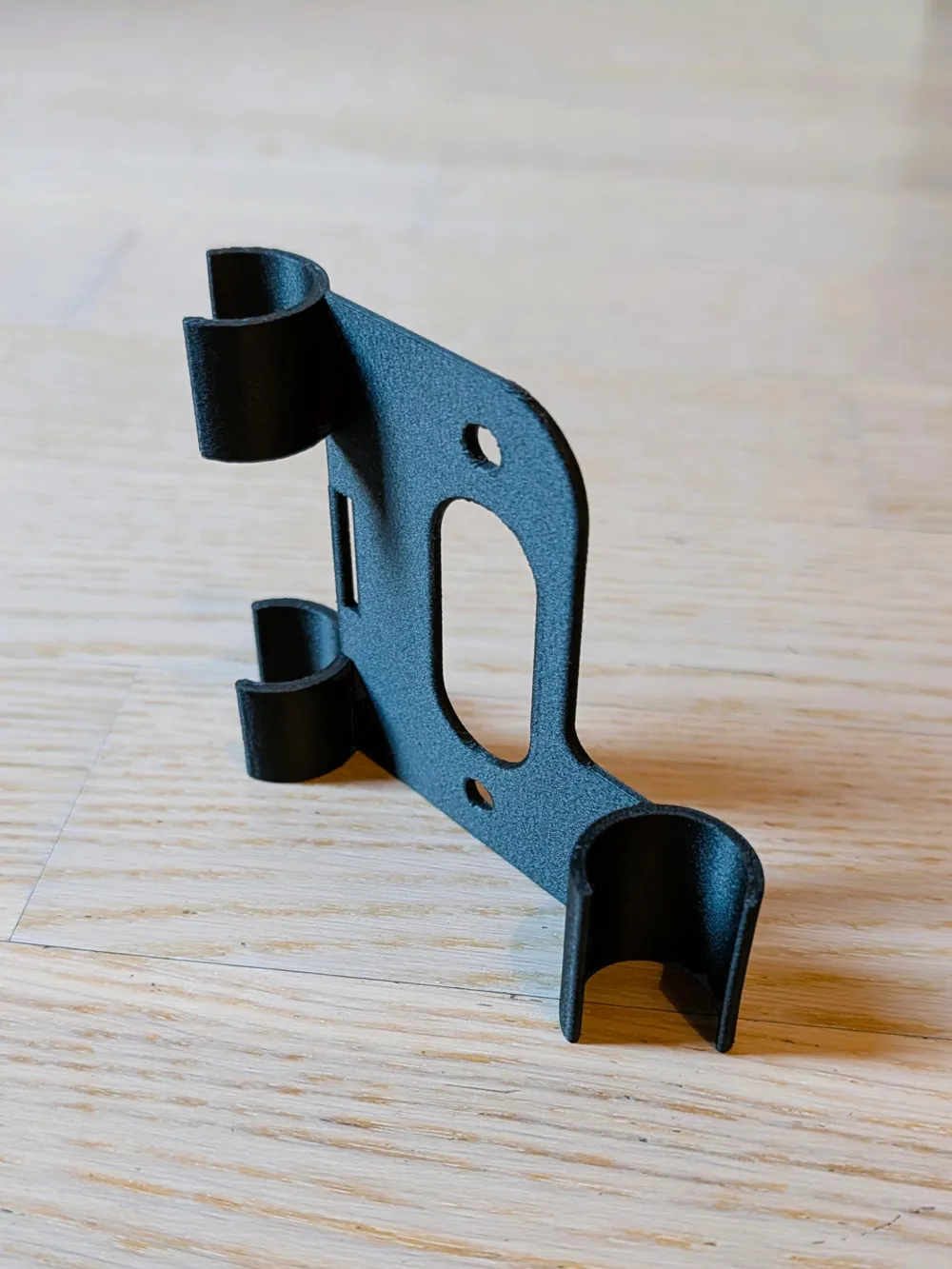

So, I designed this bike pump and bottle holder to mount under the bottle cage. It has the following features:

• It leaves enough space not to collide with the frame or bottle.
• You can still open the frame storage with pump and CO2 attached.
• Two short velcro straps can be optionally used to provide a more secure hold.
• It does not interfere with the crank arms.

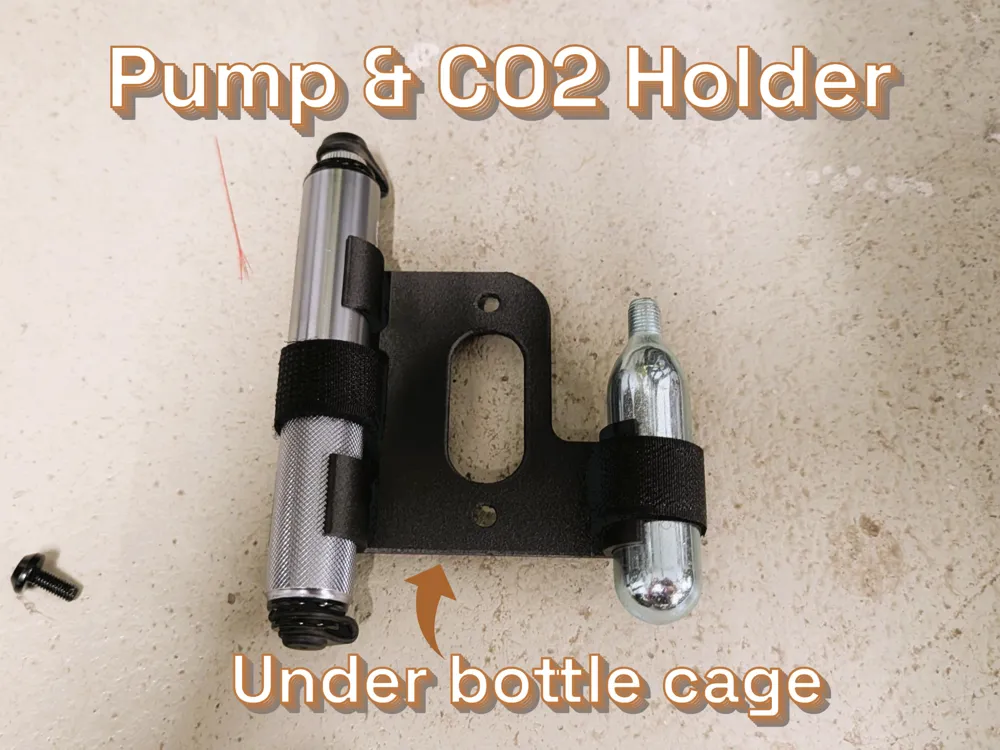

It is designed to work with the Lezyne Pocket Drive and a regular CO2.

I printed the model in PA12-CF and it came out great. It withstood a long MTB ride with lots of jumps and singletrack.
