Custom Size Press-Lock Storage Box (4 flat sides, spring-loaded lid)

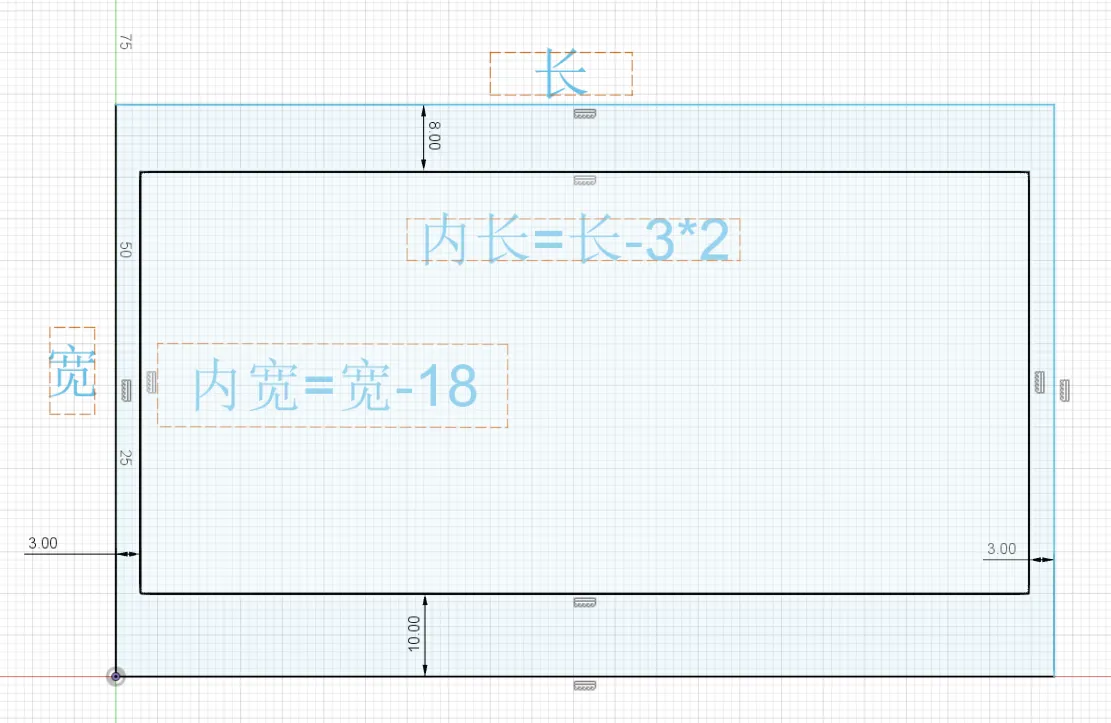

20260414 new version optimization: The outer dimensions of the box have been changed to match the actual parameters Length, width, and height correspond to the outer dimensions of the box respectively During design, the top layer is 3mm, the bottom is 2mm, both sides are 3mm, the back is 8mm, and the front is 10mm For those who need internal dimensions, please refer to the parameters above The schematic diagram is as follows:

Please read the following instructions before printing:

This is a dual-latch push box, where the latches are flush with the box surface No hardware is required, and filament is used as a fastener

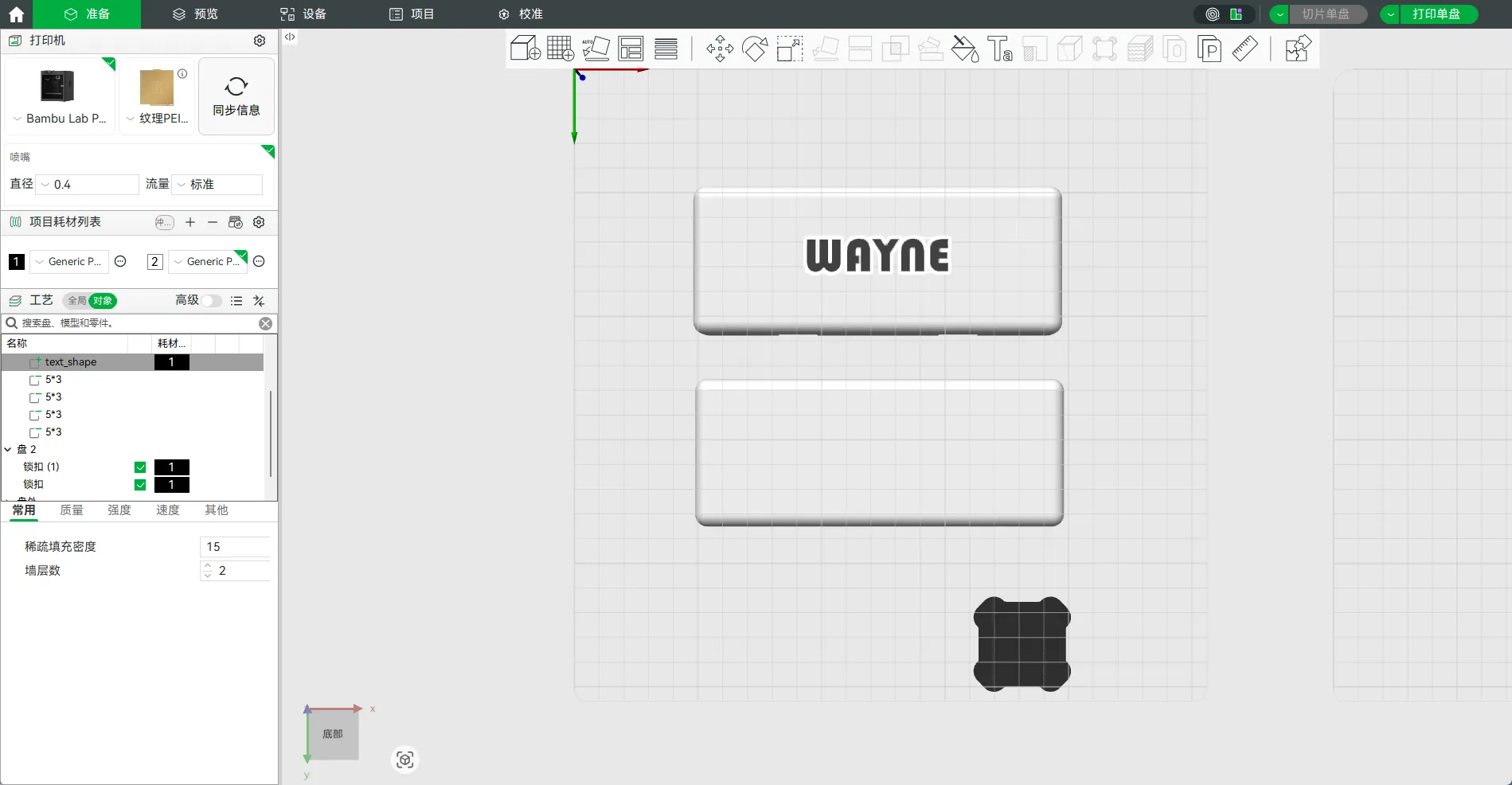

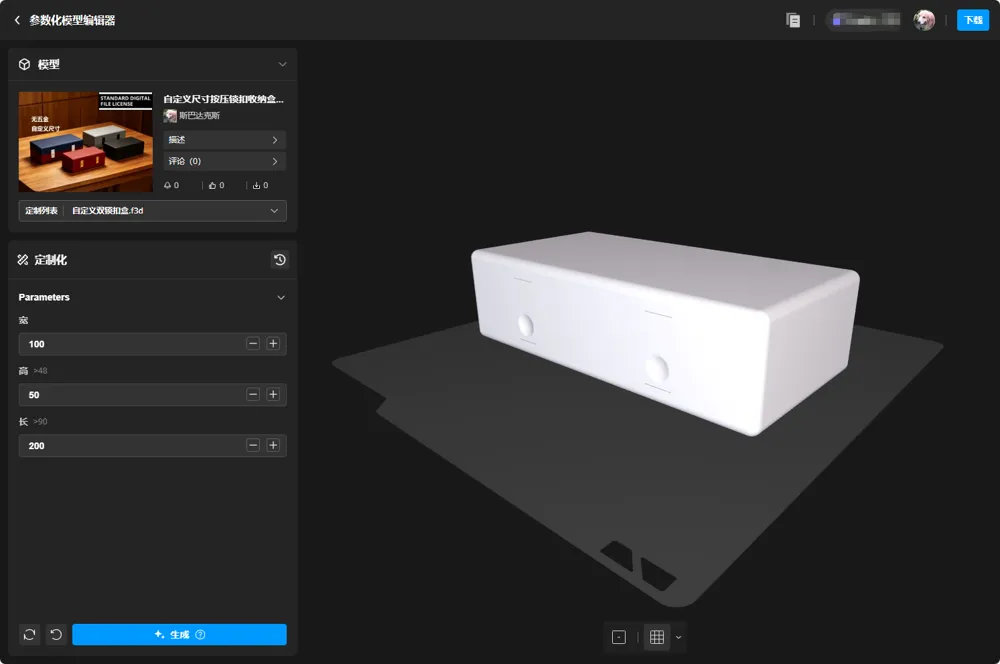

It is recommended to open the file with Bambu Studio so you can edit text or add magnets When customizing, the dimensions require a length > 90mm and height > 52mm An inner lining is included; if not needed, you don't have to print it The lining is used for easy Boolean operations

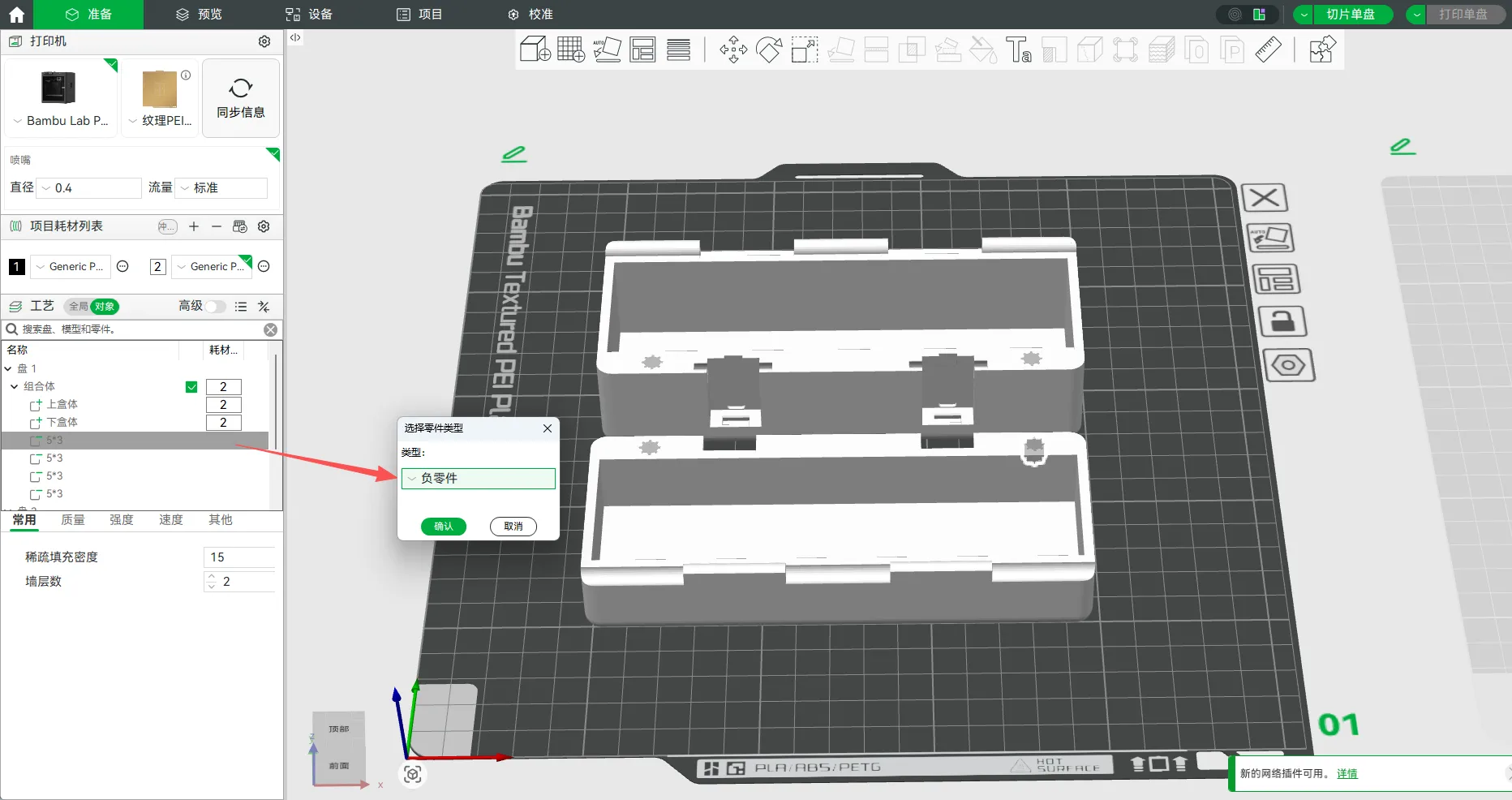

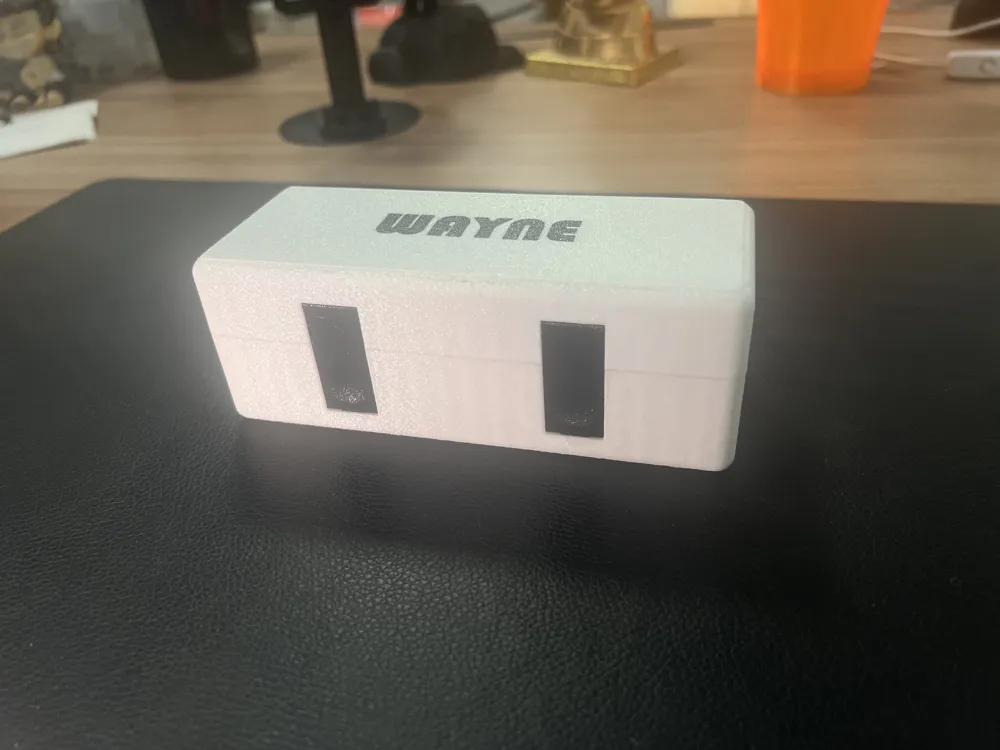

Default print file dimensions: Length 150*Width 60*Height 55, suitable for use as a pencil case The file uses 5*5 magnets for the pop-up lid If needed, the magnet model can be set as a negative part If it's too much trouble or not needed, you can print directly Text can also be customized The sample model has a fuzzy skin surface treatment, and the latches have added normal supports, for reference

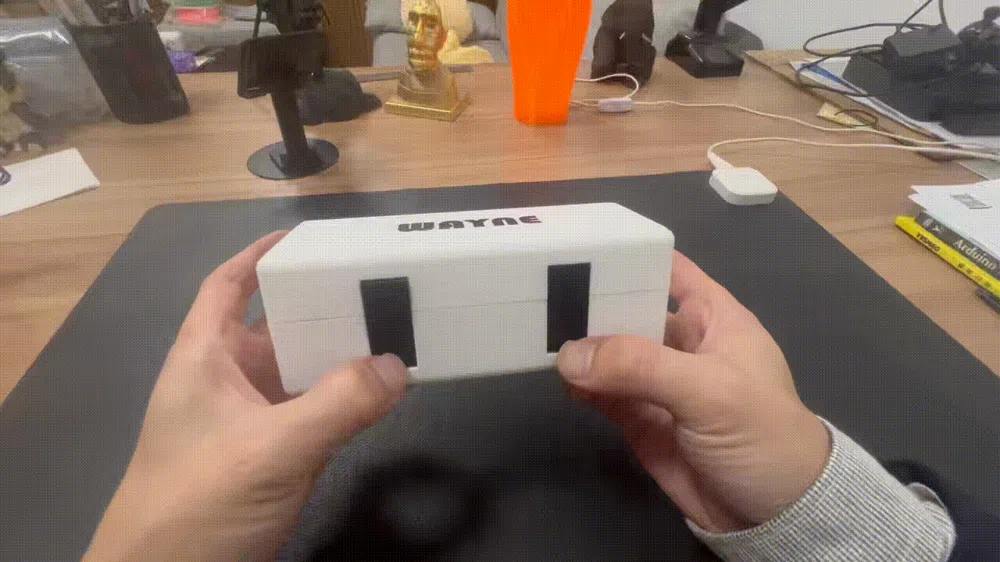

If you need to add magnets to achieve the pop-up lid effect shown in my Git image, you can use the solution from Designer Xiaoyun magnet negative part STEP file Thanks for this

Single latch version here
