RHP Tactical Multi-Hole Design QLS Quick-Draw Holster Drop Plate Adapter Module
IP Report
Print Profile(1)
PETG-CF can be printed directly
Designer
2.9 h
2 plates
Open in Bambu Studio
Boost
82
254
7
0
88
47
Released
Description
参与wargame游戏的人应该有人必备的一款装备
Rigid Holster Platform它能提供更好更舒适的佩戴及使用体验

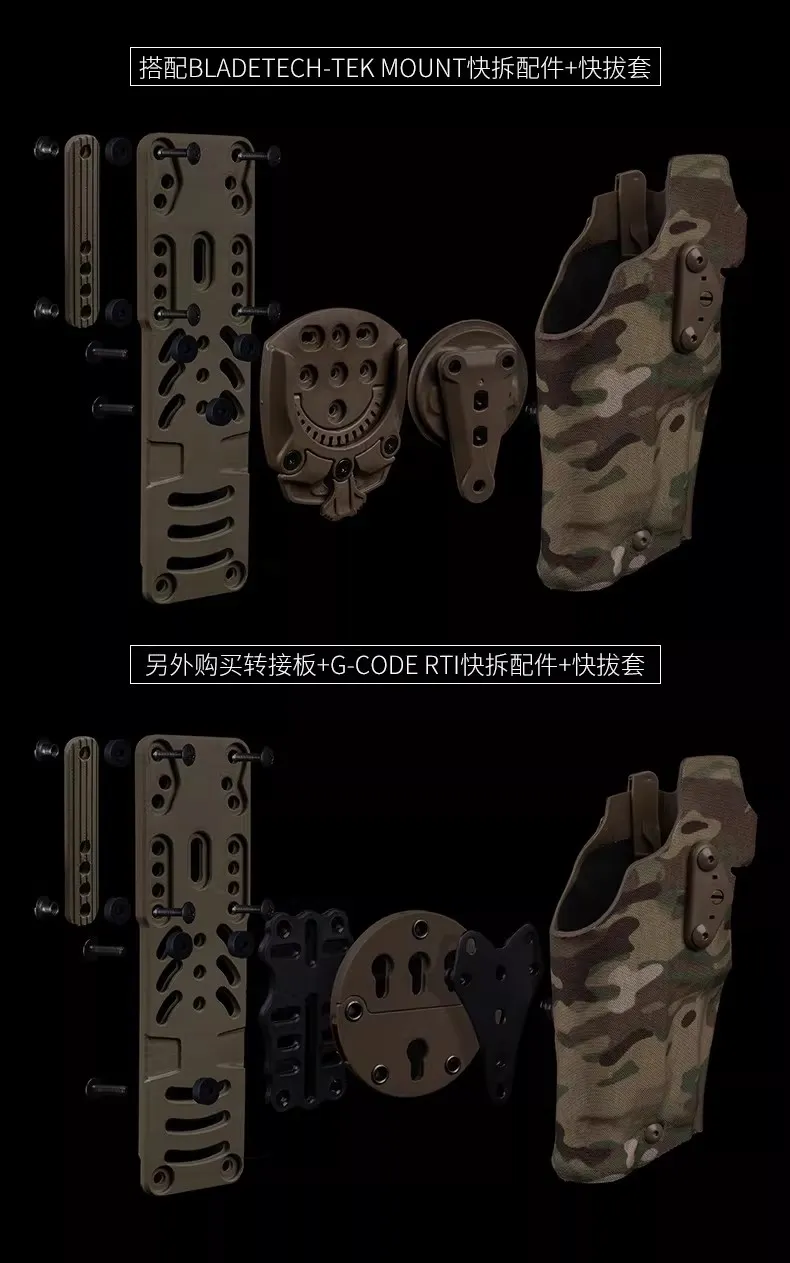

能够兼容绝大多数转接配件
如果你是用的是CQC系统的快拔套，那可以下载我主页中另一个CQC To Safariland系统的插板。

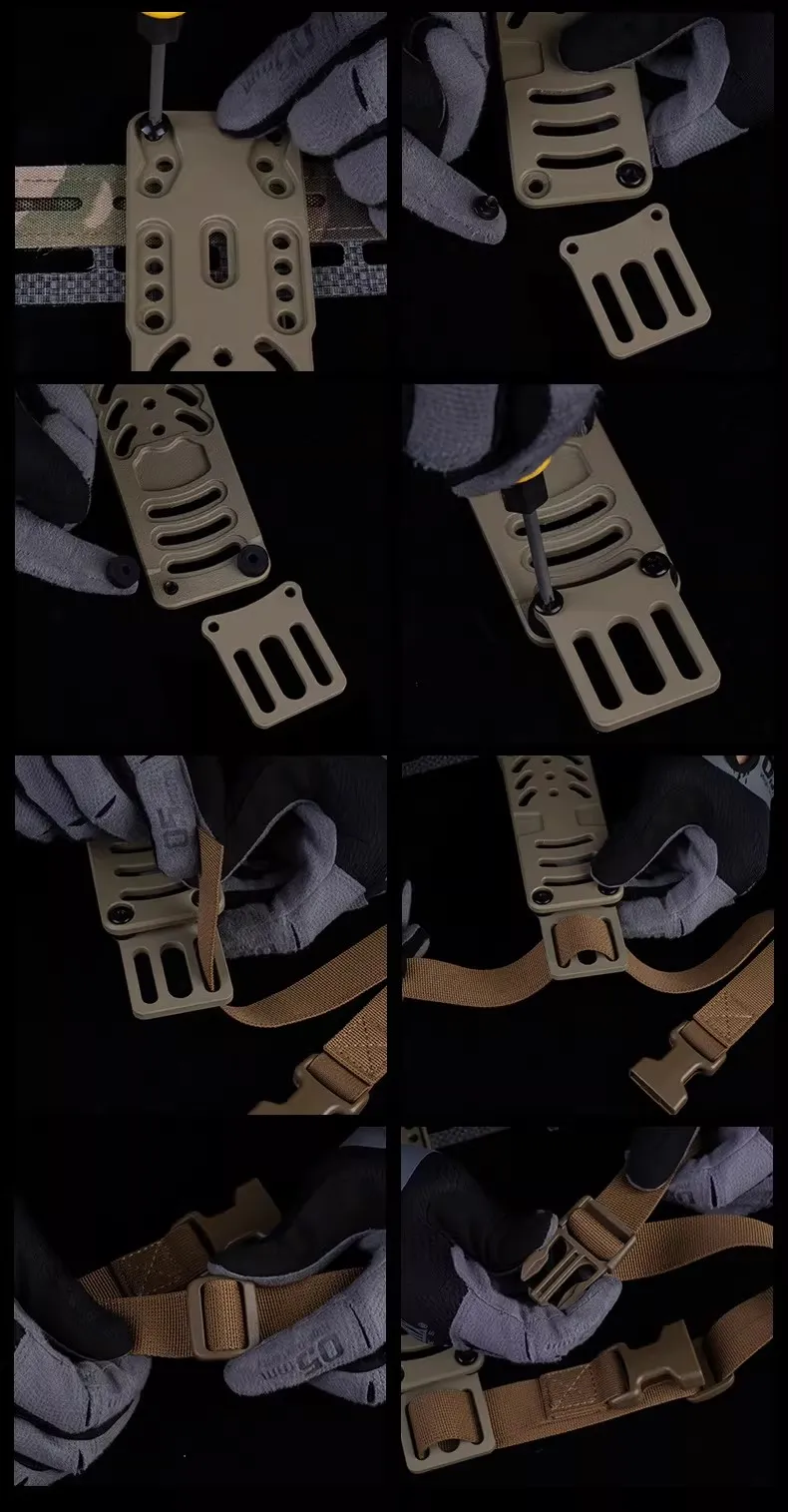

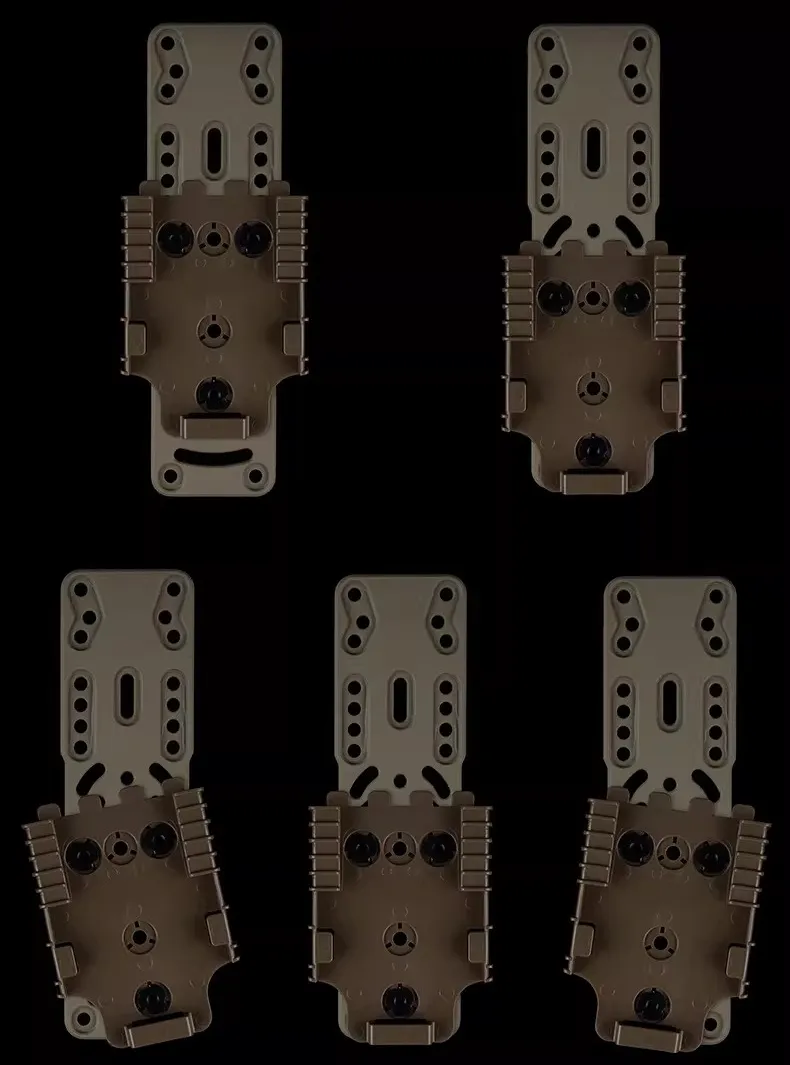

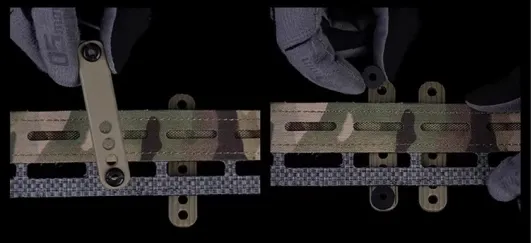

The RHP features a unique groove and boss belt interlocking system. It now offers 30 degrees of holster cant-adjustment 15 degrees forward and 15 degrees rearward. The RHP includes (3) vertical holster height adjustment points spaced at .525” increments. It supports belts up to 2.25” wide, with updated adjustment points to accommodate smaller belts, and is designed for a “Mid-Ride” mode of carry.

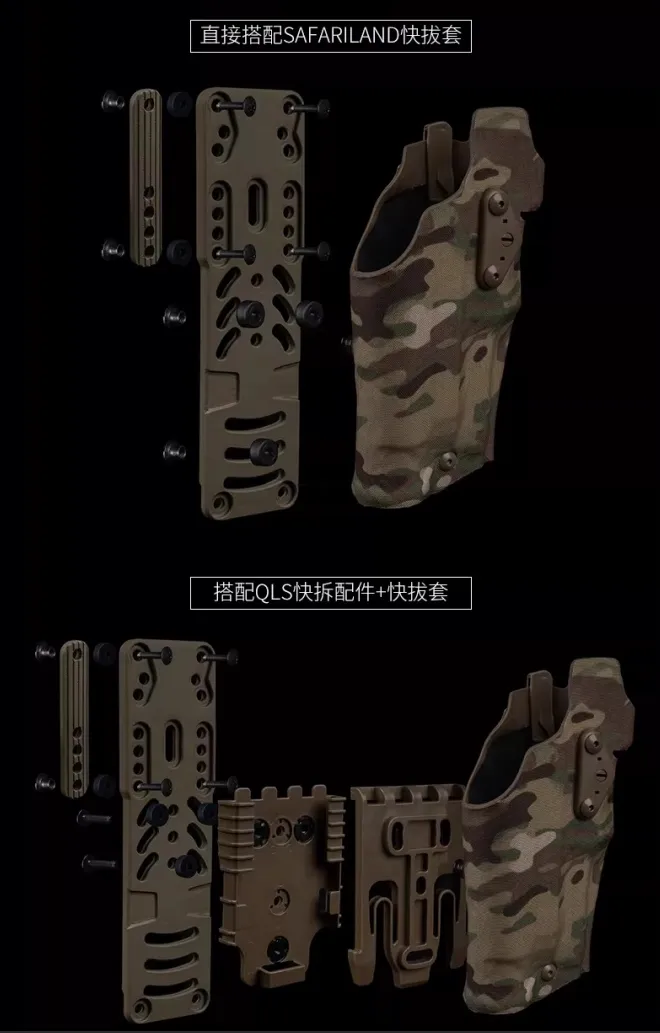

To enhance comfort and functionality, the curved back face of the RHP increases the belt contact area. Recessed hardware pockets are built into the platform to shield the mounting hardware from impact and abrasion damage. The RHP is compatible with all 3-hole Safariland pattern holsters and integrates seamlessly with the Safariland QLS system.
The RHP is the perfect solution for those who require reliability, versatility, and
top-tier performance from their gear, whether in the field or on the range.

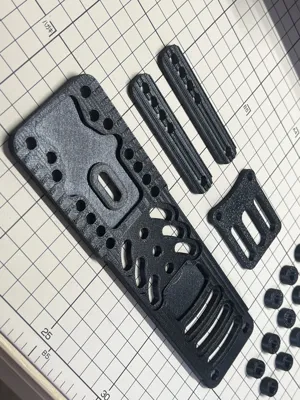

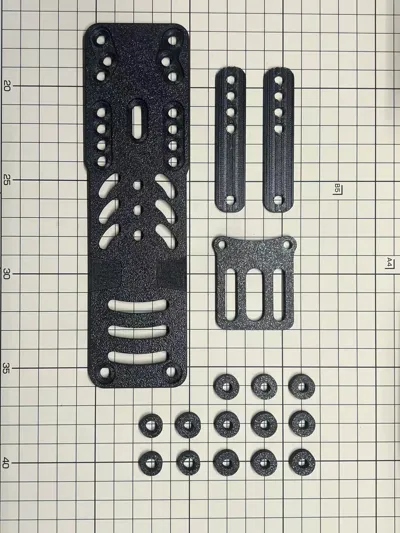

主体建议是用CF或者GF类耗材打印
5圈壁 100%填充
垫圈建议是用TPU打印，没有的话其他材料也行。

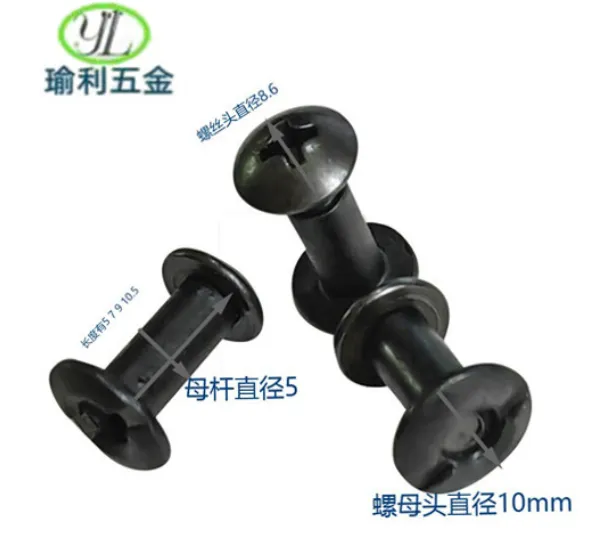

螺母：螺母头直径10mm 杆长5mm杆粗5mm 配M4螺丝使用 数量7个（阿里巴巴购买）
螺丝：M4平头螺丝，长度分别为10mm 3个和15mm 7个
