10" Mount - Ubiquity Lite 16 PoE (USW-Lite-16-POE)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
4.8 h
1 plate
Open in Bambu Studio
Boost
4
21
1
0
38
21
Released
Description

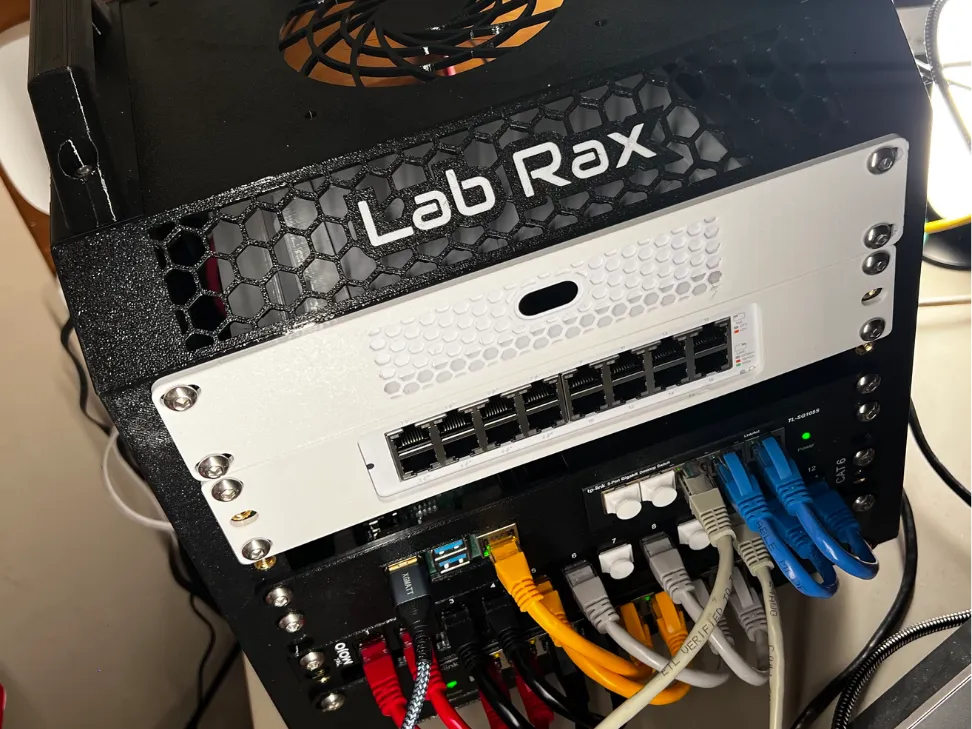

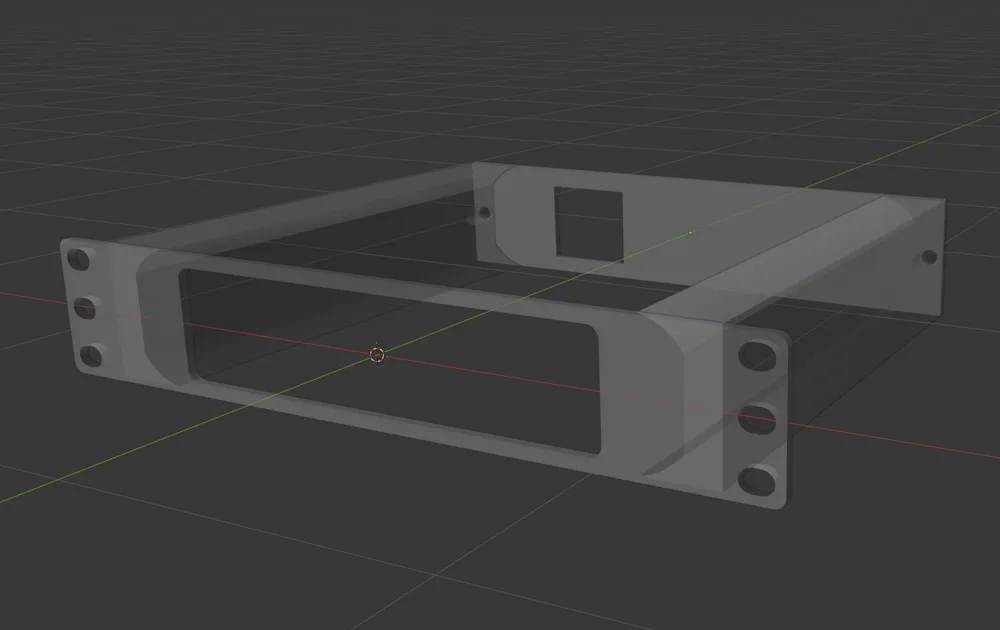

10" Rack mount for Ubiquity Lite 16 PoE (USW-Lite-16-POE). Images have it mounted in the excellent Lab Rax 10" Server Rack by @mklements.
Designed to be used with 2 x M6 brass inserts (8mm OD, 5 to 8 mm length) to attach rear panel and secure the switch.

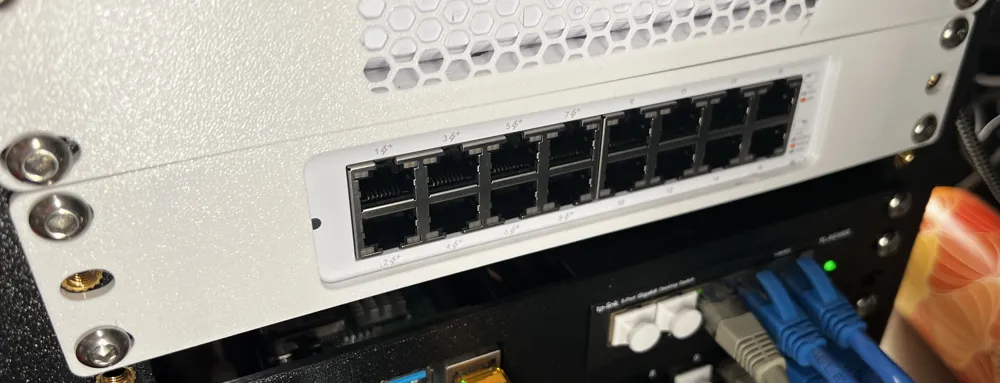

Switch has some vertical and horizontal movement available, but sits well once mounted in the rack. Rear power port clear of interference, and label beneath it is readable when mounted in rack.
