Precisely fixed two GoPro HERO11 Mini, with a center distance close to the human interpupillary distance of 66mm, and a 1/4 inch tripod mount
Print Profile(1)
Description

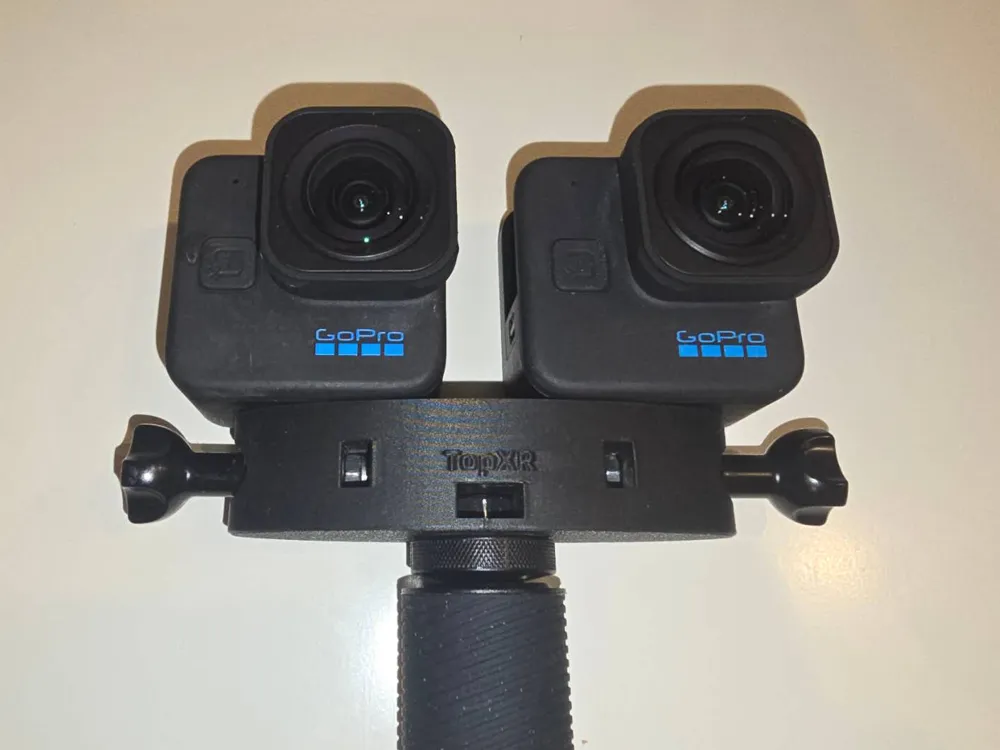

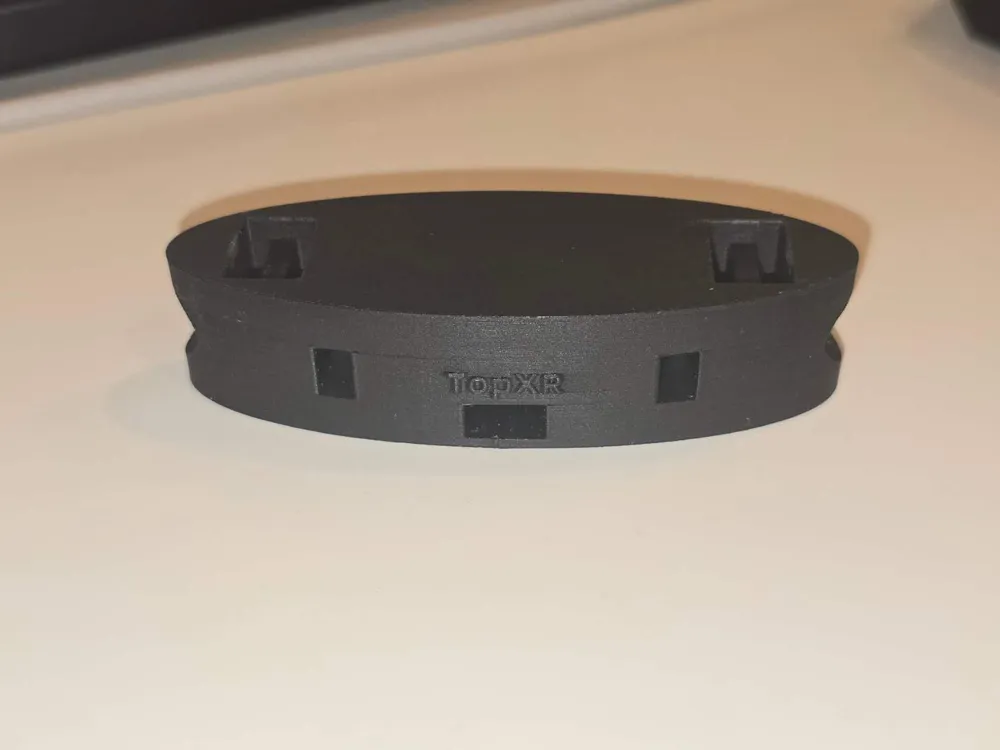

This is a horizontal dual camera mount for GoPro HERO11 Mini for VR180 shooting, with a GoPro quick release interface or a Mini dedicated mount on both the left and right sides of the mount, for installing two HERO11 Mini cameras. The two cameras are fixed with lenses facing forward and parallel to each other, and the center distance between the left and right lenses is designed to be 66 mm. After installation, the center of the lenses of the two cameras can be kept on the same horizontal line, avoiding vertical errors affecting VR180 stitching and stereoscopic perception. A standard 1/4"-20 female threaded interface is set in the center of the bottom of the mount, which can be directly connected to a common photographic tripod.

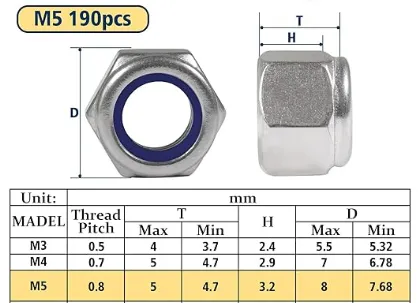

Required fasteners: M5-0.8mm hex nut x 2, 1/4"-20 inch hex nut x 1
