Description

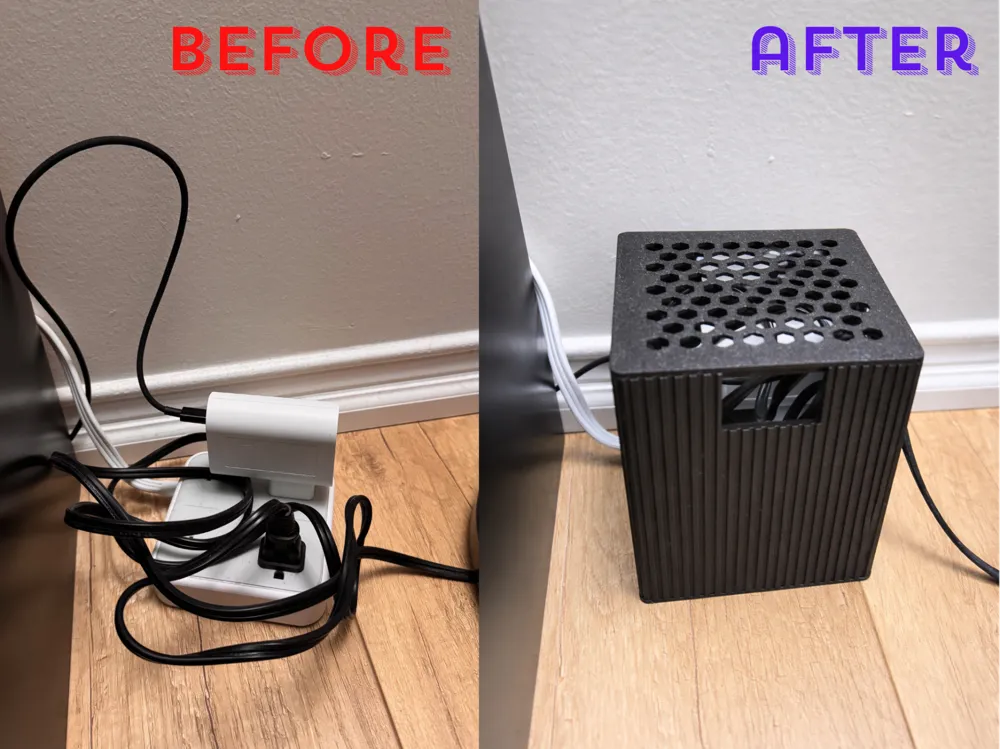

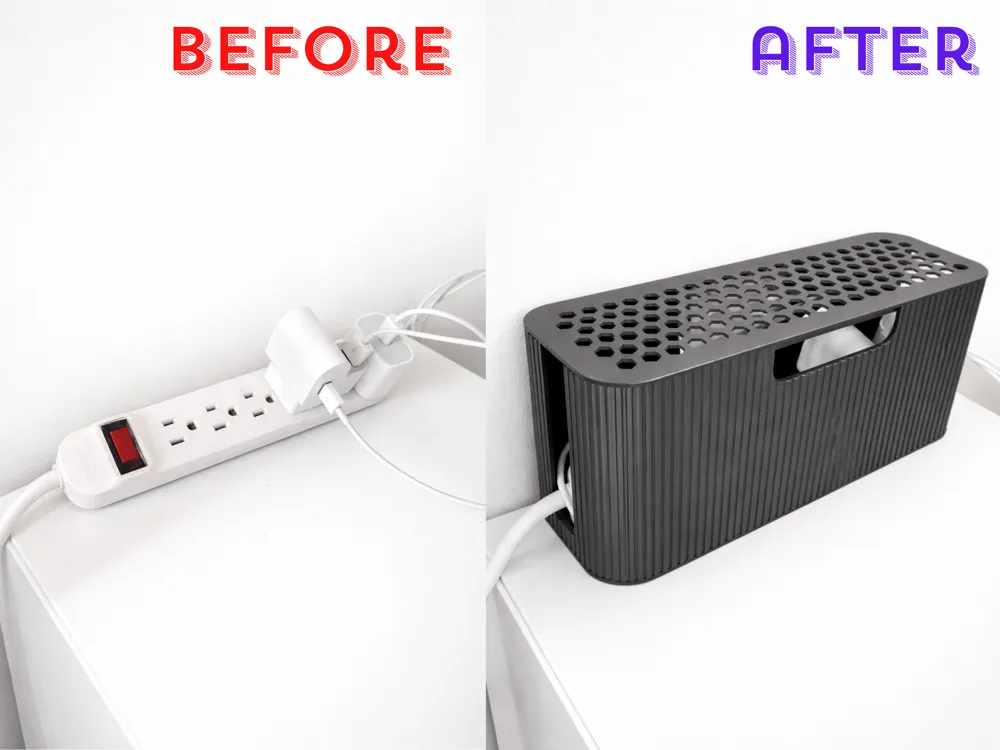

Tired of messy cables and bulky power strips ruining your setup?
This fully parametric cable management box is designed to fit your exact needs!

You can customize dimensions, cable routing, structure, and weight to create the perfect enclosure for your desk, home office, or gaming setup.

Fully Parametric (OpenSCAD)
- Adjust length, width, height, wall thickness, and corner radius, and so much more
Flexible Cable Routing
- Add notches on all 4 sides (left, right, top, bottom)
- Control notch count, width, depth, radius, and offset

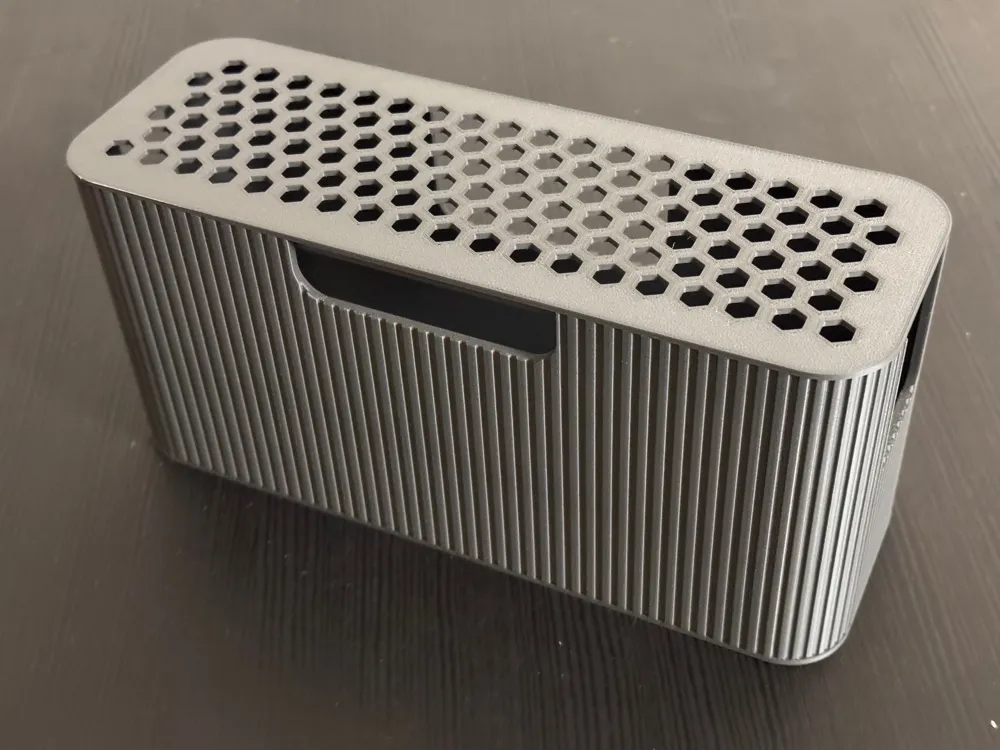

Two Wall Styles
- flat → clean and minimal
- slat → rib-reinforced structure for a more modern look
Lightweight Bottom Option
- Removes interior material (~center area) to reduce filament usage and print time

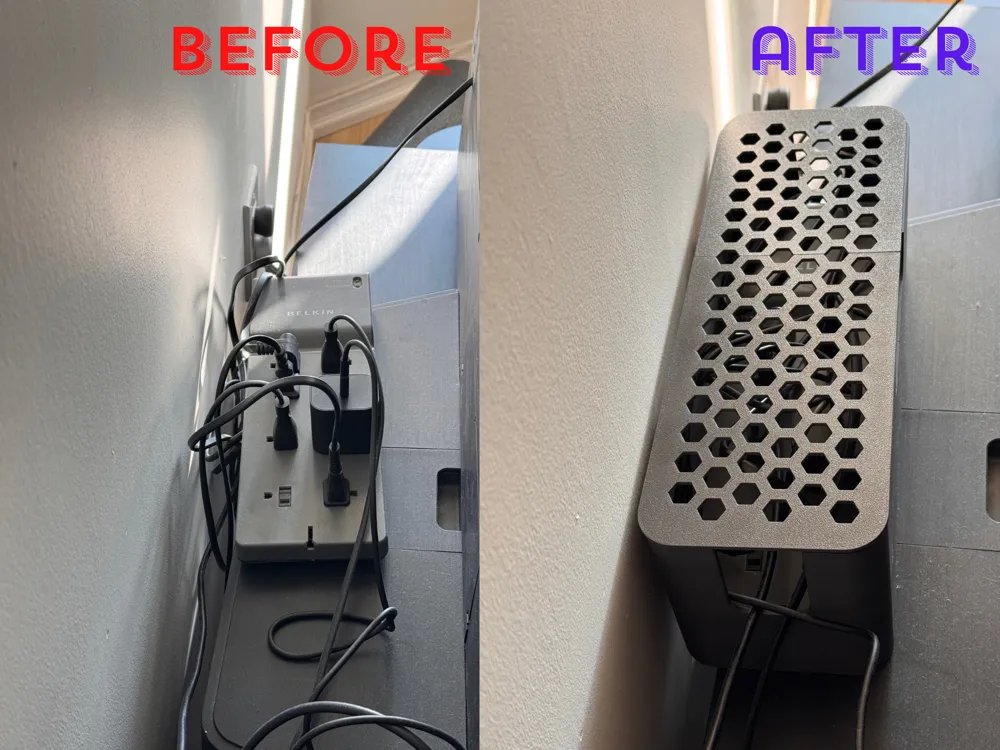

Ventilated Lid (Hex Pattern)
- Optional hex cutout pattern for passive heat dissipation
Tight Tolerance Lid Fit
- Adjustable lid_tolerance to fine-tune fit for your printer

Print Settings Recommendation

Supports: Not required
Layer Height: 0.2-0.28mm recommended
Walls: 2+ perimeters
Infill: 10–20%
Material: Any (except TPU)

Tolerance Tips:

If the lid is too tight → increase lid_tolerance
If too loose → decrease it slightly
