Subaru Forester SJ - Wheel Hub Covers Subaru Logo
Print Profile(1)
Description
Welcome to N1CKTR1CK - I am Nick and I love sharing my creations and remixes with the community.
Check out my other models here: N1ckTr1ck on MakerWorld
If you enjoy this model, please consider giving it a like, a download, or even a boost! 🚀 It really helps me out. Thank you!
Features:
- easy to assemble
- plane-convex design
- very durable
- can move freely
The old wheel caps of my Subaru lost all their paint over the years. I didn't want to replace them with standard caps, so I decided to design my own. This design consists of three main parts and is easy to assemble and easy to customise as well.
What is what?

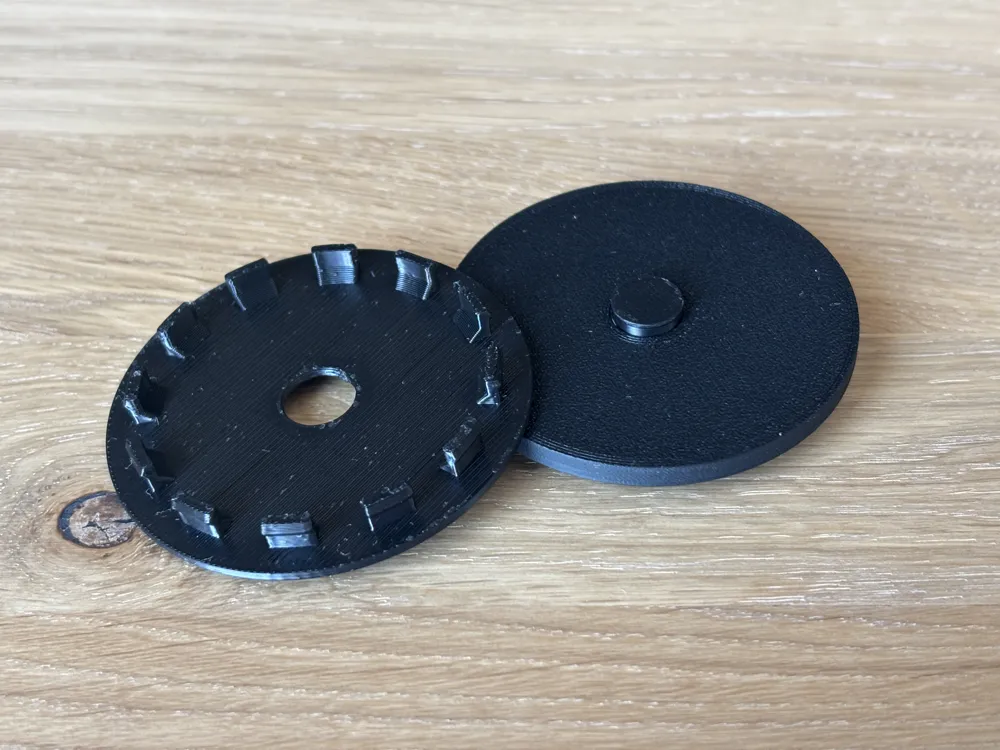

- Base Plates - clips into the rim and holds the part into place. I added two different versions.
- One sits VERY tight (52-8) and…
- …the other is a bit on the loser side (52-2)
- Connector - connects the base plate to the logo plate
- Logo Plate - has the Subaru logo on it
Printing instructions:
- Print the Base Plates (the part that locks into the rim) in PETG for better durability and flexibility
- Print the Connectors in PETG as well for better stability
- Print the Logo Plates in PLA and apply the colours you want in Bambu-Studio
| Object | Layer Height |
| Base Plate | 0.2mm |
| Connector | 0.2mm |
| Logo Plate | 0.08mm |
Assembly:
- Push the connector into the concave plate. Make sure you take the thicker end of the connector and put this onto the logo plate. It should be very tight and require a lot of force. I usually push it against the floor, but any hard surface will do.
- Then get the base plate and click it on. This should be relatively easy and can be done by hand without huge effort
________
If you have any questions or if something is unclear, please ask before printing! I'm always happy to help you save time and filament.
Once you're done, I would absolutely love to see your results! Please share a photo of your printed model and leave a comment if everything worked out well.
Happy printing!
