Corner Drill Guide for Rubber Feet
Print Profile(1)
Description

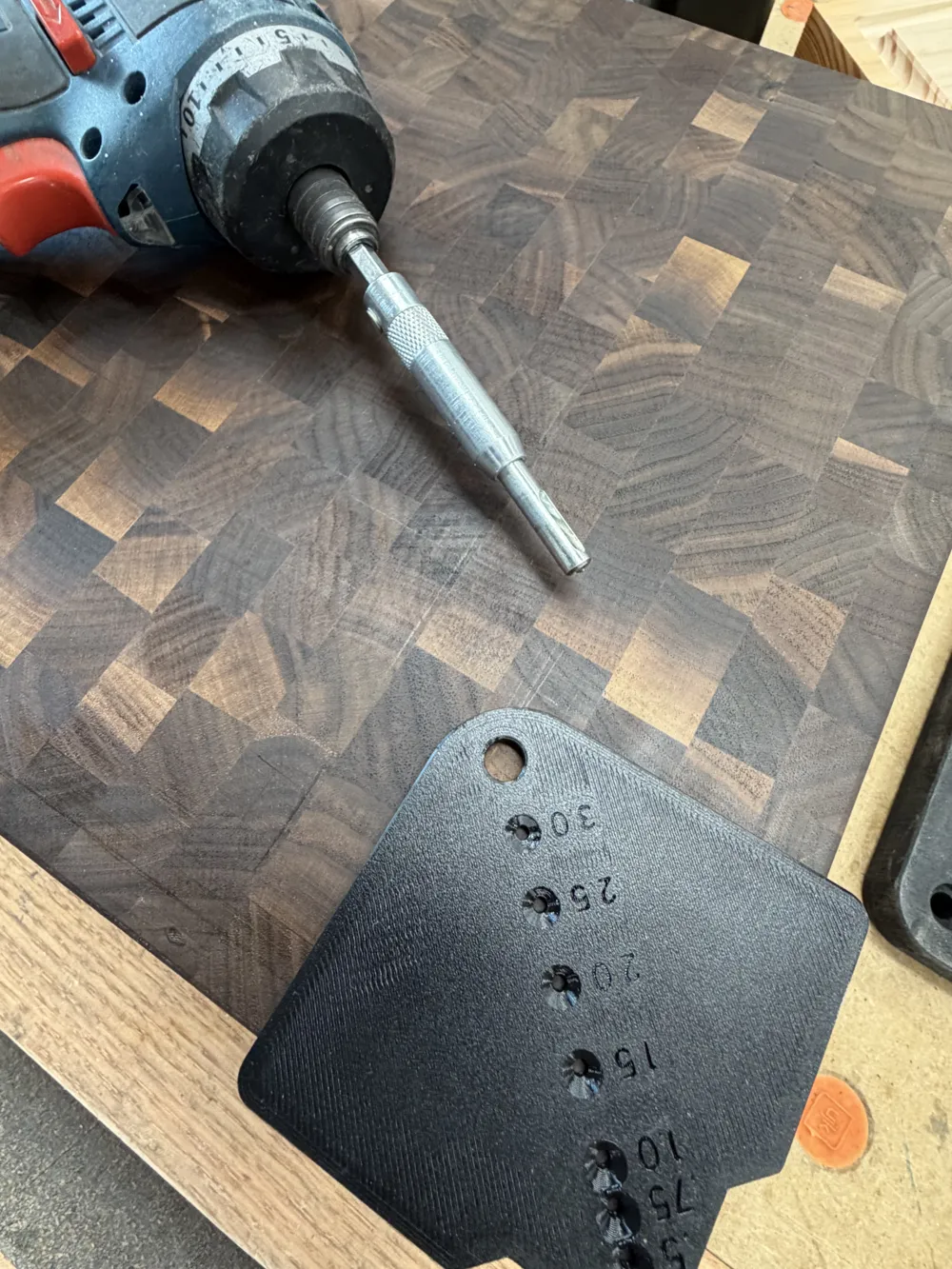

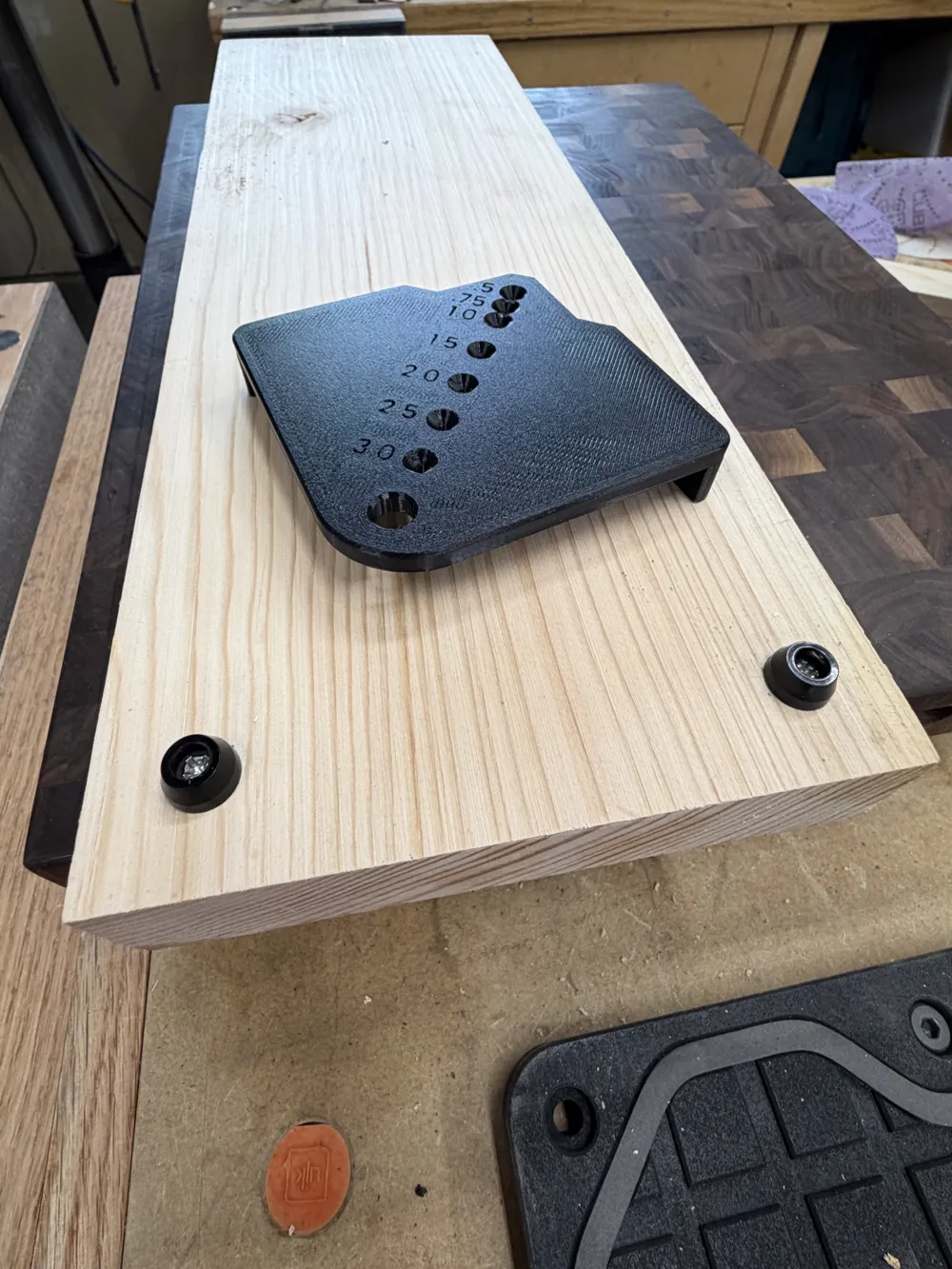

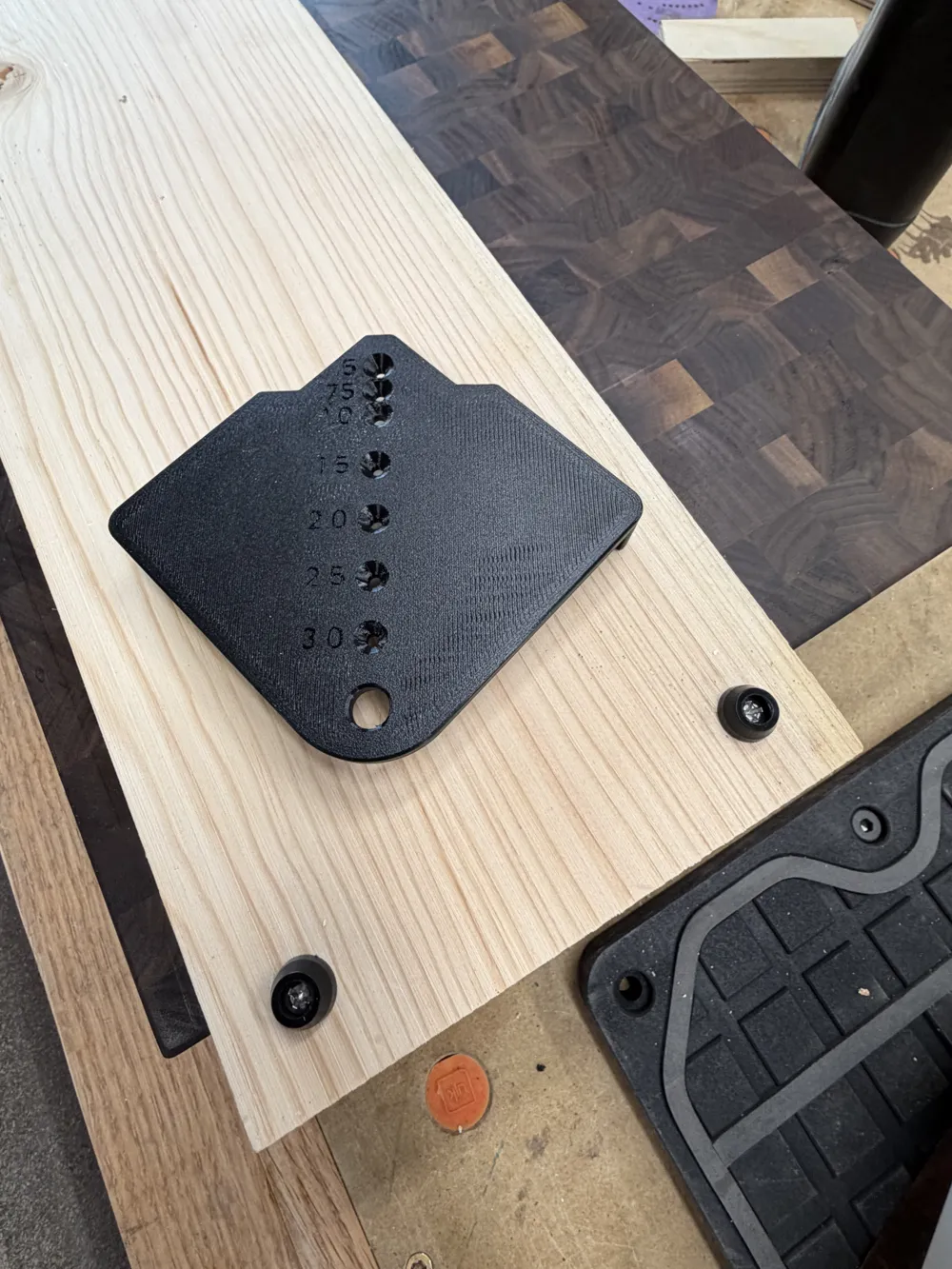

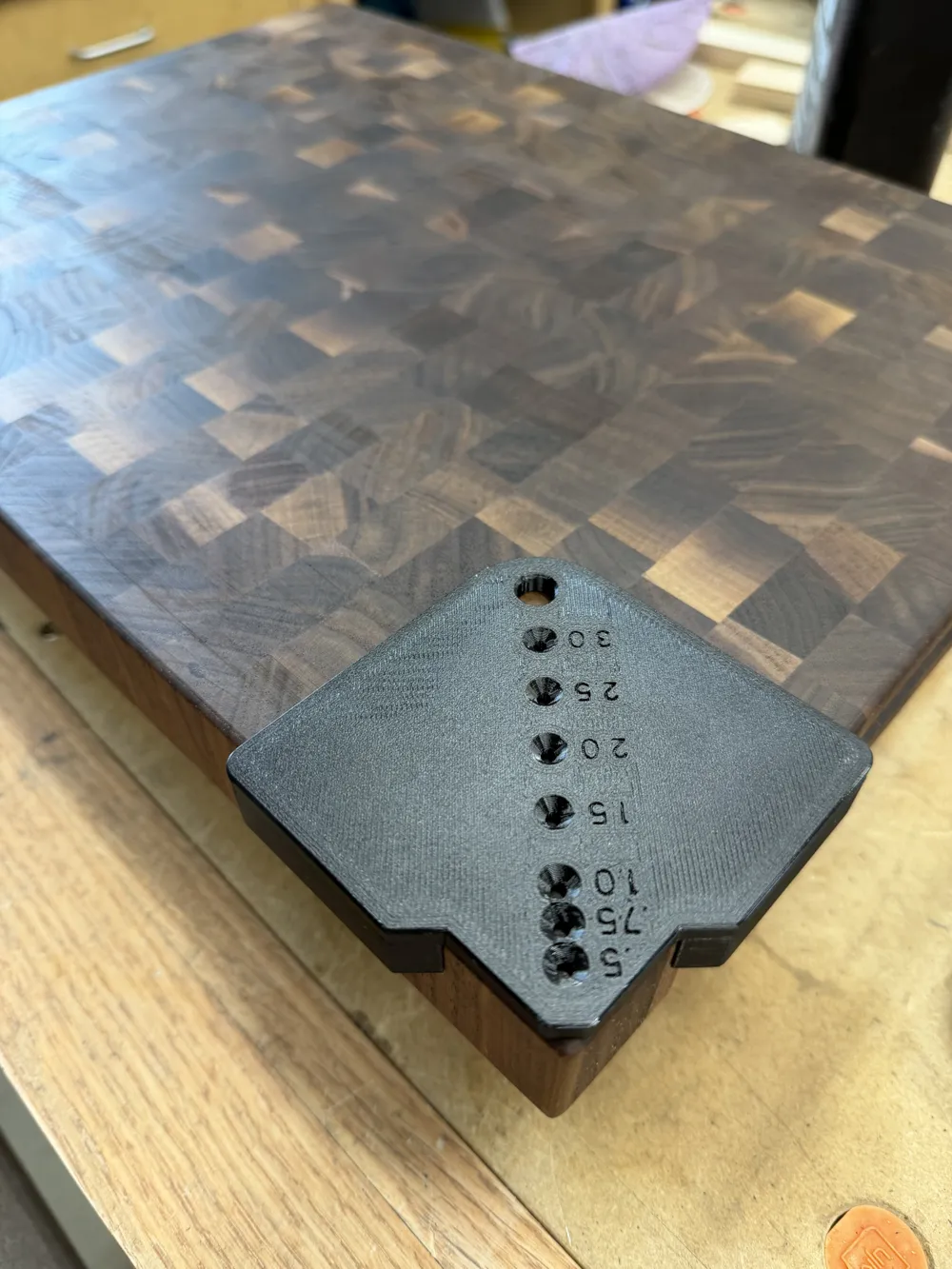

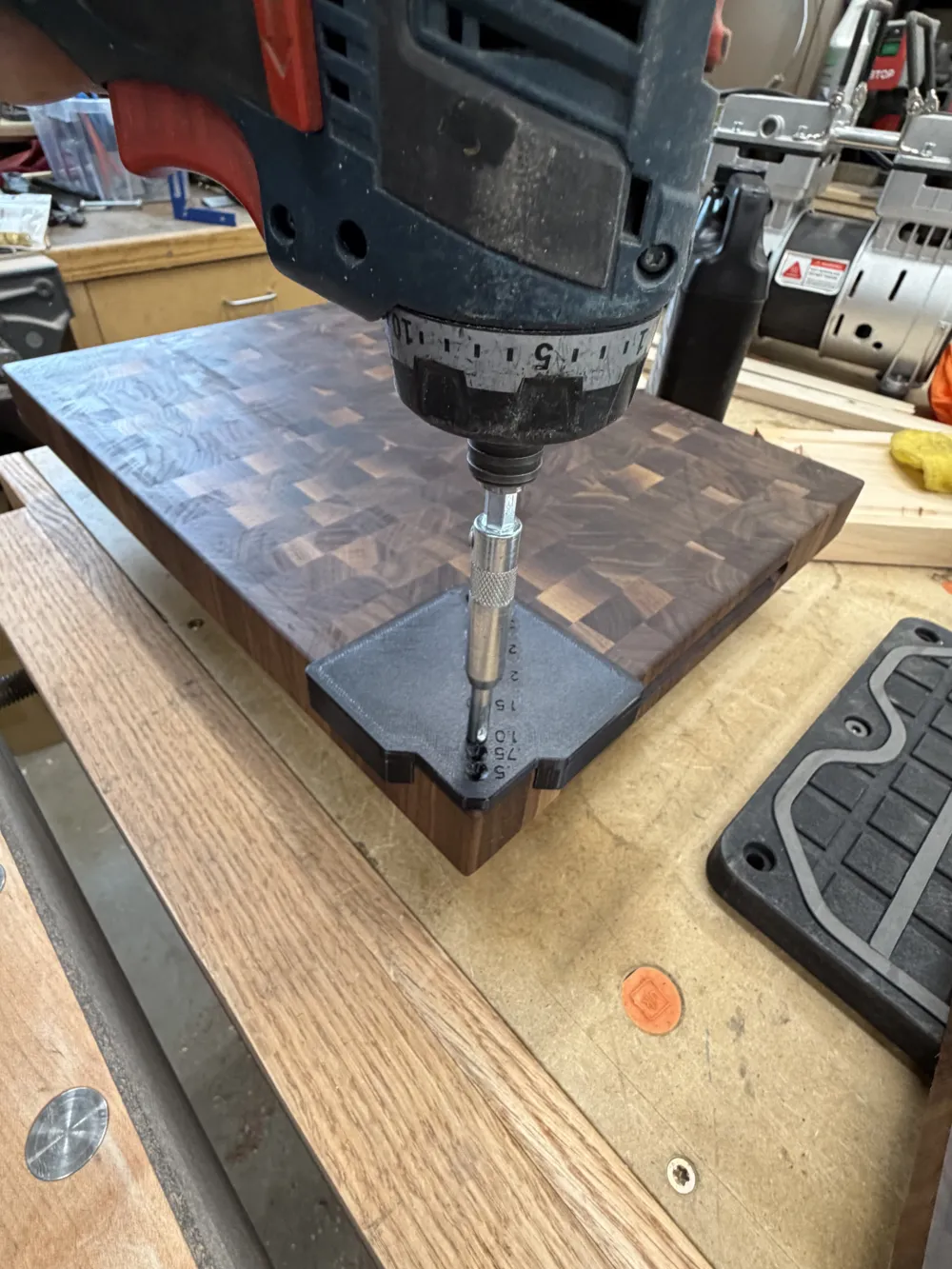

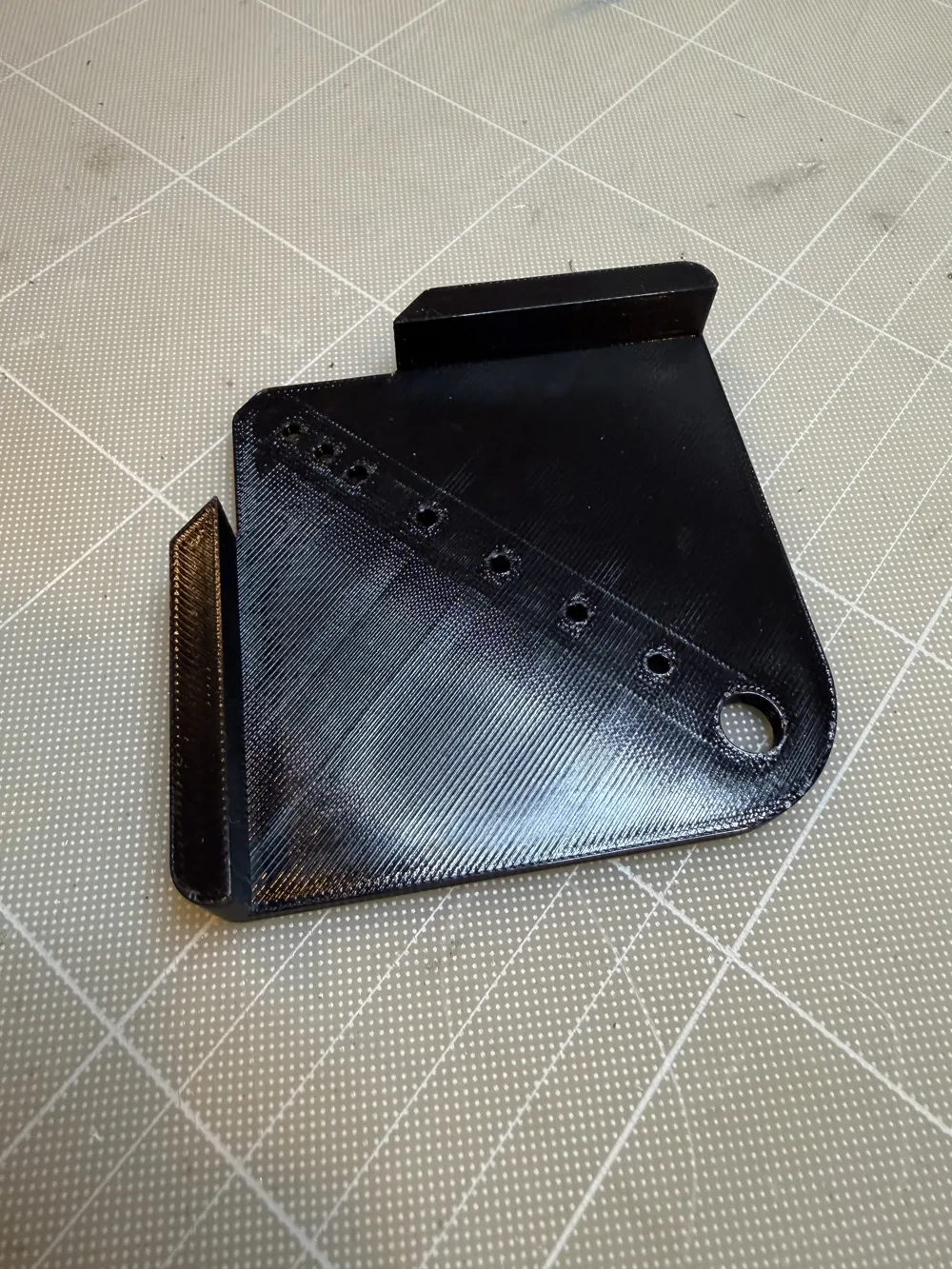

This drill guide is for accurately drilling small holes on the corner of your projects, e.g., cutting boards, small boxes, etc. It is designed to be used with a self-centering hinge bit, also known as a Vix bit.
The hole is 7/64", so I used a 7/64" Vix bit to drill the holes for the rubber feet I am using. A Vix bit is not required however. If you are drilling larger holes, print multiple guides and use the appropriate Vix bit or regular bit to drill the holes.

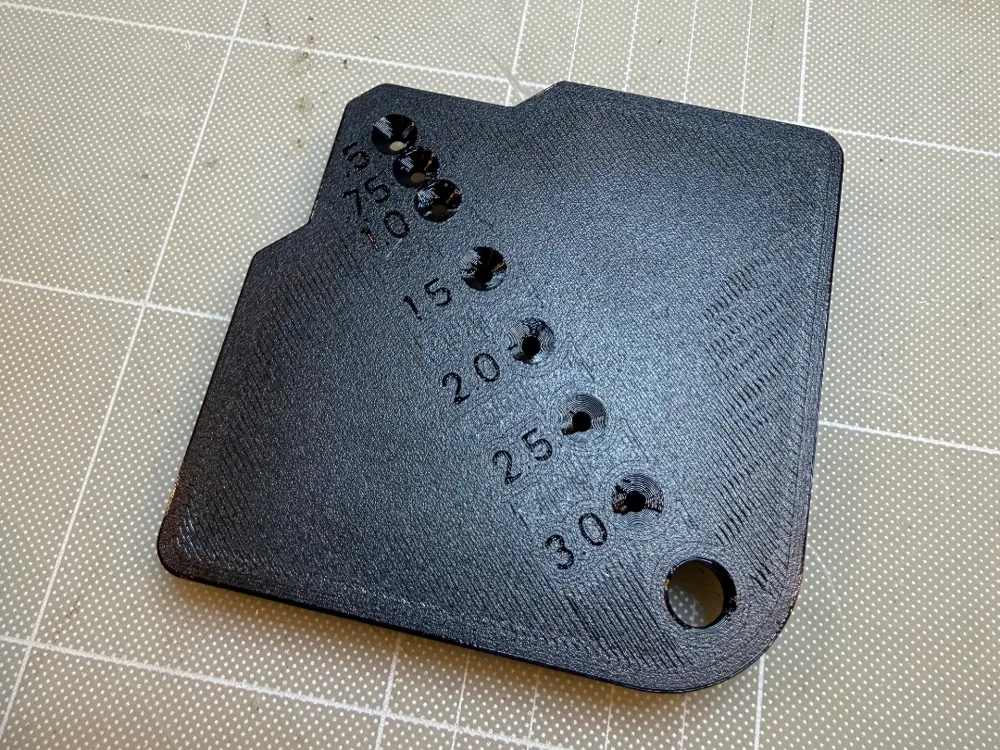

Hole spacing at .5", .75", 1", 1.5", 2", 2.5", and 3" at 45 degrees off the corner of the board.
