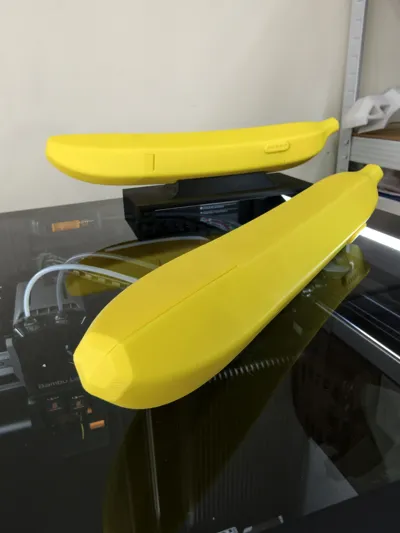

Nanakatana XL – Giant Banana Katana (King Edition)

Looks like a banana.
Twist it… and it becomes a full-size katana.

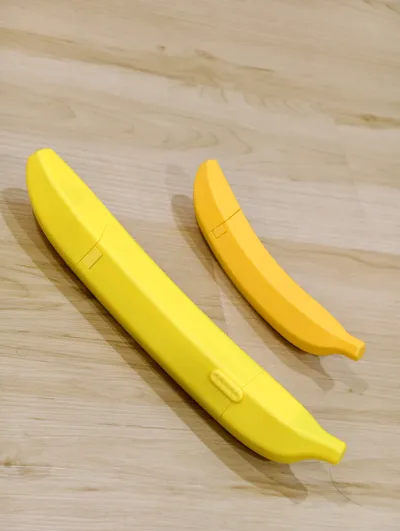

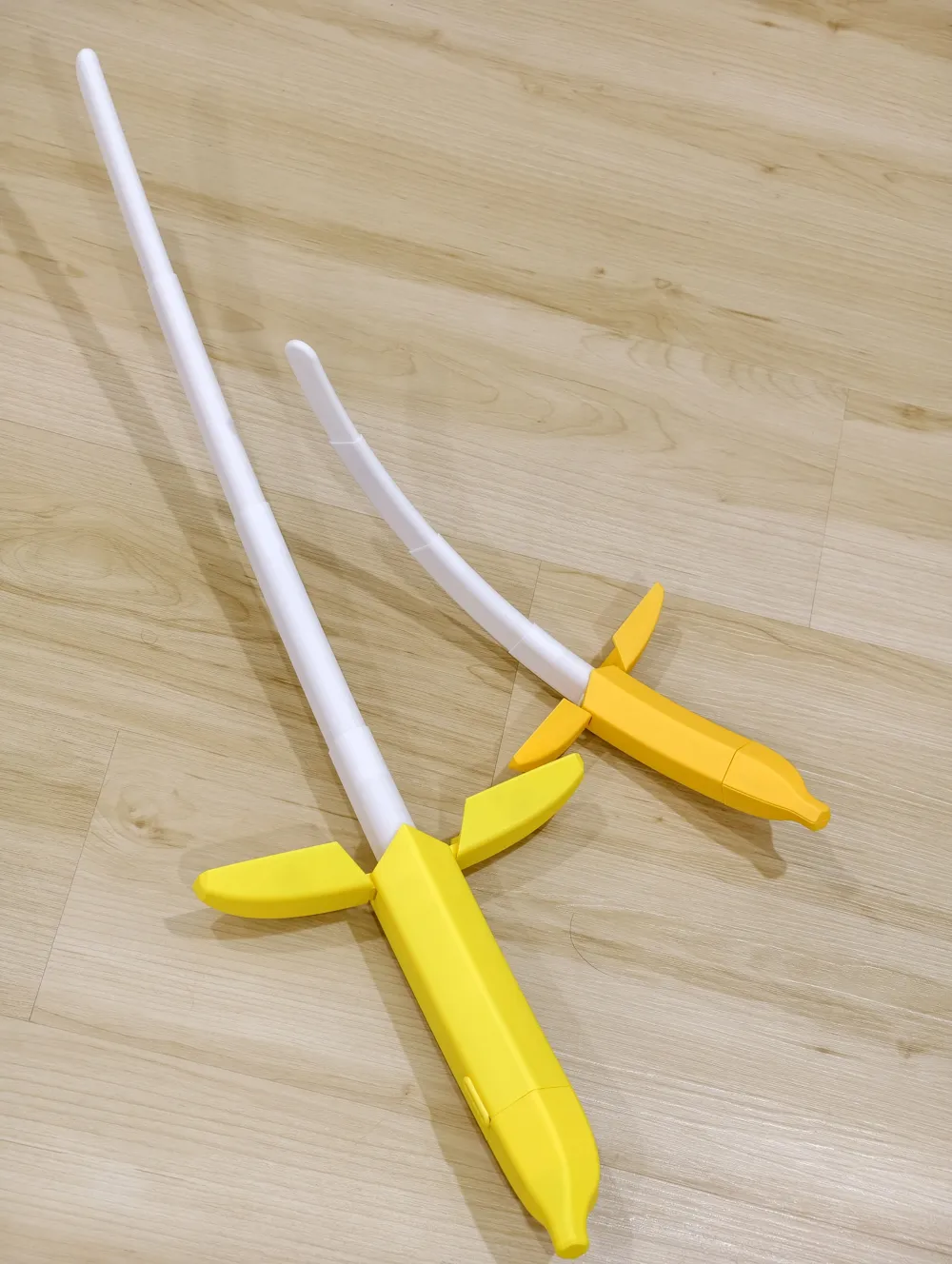

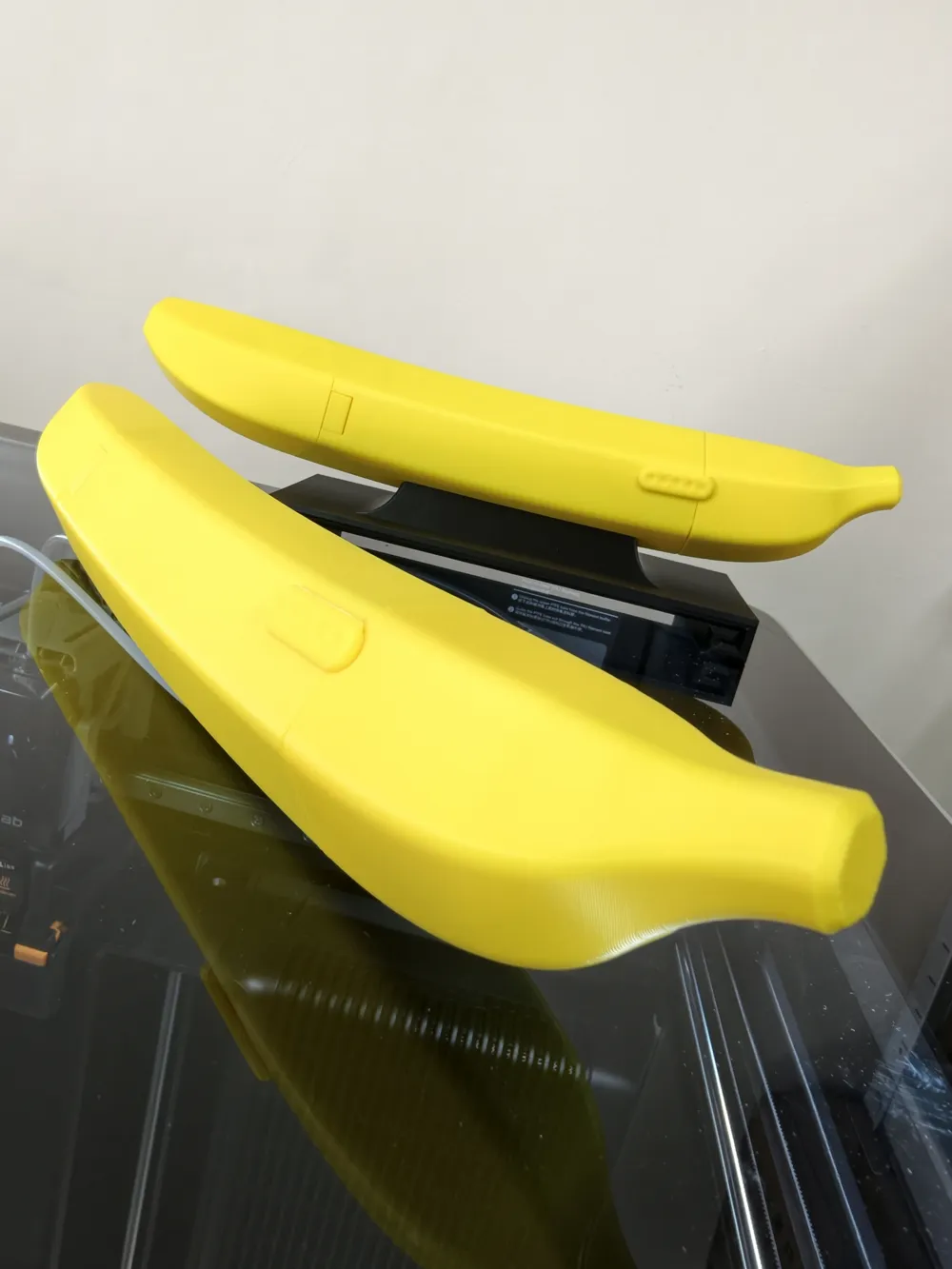

This is the Nanakatana XL, created after many requests for a longer version.
After multiple iterations, both the external form and internal fit have been refined to achieve a satisfying balance between movement, strength, and reliability.

⚙️ Design Highlights

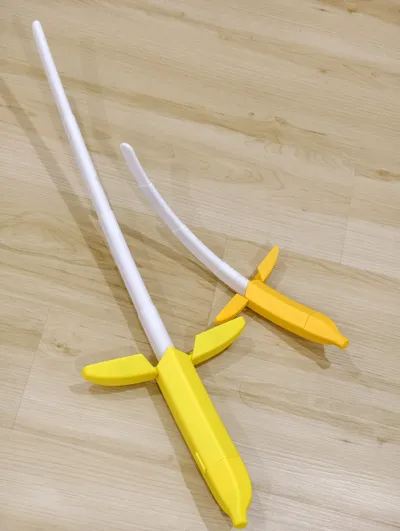

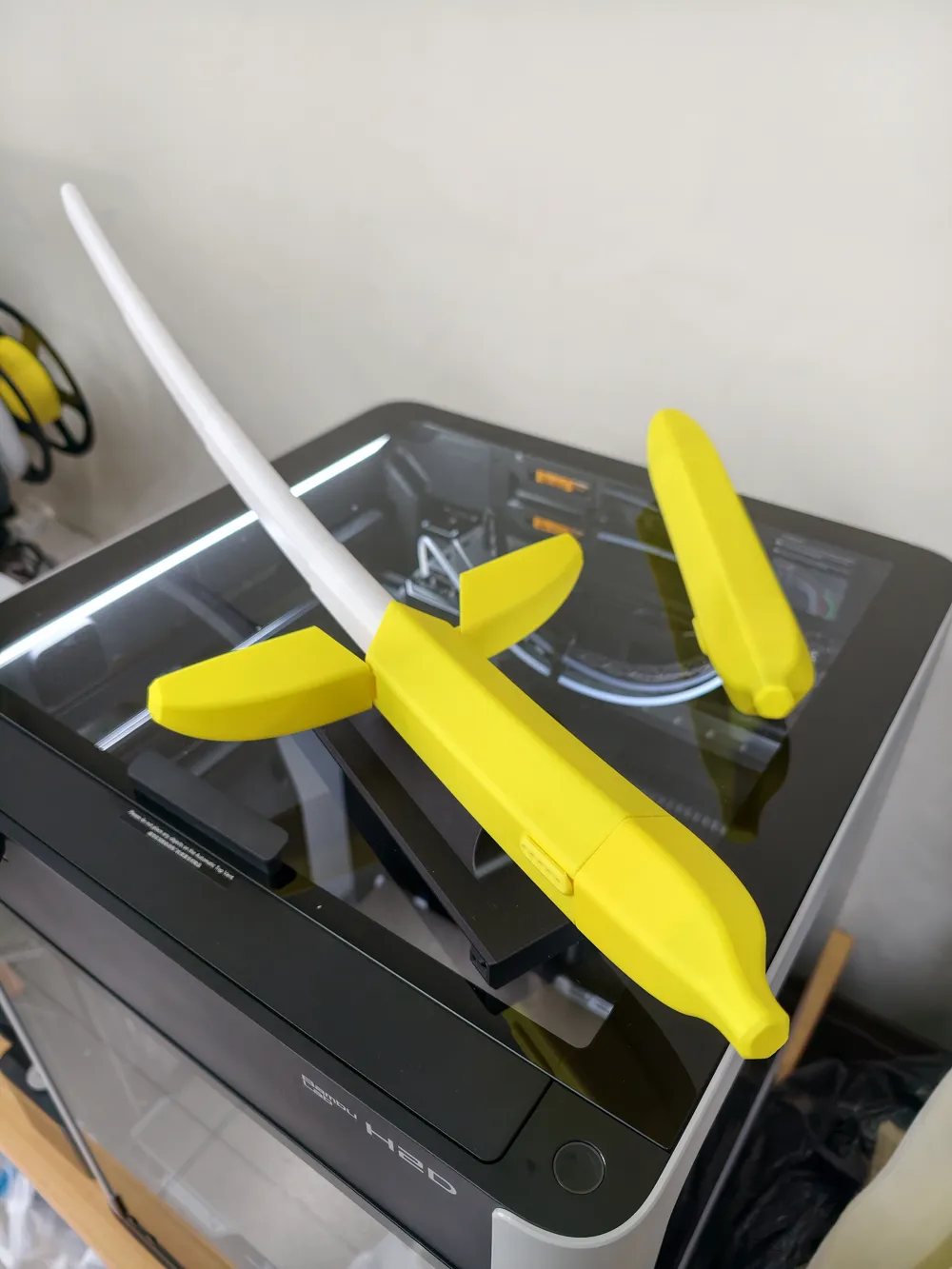

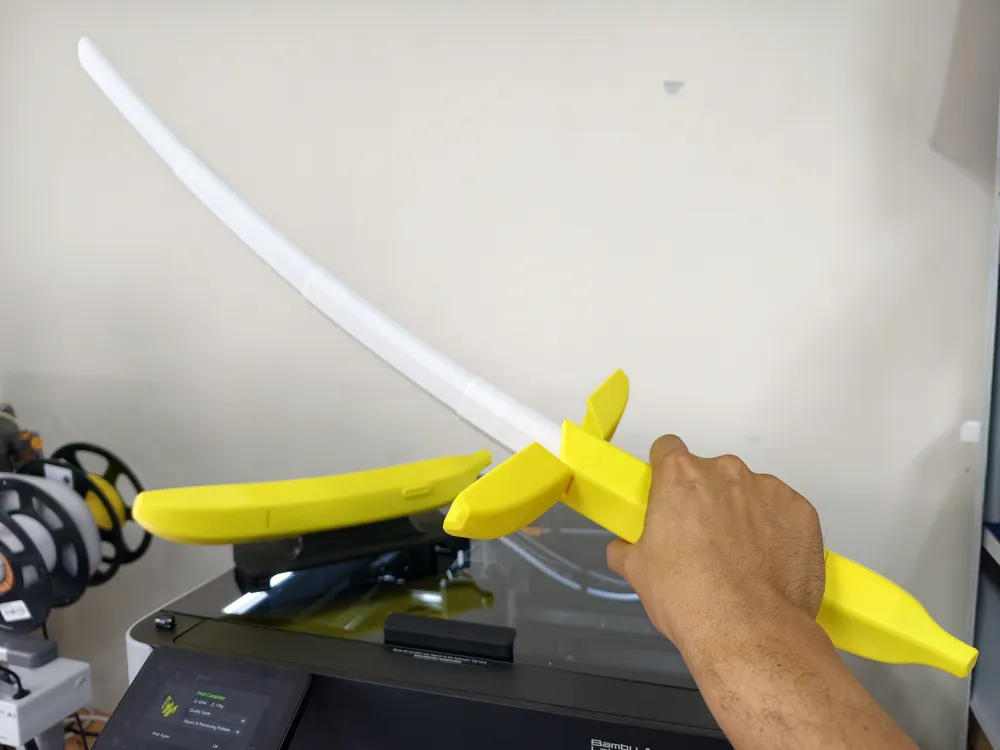

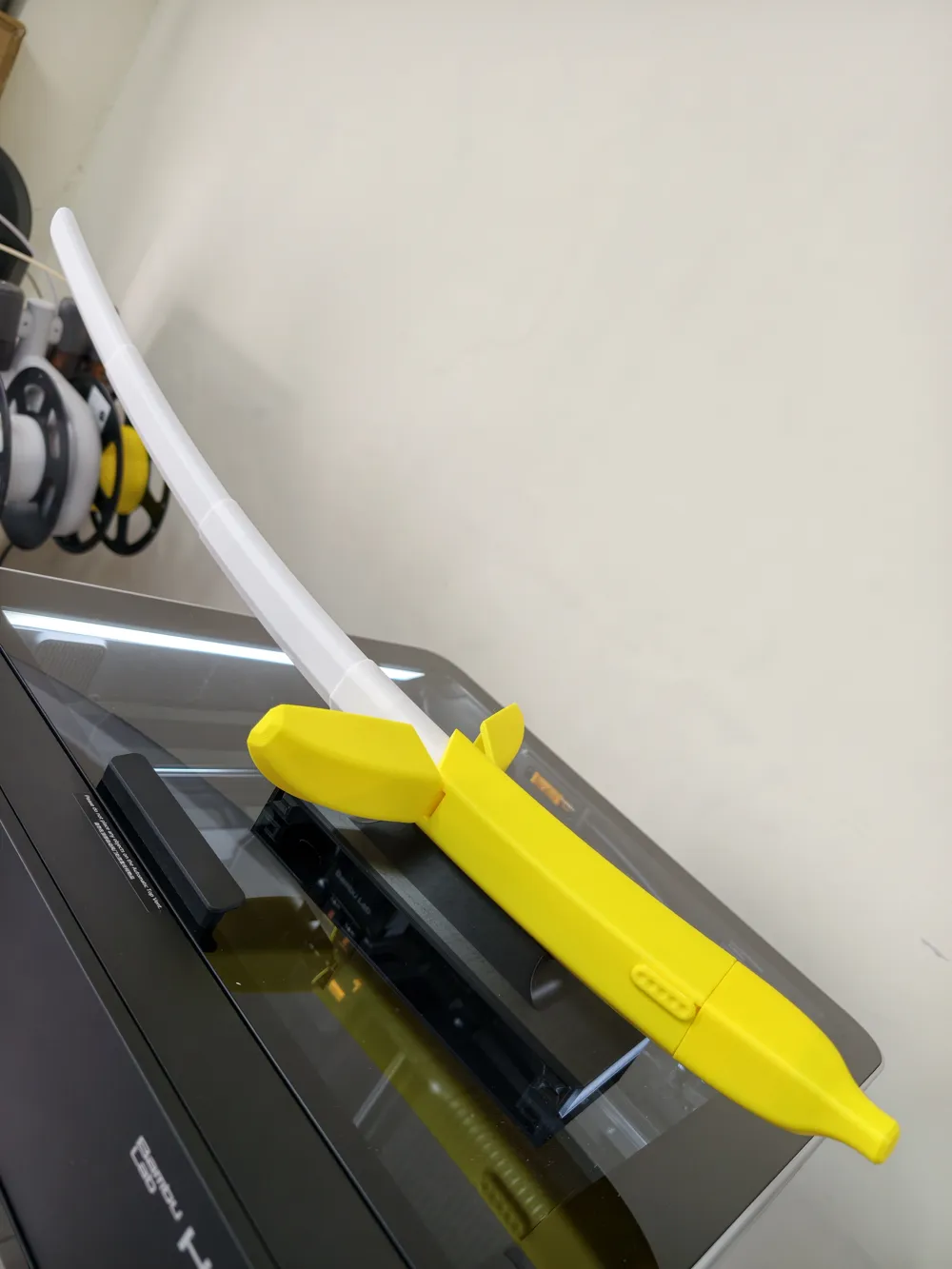

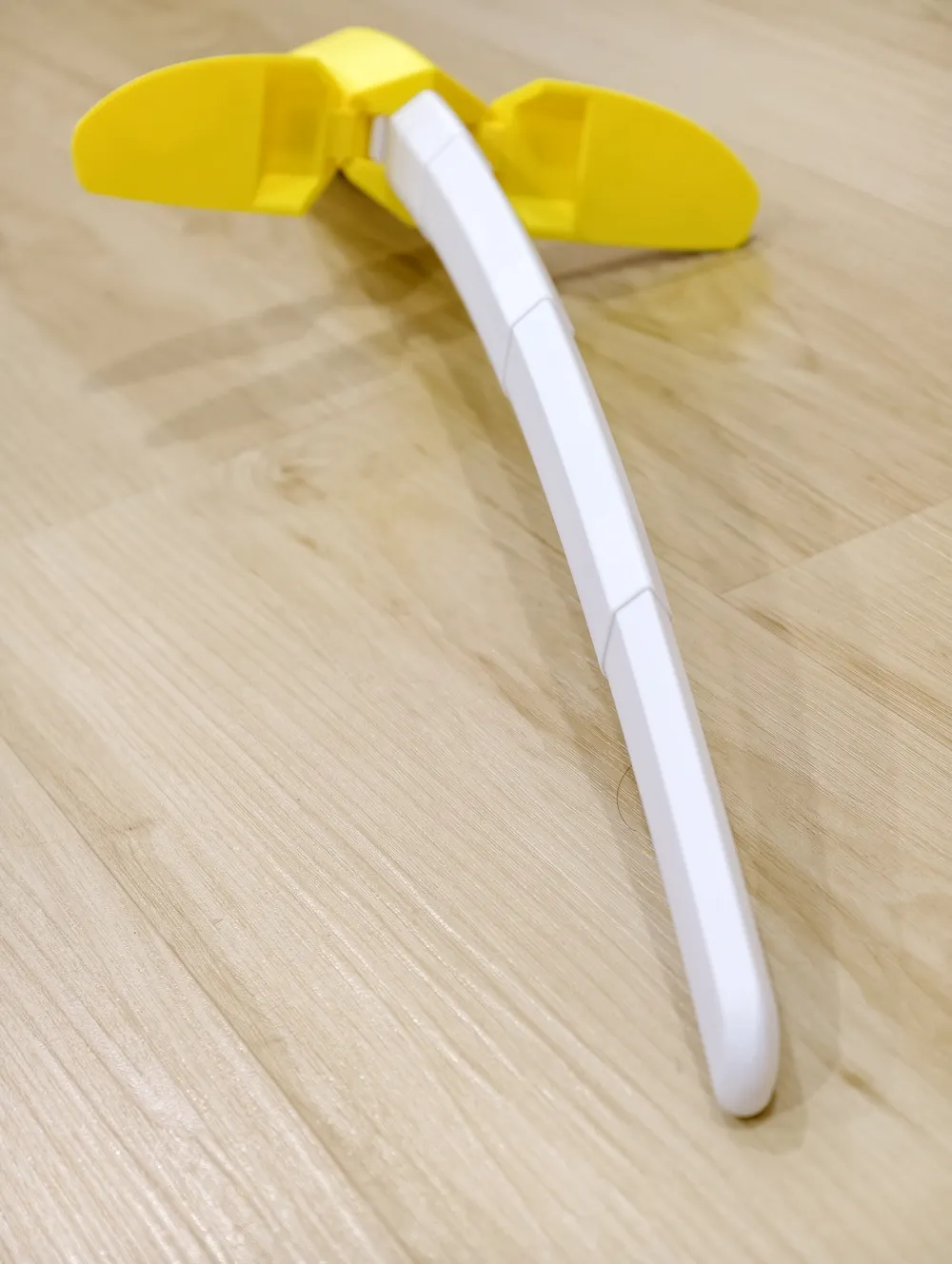

• Extended XL Blade (75~80cm)
  A much longer telescopic blade that feels closer to a real katana.

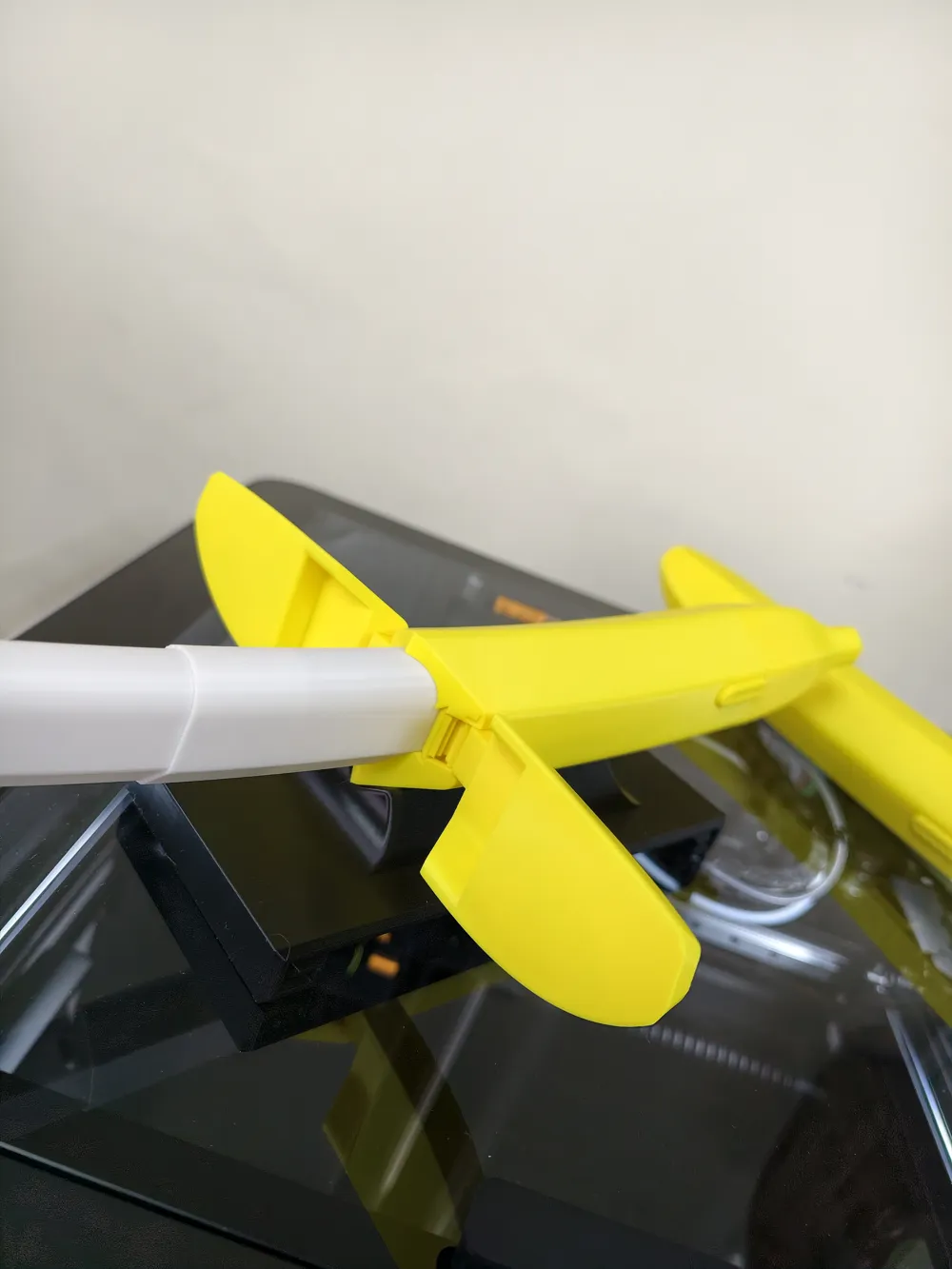

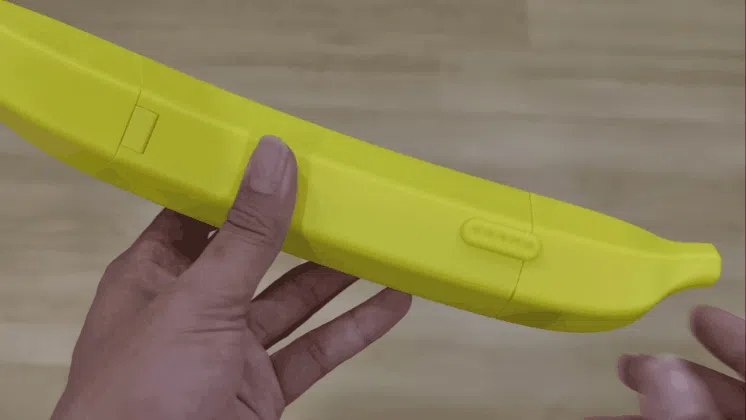

• Twist-to-Open Mechanism (V2 Evolution)
  The banana stem is rotated to unlock and open the peel cap, continuing the proven mechanism from Nanakatana V2.
• Flick-to-Deploy Action

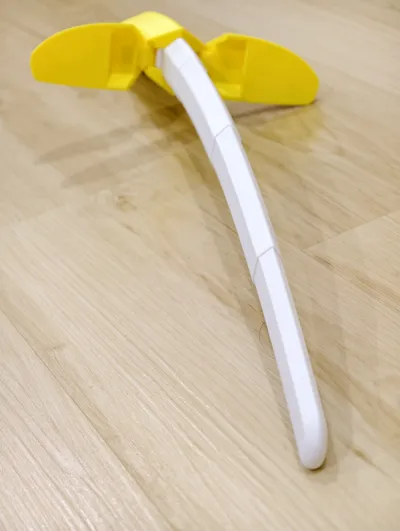

  Once unlocked, a simple flick allows the blade to slide out smoothly.

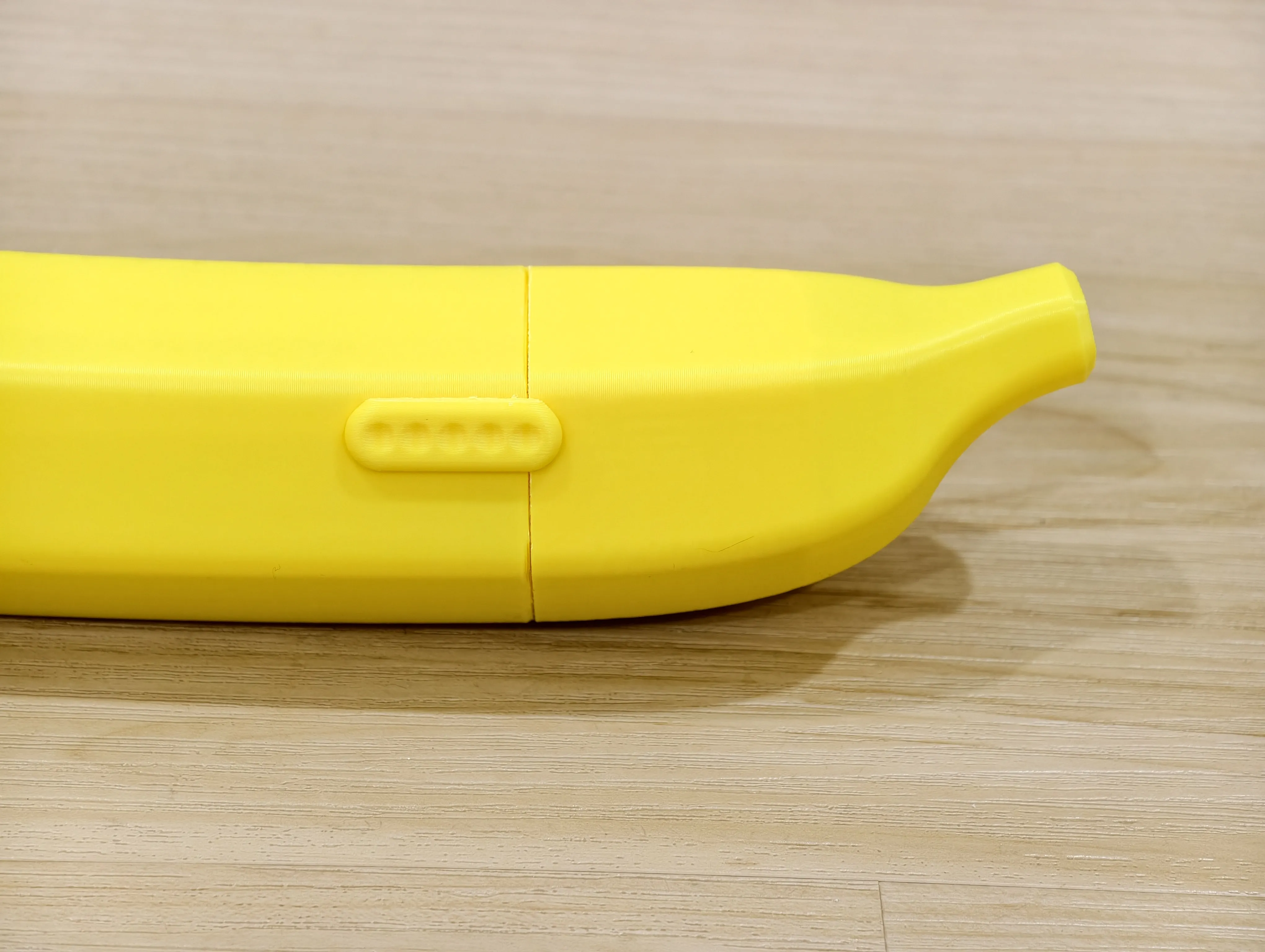

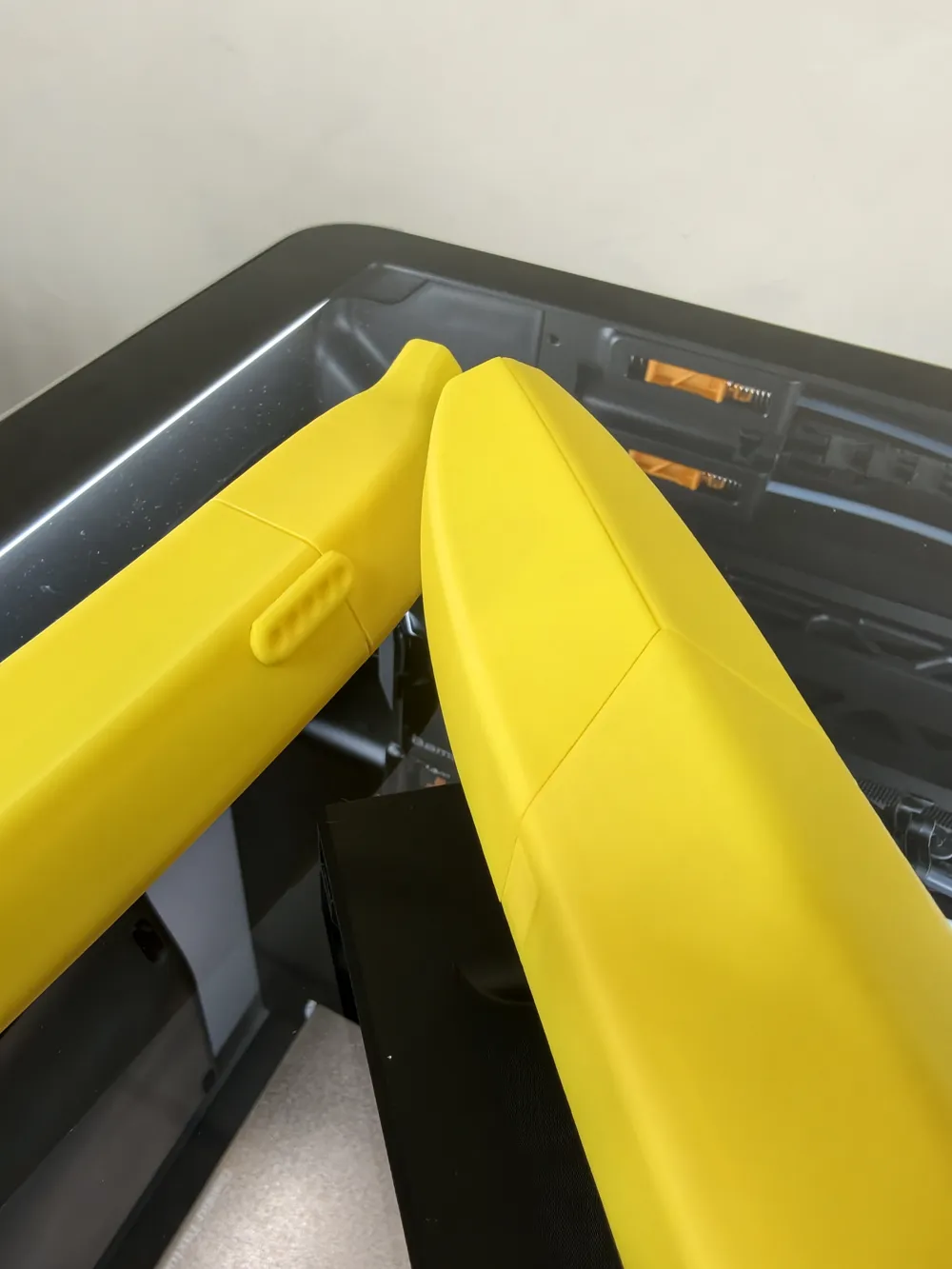

• New Safety Lock System 🔒
  Added based on user feedback.
  When fully closed, a locking tab prevents the stem from rotating, avoiding accidental deployment (e.g. when clipped on a belt).
  (Also… this is the Banana King’s sword. The lock is there to prevent excessive aura leakage 👀)

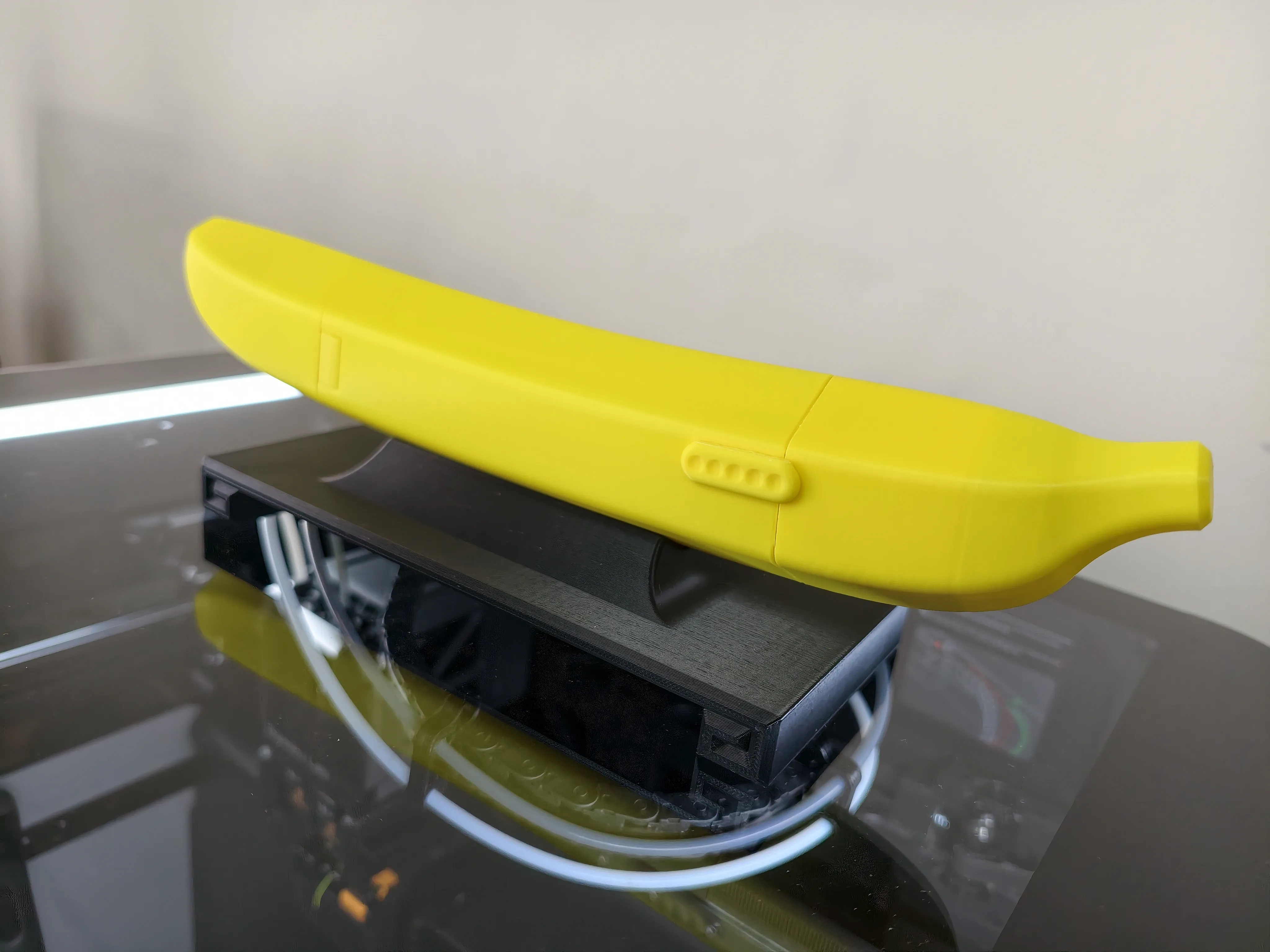

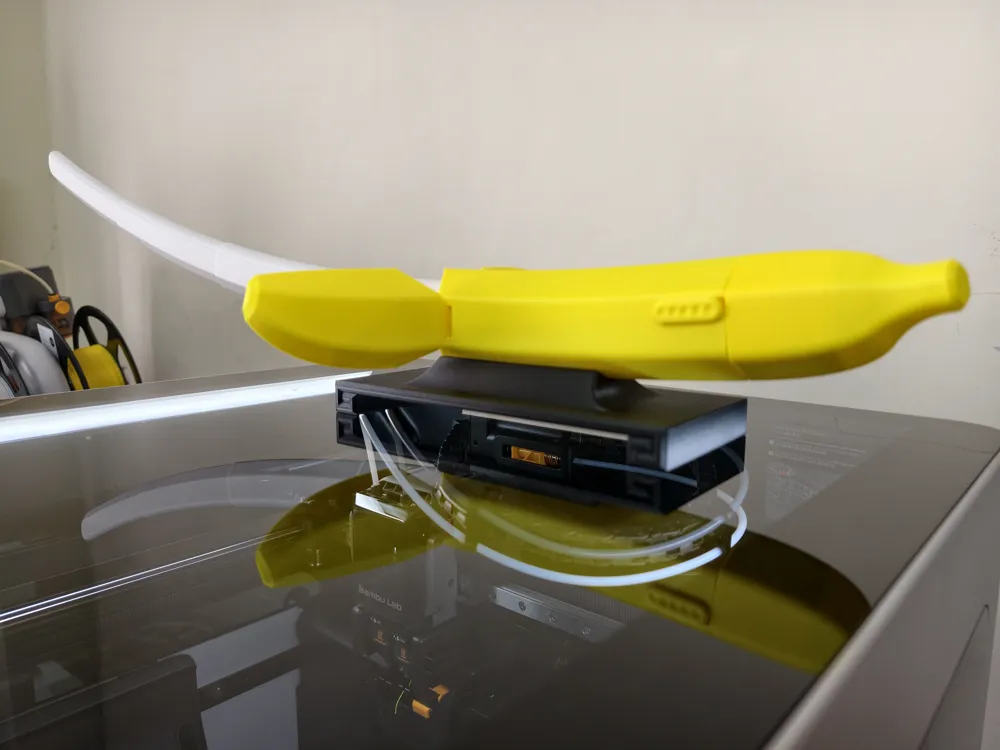

• Included Katana Stand 🗡️
  Also requested by many users.
  A dedicated stand is included as a separate print profile, allowing you to optionally print and display the katana.
• Reinforced Structure
  Key components have been strengthened to better handle the longer stroke and repeated use, at the same time most of the infill set to 3-5% to use minimal material for the long sword without scarifies the structure strength.

🖨️ Print Tips

• 0.2 mm layer height recommended with adaptive layer height enable
• Can be printed fully in PLA
• For better durability:

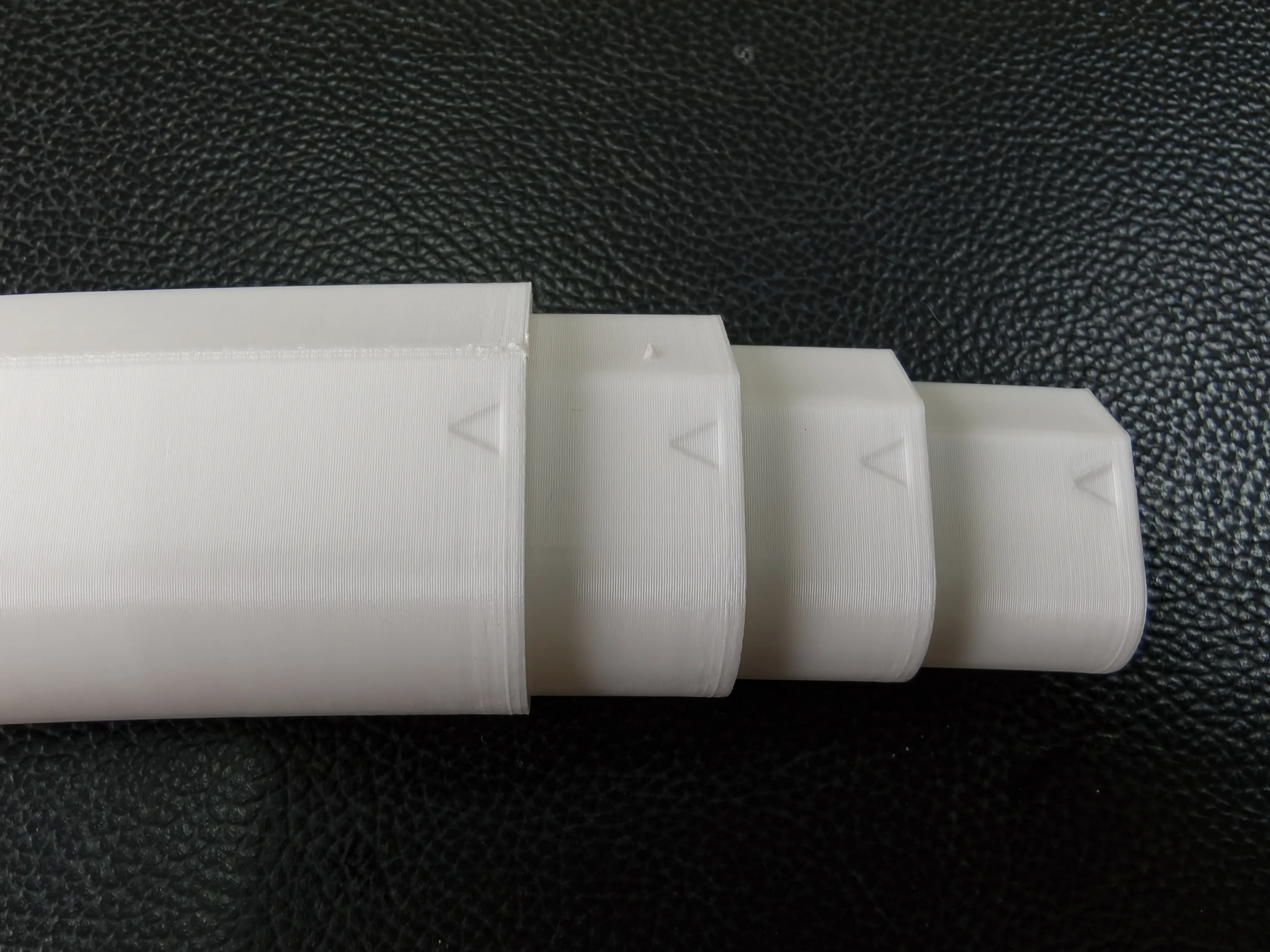

  • Blade segments

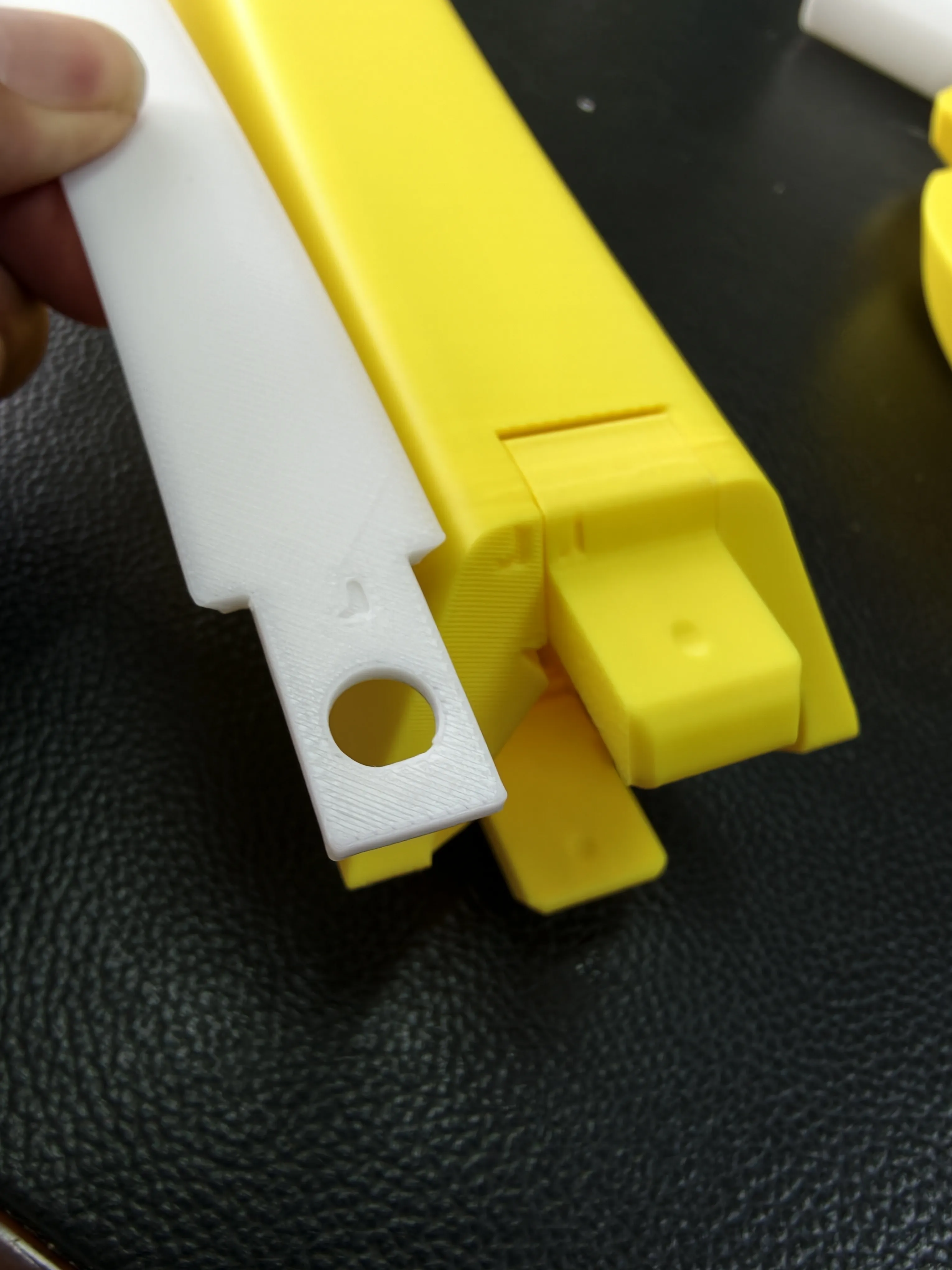

  • Peel gear lever (white parts)
    → recommended in PETG

⚠️ Important – Dimensional Accuracy

On some printers (especially A-series / H-series),
Dynamic Flow Calibration may cause parts to print slightly oversized, leading to tight fits.

👉 Suggested test:

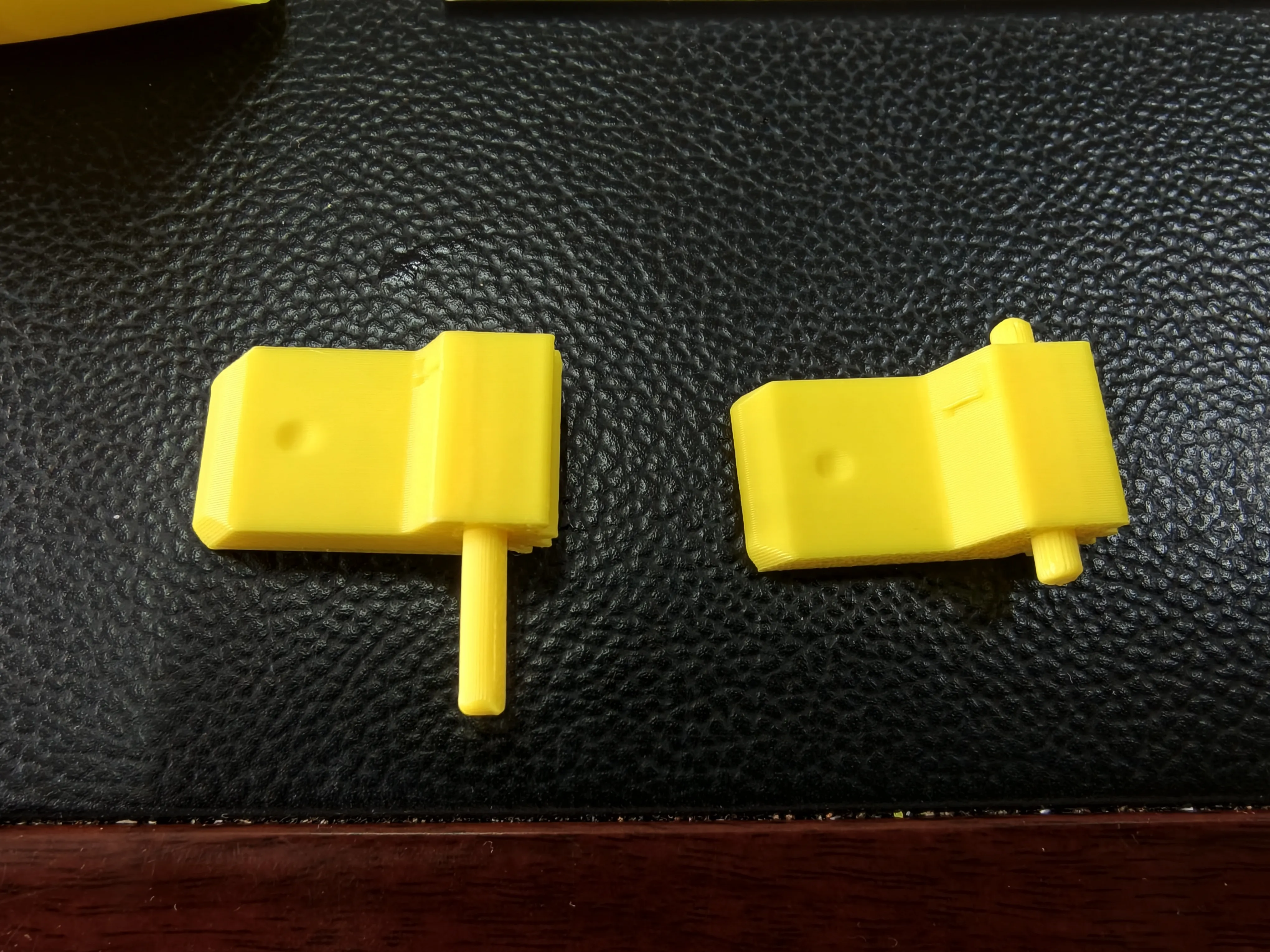

• Print peel cap gear and shaft first
• If fit is too tight → try disabling Dynamic Flow Calibration

⚠️ Bed Adhesion

Some parts are tall and require strong adhesion:

• Clean build plate with water + soap
• Ensure first layer is solid before continuing

🧩 Print Setup

• Designed to fit within 180mm build plate
  → Compatible with A1 Mini
• Two-color design:
  • Yellow (outer peel)
  • White (internal structure)
• Katana stand available in a separate print profile

🔧 Assembly

Assembly required.

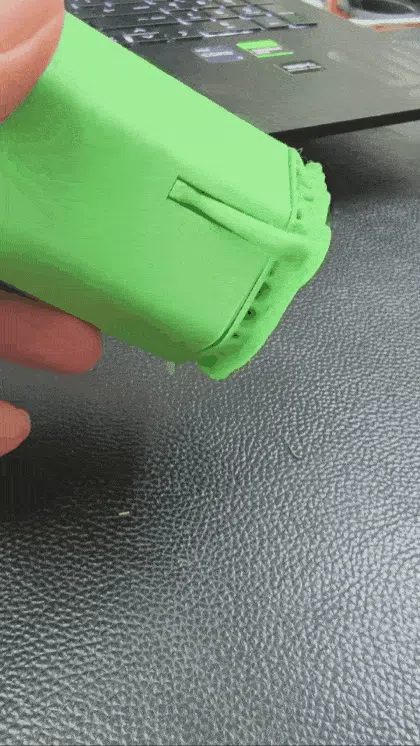

• I saw some comment saying support removal is difficult so I updates the support to look more obvious and easier to remove (20260417)
• tear the support to side wat for easy removal and not broken the inner piece.

• Do not force parts too much
• Ensure proper alignment before pressing in

• make sure to follow the instruction labeling for orientation





🧪 Tested & Verified

Successfully tested on:

• Bambu Lab A1
• Bambu Lab P1S

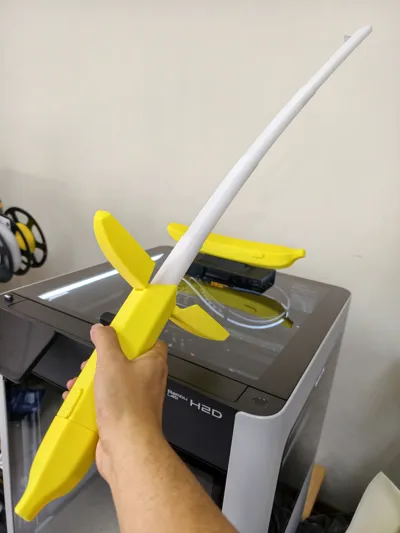

• Bambu Lab H2D

Stable and repeatable when printed with proper settings.

please remember to CLEAN THE BUILD PLATE !!!!!!!!

💥 Experience

• Noticeable “click” feedback at full twist position
• Smoother deployment compared to previous version
• Blade profile refined to feel closer to a real katana

💡 Final Notes

This is not just a bigger version —
it’s a response to the community.

More presence.
More control.
More satisfaction.

💬

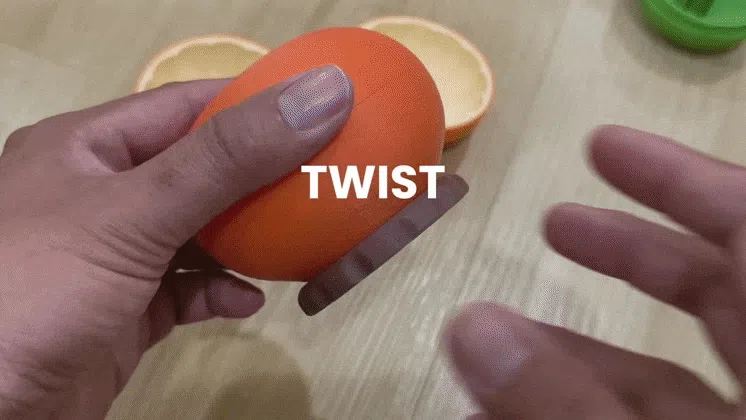

If u Like my fruity model, plaese have a look at the orange zone also, the Orange Candy Dispenser
