CO2 Bubble Counter Mount/CO2 Bubble Counter Mount

Are you also tired of your CO2 bubble counter dangling uncontrollably from the hose in the cabinet below?

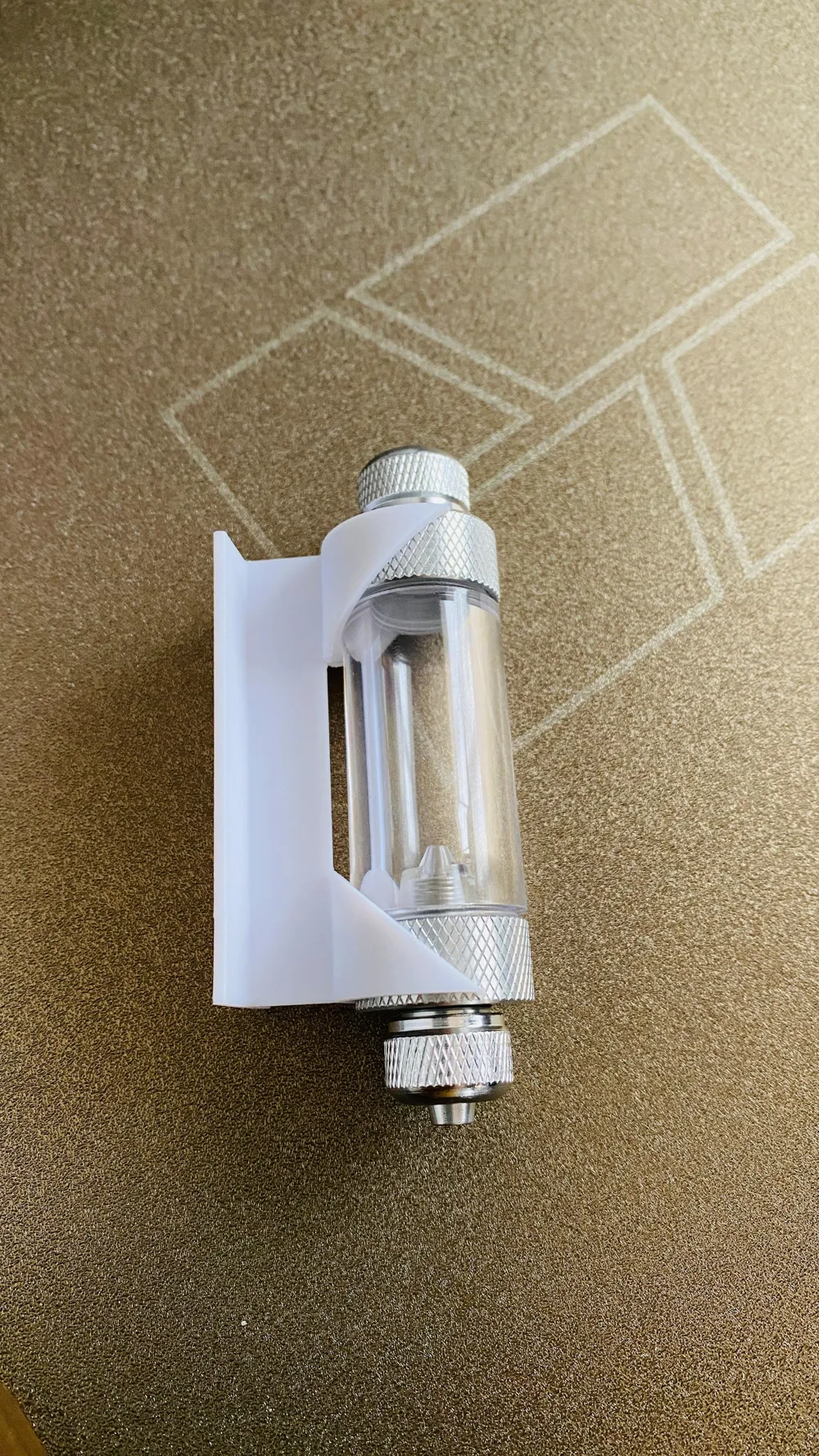

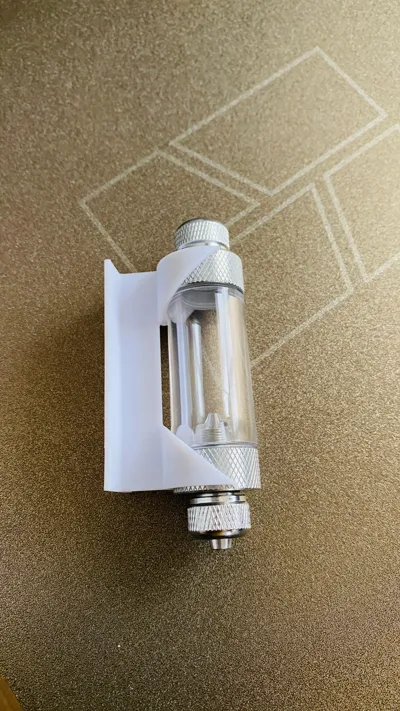

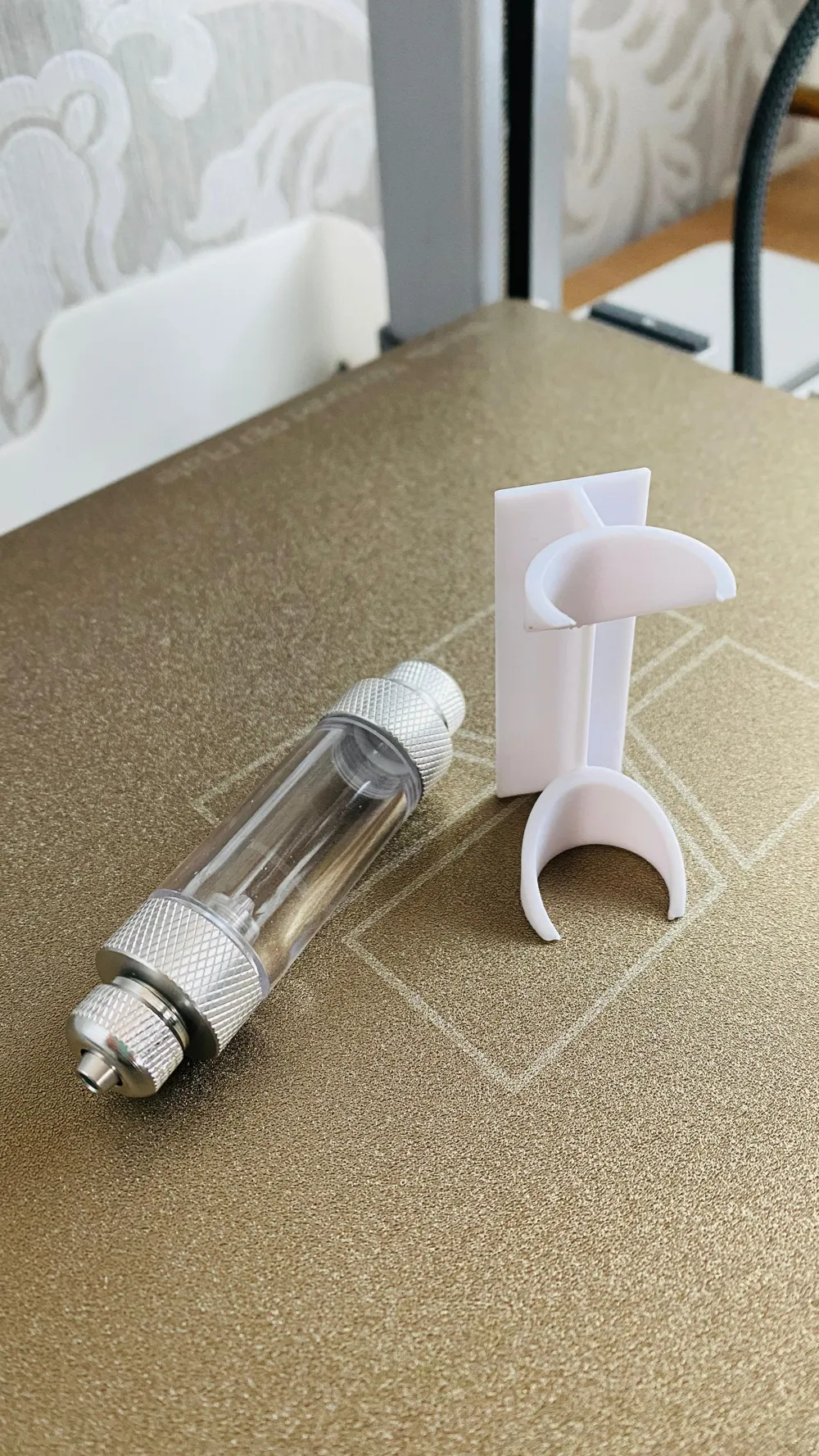

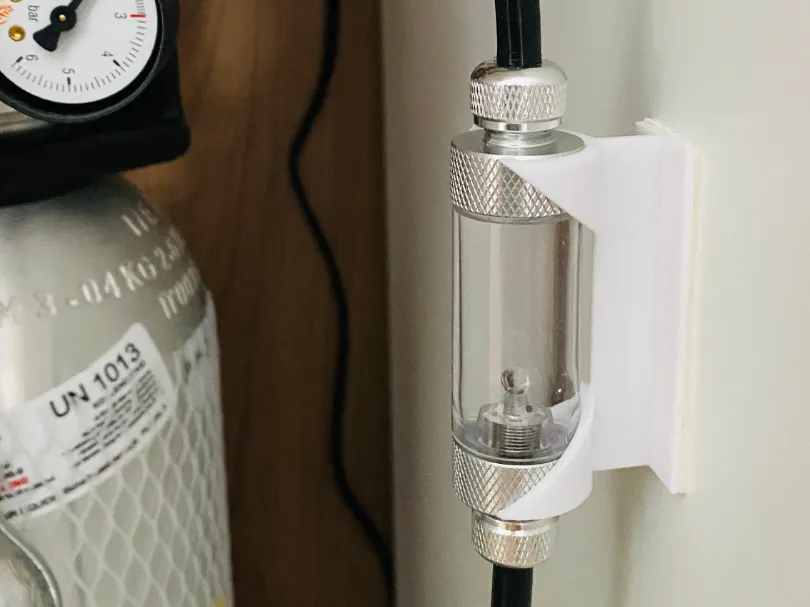

This sleek and robust mount securely and neatly fixes standard bubble counters (plexiglass/metal combination) to the cabinet wall. The design is deliberately minimalist to bring order to your aquarium setup.

Highlights:

• Perfect Fit: Secure hold thanks to precise clips.
• Fully Accessible: The knurled nuts for hose attachment remain freely accessible – maintenance is possible without disassembly!
• Easy Installation: Optimized for attachment with double-sided mirror tape (holds rock solid).
• Print Optimized: Fast print that is also visually appealing.

Design Background:

I designed this holder for my 350-liter tank. After drilling out my bubble counter to a 2mm nozzle (for better countable bubbles at 80 bpm), all that was missing was a professional mount. Here it is!

Print Recommendations (Print Settings):

• Material: PLA Plus (recommended for better toughness) or PETG.

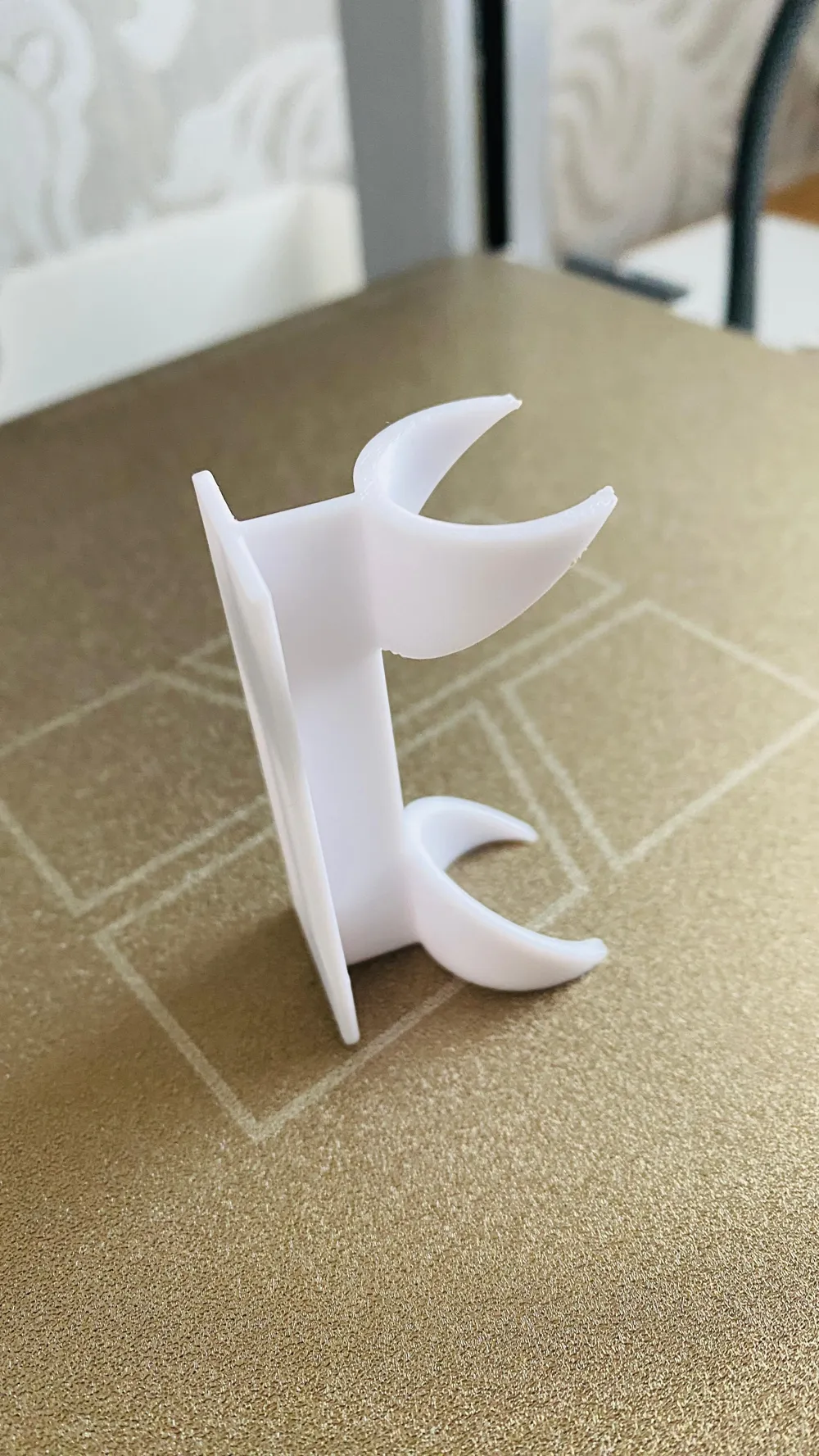

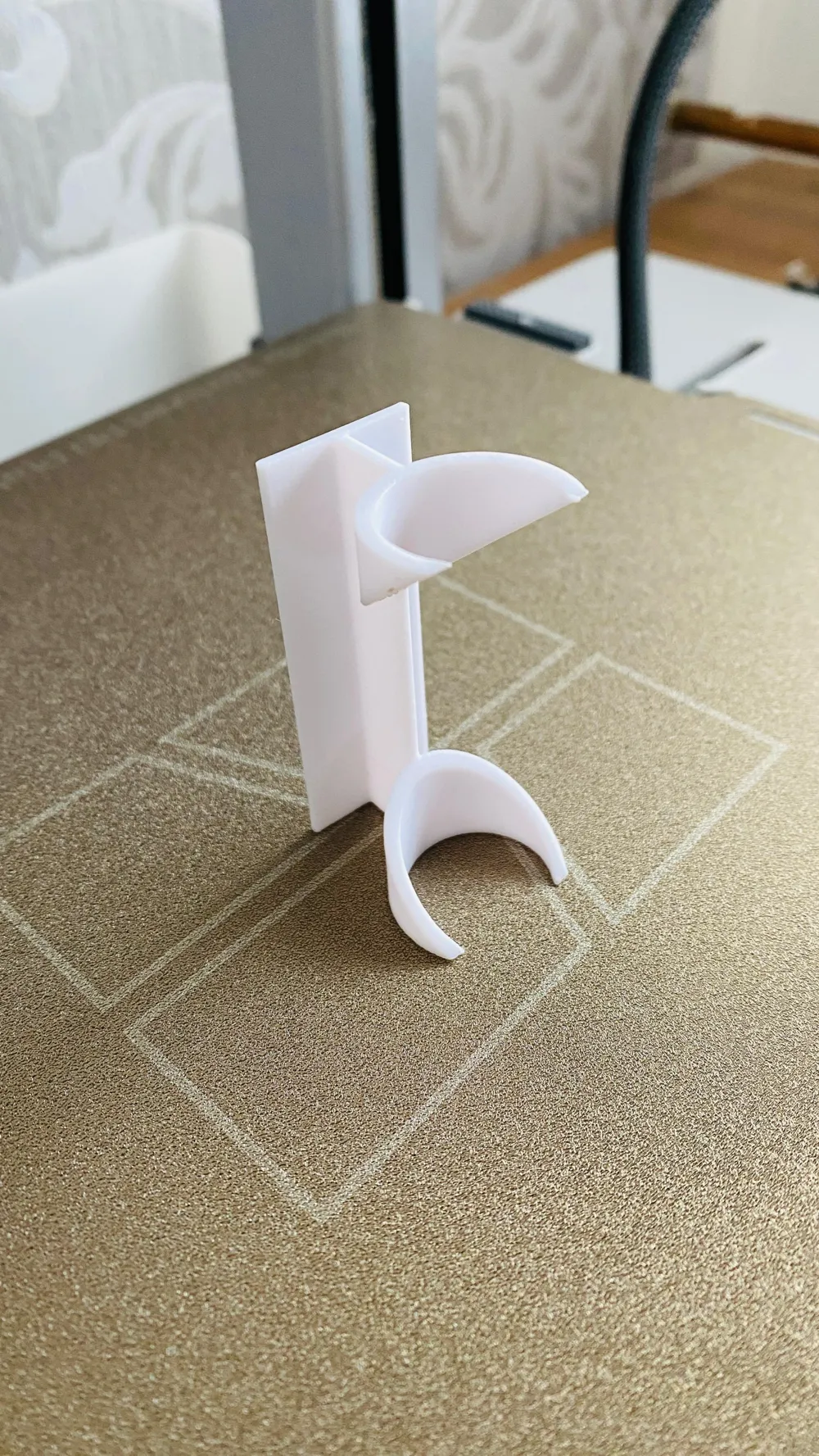

• Orientation: I printed the part standing upright (as it hangs on the wall). This ensures a perfect surface finish.
• Z-Hop: I recommend a Z-hop of 0.4 mm to ensure a clean result when printing upright.
• Stability: For maximum stability for the clips, the part can alternatively be printed lying on its back.
• Infill: 15-20% | Walls: 2

Have fun printing and tidying up!
