Description
update
added file for hose clamp v3
Added version without faucet model 2823227
And added version with hose clamp nut model 2834192
and published gasket profile
https://makerworld.com/en/models/2642550-drip-wing-faucet-gaskets#profileId-2920014

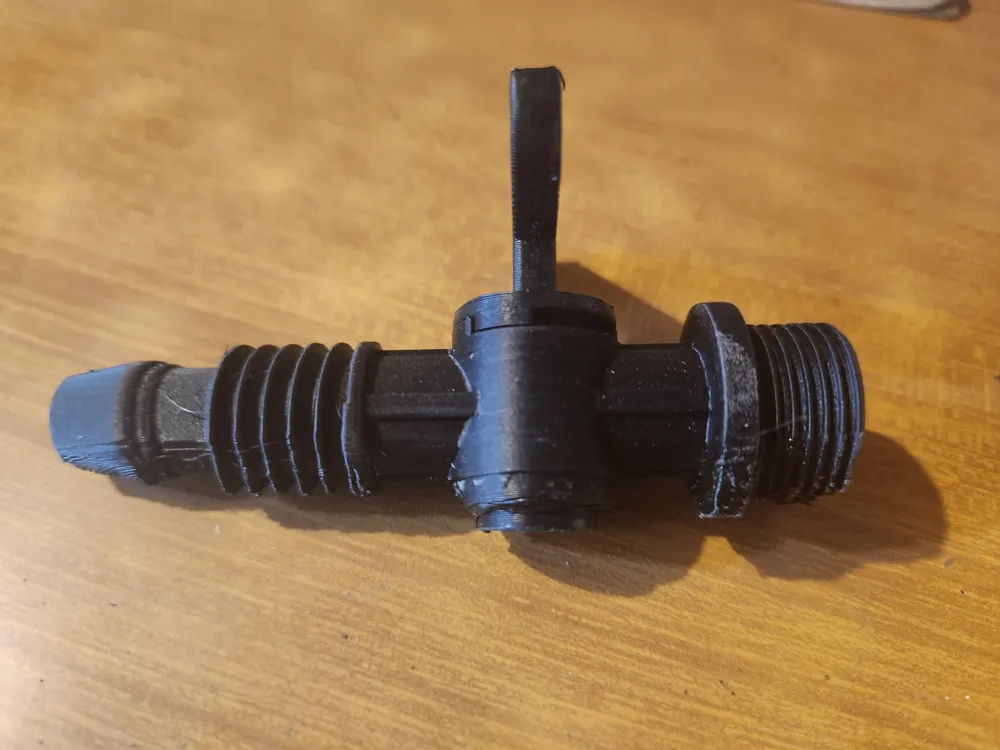

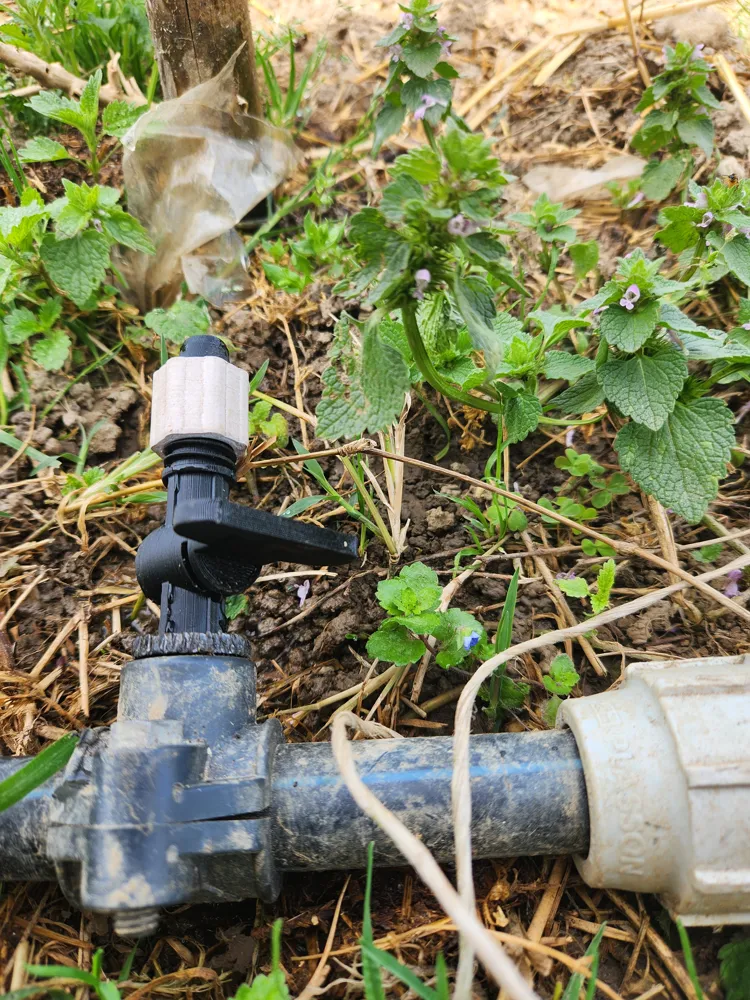

16 mm drip wing faucet (to work, the drip wing gaskets available in my profile are necessary)
Version 2 has been added for both ½ and ¾
It has been improved in the insertion of the wing
And in greater durability and seal

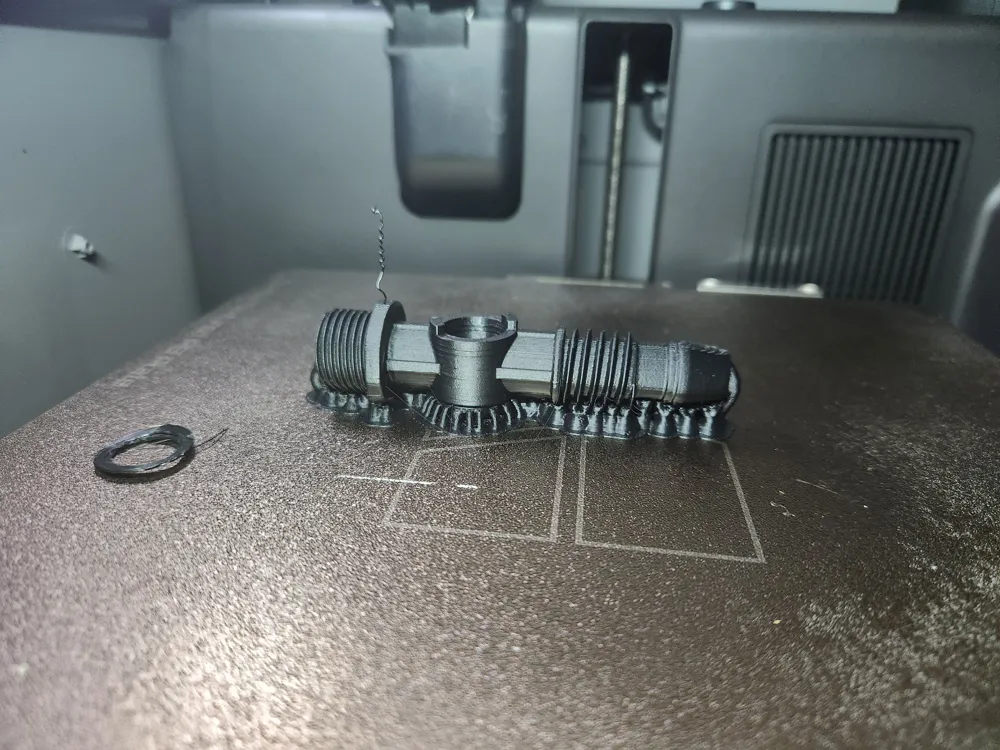

It is important to print this object without the top cover, or at least slightly open, to avoid printing problems
It was complex to design and test it, I hope you can support me with likes and boosts
I will create other models and further improve this one
For the seal on the drip wing, I opted for a simple insertion without threads, which not only simplifies printing but also facilitates insertion and at most requires a small metal wire to prevent slippage, although it rarely avoids it

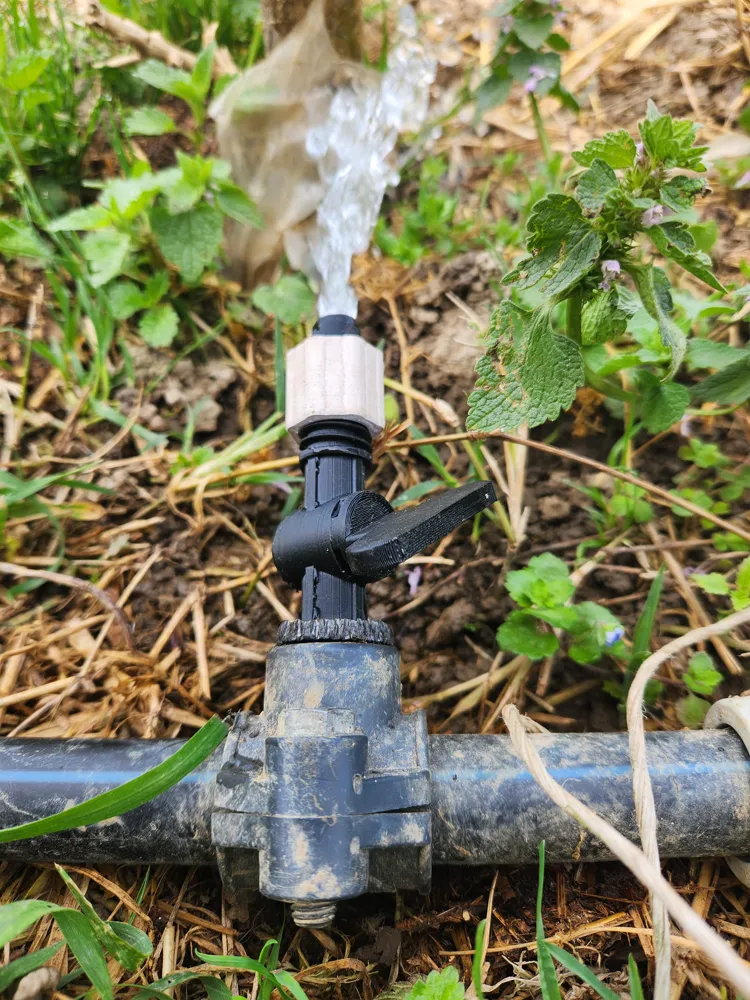

Withstands 3 bar of water pressure well
v1 faucet for 16mm drip wing and 1/2 thread
it is strongly recommended to clean the build plate well before printing
to turn off the side fan
and remove the top cover
another model with the necessary gaskets is available in my profile
