Customizable simple box with separate lid
Print Profile(1)
Description
Customizable simple box with separate lid
It's a simple box.
Parametric to allow anyone to easily create boxes of any size, but still a simple box.
No hidden features, no over-engineering, just two pieces that combine to form an enclosed space.
How to use the generator:

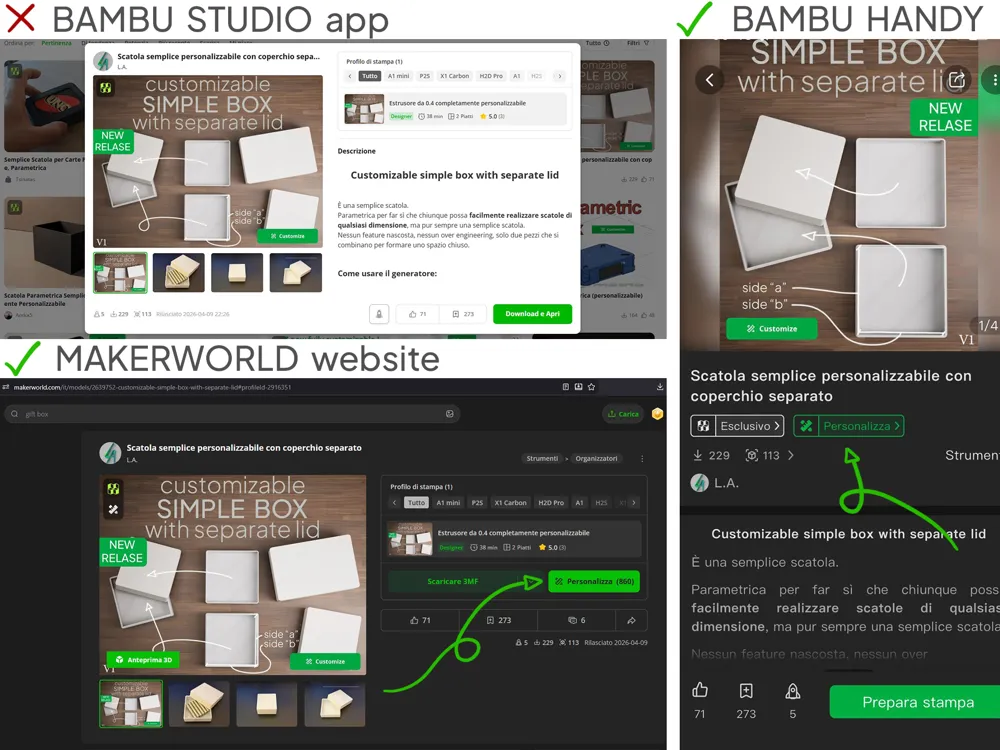

To customize the model, you need to access the MakerWorld website in your browser, as Bambu Studio currently does not support in-app customization. Once on the website, simply click the customize button to open the generator. Then, you only need to enter the desired dimensions, replacing the preset ones in the left column, and then press generate. Once satisfied with the result, simply download it in .3mf format. Once opened in the Bambu Studio app, you will need to separate the bottom part from the top part. To do this, simply select the object and right-click on it, then select split - to objects and then drag the two parts to separate plates. I strongly recommend downloading and using the print profiles (.3mf) uploaded to the model page.
Boost Me (for free)
Do you like my models? Support my work with a boost!
Printing tips:

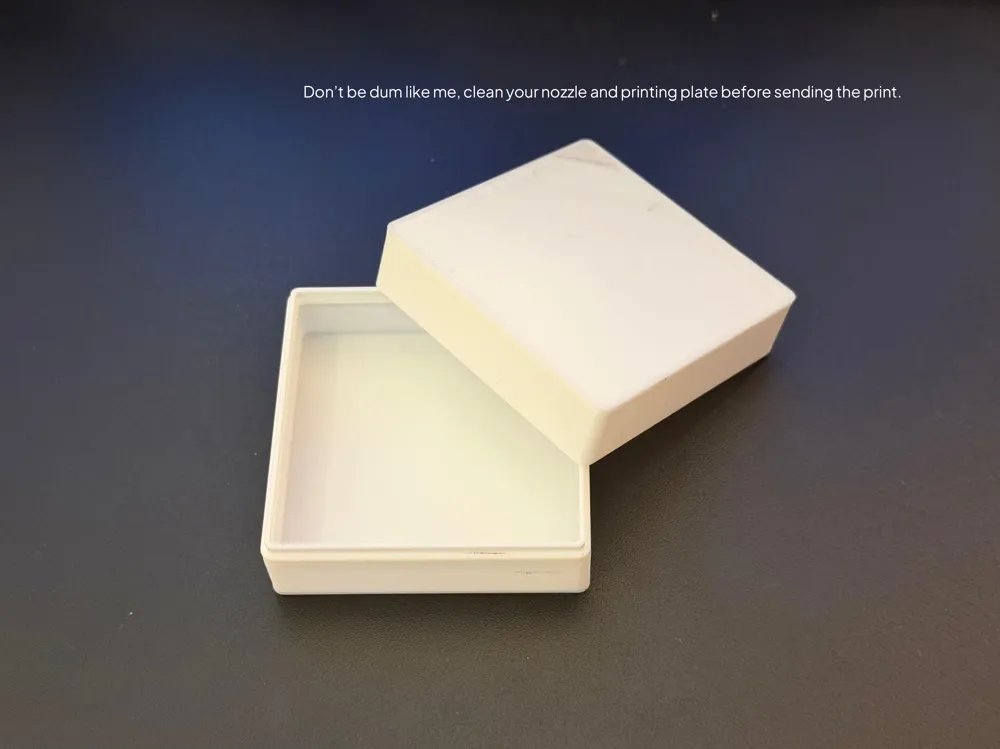

For proper box printing, the print bed needs to be adequately cleaned and calibrated.
Modifiable variables:

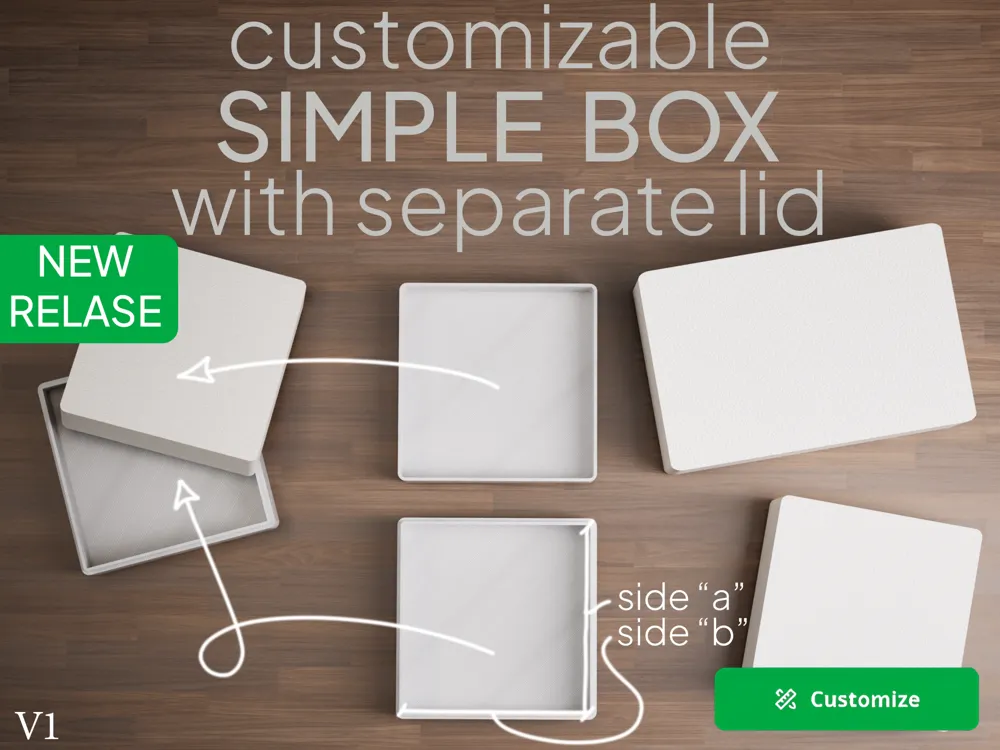

Side a mm: modifies side “a” (see cover photo)
Side b mm: modifies side “b” (see cover photo)
Box Height mm: modifies the height of the assembled container
Wall thickness mm: modifies the wall thickness
Interlocking tolerance: modifies the interlocking space between base and lid
Recommended print settings:
- Nozzle 0.4mm
- PLA Basic Bambulab or PLA Silk + Bambulab
- A textured print bed will add aesthetics to the finished product!
All test models and the final model were made with my A1 mini and are therefore compatible with all higher-end printers. The project was entirely created on Fusion 360, with several prototypes to ensure maximum functionality and resistance. Obviously, it does not require supports.
Personal note:
What can I say? It's a simple box..
Thanks to everyone who, through comments, direct messages, and boosts, has helped and motivated me to create increasingly better models. What I'm finding here is truly a wonderful community, thank you from the bottom of my heart!
See you soon with more projects!
Versions:
V1 – 09.04.2026 : 5 variables available
