M&P15-22 Advanced Charging Handle
Print Profile(1)
Description
Boost Me (for free)
If you enjoy my creations, my humor or just like printing what I put out there - Show me your support by sending me a free boost. Your support encourages my future designs, my creativity and helps fuel my filament addition. Thank you
Give your M&P15-22 a charging handle that feels better in the hand, runs more confidently, and looks far more refined than the factory setup. This design was made for shooters who want a larger, easier-to-use charging handle without unnecessary bulk, while also improving clearance around optics.
The enlarged geometry provides a greatly increased gripping surface and a more natural, ergonomic feel during manual bolt retraction, making the rifle easier and more comfortable to manipulate in day-to-day use. It is especially helpful when running an optic, as the shape offers better scope clearance than bulkier charging handle designs. The latch is built as a compliant, low-wear locking design, helping it operate smoothly while reducing stress on the part over time.
This design was originally posted under a different name and saw over 300 downloads in its original form. After a company complained that their name had been used in the title, I received a trademark infringement notice and renamed the listing accordingly. The part itself has not changed — just the name.
If you liked the original, this is the same proven design under a new title: better grip, better clearance, better feel, and a much more aggressive finished look on the rifle.
Features

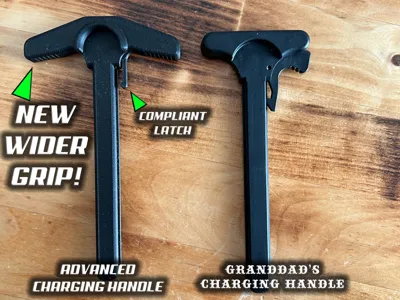

- Compliant, low-wear locking latch

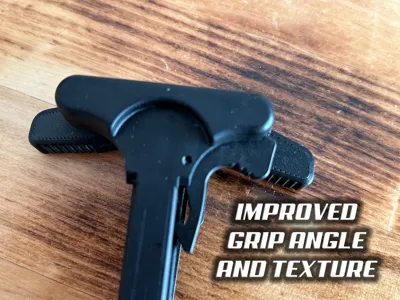

- Greatly increased gripping surface

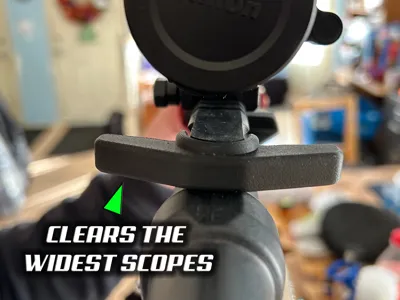

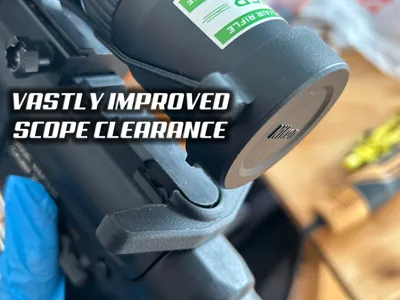

- Better scope clearance
- More natural, ergonomic manual bolt retraction
- Looks amazing installed
Recommended Print Settings
- Recommended Material: PET-CF or PA6 / PAHT (But ASA-CF, or other stonger materials would work)
- Infill: 100%
- Print orientation: as modeled
- Use adequate walls/perimeters for strength
- Print clean and dimensionally accurate for best latch fit
As always I encourage you to share pictures of your printed items… Additionally helpful feedback is always welcomed!
Check out my other models and feel free to like and follow me for future projects! If you have any requests I can see what else I can create for you.
🚫 Please Note:
Sharing, re-uploading, or selling my digital files without commercial licencing is strictly prohibited.
All designs are protected under digital licensing, and legal action will be taken in cases of unauthorized use.
