CNC Side Clamp Eccentric – Strong and Low Profile

🚀 Strong CNC Side Clamp – Low Profile

No top obstruction. Maximum control. Real workshop tested.

Tired of clamps getting in the way of your toolpath?
This clamp solves it.

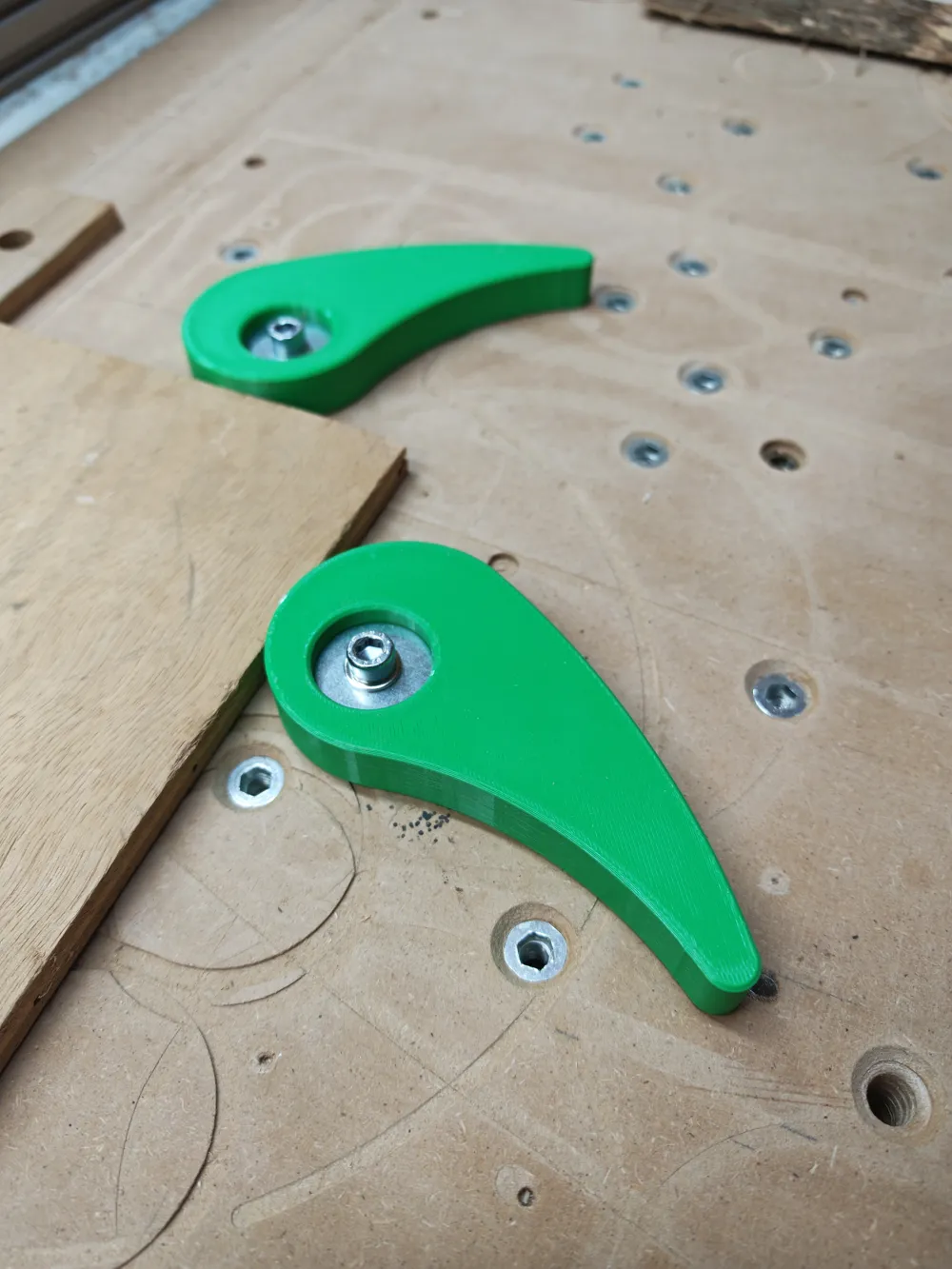

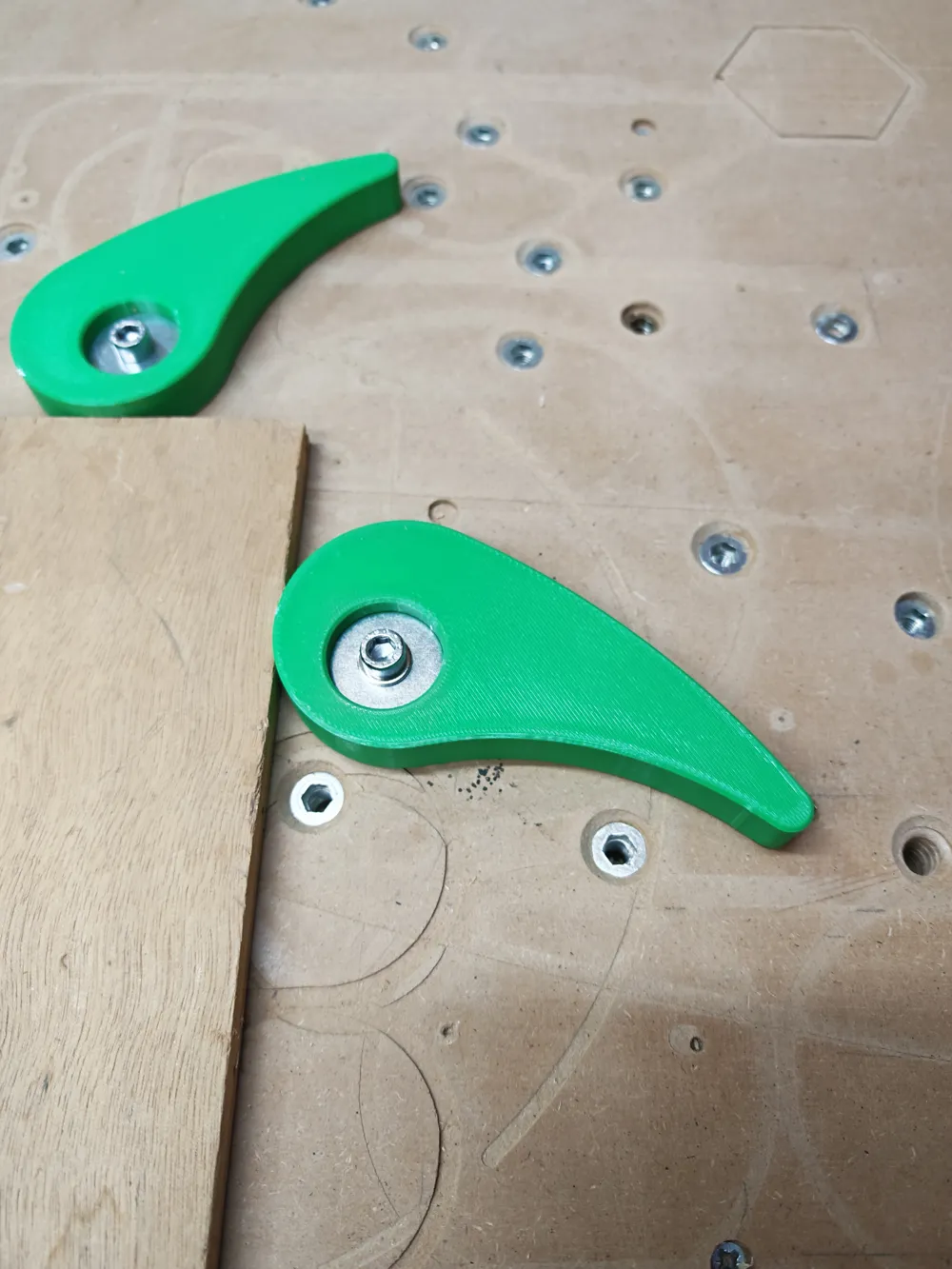

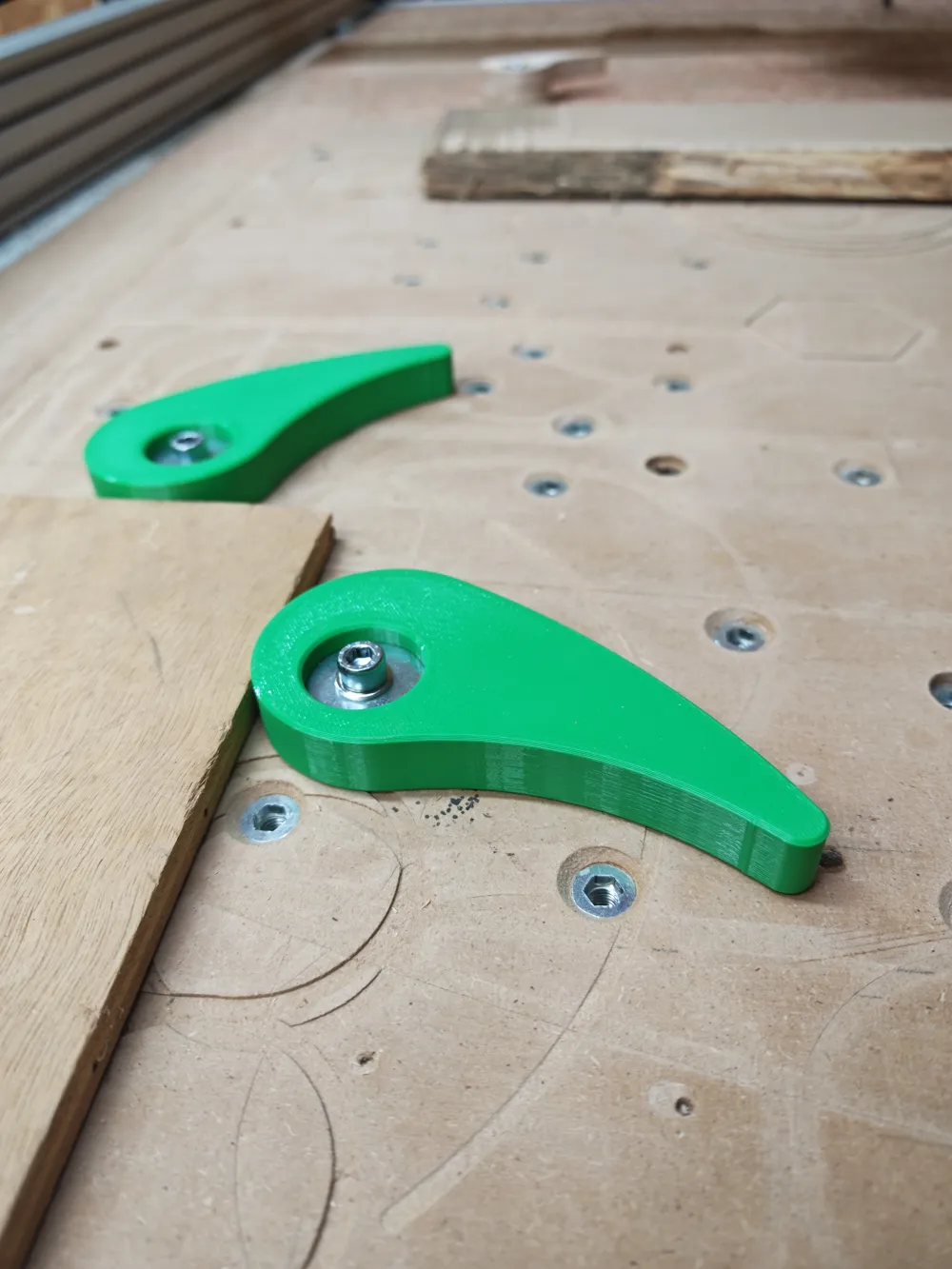

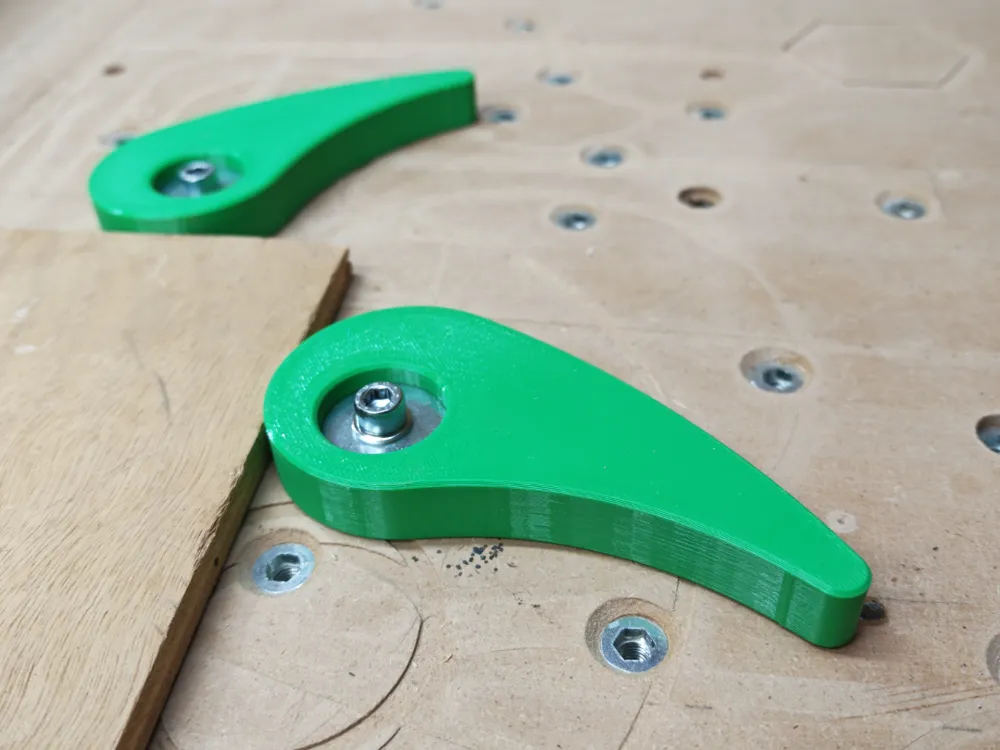

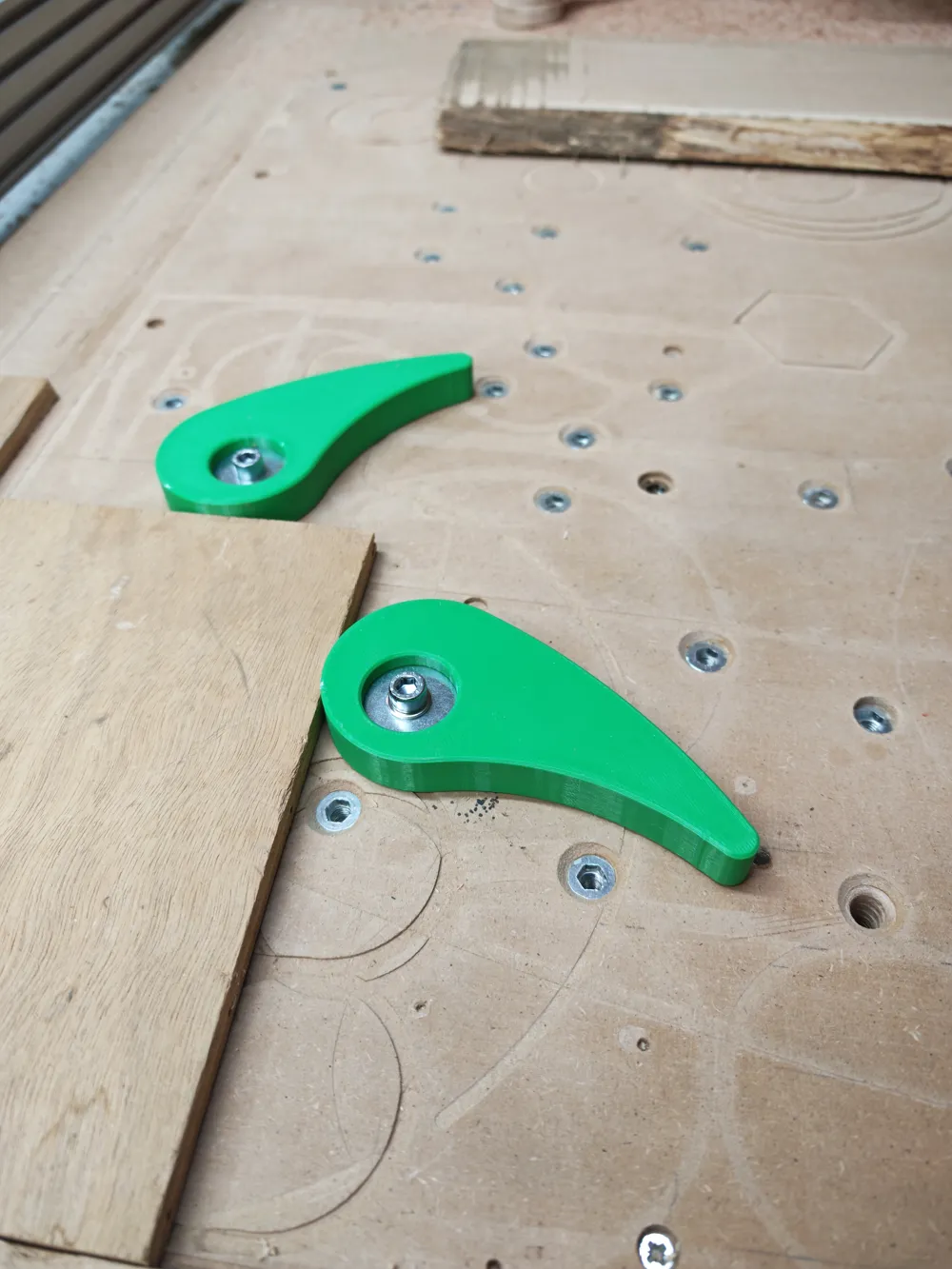

Designed with a side clamping system, it holds your material securely while keeping the entire top surface completely free — exactly how CNC workholding should be.

💣 Why this is different

Most clamps press from above.
This one doesn’t.

👉 Side pressure = full top access
👉 No collisions with the tool
👉 Cleaner cuts, safer machining

This is not just a print — it’s a workflow upgrade.

🔧 Key Features

• 🔥 Side clamping design (no top obstruction)
• ⚡ Low profile – perfect for CNC work
• 💪 Strong geometry optimized for PETG
• 🔄 Smooth and controlled clamping action
• 🧠 Designed from real workshop needs
• 🧩 Works best in pairs

🛠️ Hardware

• M6 bolt
• Washer 6x25 mm (highly recommended)

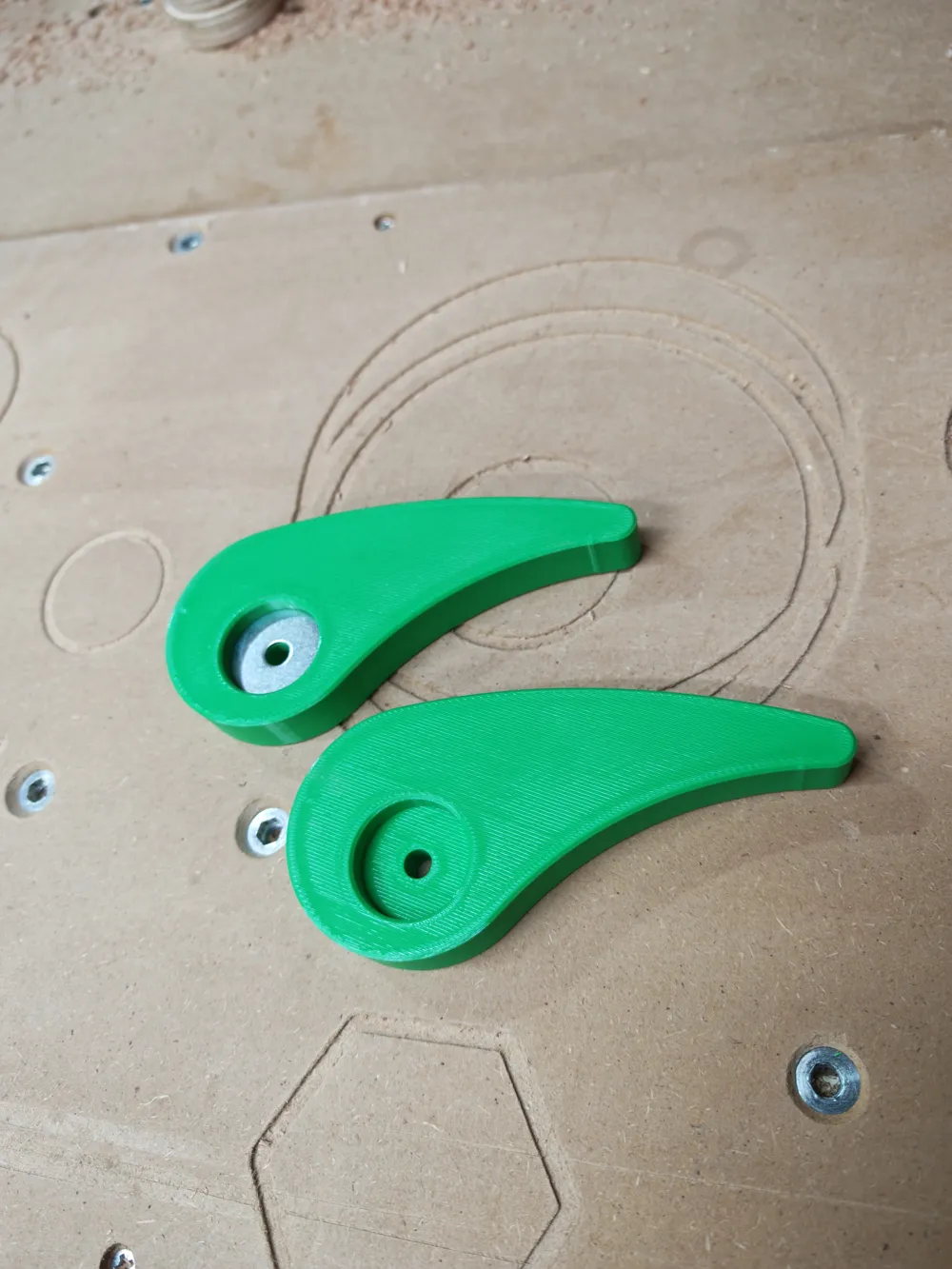

💡 The washer sits inside the pocket and:

• reduces wear
• improves movement
• spreads pressure evenly

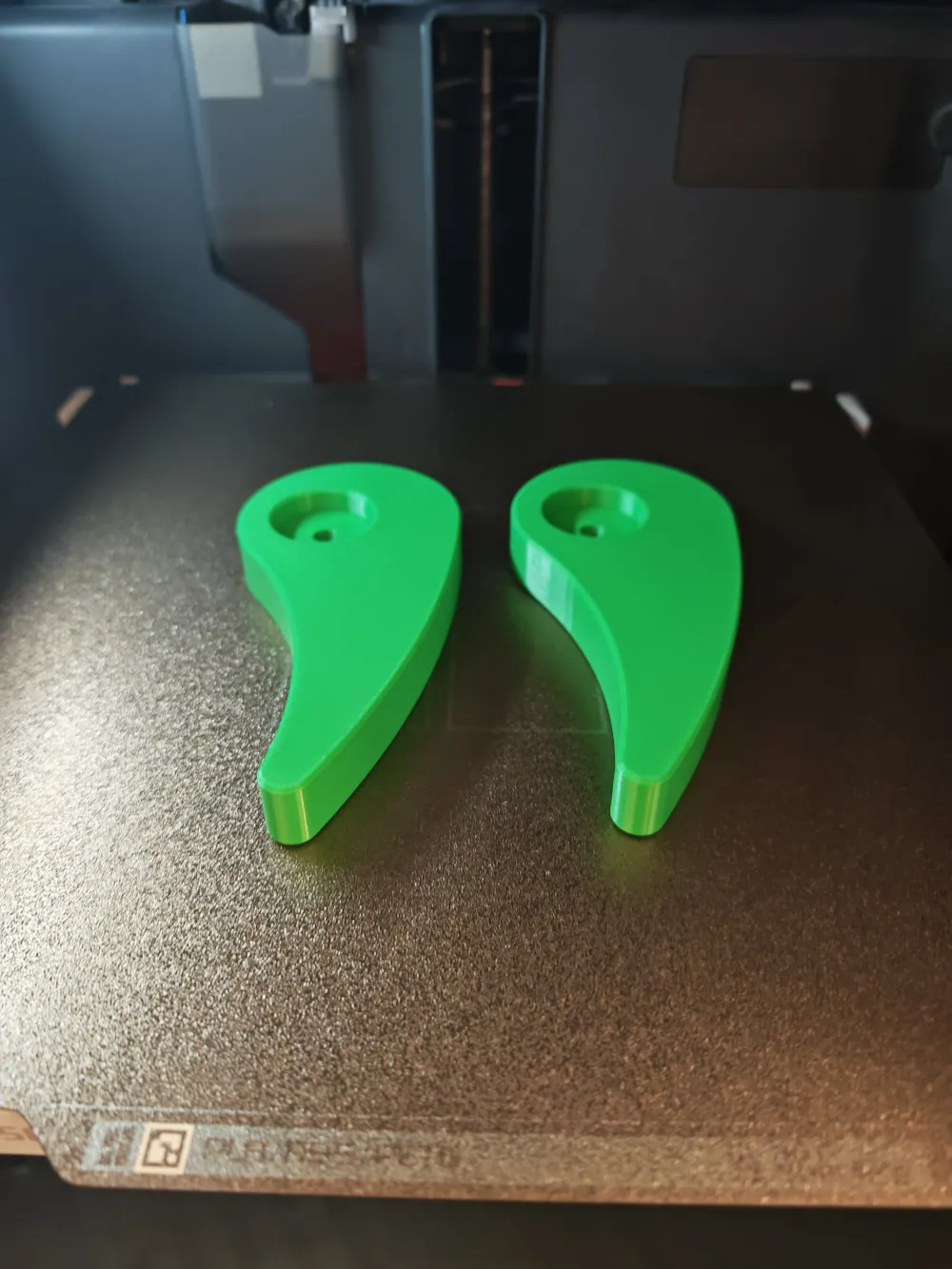

🖨️ Print Setup (tested)

• Layer height: 0.2 mm
• Walls: 6
• Infill: 25% Gyroid
• Material: PETG (recommended)
• Supports: Tree (auto)
• Orientation: print on side for strength

📌 Designed for

• Material thickness: approx. 15–18 mm
• CNC routing & carving
• Workshop fixtures
• Clean and unobstructed machining

🧪 Real Use

Tested directly on CNC table in daily workflow.
Built to be simple, reliable and effective.

⚡ Pro Tip

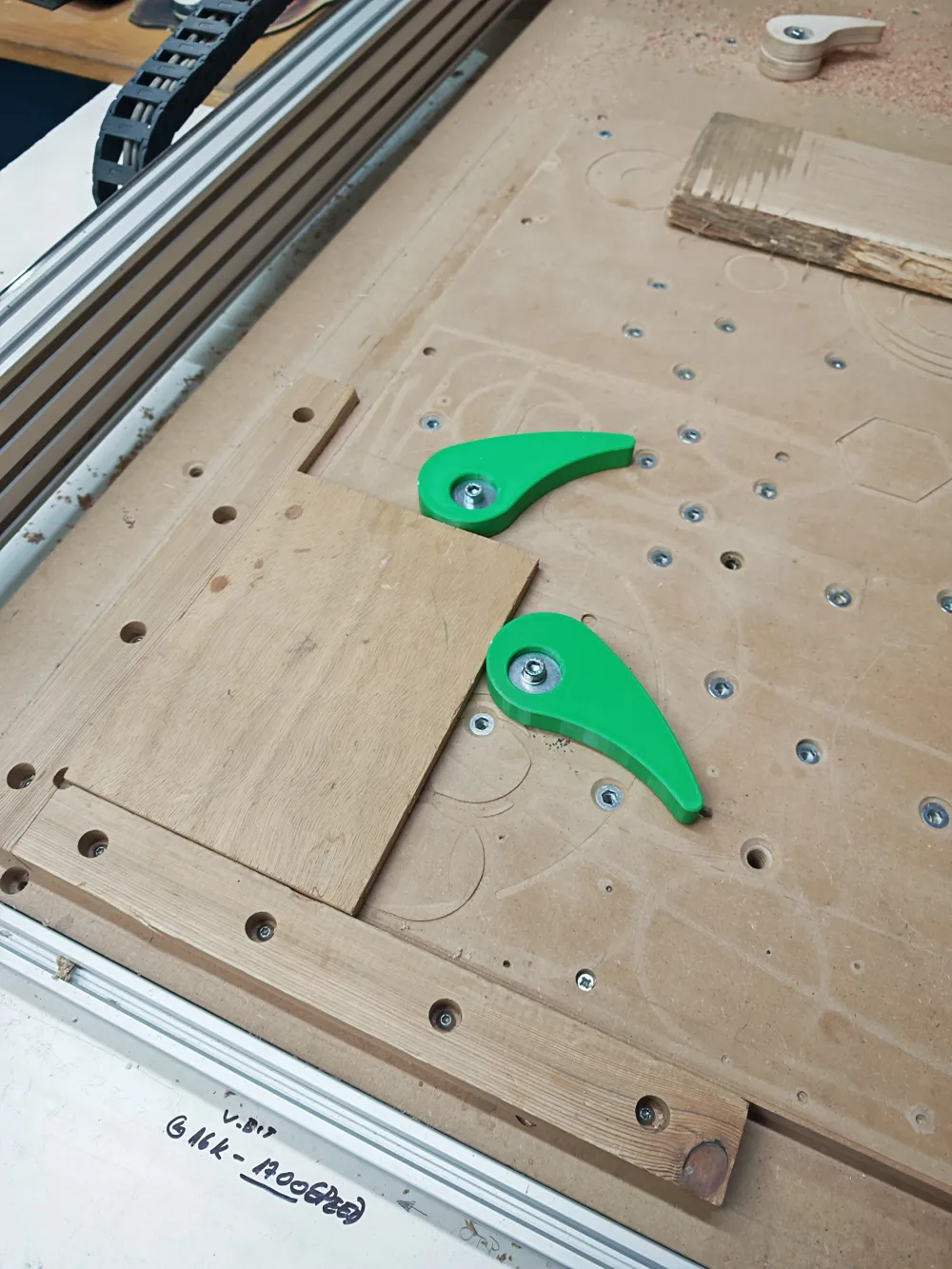

Use two clamps opposite each other for maximum stability.

🔜 What’s next?

A PRO version with extended range and enhanced grip is coming soon 👀

🙌 Final

If you want a clean workspace, full tool access and reliable hold —
this clamp delivers.

Download it. Print it. Use it.

Happy making!
— Wood Burning Studio 🚀
