Personalized 3D LED Sign Lightbox - "FAMILY"

Add a touch of light to your space with this modern 3D Printed illuminated sign. Featuring a bold and captivating font, this project blends a classic black and white aesthetic with professional light diffusion.

Overview

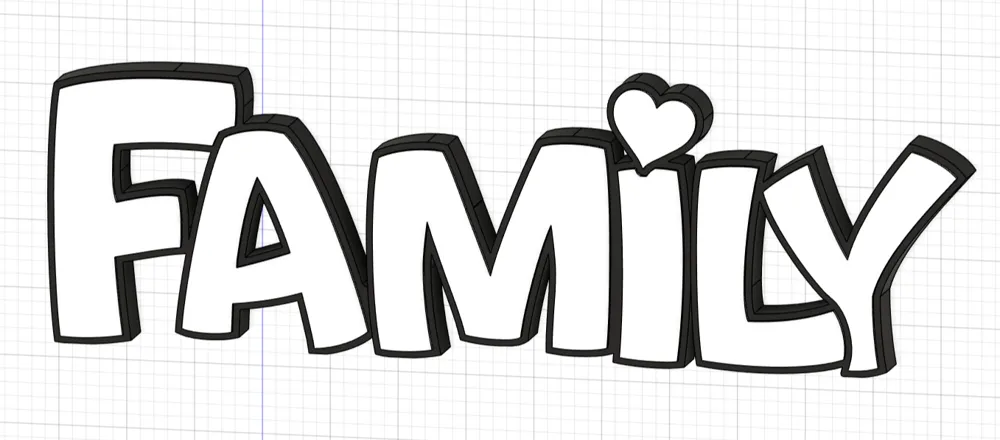

This sign is designed for a two-material look. The main body serves as a robust light-blocking structure, while the white inserts act as light diffusers. The letters protrude 3 mm from the sign's body, creating an impactful 3D effect that adds depth even when the lights are off.

Features

• 3D "Pop-out" Effect: Letters protrude 3 mm from the frame for a premium, high-contrast look.
• Optimized Diffusion: White inserts are designed to be 3D Printed with specific settings to ensure a uniform glow without shadow areas.

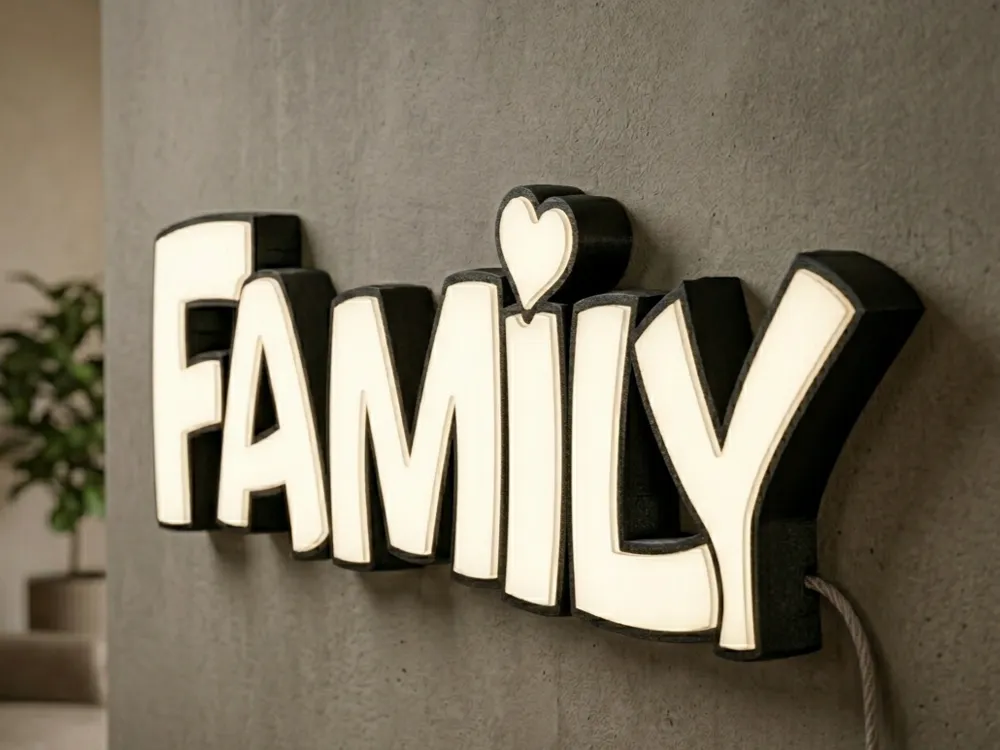

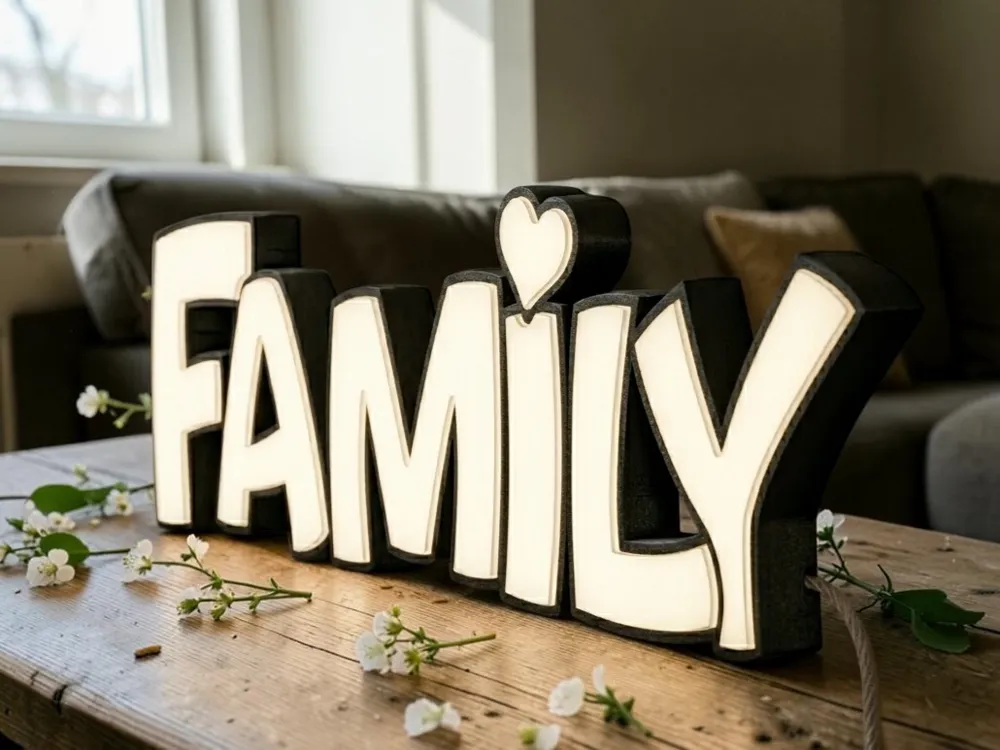

• Versatility: Can be wall-mounted or used as a freestanding desk lamp.
• Clean Design: Internal channels pre-arranged for LED strips (5V or 12V COB strips recommended for best results).

It has rear holes for hanging and a closeable threaded side hole for routing the wire if used wall-mounted, or a rear hole if used freestanding.

Printing Tips

• Materials:
  • Body/Frame: PLA or PETG (Black or any opaque color).
  • Diffusers: PLA White (PLA Matte or White Translucent are ideal for maximum light output).
• Supports: Already positioned where needed

Assembly Instructions

1. Print the main body in black or your preferred color and the 3 connectors, then glue the 3 parts together.

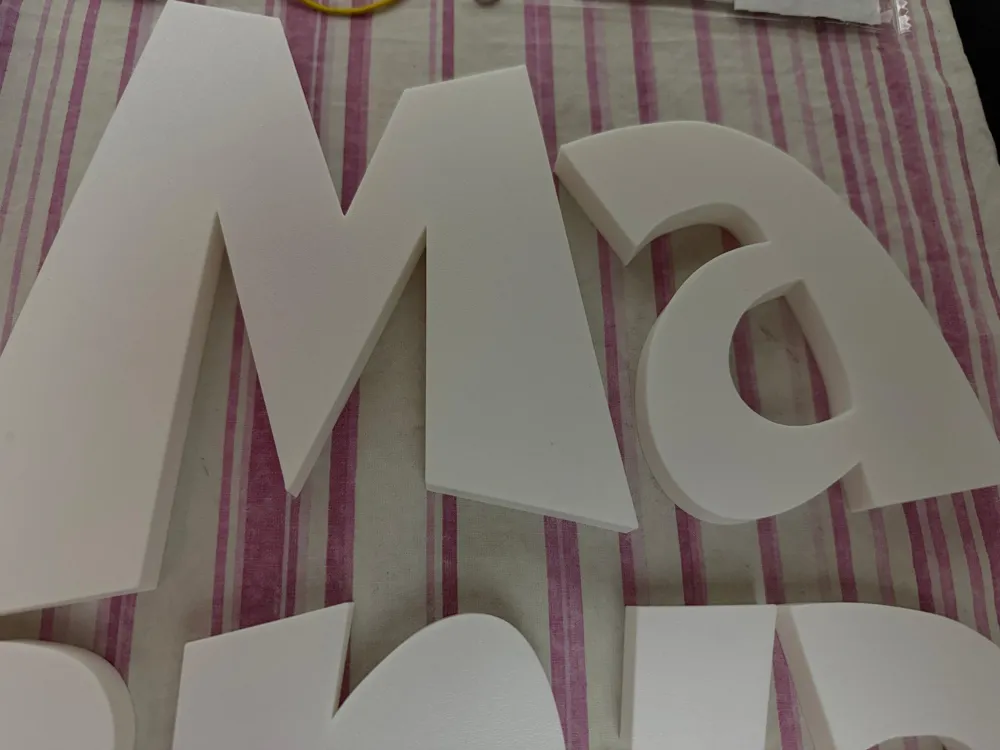

2. Insert the internal diffusers; they are not mandatory but aid in better light distribution.

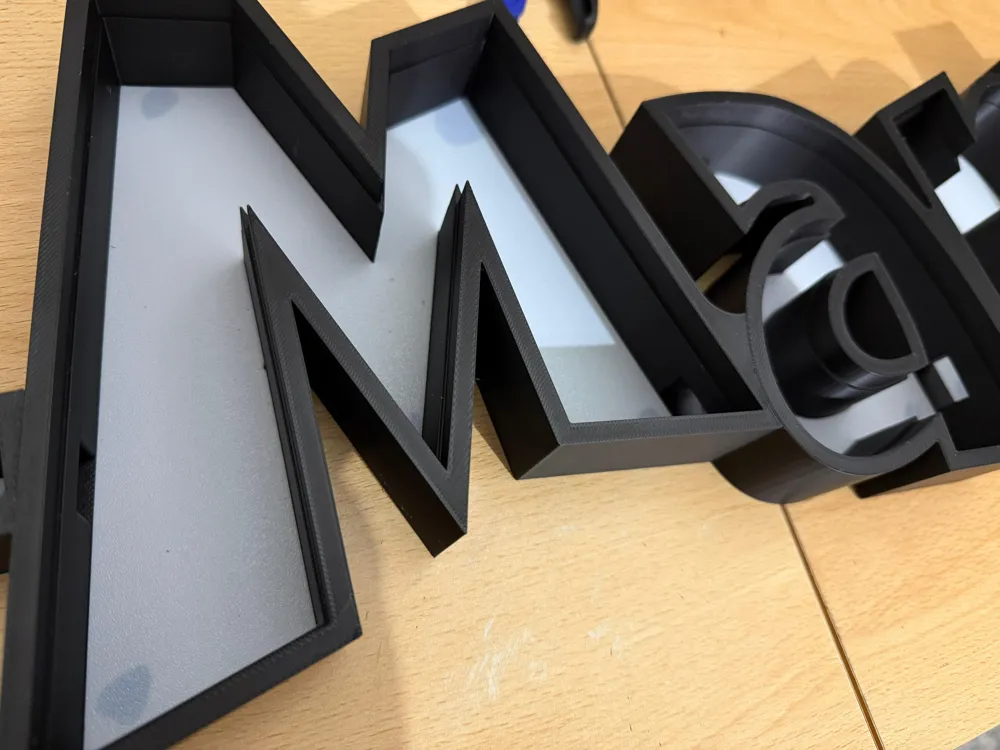

3. Glue the LED strip inside the main body's cavity.
4. Pass the power cable through the designated hole on the back or bottom.
5. Snap the white diffusers into the front openings.
6. Turn it on and enjoy the result!

Love this design? If you print it, upload a photo of your creation ("Make")! I would love to see how it looks in your environment.

Note: This specific file is for the phrase "FAMILY", but the technique can be applied to any custom text.

Many other names and phrases coming soon,

“If you need a specific name or text, leave me a comment and I will create it for you.”
