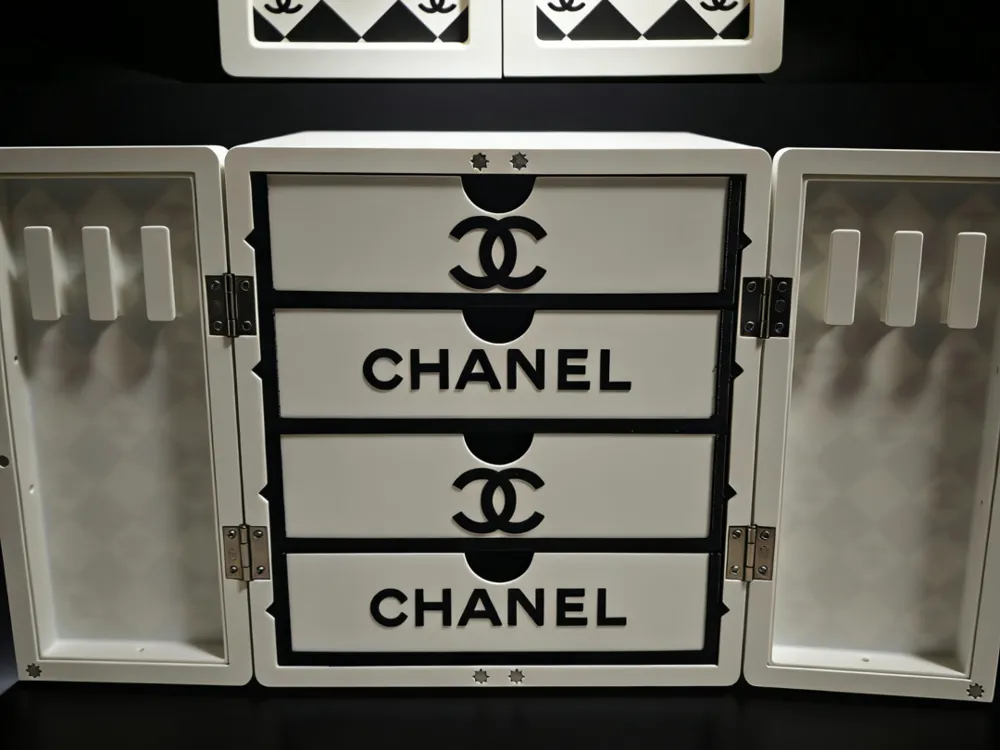

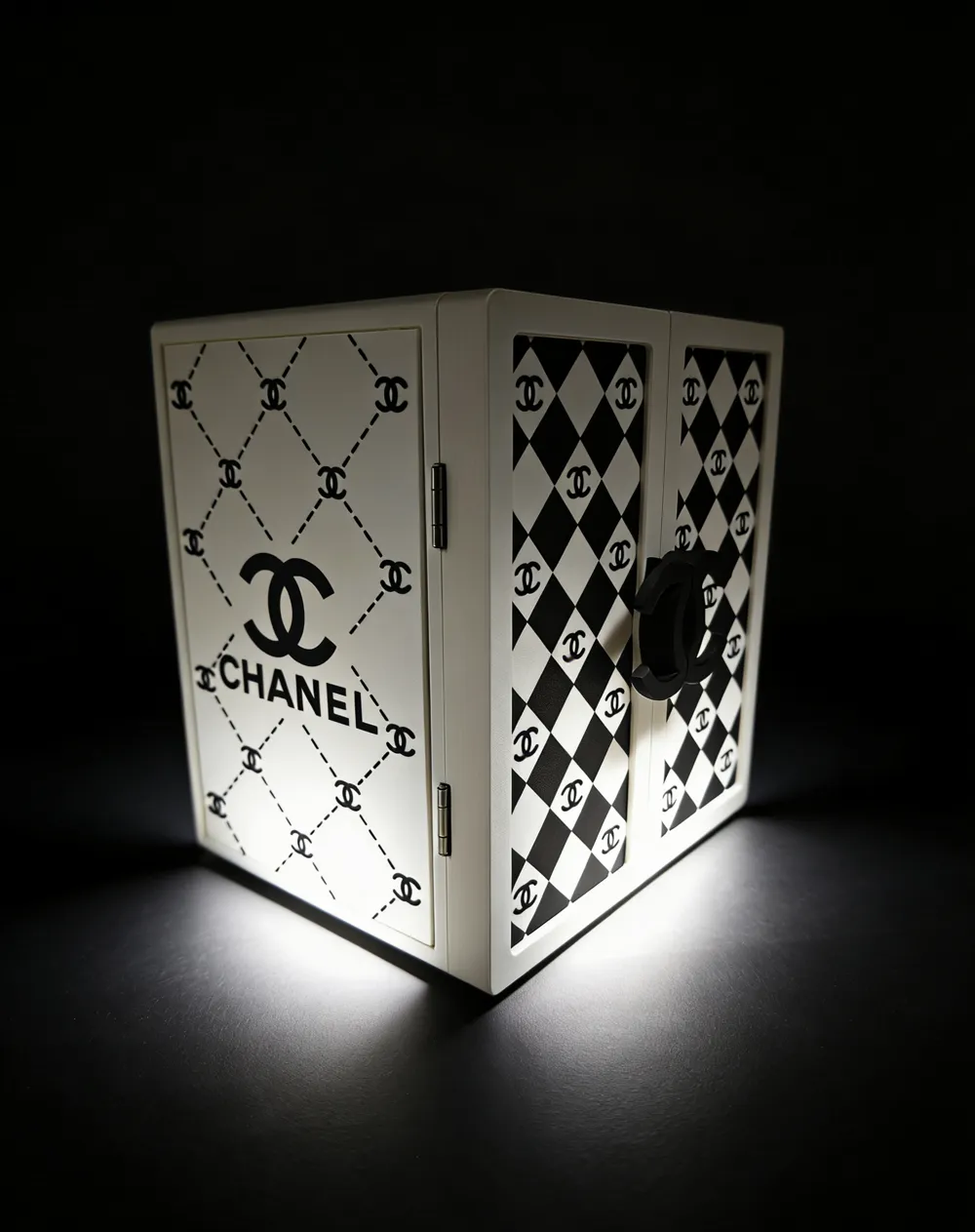

Chanel Drawer Cabinet / 4-Tier Version

All creations adopt a split design structure, with AMS undergoing no more than 1-2 color modifications.

Chanel Drawer Cabinet/4-Layer Version

Previous uploaded version: side frames were too thick and might not fit, now modified

Drawer cabinet two versions configuration instructions

I. Metal Hinge Version (suitable for domestic users)

Pros: Exquisite and beautiful appearance, sturdy and durable structure
Cons: Accessories are difficult to source in overseas markets, limited adaptability

Required accessories

- Specified linked hinges: 4 pieces

- M2.6×10 countersunk self-tapping screws: approximately 30 pieces

- Round magnets: 8 pieces (6mm diameter, 3mm thickness, official identical specification magnets can be selected)

For detailed assembly and installation instructions, please refer to the accompanying assembly guide.



II. Plastic Hinge Version (suitable for overseas users)

Pros: Hinges can be Print in Place directly, convenient to source and produce
Cons: Aesthetics and durability are inferior to metal hinges

Required accessories

- M2.6×10 countersunk self-tapping screws: approximately 30 pieces (can also be fixed with glue, but screw installation is more recommended for easier future adjustments)

- Round magnets: 8 pieces (6mm diameter, 3mm thickness, official identical specification magnets can be selected)

For detailed assembly and installation instructions, please refer to the accompanying assembly guide.

Important installation reminders

1. Please make sure to purchase the linked hinge style recommended in the installation instructions. Do not use the screws provided with the accessories; you need to select the specifications I recommend: M2.6×10 countersunk self-tapping screws.
2. Installation sequence:
- First, install the door leaf: sequentially install the door leaf hinge → door leaf handle → door leaf inner frame; if the inner frame is not securely snapped in, screws can be used for reinforcement.
- Then, install the main body: first install the drawers. The drawers are designed with limiters on both sides. Snap one side in first, then the other side. Do not push both sides in simultaneously to avoid damaging the structure.
3. When finally installing the door leaf, you can use an item with a height similar to the main body to prop it up, making hinge alignment easier and installation more effortless.

4.When installing magnets, be sure to confirm the magnetic pole direction; a small amount of glue may be needed

Commercial use and sale of any work containing brand logos are strictly prohibited.
