AMS HT Sideholder for AMS Flipper, P1S optimized - Free 3D Print Model

Search models, users, collections, and posts

Will.I.Am.G

3D Printer>3D Printer Accessories

IP Report

Print Profile(3)

All

P1S

P2S

X1 Carbon

H2D Pro

P1P

H2D

H2C

H2S

X1E

X2D

A2L

0.2mm layer, 2 walls, 15% infill

Designer

6.1 h

1 plate

5.0(1)

Raised version, 0.2mm layer, 3 walls, 15% infill

Designer

6.5 h

1 plate

Updated to V6, 0.2mm layer, 3 walls, 15% infill

Designer

6.4 h

1 plate

Open in Bambu Studio

Boost

Released

Description

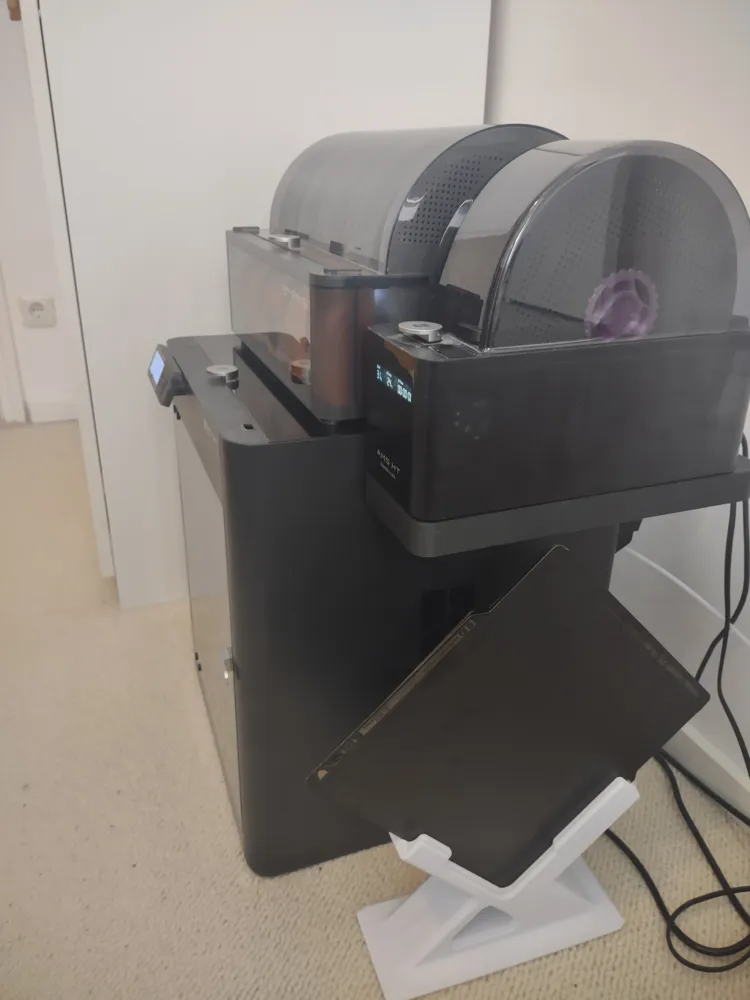

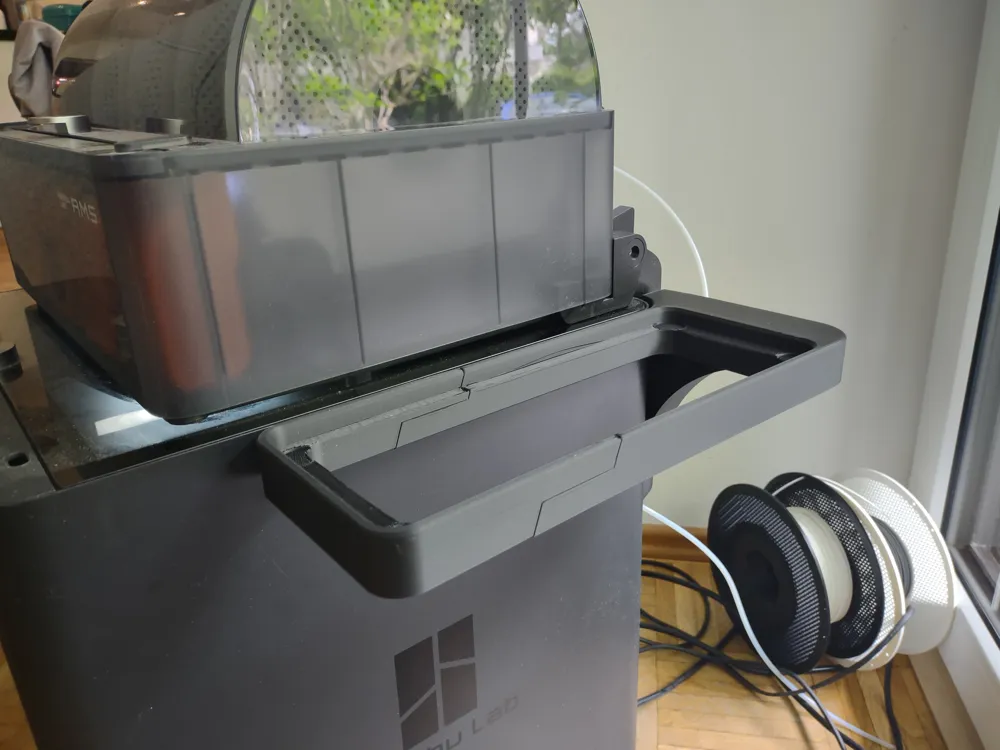

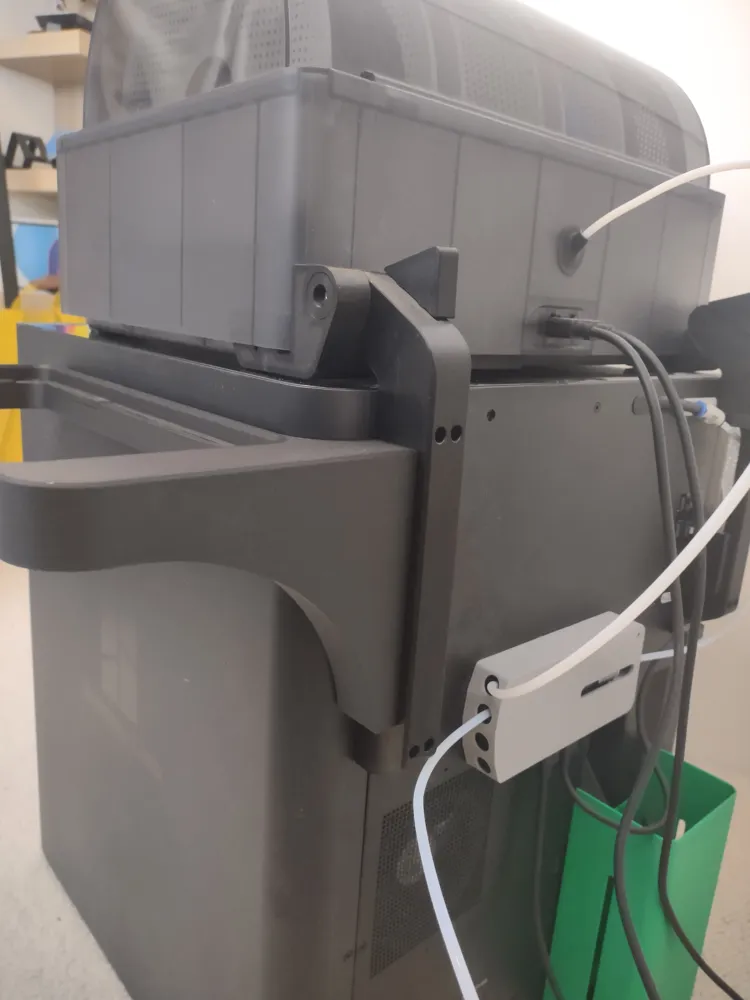

Sideholder that allows the AMS HT to be mounted on the side of your P1S. Requires the use of the AMS Flipper or at least one of the handles of the Flipper. (https://makerworld.com/de/models/1363398-ams-flipper-better-access-to-your-p1s-x1c-p2s#profileId-1770033)

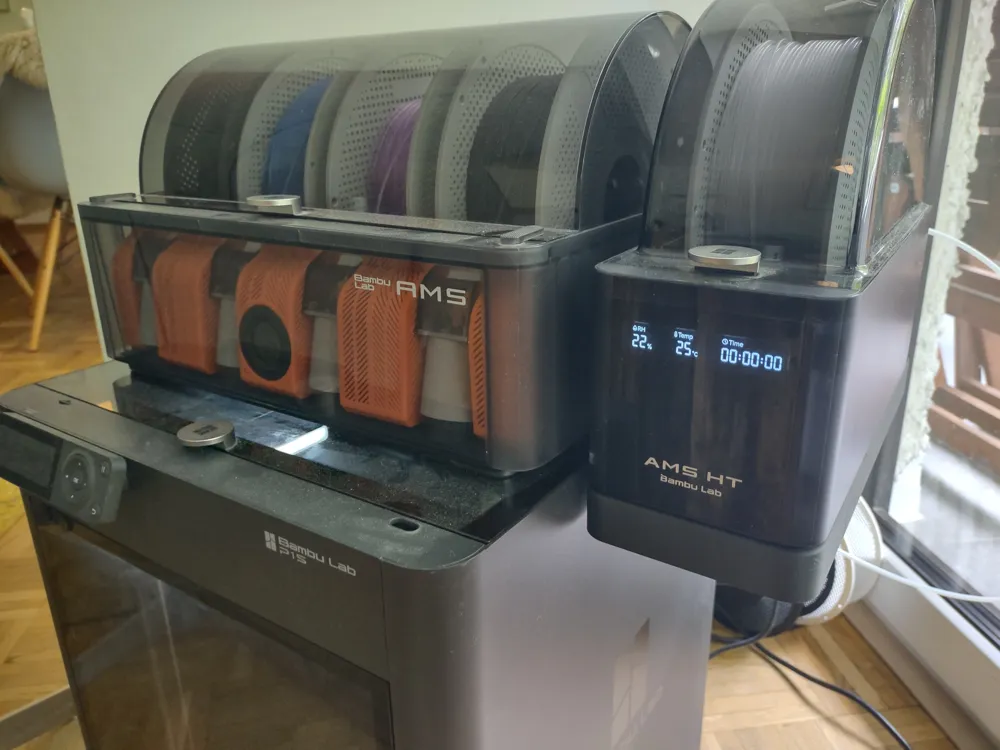

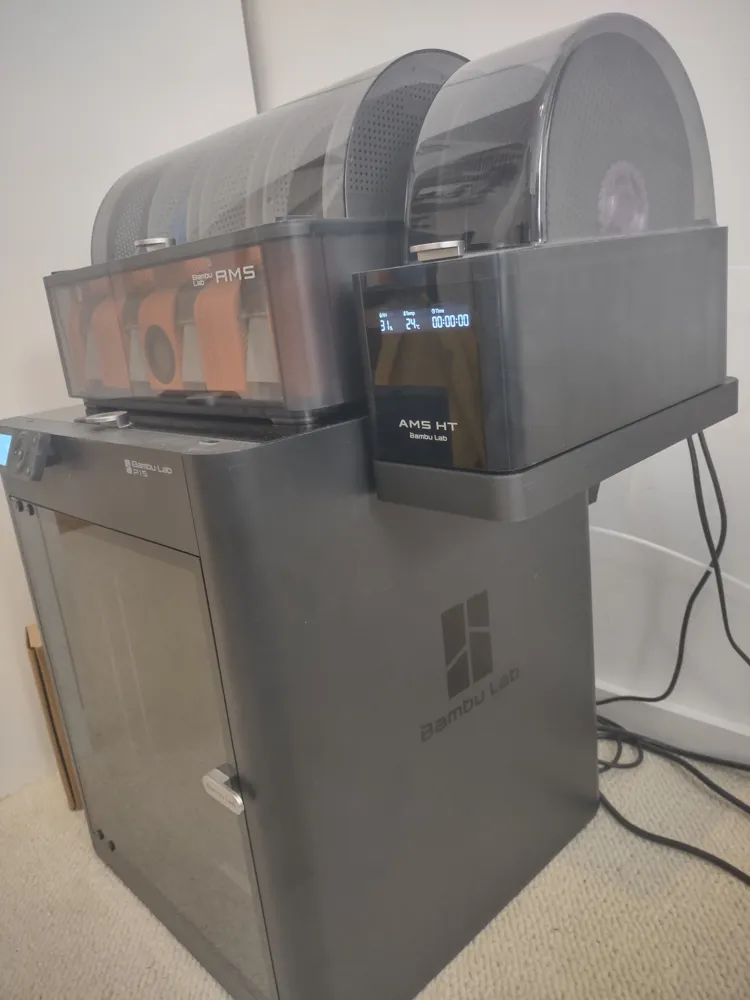

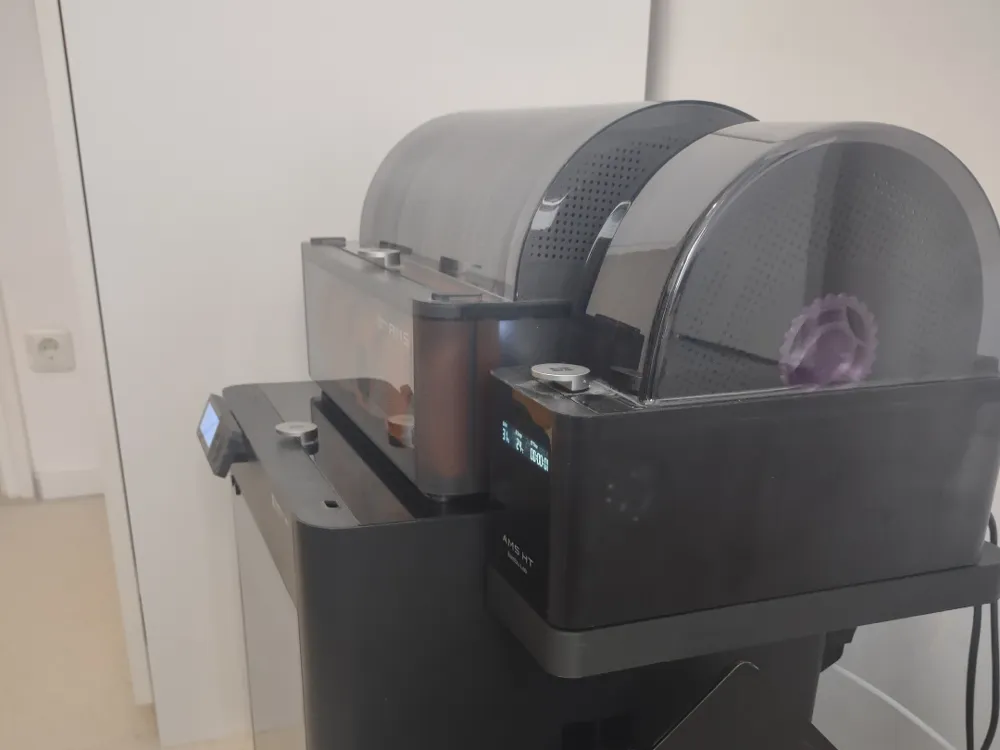

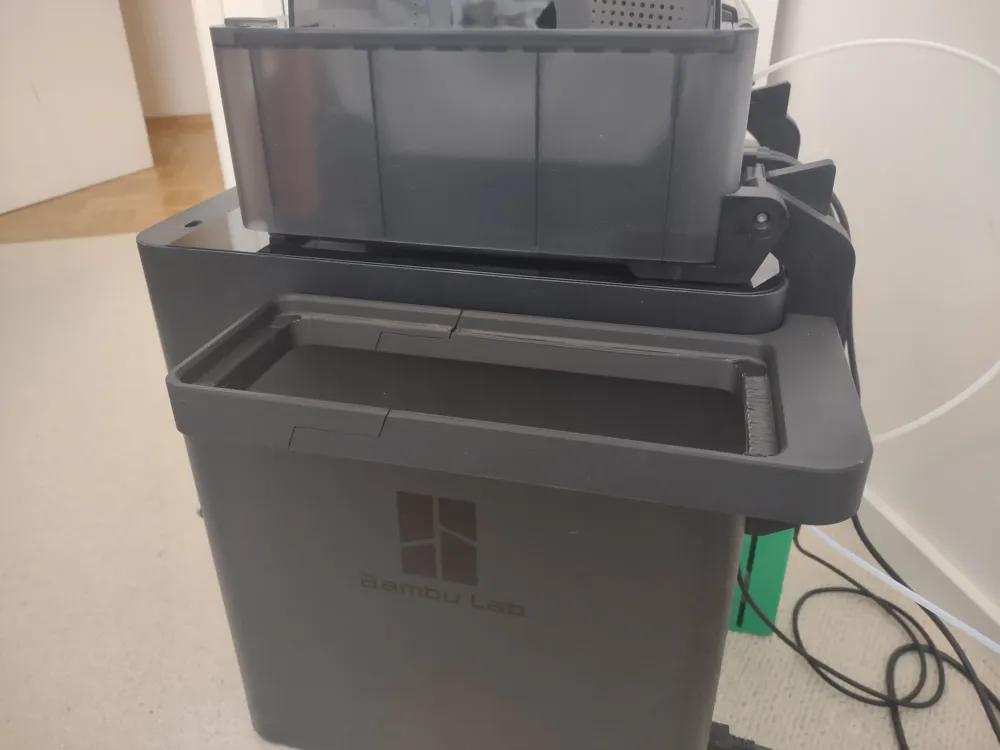

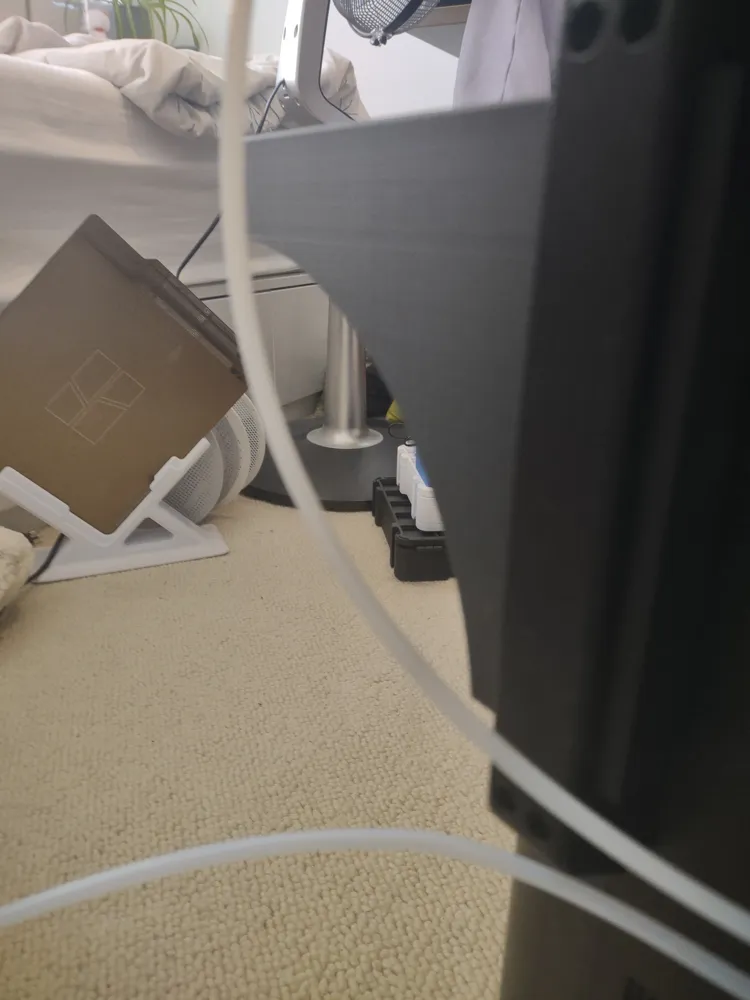

The model mounts the AMS HT higher so that it is almost next to the AMS on top of your printer.

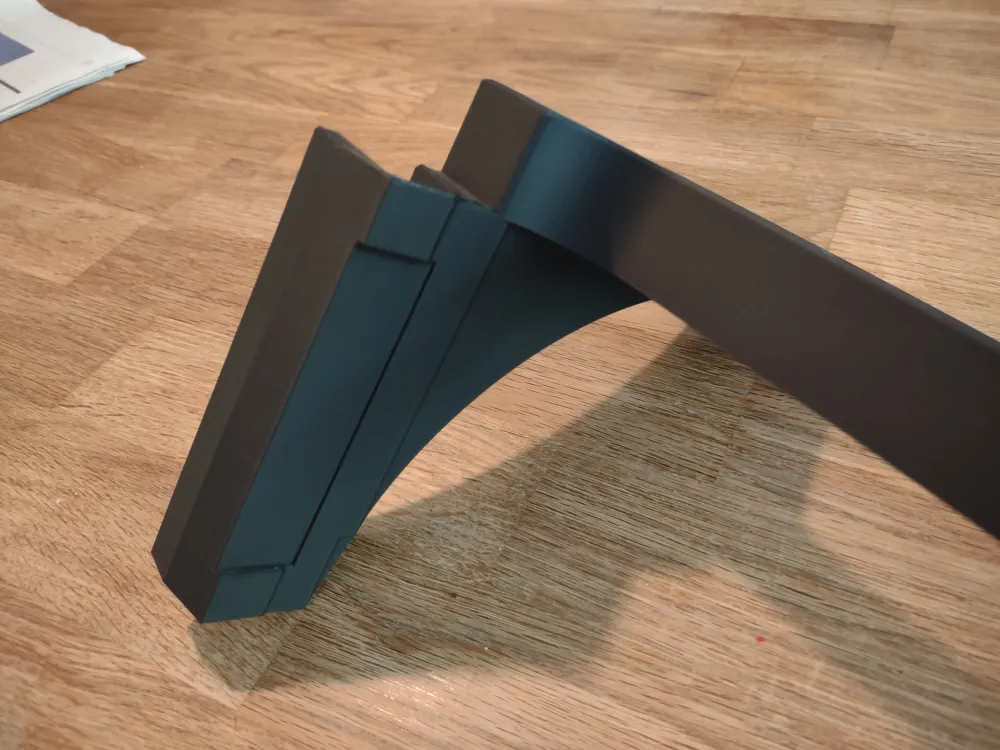

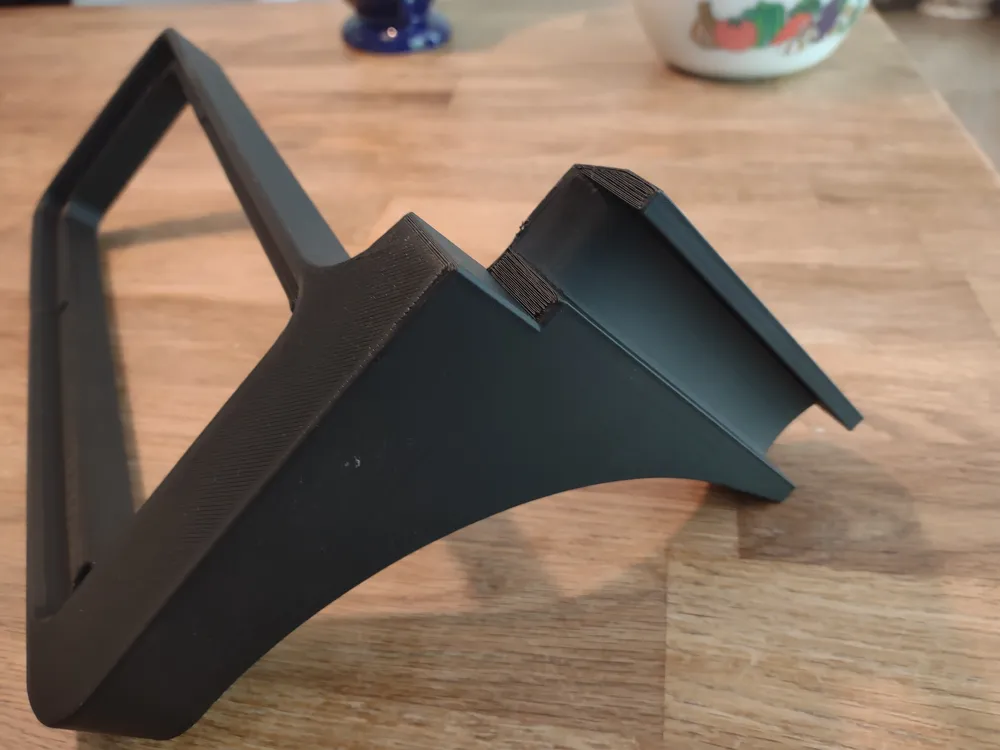

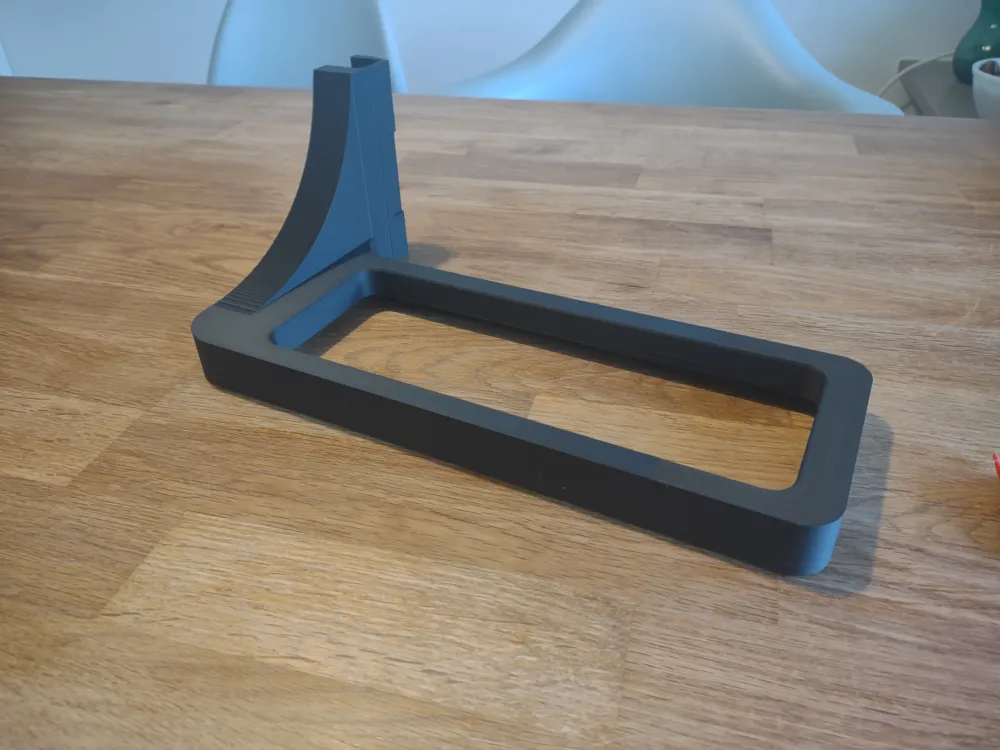

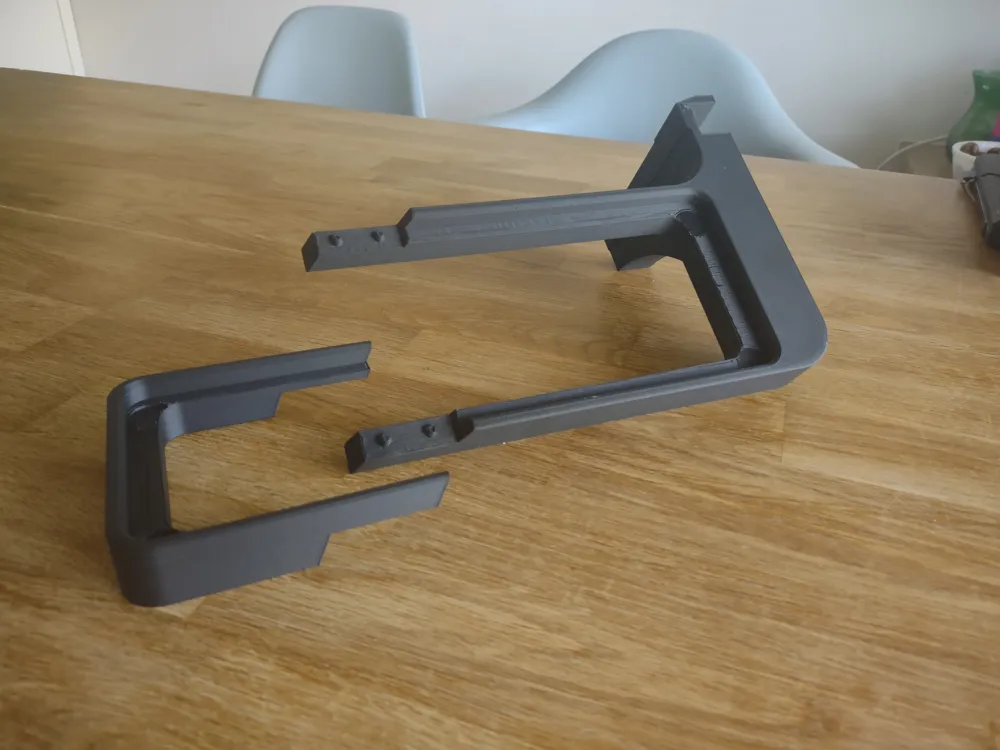

This version is designed in such a way that the model can be printed on a P1S with the smaller bed. You will have to print both parts and assemble them with CA glue. Both parts fit on the 256mm bed of a P1S. It is recommended to use ABS or PETG to print this model for stability and durability.

The provided standard print profile prints it for a right side mount, but you can easily mirror the model along the x-axis to print a left-mount version. The provided step files originally are designed to mount on the left side.

If you have access to an H2S or H2D you can use the provided step file to print the complete model without using the individual parts and assembling them.

UPDATE 18.05.26:

I have modified the model files so that the layout of the cutouts match the position of the AMS HT feet better, additionally the cutouts for the opening in the back of the printer is longer, this should now fit to the X2D as well. But since I do not have this model I cannot guarantee it.

Also, there is now an additional profile for a version that mounts the AMT HT even higher so that the AMS HT will be on the same level as the AMS on top of the printer.

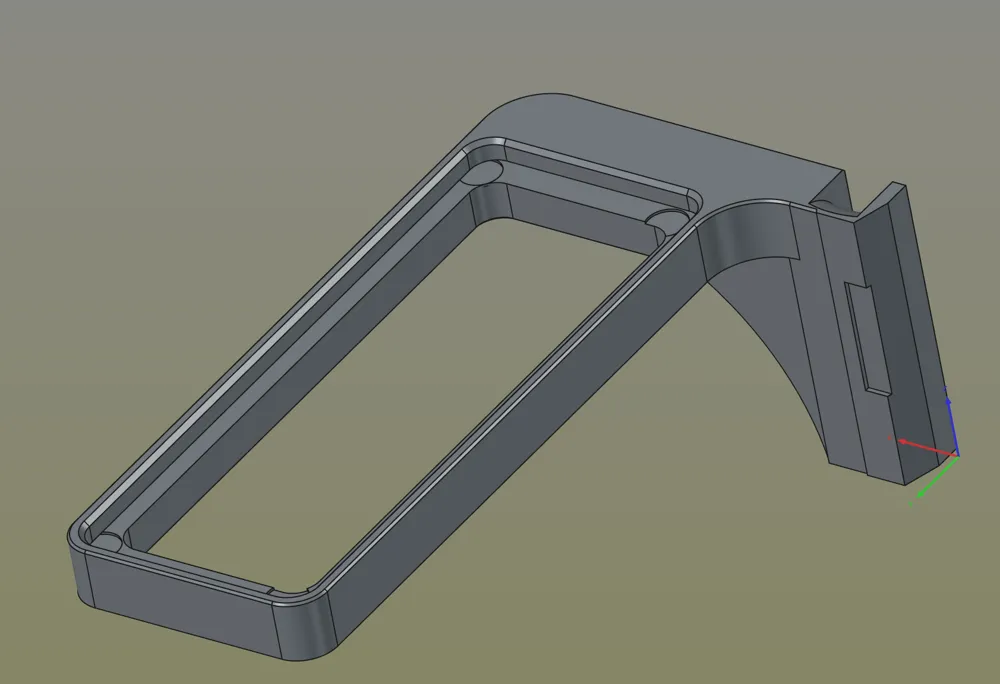

All relevant files are published as step files to make your modifications easier. I would be glad to hear from your adaptions.

ams ht

ams flipper
