Honda Carb Bowl gasket - 16010MR1691
Print Profile(1)
Description
Carburetor Float Bowl Gasket for Honda - Part 16010MR1691
TESTED ON Transalp 600 1993 using ELEGOO TPU 95A, Sunlu, Esun and Bambu are known to work (use GEETECH at your own risk, their blend is not pure tpu and varies by colour)
MUST USE WITH A FLAT PLATE (smooth plate, holo plate)

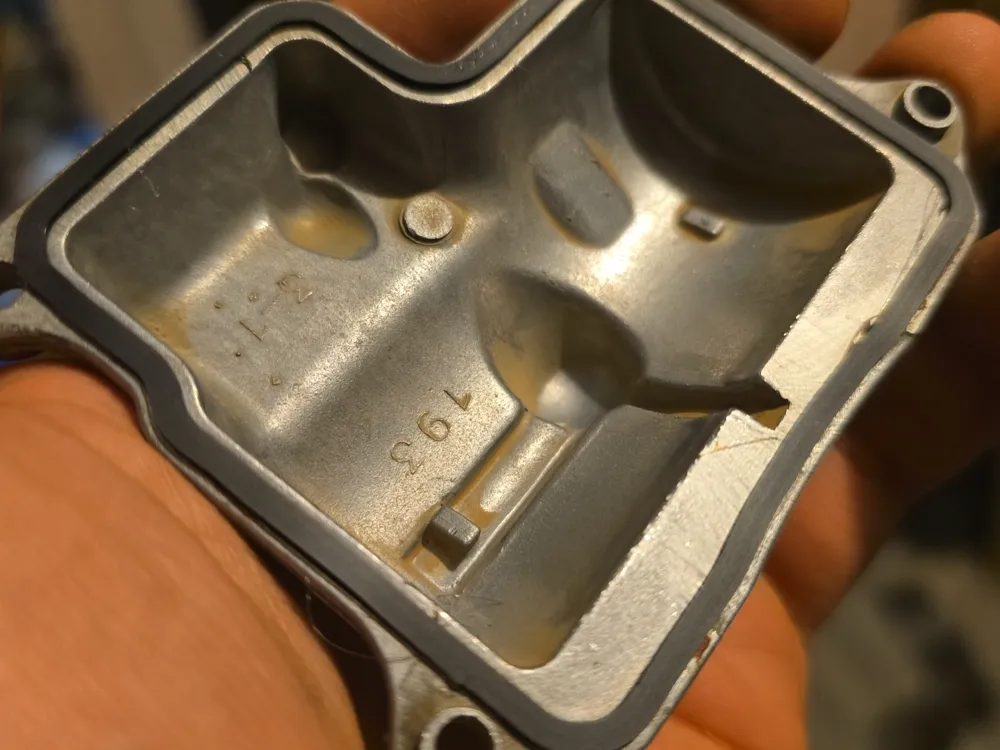

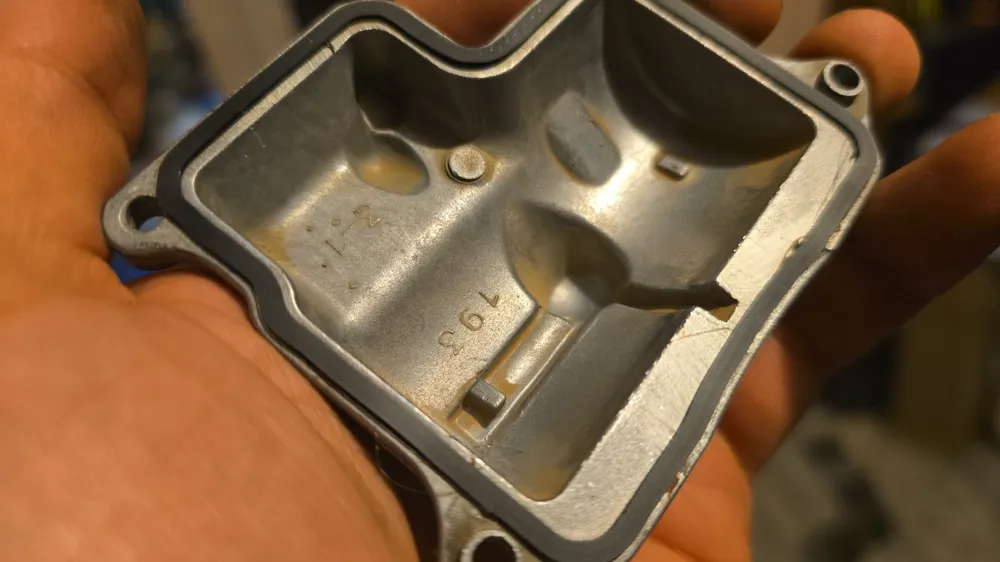

remove carefully if using the high temp smooth plate, the top side of the print goes inside the bowl cover, the flat meets the carb body.
make sure your filament is dry!
Tested to remain rubbery and not deform permanently under pressure to up to 150 degrees with Elegoo TPU,
TPU is Fuel resistant by nature - do not use with gasket maker unless its fuel specific !
the model is slightly taller than the original gasket to allow tightening for better seal if there are any imperfections.
Compatible with the following Models of bikes:
Goldwing 1200 - GL1200 and submodels
Hawk GT 650 - NT650
Shadow VLX 600 - VT600C / VT600CD Deluxe / VT600CL
Transalp 600 - XL600V
