3D Night Light / Ambient Light - One Piece

Set Sail: Handmade One Piece 3D Shadowbox Lamp

Bring the feeling of freedom and adventure directly to your desk! This artfully designed shadowbox lamp is a tribute to the legendary Straw Hat Pirate crew and their journey to the One Piece.

A Design for True Pirates

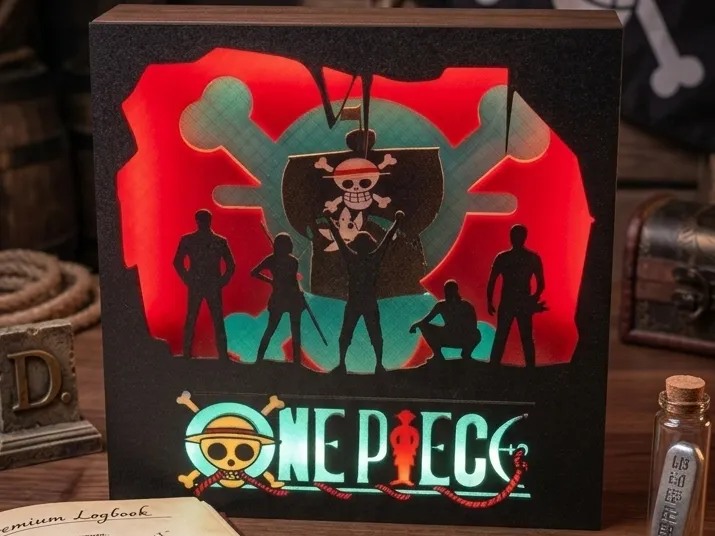

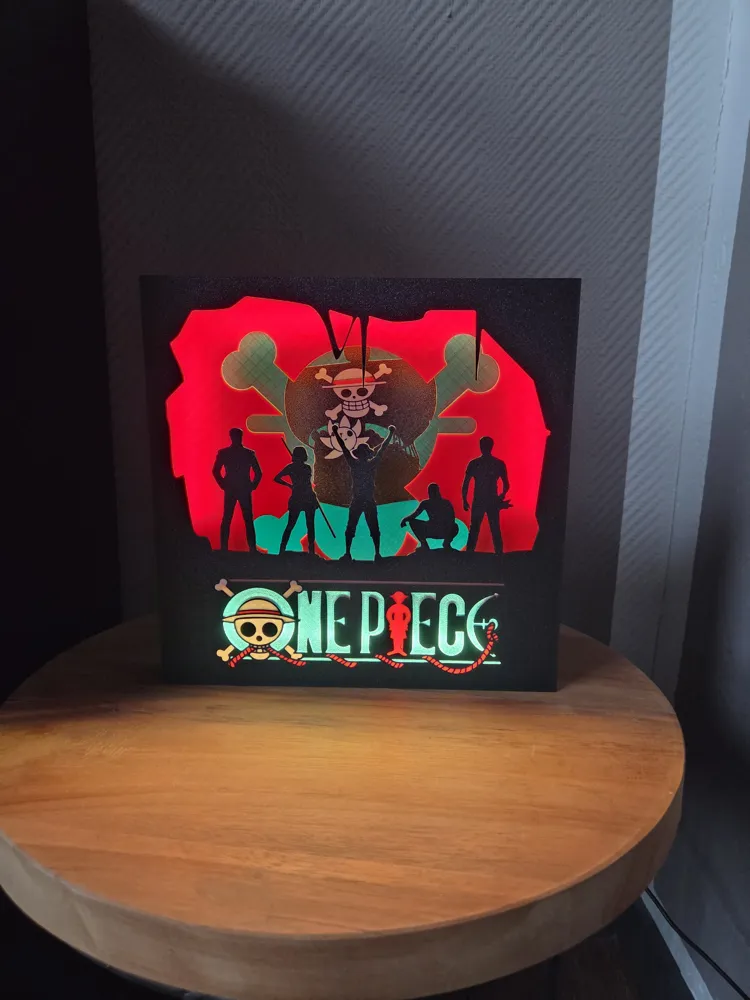

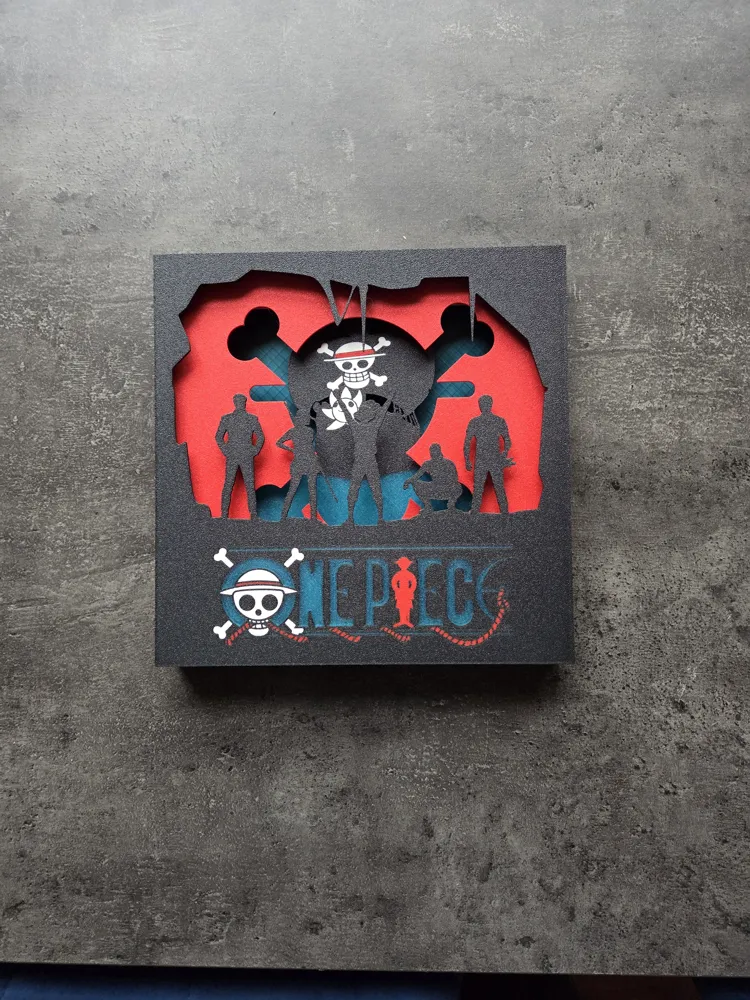

The lamp uses a multi-layered depth design to create a vibrant scene: In the foreground are the iconic silhouettes of the crew, while in the background the Going Merry sails under the Jolly Roger flag. The interplay of the deep red glow of the background and the cool turquoise of the sea creates a dynamism that immediately transports any fan into the world of Eiichiro Oda.

The Highlights of this Lamp:

• Multi-layered 3D optics: Precisely cut silhouettes create impressive spatial depth.
• Dual-Light Effect: A fiery red in the upper area combined with a brightly lit "One Piece" logo in the lower part – an absolute eye-catcher at night.
• High-quality Collector's Item: Enclosed in a noble, black frame that perfectly matches your manga collection or gaming setup.
• Perfect Gift: The ultimate highlight for every Nakama, whether for a birthday or as an upgrade for your own "Grand Line" at home.

Required Materials:

LED - https://www.amazon.de/dp/B0DZB9JWY1?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

USB C Port - https://www.amazon.de/dp/B0CL9F34GT?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Connector - https://www.amazon.de/dp/B0DR1WG2DB?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Battery - https://www.amazon.de/dp/B0F18HV7P6?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Charging Board - https://www.amazon.de/dp/B0BZSB3SBN?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Switch - https://www.amazon.de/dp/B083NLCDQG?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Assembly:

• The plates are inserted into each other
• The electronics are entirely on the last plate; make sure to insert the switch and connector before soldering the electronics.
• The electronics are soldered to the charging board
• The plug connections are a bit stiff at first and require some force
• You can also use the lamp without a battery and only with a cable; for this, you can attach the USB port with the connectors directly to the LED (no soldering necessary).

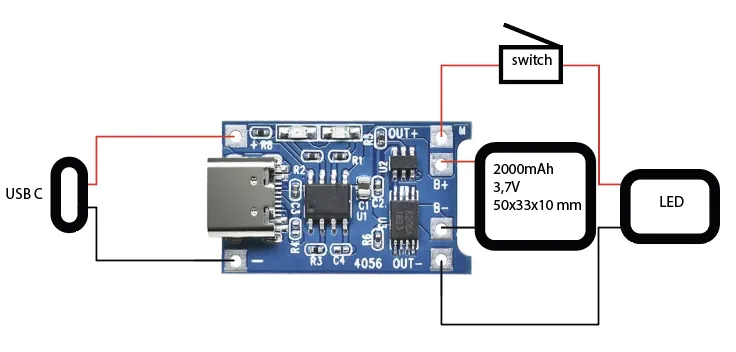

• The circuit looks like this:

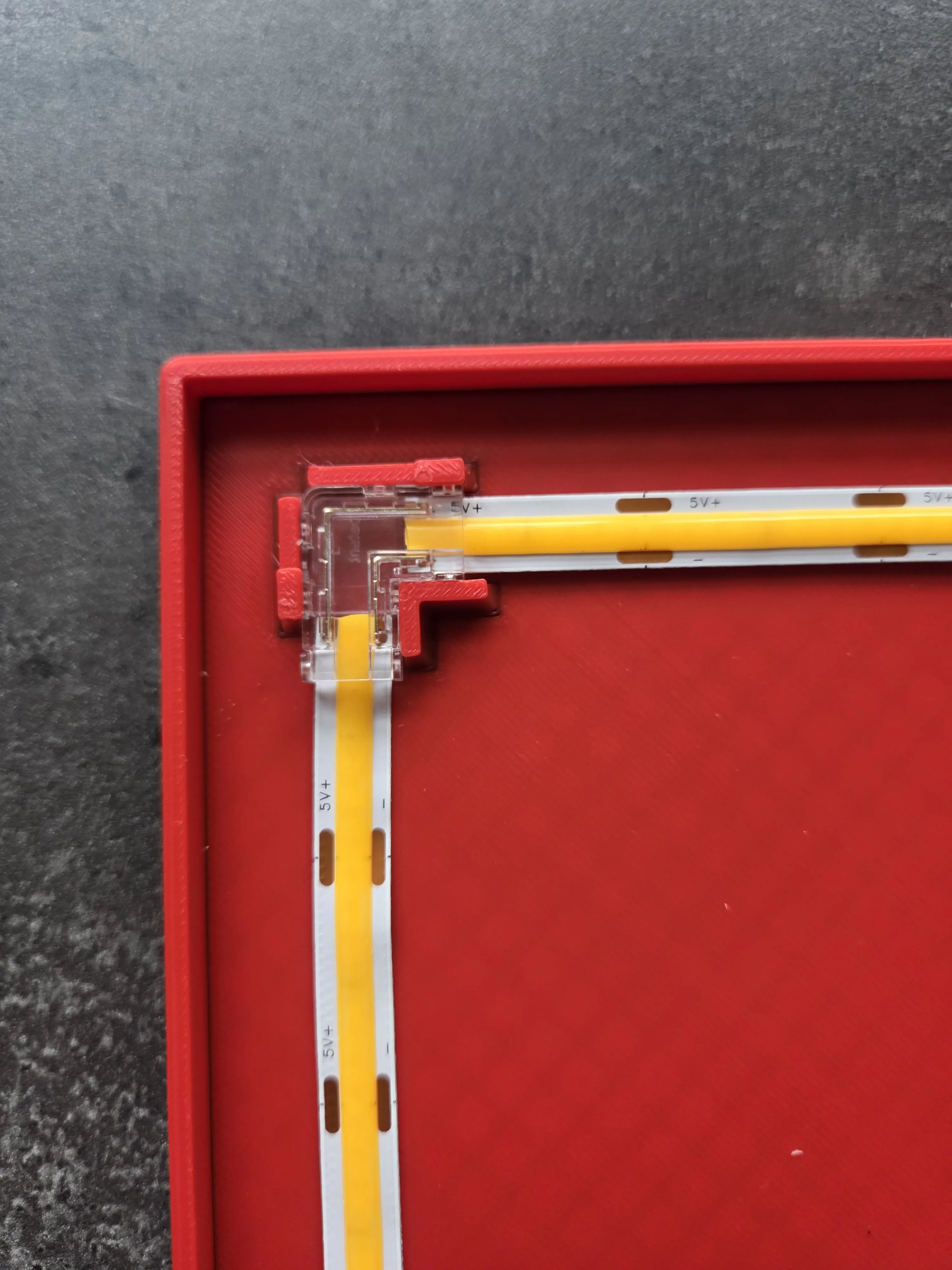

The LEDs are connected as follows:

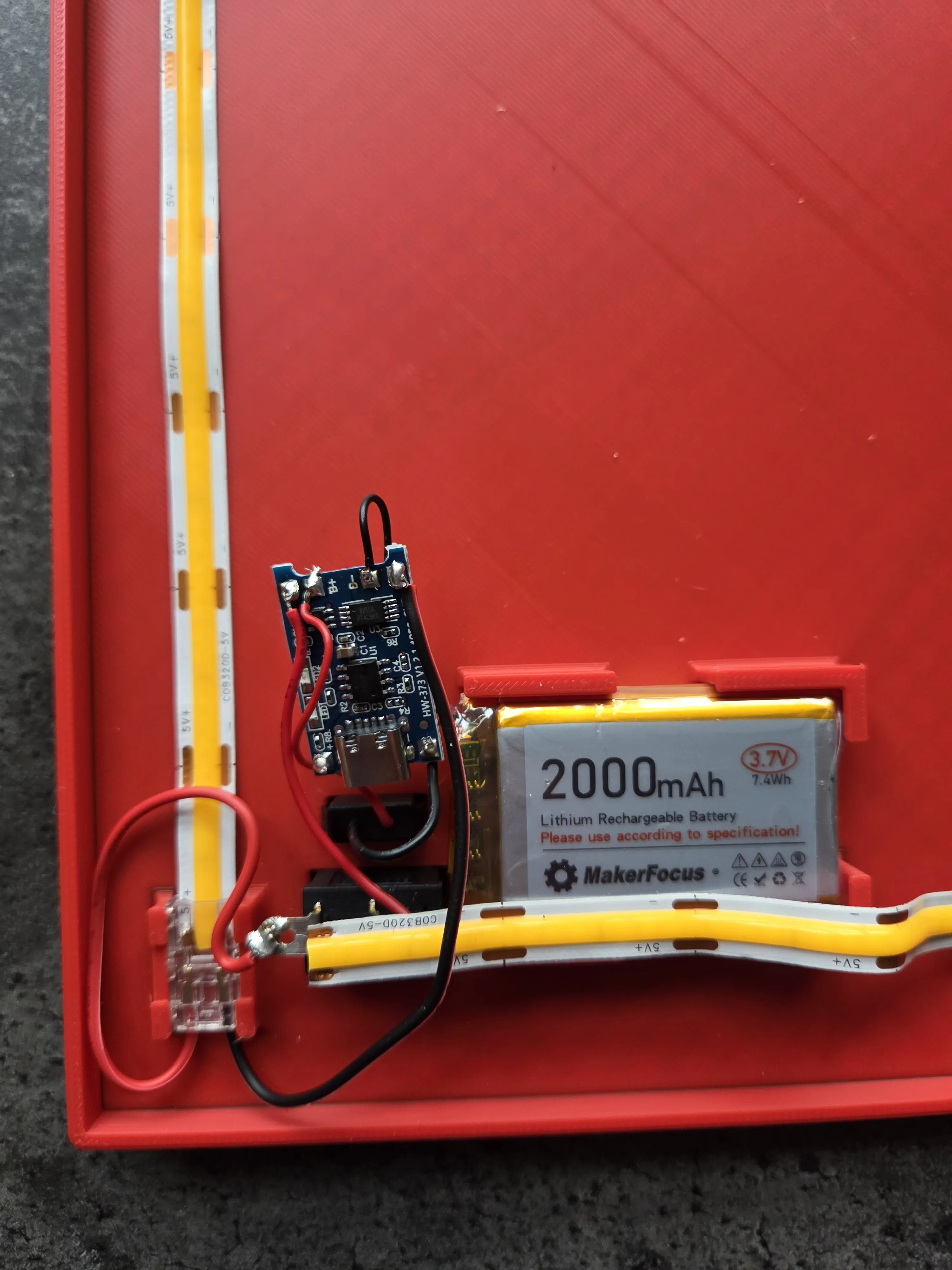

And here are the electronics again:

Should you have any questions during assembly, please let me know, and I will answer them as soon as possible.
