🇩🇪 German: Precise Mounting Clip for Flat LAN Cable
Description
No more messy cables! This minimalist mounting clip was specially designed to neatly and securely route flat LAN (Ethernet) cables along wooden strips, door frames, or walls. The design is extremely compact and unobtrusive, but provides maximum hold through screwing.

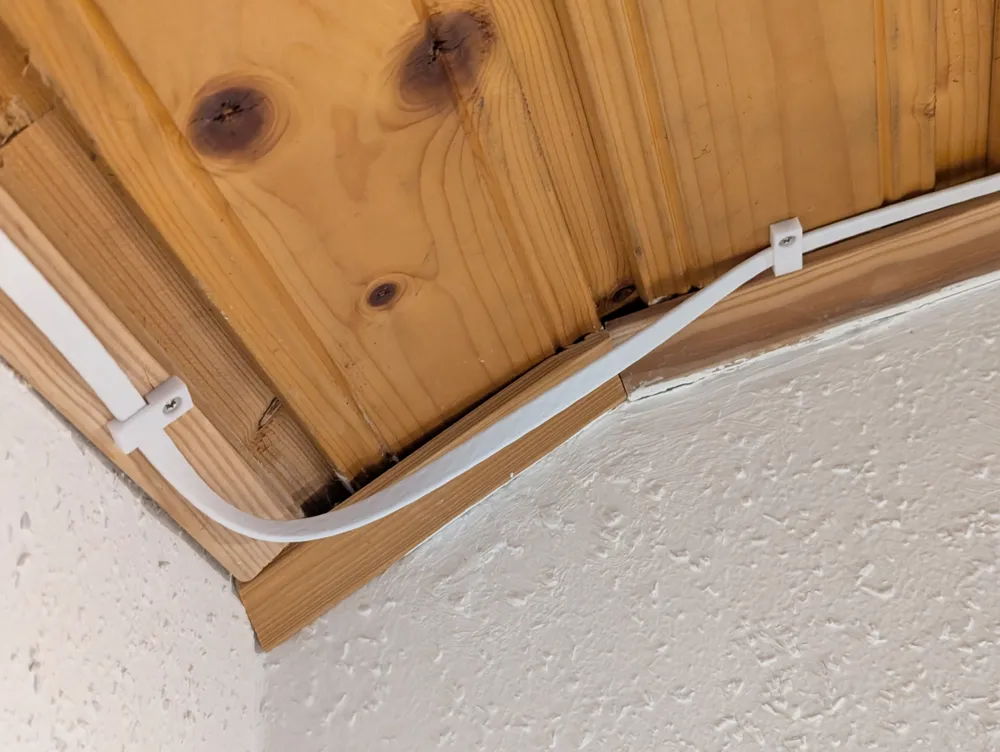

I designed this model in Tinkercad to route my own home network without a trace along door frames – it fits perfectly!
Technical Details & Assembly
- Dimensions: 5×20×8 mm

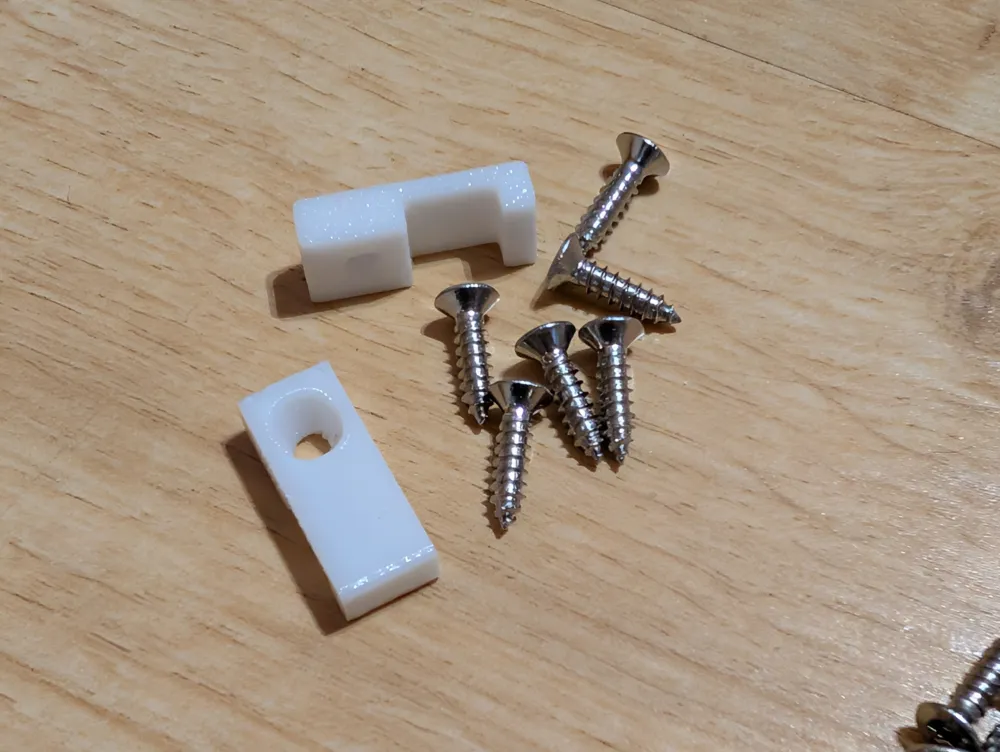

- Hardware: Optimized for M3x12 Torx screws (other M3 screws also work).

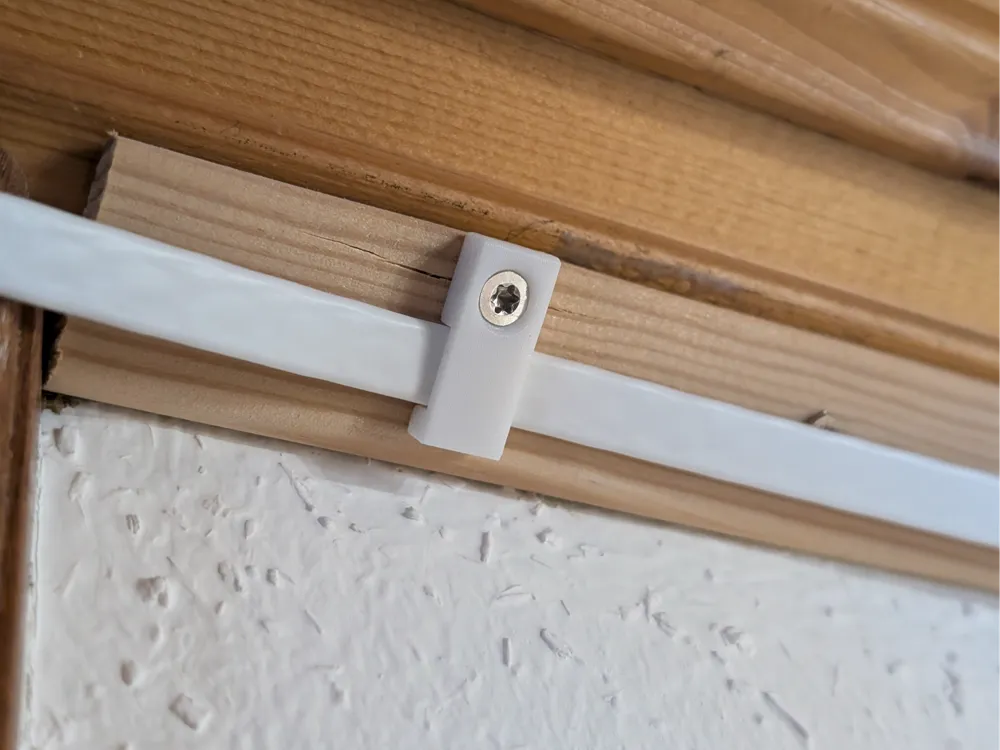

- Application: Simply insert the flat cable and screw the clip down. Holds rock solid on wood and plaster (with dowels).
Print Settings
- Material: PLA or PETG (PETG is slightly more flexible when inserting the cable).
- Supports: None needed.
- Wall Loops: 2 or 3 (for a stable screw connection).
- Tip: If you need multiple clips, just use the "Clone" function in Bambu Studio to efficiently fill the build plate.
🇺🇸 English: Minimalist Flat Ethernet Cable Clip (M3 Mount)
Description
Tired of messy cables? This minimalist mounting clip is specifically designed to route flat LAN (Ethernet) cables cleanly along baseboards, door frames, or walls. The design is ultra-compact and unobtrusive while providing a secure hold thanks to the screw-mount design.
I designed this in Tinkercad to manage my own home network cables along door frames – it fits like a glove!
Technical Details & Assembly
- Dimensions: 5×20×8 mm
- Hardware: Optimized for M3x12 Torx screws (standard M3 screws will also work).
- Usage: Simply place the flat cable inside the clip and screw it down. Works perfectly on wood or drywall (with anchors).
Print Settings
- Material: PLA or PETG (PETG offers a bit more flexibility when snapping the cable in).
- Supports: None needed.
- Wall Loops: 2 or 3 (to ensure the screw hole is strong).
- Tip: If you need multiple clips, just use the "Clone" tool in Bambu Studio to fill your build plate quickly.
