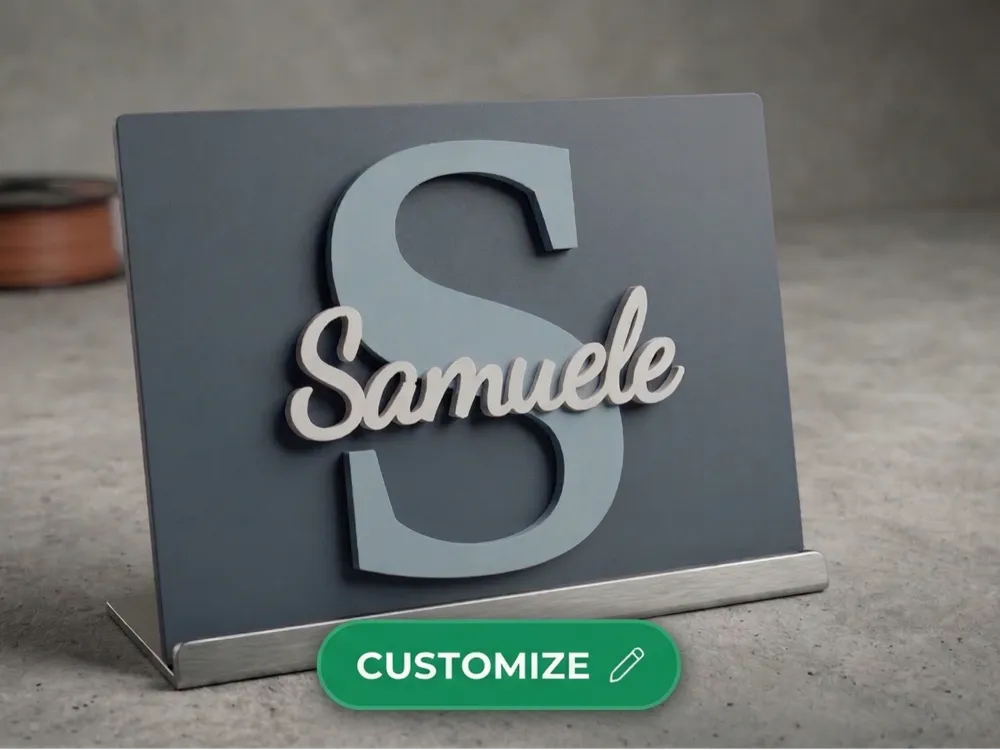

Parametric Inlay Name Sign: Customizable 15cm Letter

Transform your desk or bookshelf with this parametric decorative sign The model consists of a monumental 15 cm initial with a custom name precisely inlaid to the millimeter

🛠 How to Customize

This model is fully dynamic Upload the file to MakerWorld MakerLab or use OpenSCAD to modify

Initial: The main letter (150mm height)
Name: The text that will be carved out and created as an insert
Font: Choose your preferred style for both elements

⚙️ Model Logic (PREVIEW Attribute)

To facilitate printing and exporting, I have implemented a dropdown menu called PREVIEW By changing this value, the model will automatically update

PREVIEW: Shows the assembled final result (ideal for viewing the design)
BASE: Generates only the 15cm large letter with the negative cutout
INLAY: Generates only the name string to be inserted into the base

Technical Note: If printing with a single extruder, export separately BASE and INLAY If using an AMS/Bambu system, you can use the preview to assign colors

🖨 Printing Tips

Tolerance: The model includes a preset offset to ensure a perfect, glue-free fit (depends on your printer's calibration)
Material: PLA or PETG
Infill: 15% Gyroid recommended for the base
Supports: Generally not needed if the chosen font does not have excessive overhangs

📂 Technical Specifications

Height: 150mm
Technique: Boolean Subtraction with parametric tolerance
Compatibility: Optimized for multi-color and multi-part printing
