30x30mm Square Tube End Cap – Flush Fit Plug
Print Profile(1)
Description

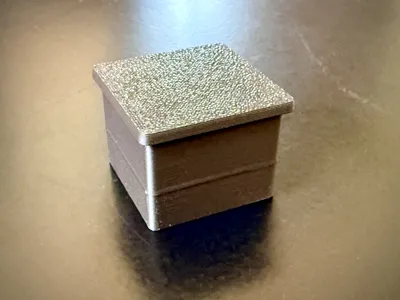

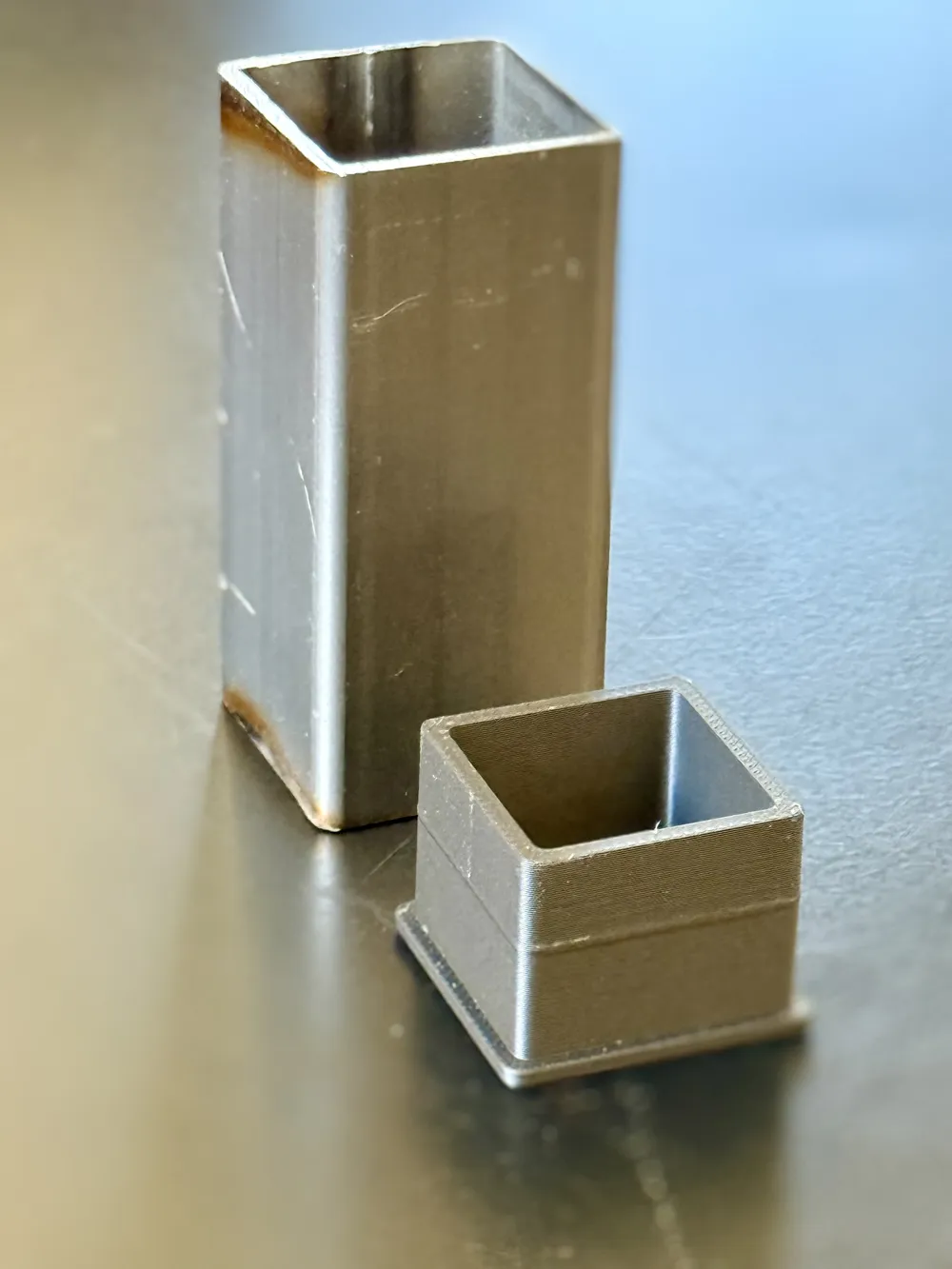

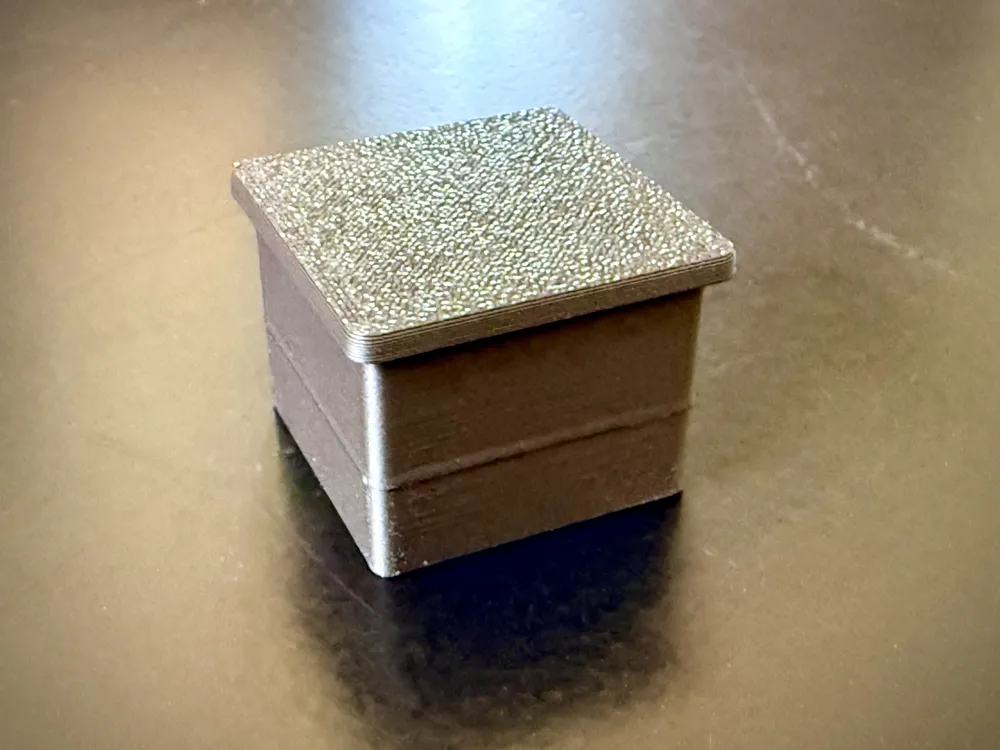

This square tube end cap is designed to neatly close 30x30mm metal tubes of 1.5mm thickness with a clean, flush finish.
Boost Me (for free)

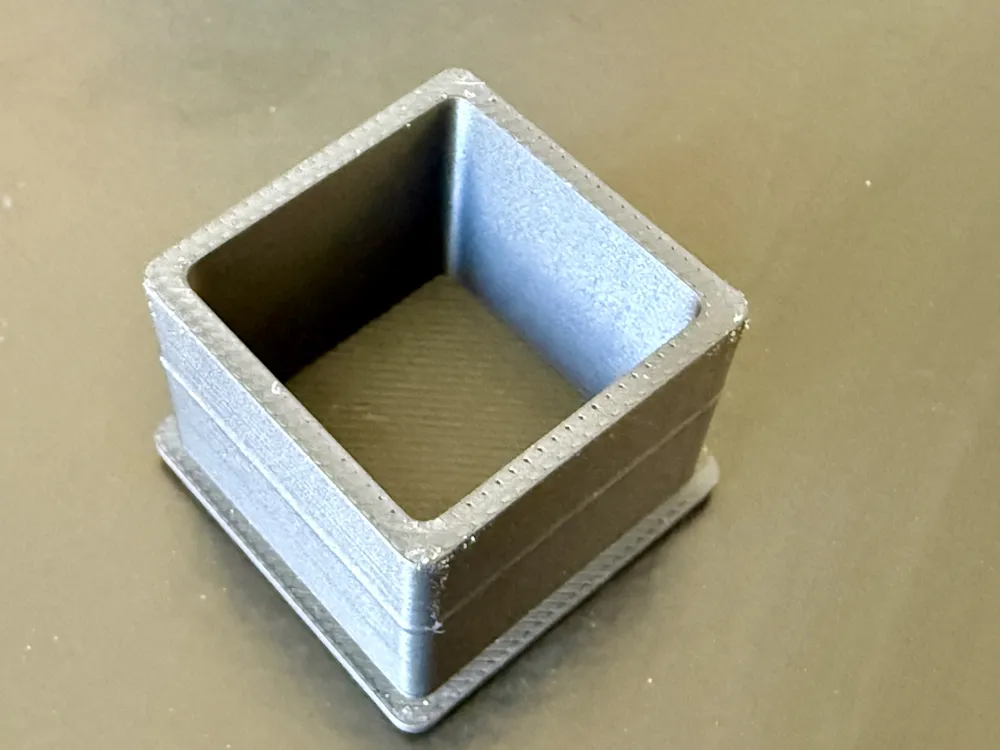

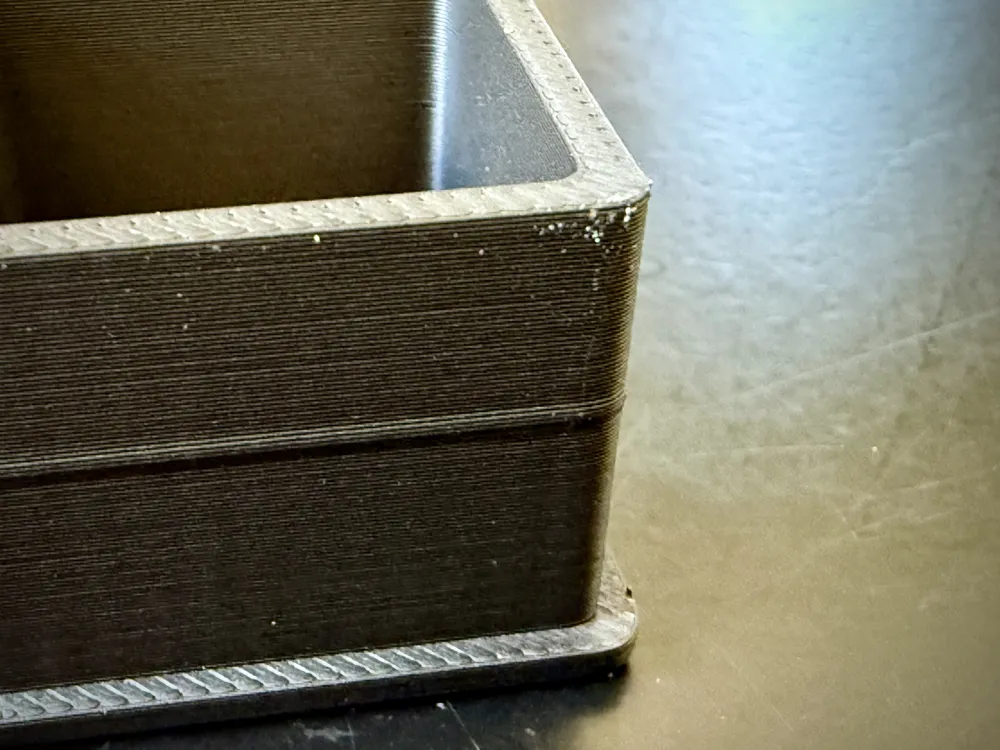

The insert fits tubes with 1.5mm wall thickness (≈27x27mm internal size) and features a slight taper to guide insertion. A subtle retention bulge around the inserted part offers a secure, snug fit once seated.

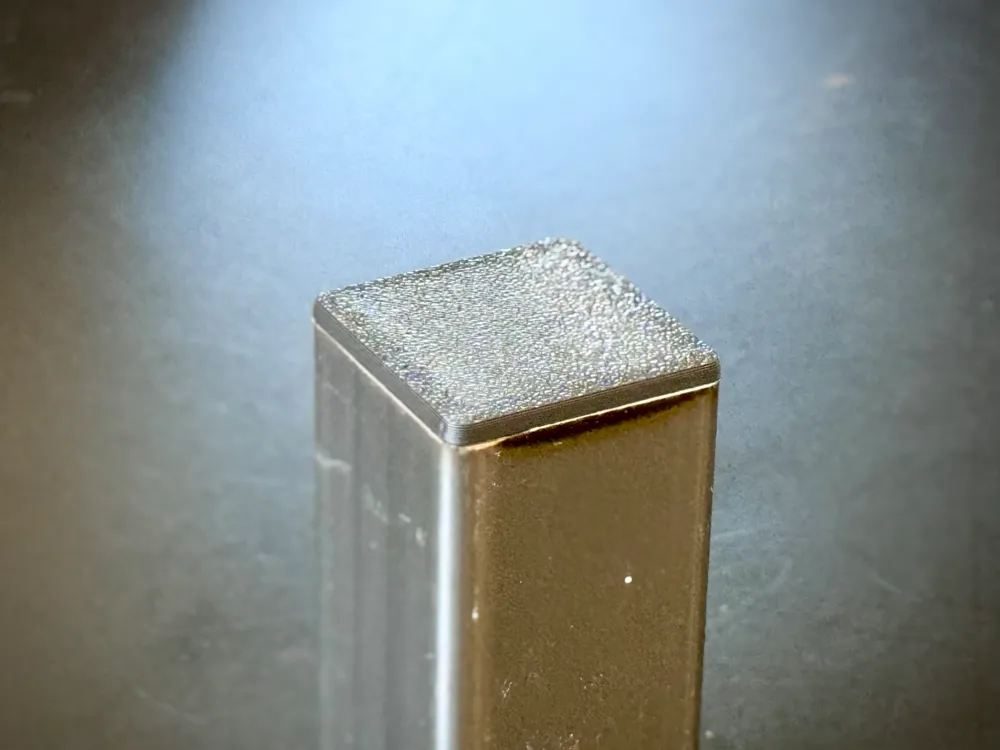

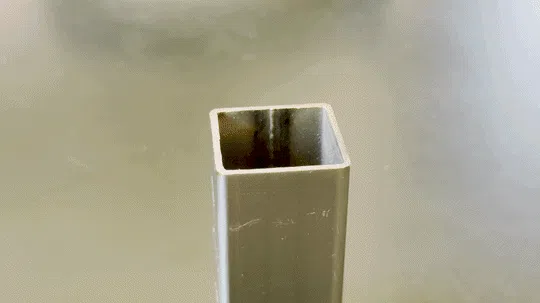

With a 22mm insertion depth, the cap provides stable positioning while remaining easy to install. The outer face sits perfectly flush with the tube for a clean and finished appearance. No hammer needed, just a firm push from your hand.

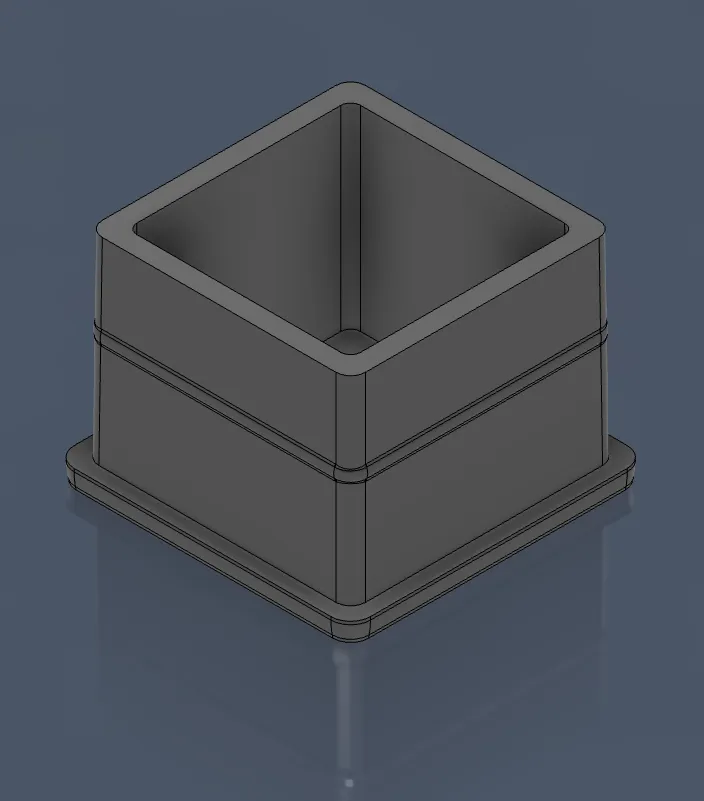

The geometry follows typical internal corner radii of metal tubing, improving fit and reducing play.
Design highlights:
- Designed for 30x30mm square tubes (1.5mm wall)
- Tapered body for easy insertion
- Retention bulge for secure hold
- Flush finish with tube surface
- 22mm depth for stability
- No supports required
- Works great with PETG (30mn) and PLA (21mn) as well as ABS
- Favor PETG if possible to allow material flexibility
- Only 7g !
A practical solution for finishing exposed tubing in furniture, frames, or DIY projects.
