Hueforge - Metal Gear Solid Shagohod

Fore note: It is possible to print this project with just a single AMS. It requires being present during certain sections or adding a pause where possible. I included the instructions below for how to do so.

_______________________________________________________________________________________________________________________________

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

The Model is 200x112.5mm in size

You may print at higher layer heights below the Base Thickness of 0.48mm
The Max allowed Thickness is 2.24mm and the Actual Thickness is 1.68mm

    #080a0d PLA PolyLite Black  Transmission Distance: 0.3
    #4c5f71 PLA BambuLab Basic Blue Gray  Transmission Distance: 3
    #ff9100 PLA Elegoo PLA Basic Orange  Transmission Distance: 7
    #545454 PLA BambuLab Basic Dark Gray  Transmission Distance: 0.6
    #c8a36f PLA BASIC Elegoo Wood Filled  Transmission Distance: 1.3
    #9e6a4b PLA BASIC ELEGOO Brown  Transmission Distance: 1
    #e4bd68 PLA Bambulab Basic Gold  Transmission Distance: 3.5
    #eee7d4 PLA SUNLU Bone White  Transmission Distance: 1.7
This print uses 8 unique filaments

Swap Instructions:
    Start with Black
    At layer #7 (0.64mm) swap to Blue Gray
    At layer #10 (0.88mm) swap to Orange
    At layer #11 (0.96mm) swap to Dark Gray
    At layer #12 (1.04mm) swap to Wood Filled
    At layer #13 (1.12mm) swap to Brown
    At layer #15 (1.28mm) swap to Gold
    At layer #19 (1.6mm) swap to Bone White for the rest.


_______________________________________________________________________________________________________________________________

I copied the instructions for the mid-print color swap setup from user C3D on their Statue of Liberty - HueForge project. This is where I learned how to do this. Thank you C3D and check out their projects. Instructions below:

How to do more than 4 colors on a single AMS?

To use more than 4 colors with a single AMS is pretty simple when it comes to HueForges.

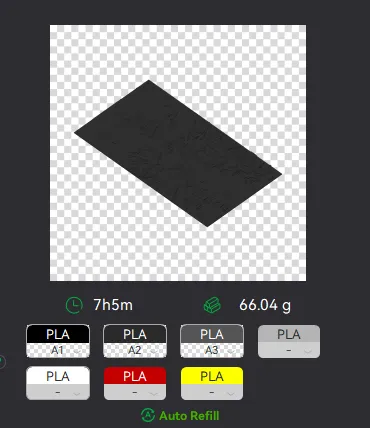

Always start the print from either Bambu Studio or Bambu Handy App - This will allow you to map the rolls of filaments to a certain slot in the AMS:

Now map the first 4 colors (which should already be inserted in the AMS to Slots 1 - 2 - 3 - 4

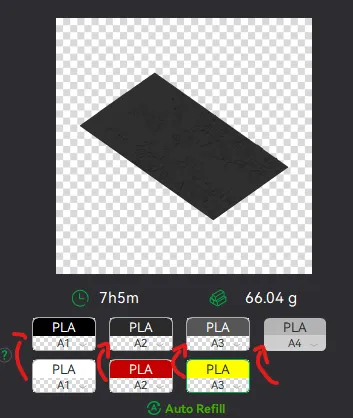

Once thats done move to maping colors 5 - 6 - 7 - 8 to respectively AMS Slots 1 - 2 - 3 - 4 again!

This will allow you to Change the rolls of filament once the printer is done with that color.
For example, in the picture above once we are done with the Black color (Which is usually first) we are going to remove the black roll (you can do that while printing) with White, then once Charcoal Black is done we are going to change that to Red, Dark Gray to Yellow and we are done. ~ You can do that with as many colors as you need!
