Atlantic Signal 21GC PTT Replica
IP Report
Print Profile(1)
ABS and TPU
Designer
4.8 h
2 plates
Open in Bambu Studio
Boost
1
4
0
0
4
1
Released
Bill of Materials
Bambu Filaments
Select all
List other parts
- Micro Tactile Switch Momentary (6x6x5) x 4: https://www.aliexpress.com/item/1005004971266223.html
- 30AWG Black Cable (4 Cores, 2 meters) x 1: https://www.aliexpress.com/item/4000567154018.html
- Cable Strain Relief (Black, 3mm) x 2: https://www.aliexpress.com/item/1005004804189590.html
- M2 Brass Inserts (M2x4x3.2) x 8: https://www.aliexpress.com/item/1005006079106411.html
- M2 Screws (8mm) x 8: https://www.aliexpress.com/item/1005002365855820.html
Description

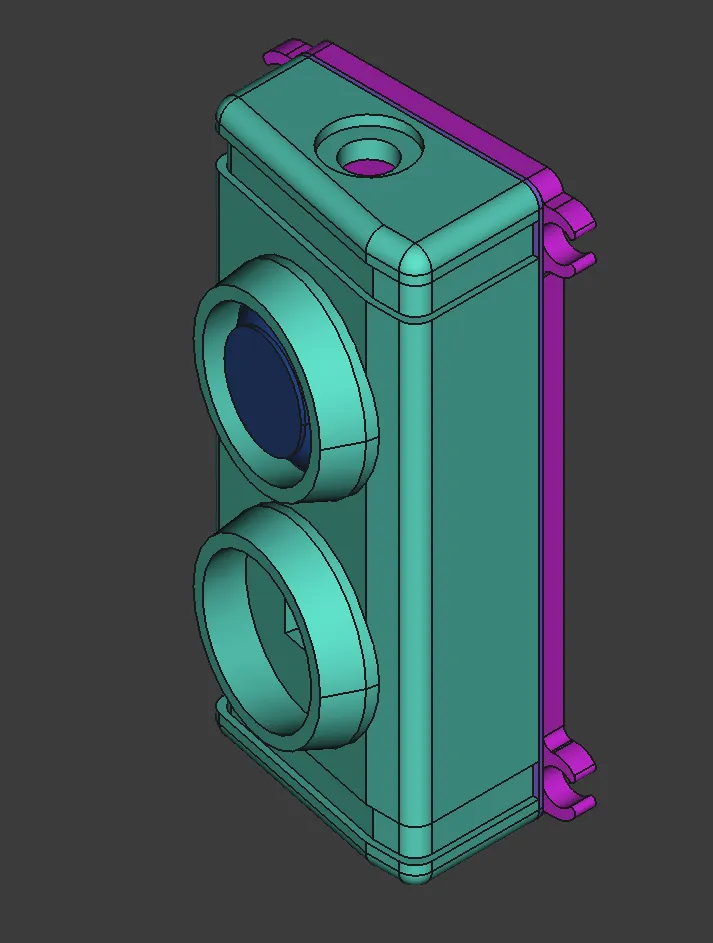

This is a replica of the Atlantic Signal 21GC PTT buttons.

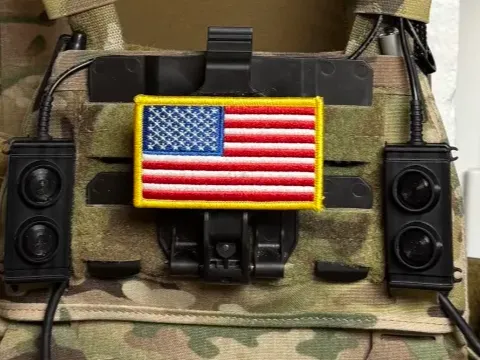

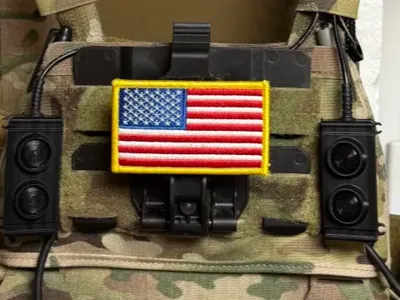

Can be used as a display item or a functional ptt
See BOM for parts need.
If used for just a display model you can skip most of the item and glue it together.
If you need a PTT board I can recommend this one from Northernstrategic.com

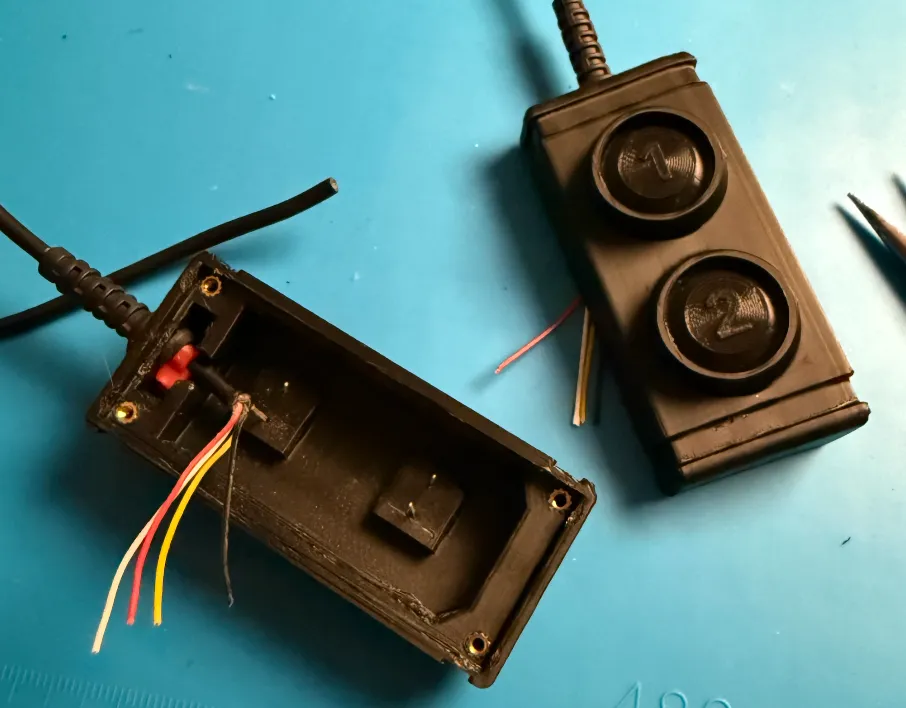

Assembly
- Insert the brass insert into the PTT body
- Glue the Tactile Switch inplace
- Insert the cable refile
- I used a cable tie to secure the cables
- Pull cable through the refile. It can be fiddly inserting the cable to make it easier twist the cable when inserting it.

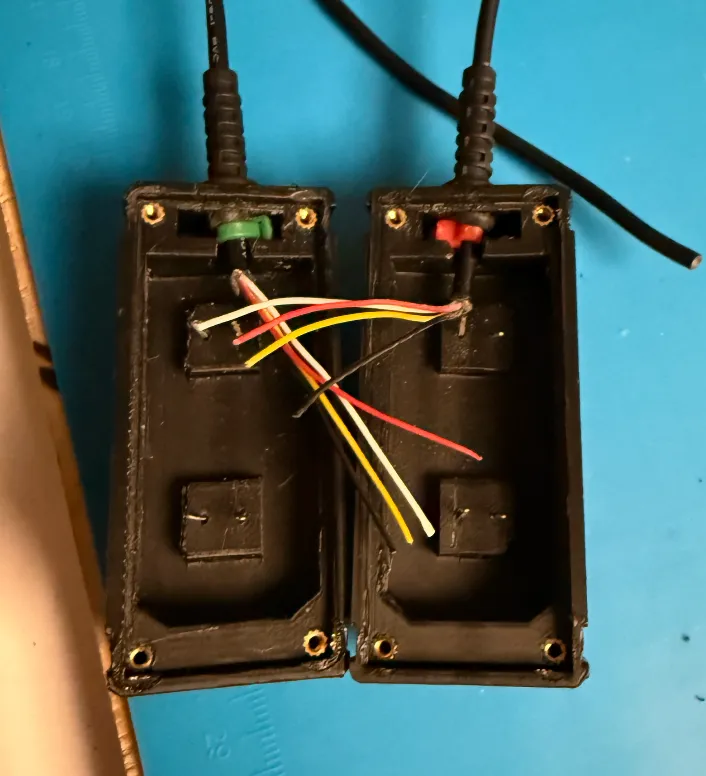

- Solder the wire to the switches, they can share ground.
- Put glue around the edges of the buttons and insert them.
- Screw on the backside
