FlashForge AD5X AMS-Style IFS Enclosure Mount

Upgrade your FlashForge AD5X with this custom-designed AMS-style top mount enclosure for the IFS unit. This system improves organization, accessibility, and filament condition while giving your setup a clean, professional multi-material look.

The AD5X 3mf profile is in the files , on the download button go to Download STL/CAD files

🔥 Key Features

🧱 Full IFS Integration

• Encloses the IFS unit within the base of the mount
• Keeps everything protected while maintaining full functionality
• Clean routing for PTFE tubes underneath

🌬️ Filament-Friendly Enclosure (Not Airtight)

• Enclosed design helps reduce exposure to ambient humidity
• Supports use of silica gel packs to help keep filament drier
• ⚠️ This is NOT an airtight dry box—it improves conditions but does not seal moisture out completely

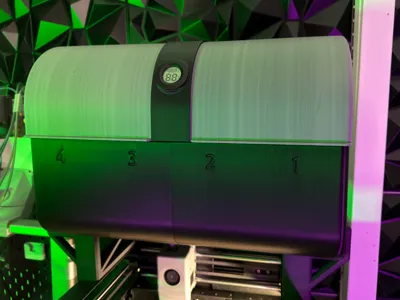

🌡️ Built-In Hygrometer Mount

• Lid supports a standard round temperature/humidity gauge
• Easily monitor internal conditions at a glance

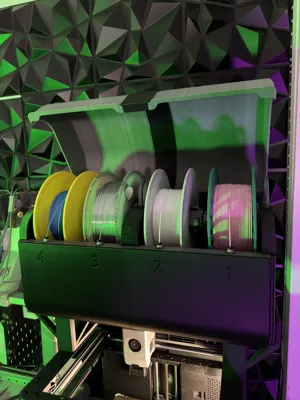

🎯 Front-Facing Spool Layout

• All spools face forward for:
  • Easier access
  • Better visibility
  • Cleaner filament paths

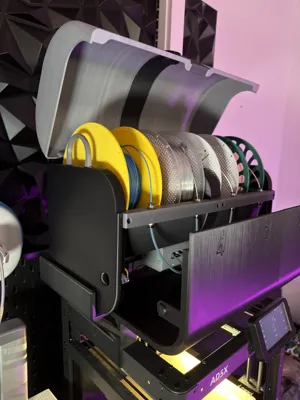

🔄 Easy Access & Fast Swaps

• Slide-off front cover for quick IFS access
• Handle-mounted spool holders allow easy removal for filament changes
• Designed for smooth, hassle-free workflow

🧩 Smart Use of Stock Hardware

• Uses the original AD5X spool holders
• Mounted on custom brackets for stability and quick removal

🧰 Hardware Required

🔩 Fasteners & Inserts

• 18x M3 x 8mm bolts
• 8x M3 x 4mm bolts
• 7x M3 x 12mm bolts
• 11x M3 nuts
• 20x M3 brass heat-set inserts

🧪 Filament Path Components

• 8x PTFE push-fit connectors
• PTFE Tube connectors https://amzn.eu/d/0jfKhC3H
• 2x 180mm PTFE tubes
• 2x 250mm PTFE tubes
• PTFE Tubes https://amzn.eu/d/037xKfMv

🖨️ Print Recommendations

• Material: PETG (recommended), ABS, or PLA+
• Layer Height: 0.2mm
• Walls: 3–4 perimeters
• Infill: 15–25%
• Use PETG or higher-temp materials if your printer runs warm

💡 Why You’ll Love It

This mount transforms your AD5X into a clean, organized, AMS-style system while helping keep your filament in better condition. It’s all about better workflow, easier access, and a more refined setup—without overcomplicating things.

⚠️ Notes

• Designed specifically for FlashForge AD5X + IFS
• Not airtight—use proper filament drying/storage for long-term moisture control
• Best used with fresh silica gel for improved results
