Merten 10mm Frame Set Shelly/Smart Home Extension

10mm Extension Box & Complete Custom Frame Set for Merten System M (Shelly Ready)

If you have ever tried to fit a smart relay like the Shelly 1PM Mini behind a standard wall switch or socket, you know the struggle: standard flush-mount boxes simply do not offer enough space. To solve this "Shelly space problem," I designed a complete, fully 3D-printable extension system for the Merten System M series.

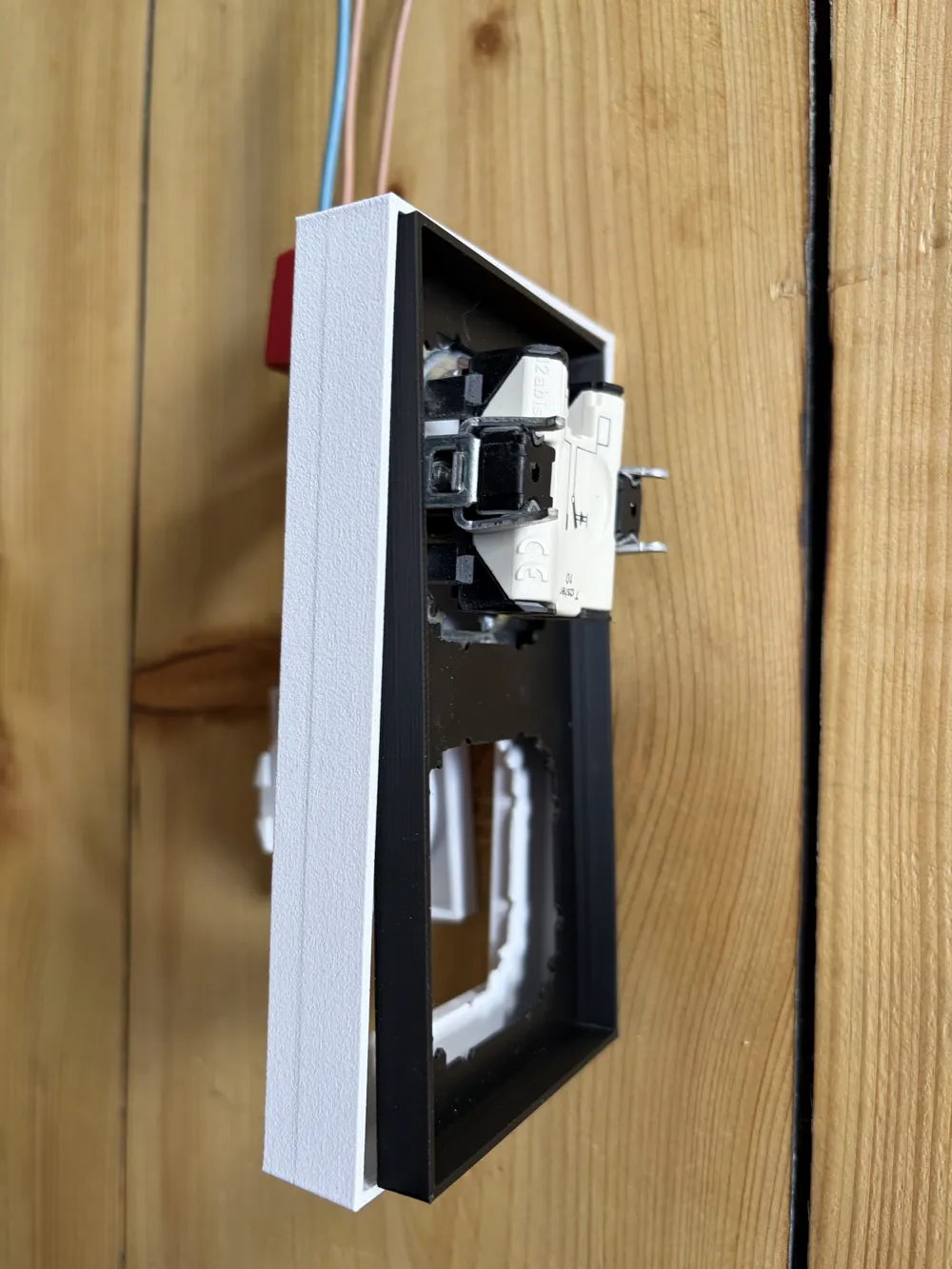

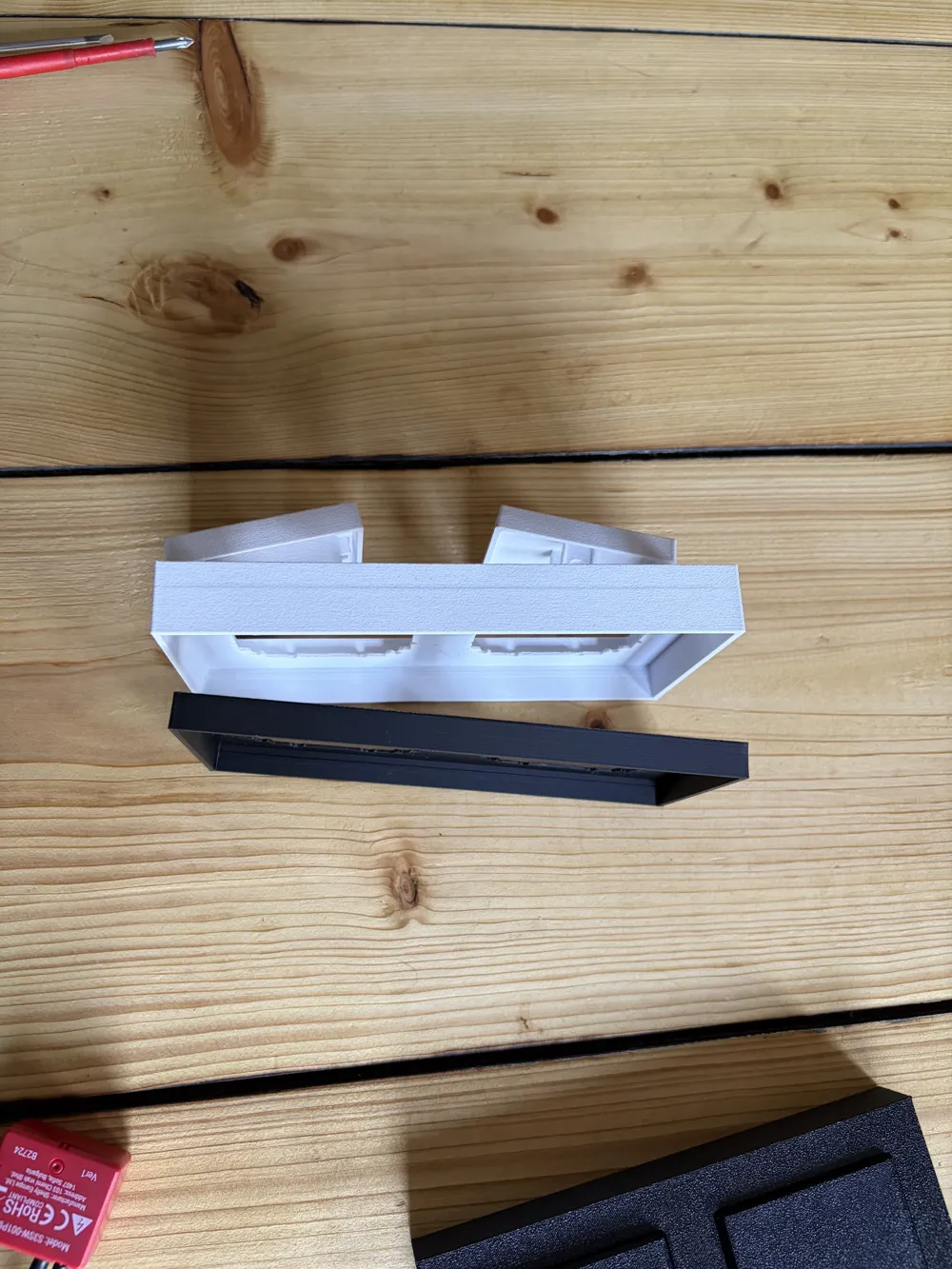

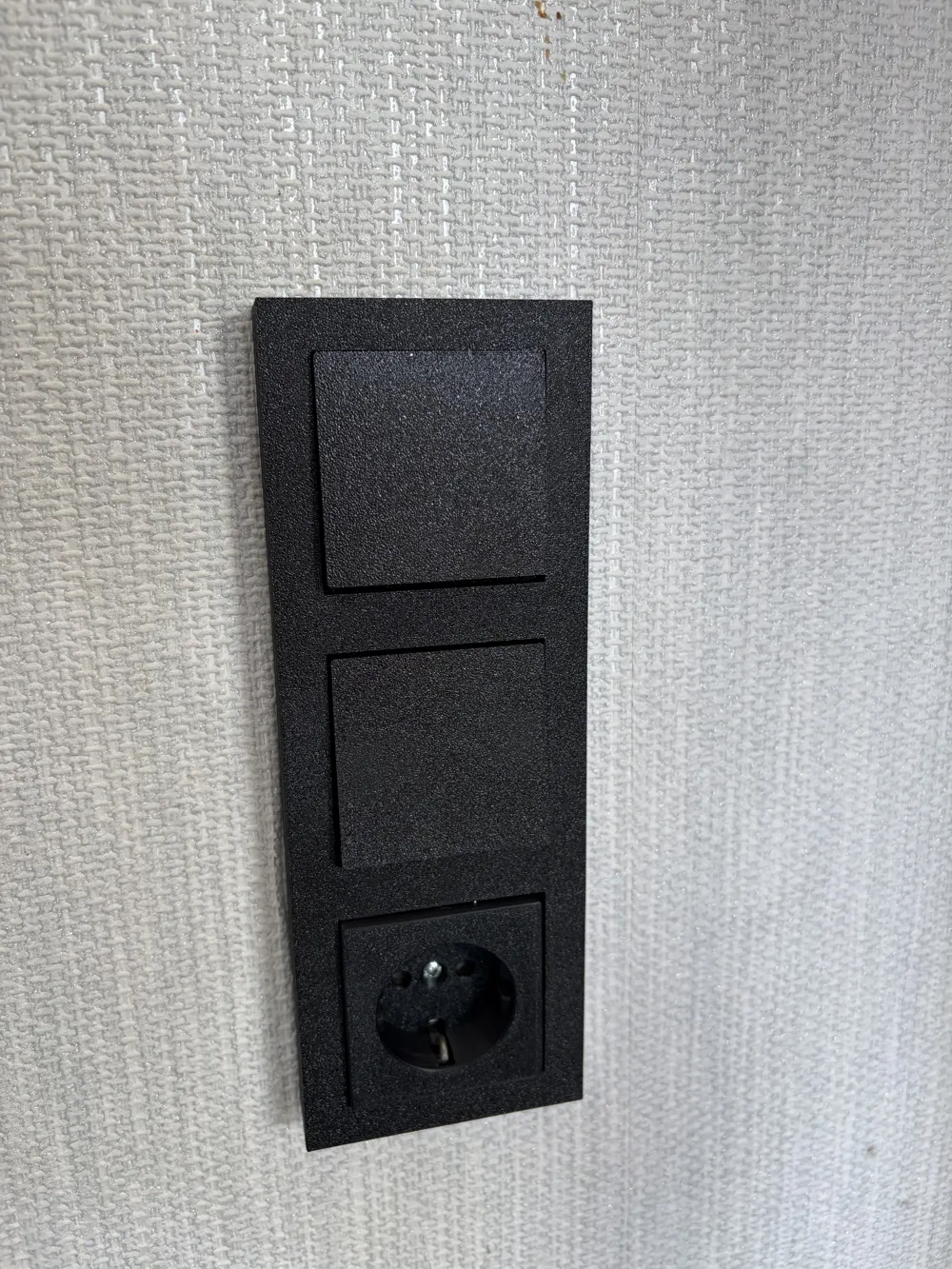

Instead of just adding a hidden spacer, this set replaces the original Merten outer frame completely. It provides approximately 10mm of extra depth while maintaining a clean look.

Key Features:

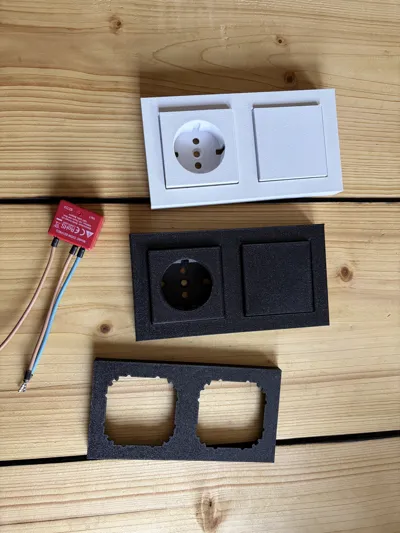

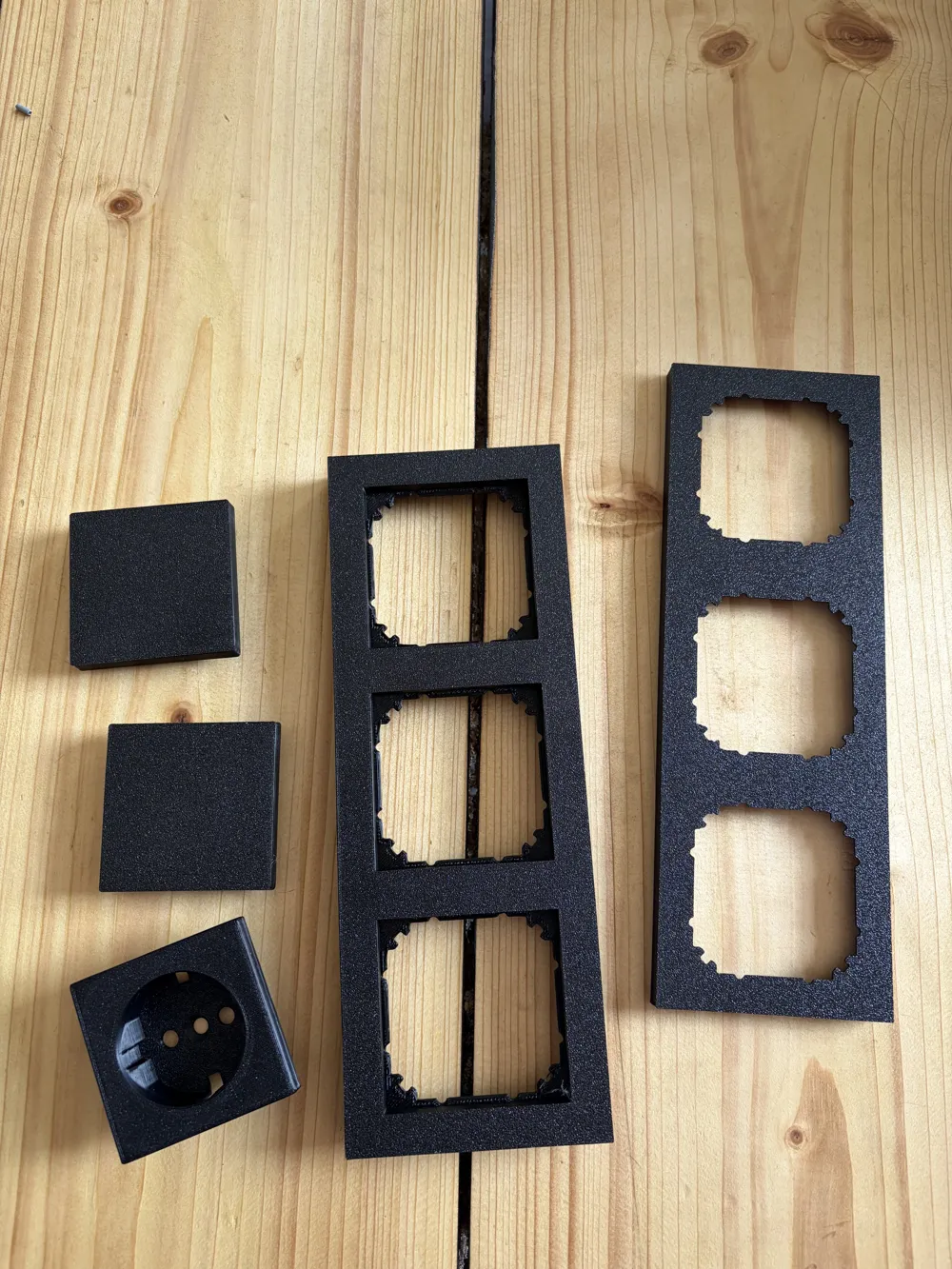

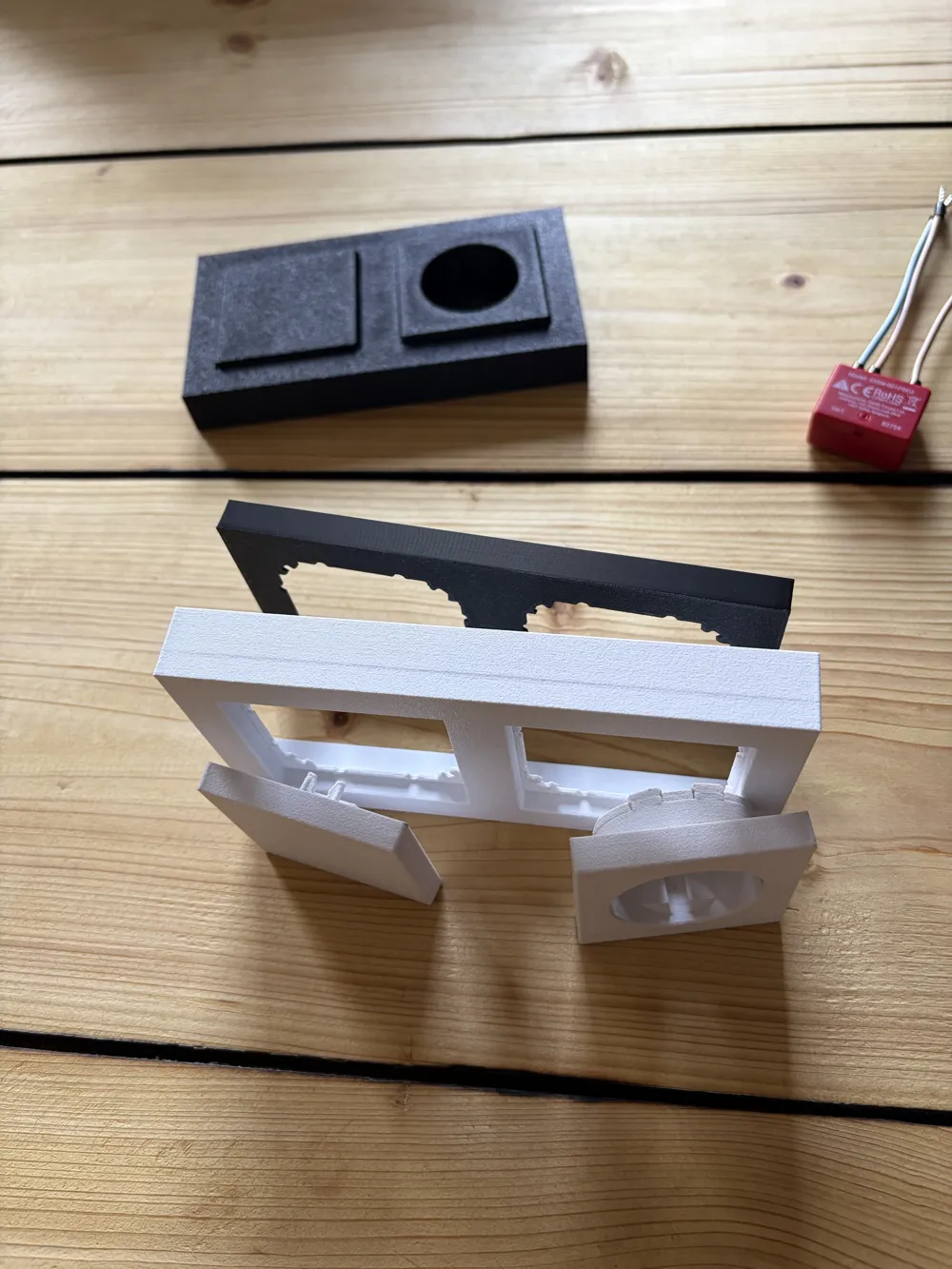

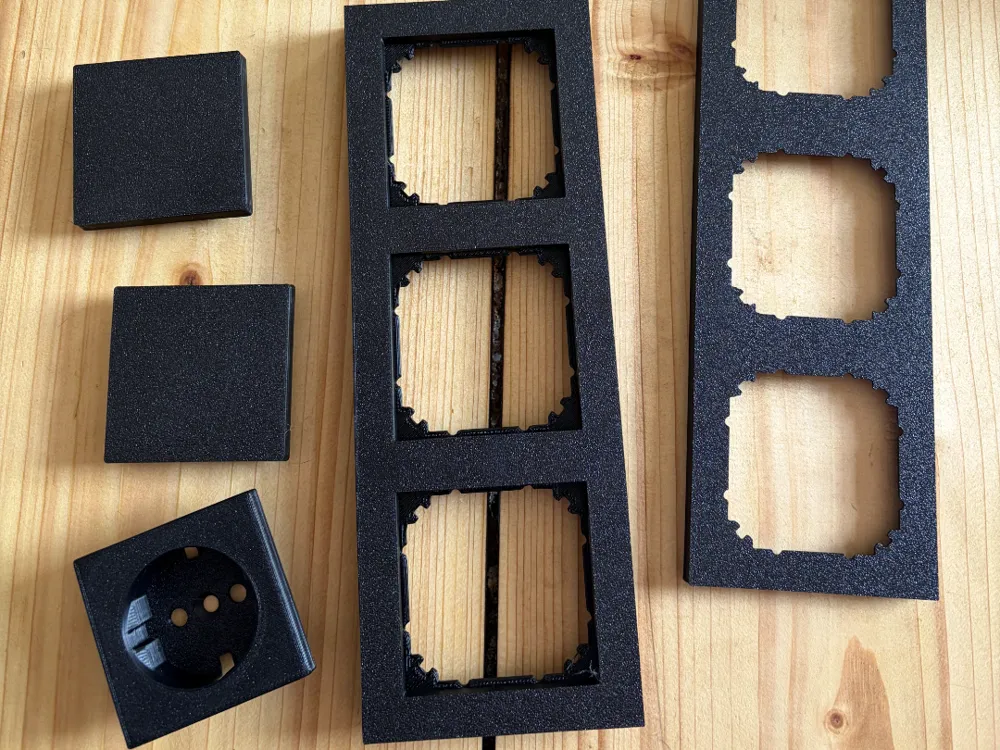

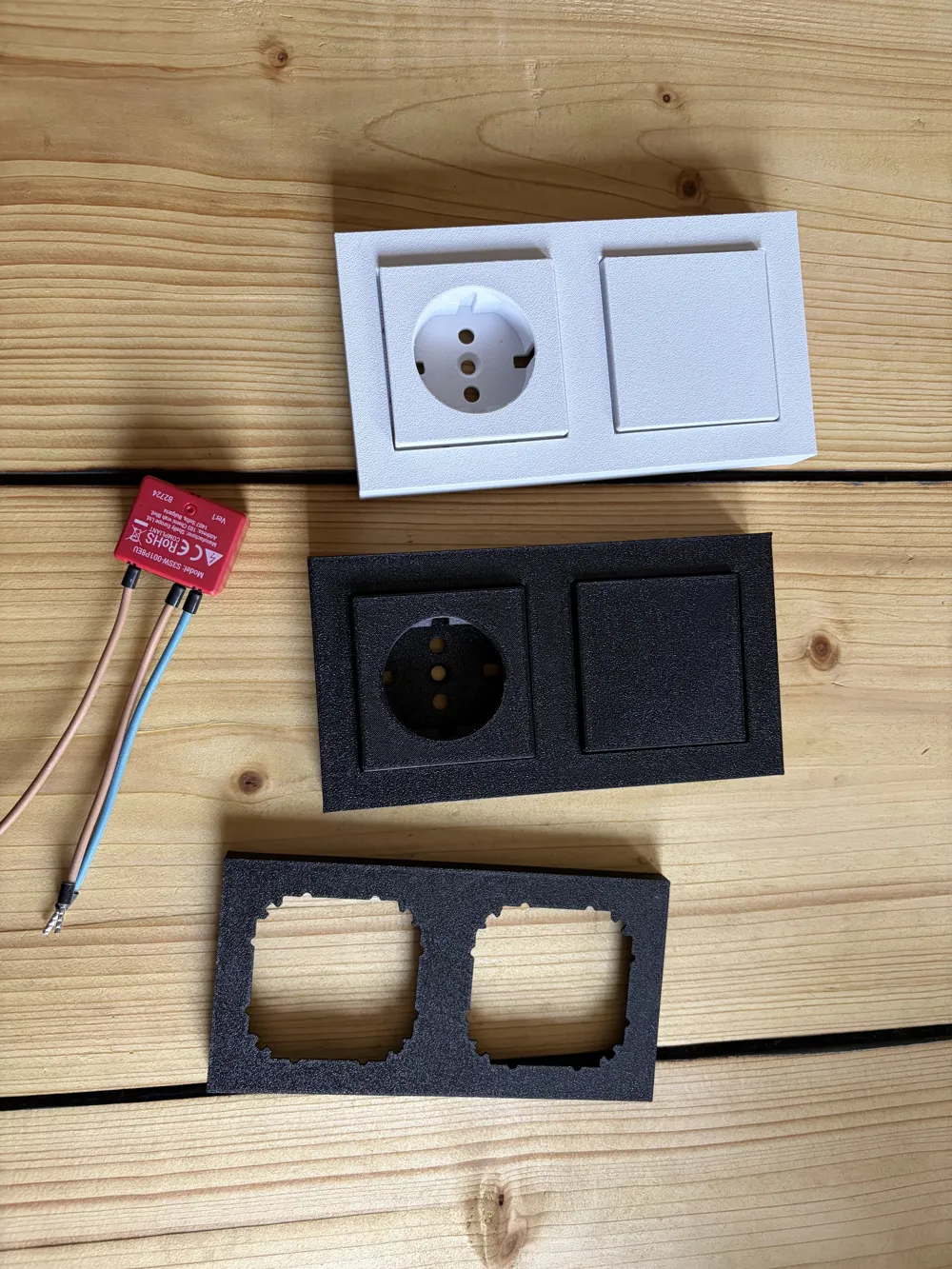

• Complete Replacement Set: Includes the base spacer, the insert adapters, and the custom 3D-printed outer frames (1-gang, 2-gang, and 3-gang). You do not need the original Merten outer frame anymore!
• Perfect Fit: Specifically designed to house the Merten System M metal brackets securely.
• Smart Home Ready: Creates exactly the room you need to safely tuck away a Shelly module (or similar smart relays) and WAGO connectors without violently crushing the wires.

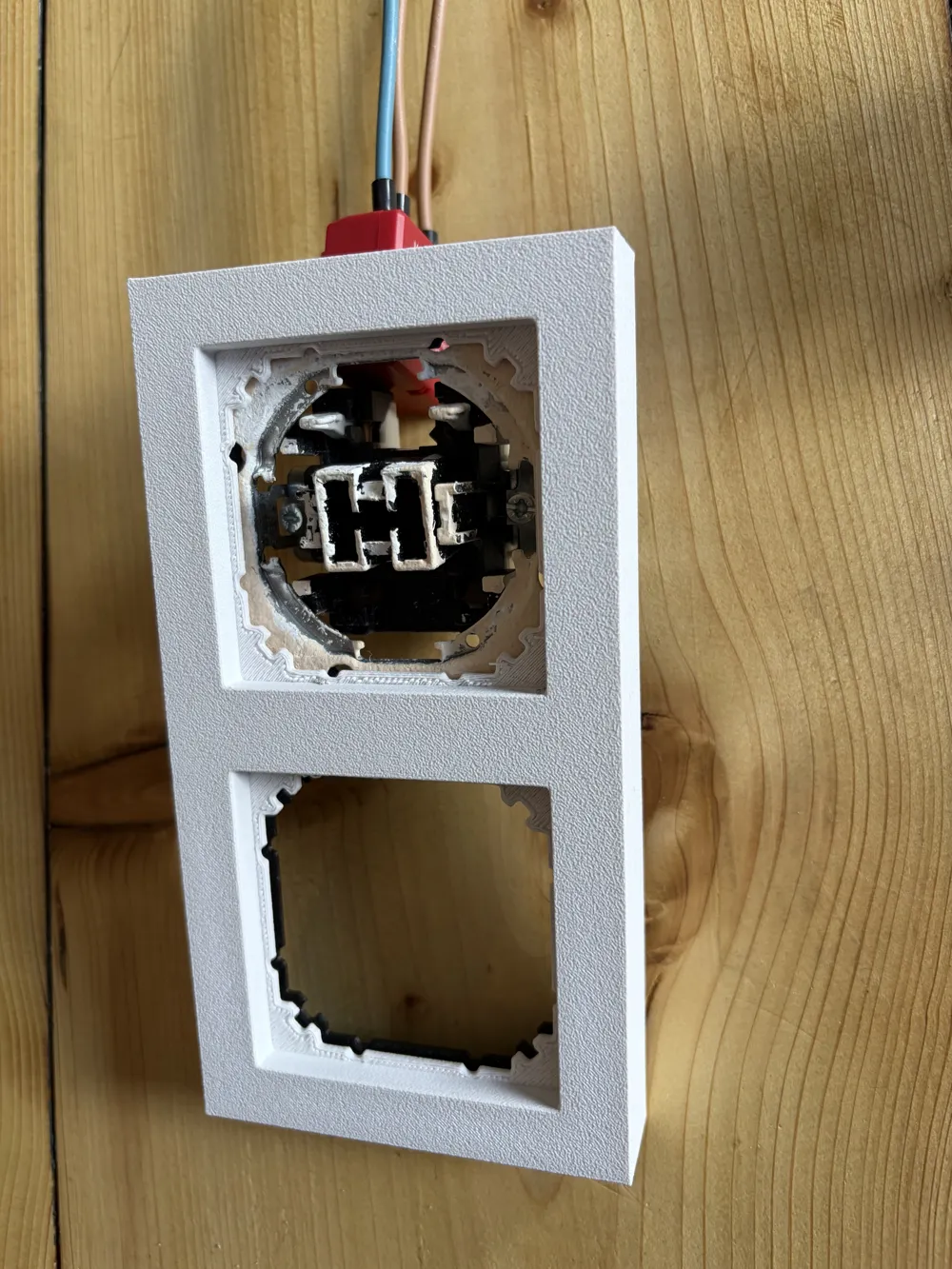

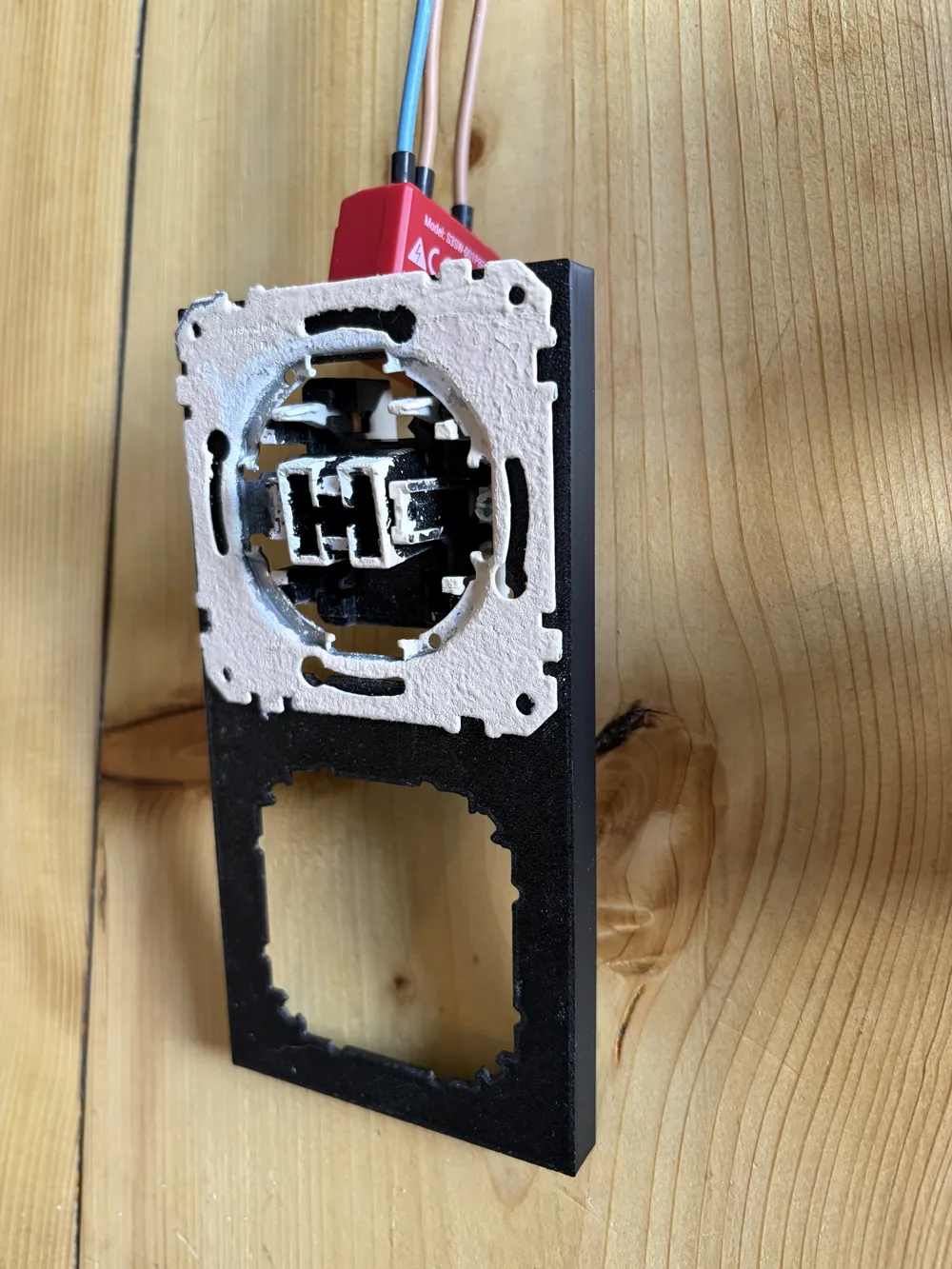

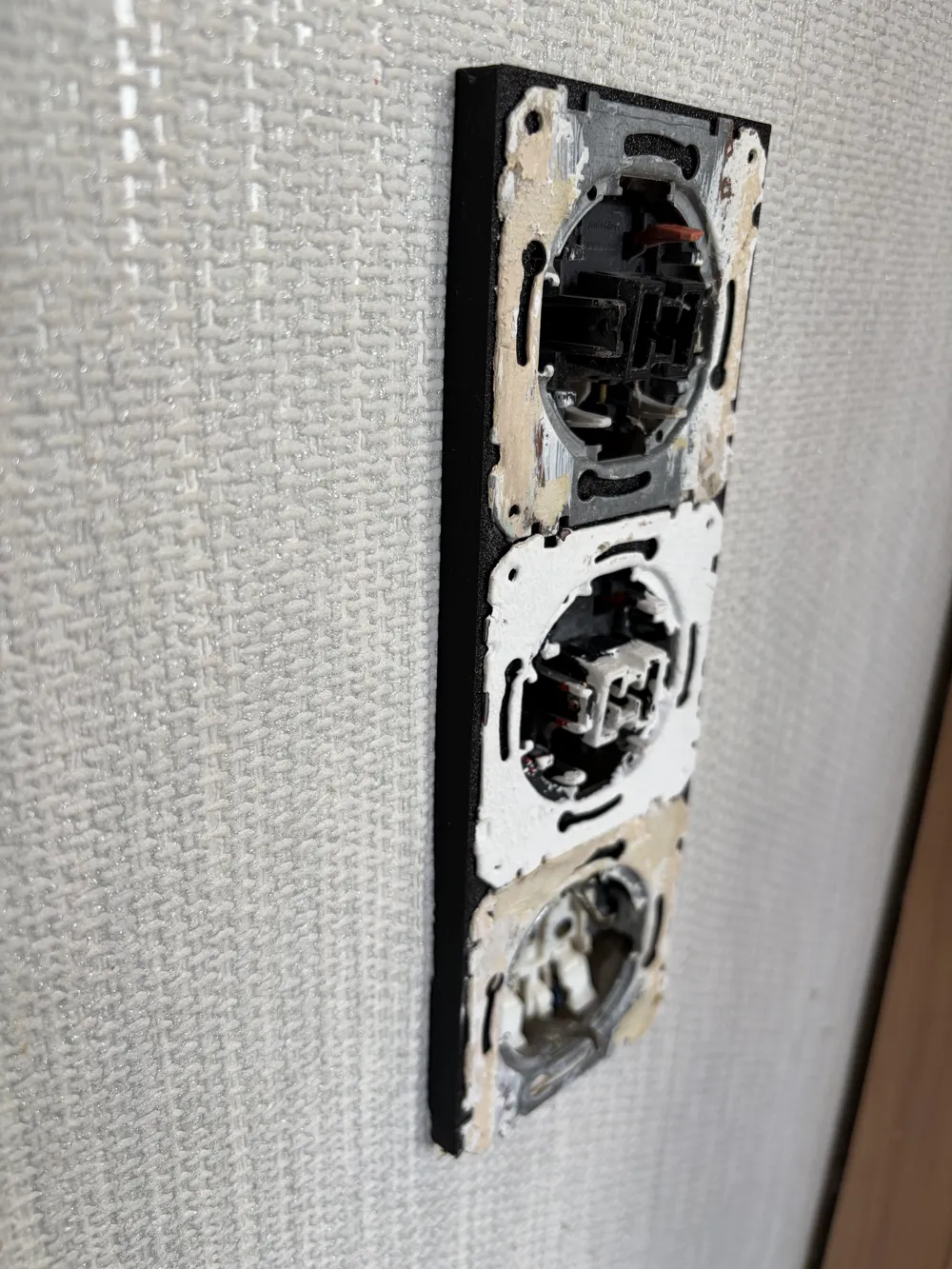

Installation Order:

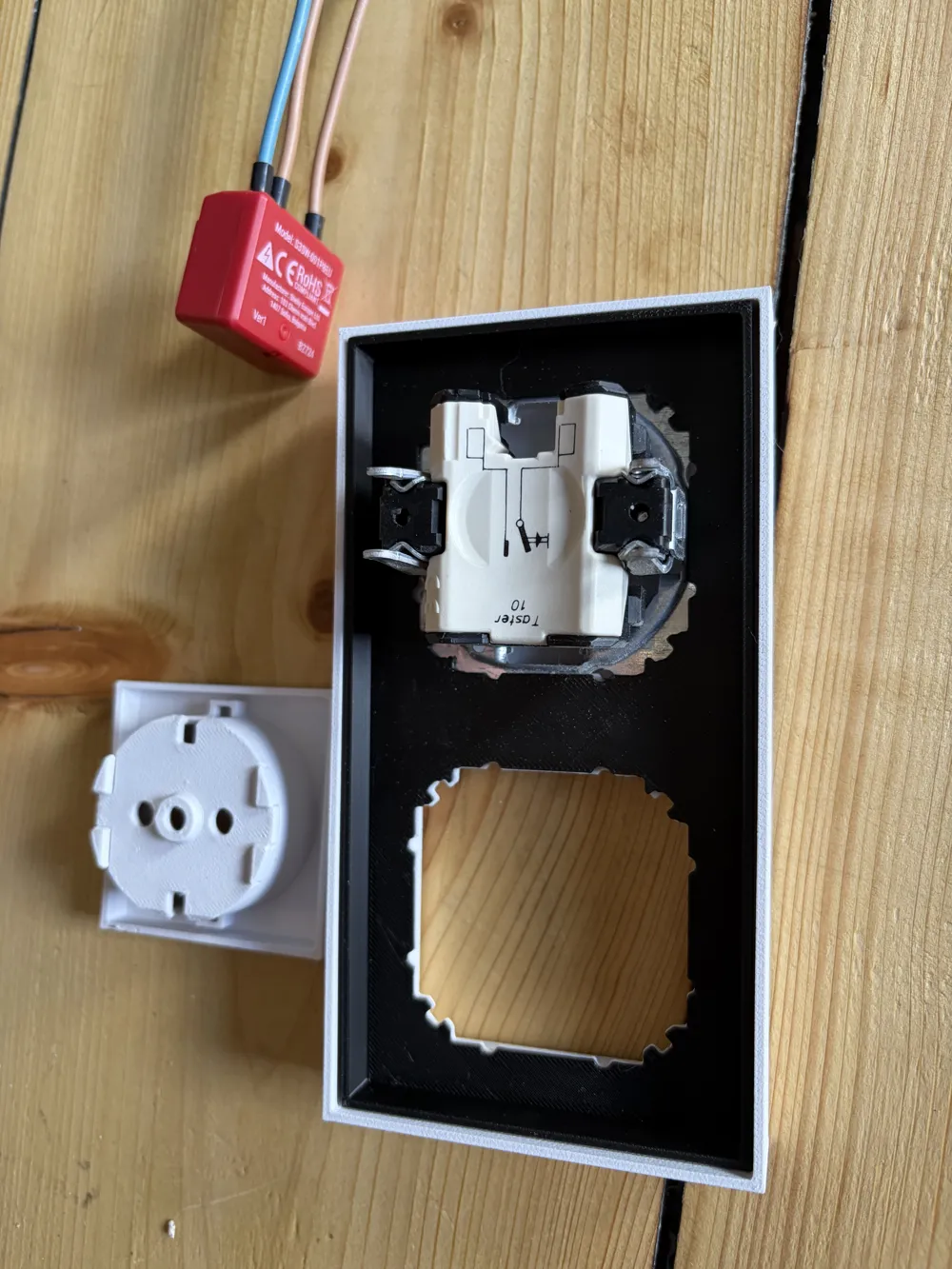

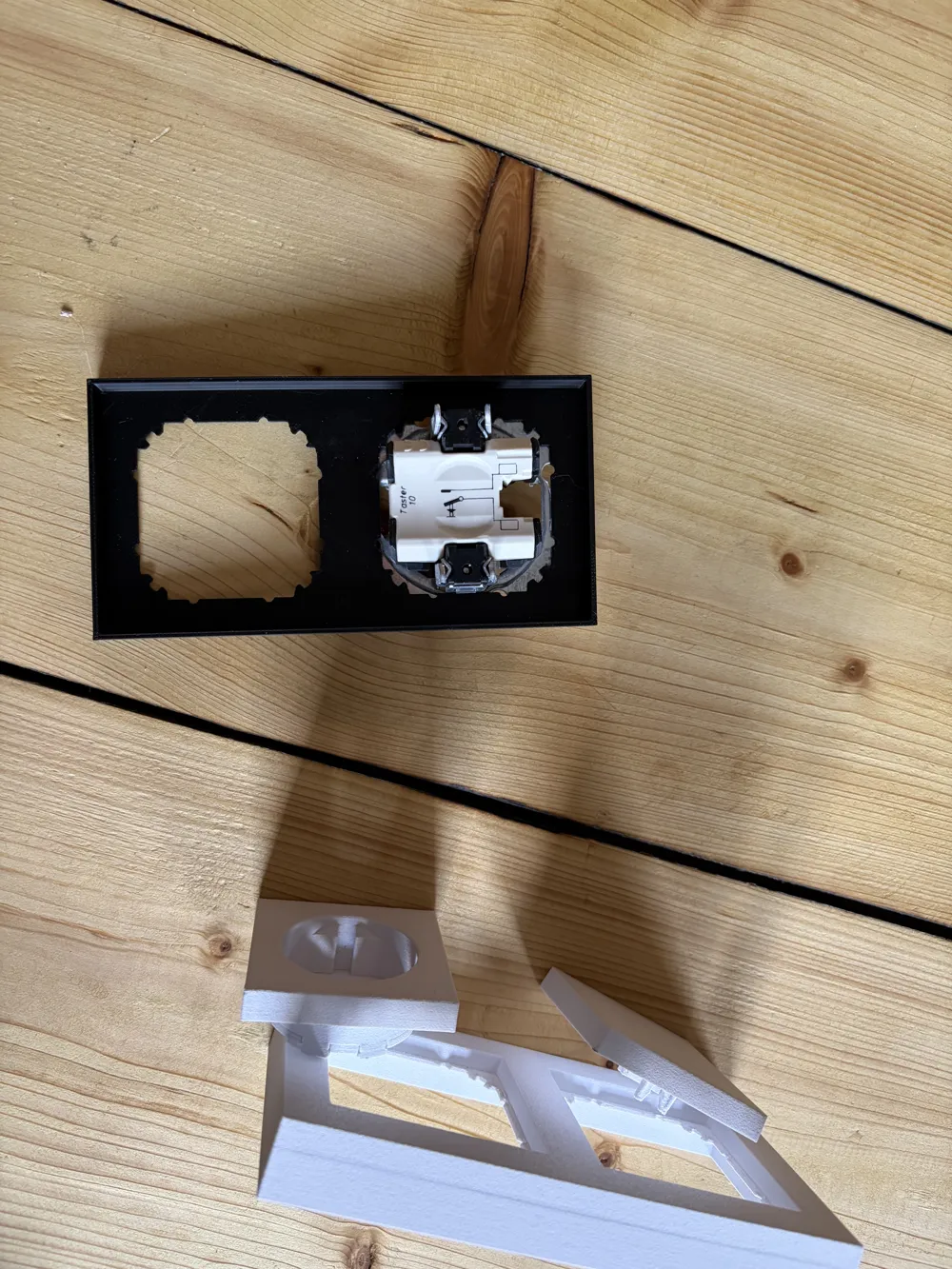

1. 3D-printed Insert Adapters
2. Merten switch/socket metal insert

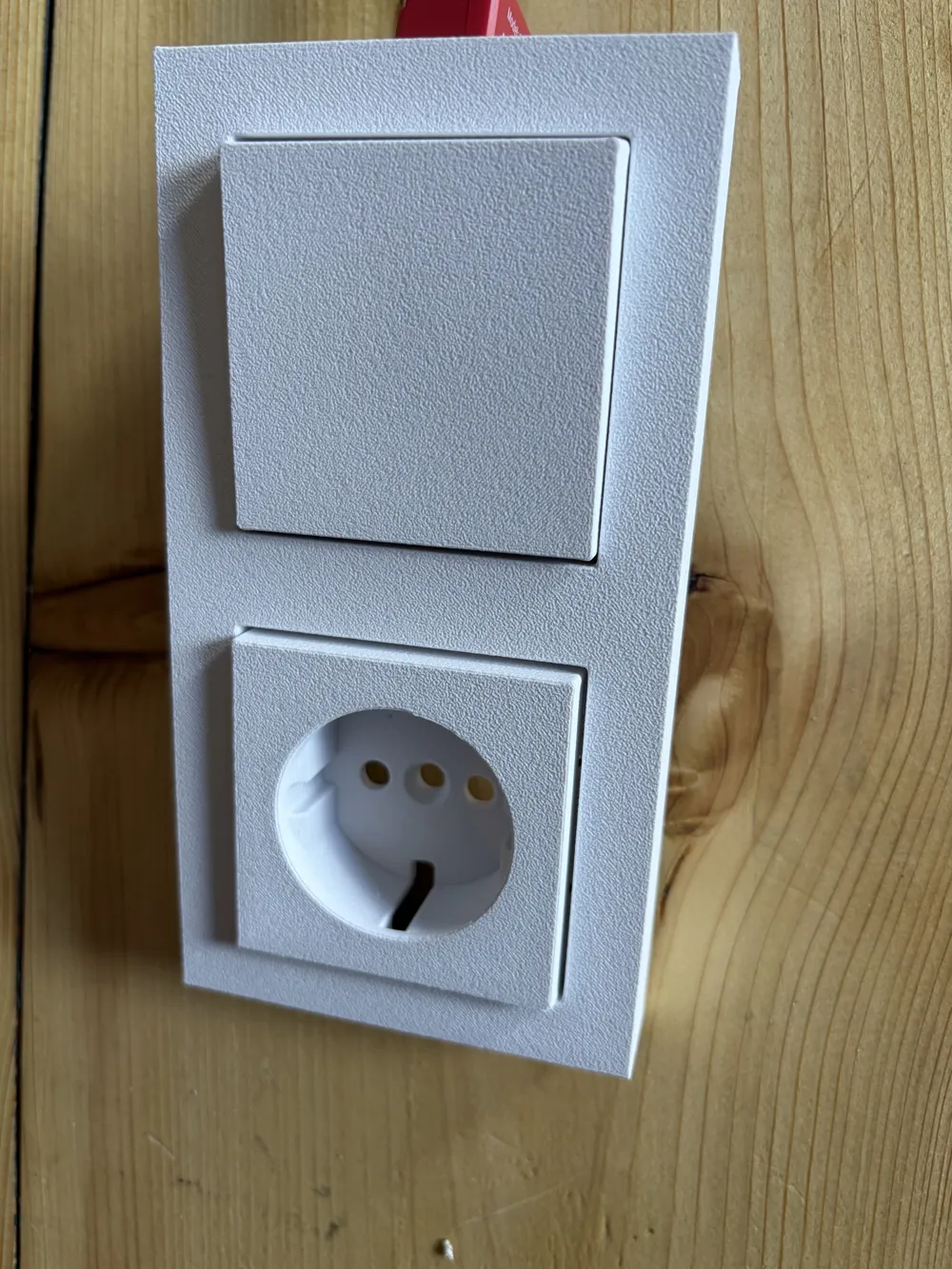

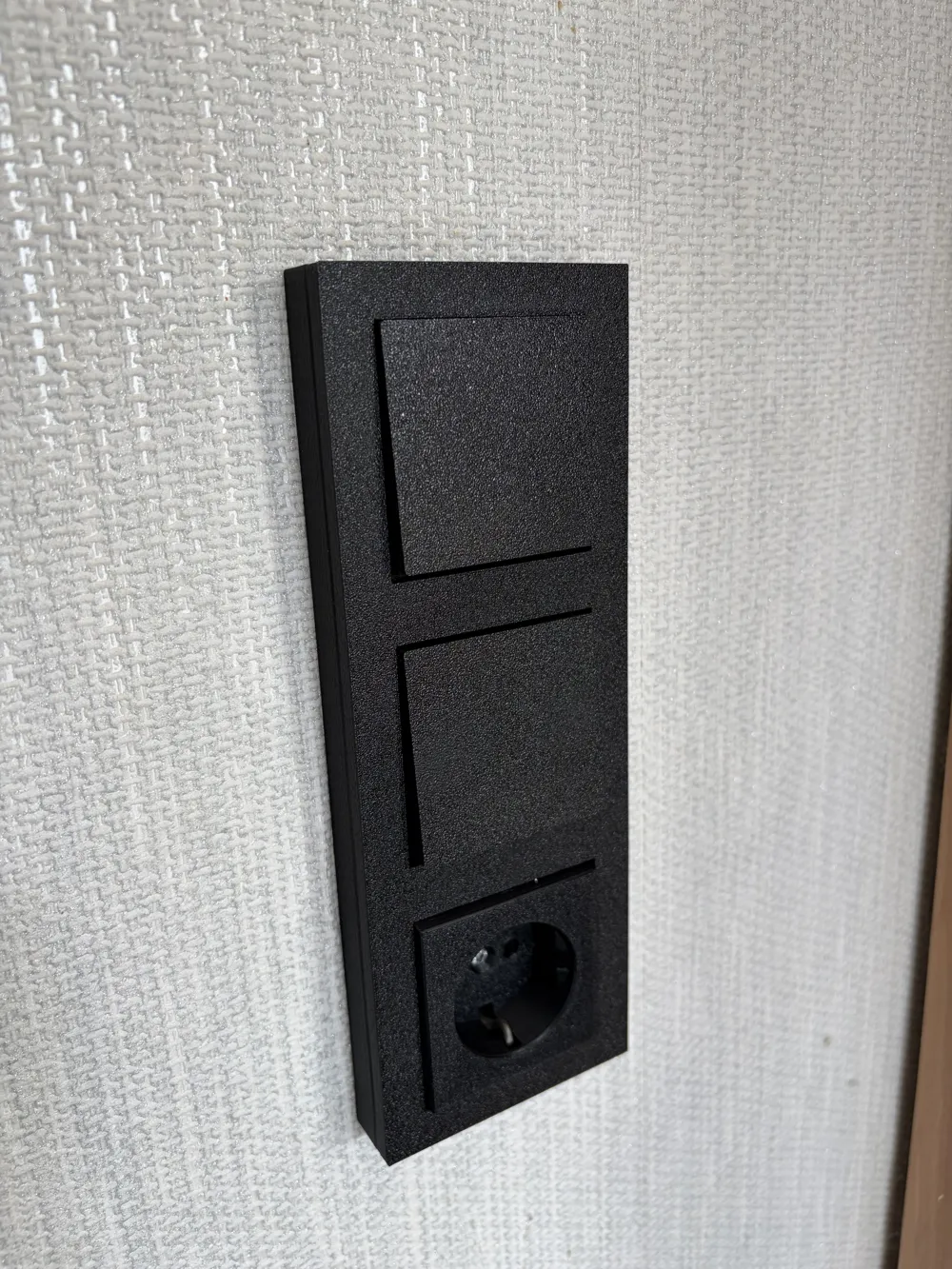

3. 3D-printed Custom Outer Frame



⚠️ IMPORTANT: Material Requirements

DO NOT USE PLA! Smart home relays generate heat under load, especially when installed behind power sockets. PLA softens at low temperatures (~60°C) and poses a significant fire hazard in electrical installations.

• I strongly recommend printing these parts in ASA (which I used) or PETG/ABS for high temperature resistance, dimensional stability, and UV resistance.

     Disclaimer & Safety Warning

Please read carefully before downloading, printing, and installing:

• No Liability: This 3D model is provided "as is" without any warranties. I assume absolutely no liability for any property damage, personal injury, fire, or other incidents resulting from the printing, installation, or use of these models.
• Electrical Hazard: Working on 230V/110V electrical installations is inherently dangerous and life-threatening.
• Local Regulations: You are strictly required to comply with all electrical, fire safety, and building codes of your specific country or region.
• Professional Installation: All electrical work should only be carried out by a certified and licensed electrician. Use this model at your own risk!
