RC Wheel and Tire Set (1/10 Scale)

🏎️ RC Wheel and Tire Set (1/10 Scale)

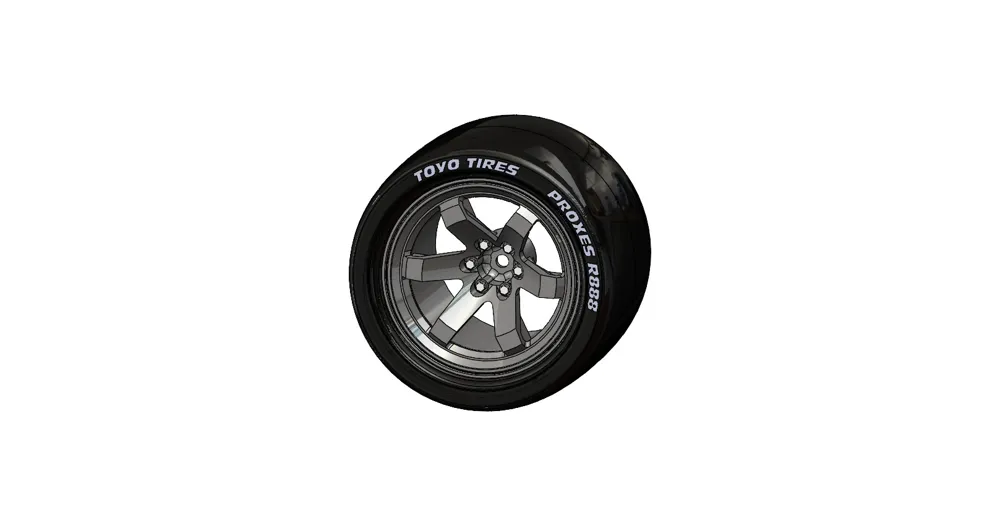

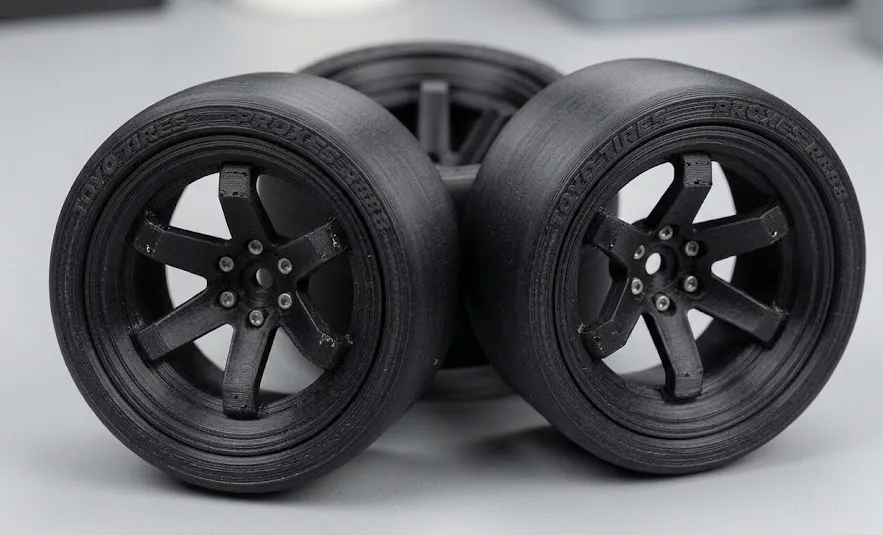

This is a unique recreation of a rim and tire widely used in 1:10 scale RC Drift projects. It was specifically designed for those who want to replace original wheels or customize their car with high-strength 3D printed components.

Design Features

• Fidelity: Based on the real model, ensuring compatibility with standard hexes.
• Optimized for Printing: Geometry adjusted to minimize supports and maximize layer adhesion.
• Realistic Look: Screw details and aggressive tread pattern for maximum traction on dirt and grass.

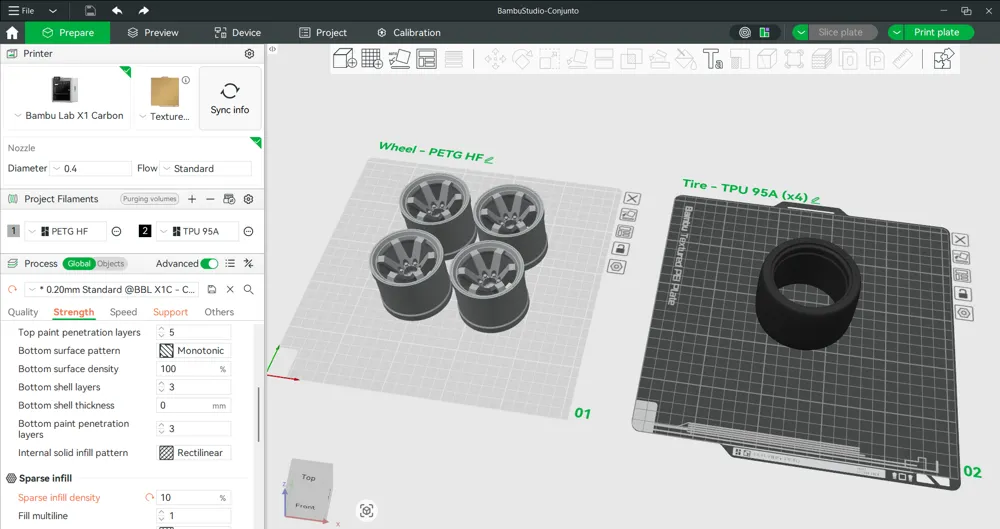

Recommended Print Settings

For best performance and durability, I recommend the following material combination:

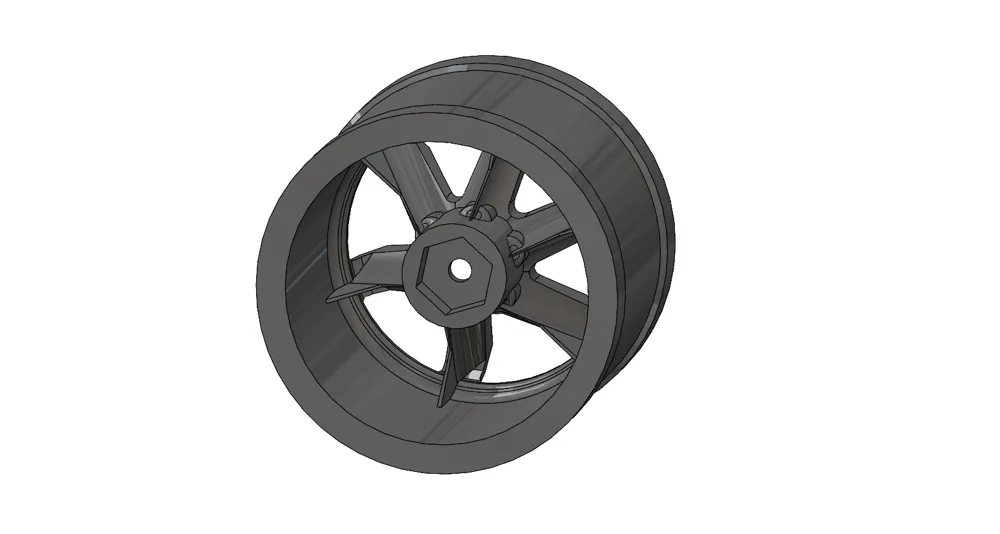

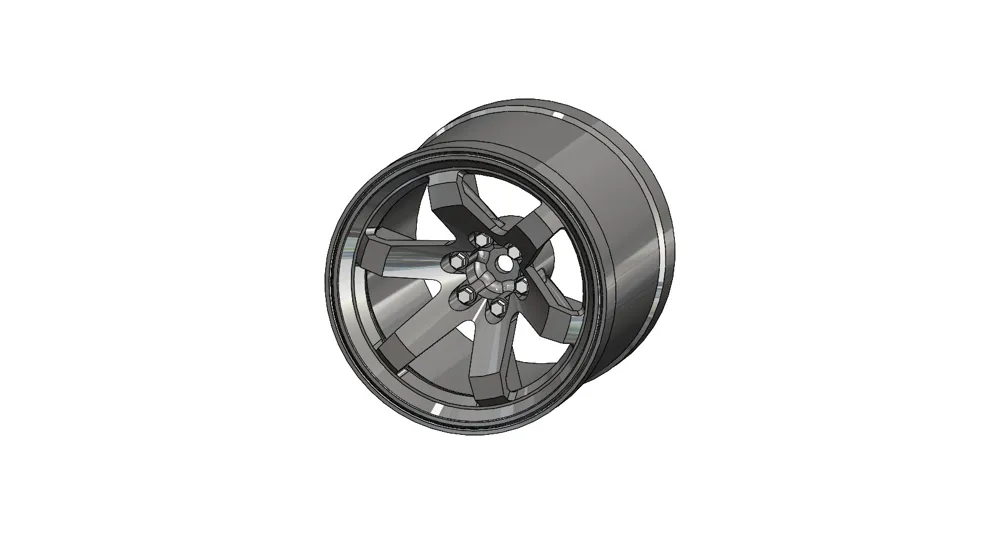

• Rim: * Material: PETG HF (High Flow) – Chosen for its impact resistance and superior flexibility to PLA, ideal for the mechanical stresses of RC.
  • Walls: 4 to 6 perimeters for maximum structural rigidity.

  • Infill: 40% (Gyroid or Honeycomb).

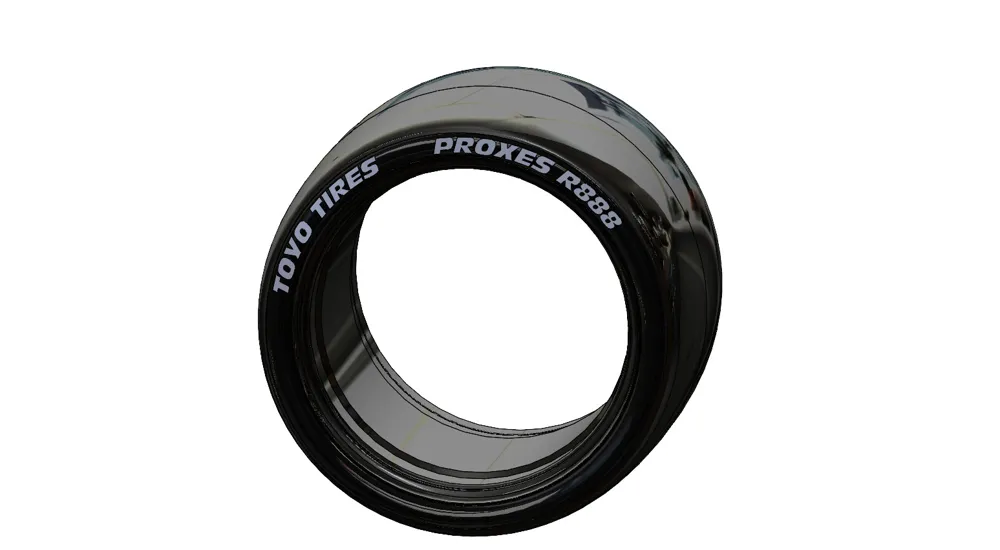

• Tyre:
  • Material: TPU 95A – Provides the perfect balance between "grip" and durability.
  • Walls: 2 to 3 perimeters (depending on desired hardness).
  • Infill: 5% to 10% (Gyroid) to simulate the effect of internal foam, or 0% if planning to use physical foams.

Assembly Instructions

1. Clean any support residue in the rim's hex cavity.
2. The TPU tire should be carefully fitted onto the rim. If too tight, soaking the tire in hot water for 30 seconds facilitates assembly.
3. (Optional) Use a drop of CA glue (cyanoacrylate) specifically for RC tires if the motor is high-speed (Brushless), to prevent the tire from detaching from the rim.

Note: Ensure your TPU flow calibration is correct to ensure the tire fits perfectly on the rim without gaps.

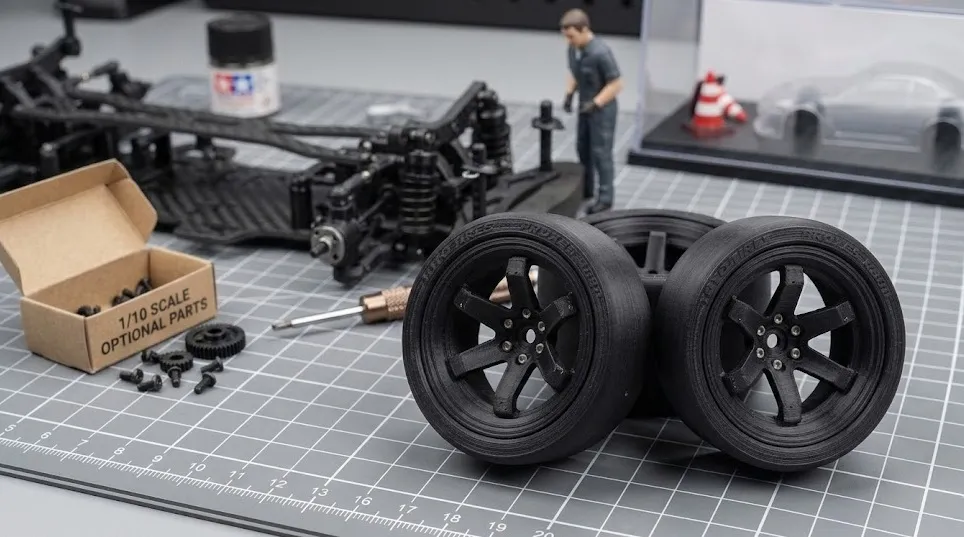

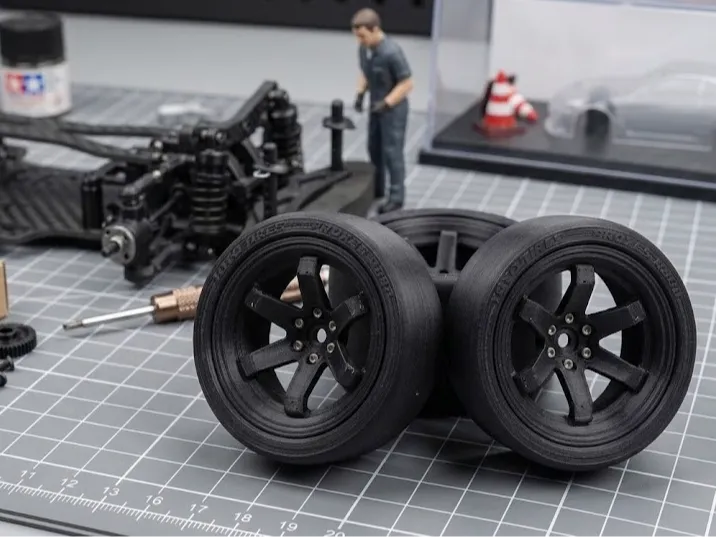

Share your "Make"! If you print this set, I'd love to see photos of your setup in the garage or in action on the track.
