Proxicast Cellular Antenna Pole Mount

Print Profile(1)

All
P1S
X1
P2S
H2C
H2D
H2D Pro
X1E
A1
P1P
A1 mini
H2S
X1 Carbon
X2D
A2L

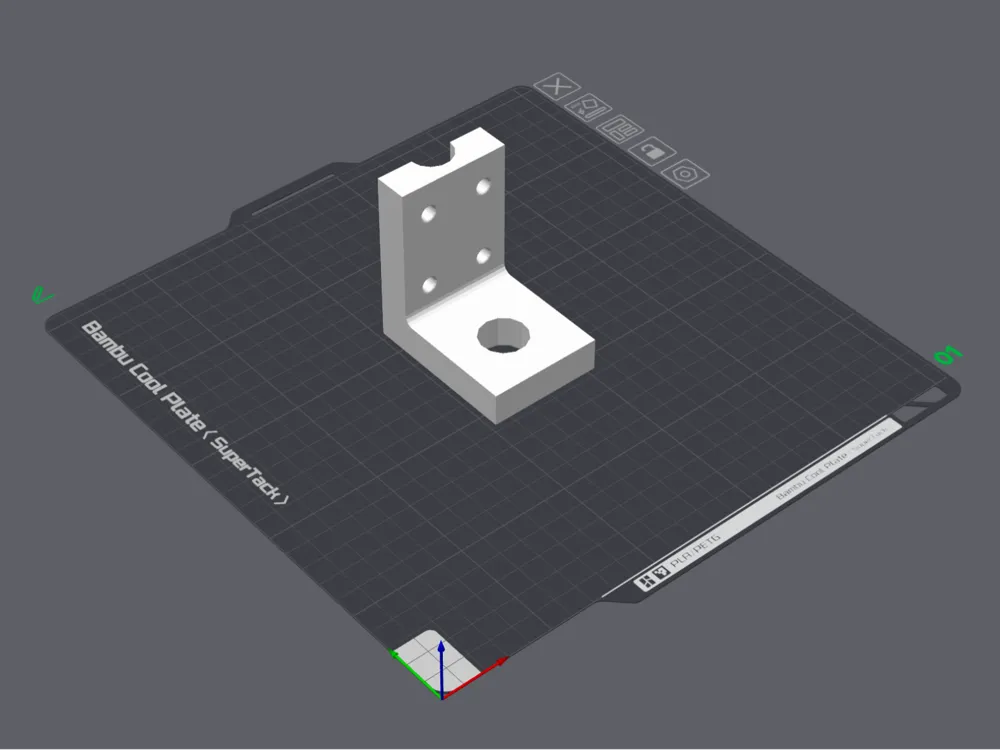

0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
Designer
1.4 h
1 plate

Open in Bambu Studio
Boost
1
2
0
0
3
1
Released

Description

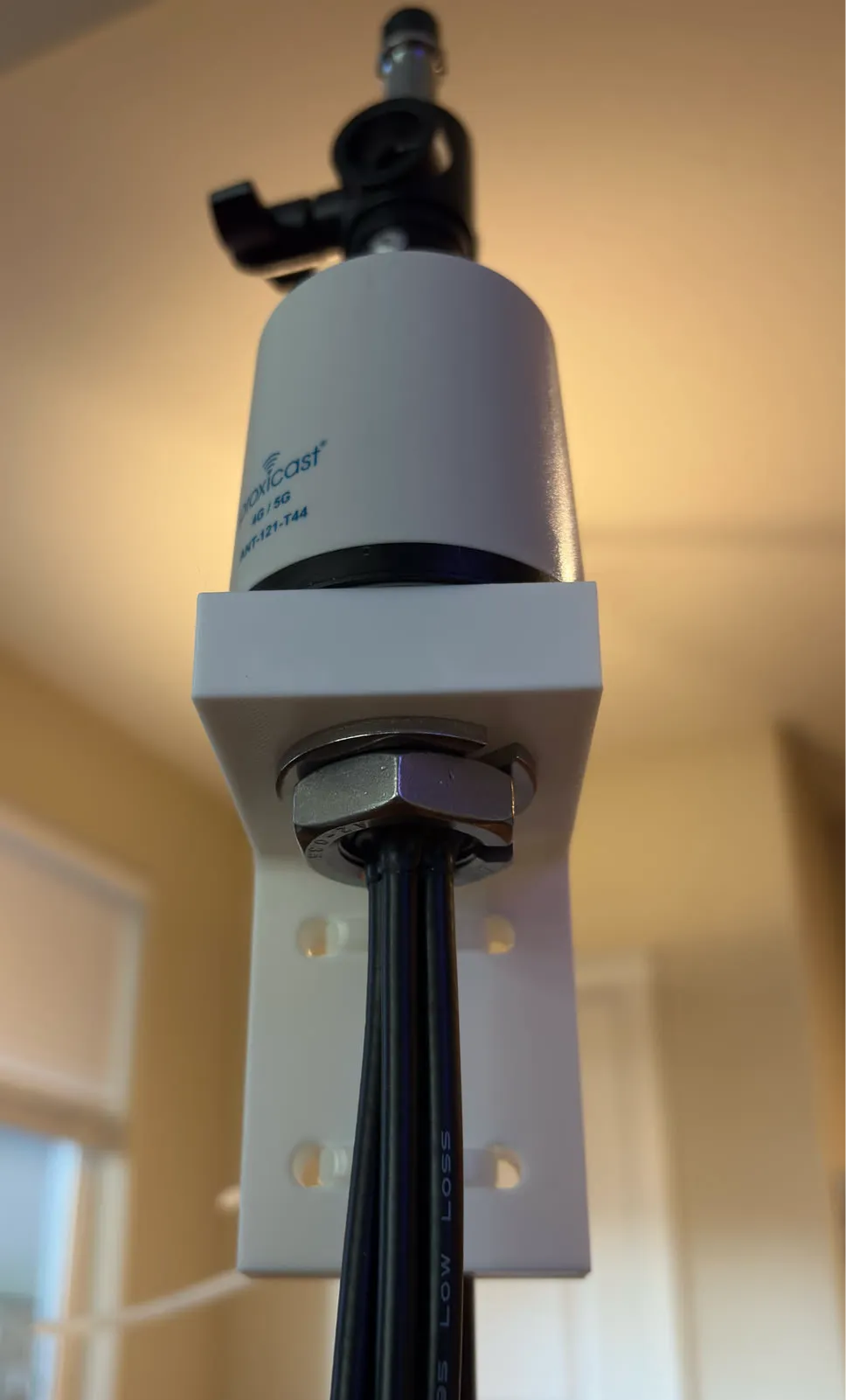

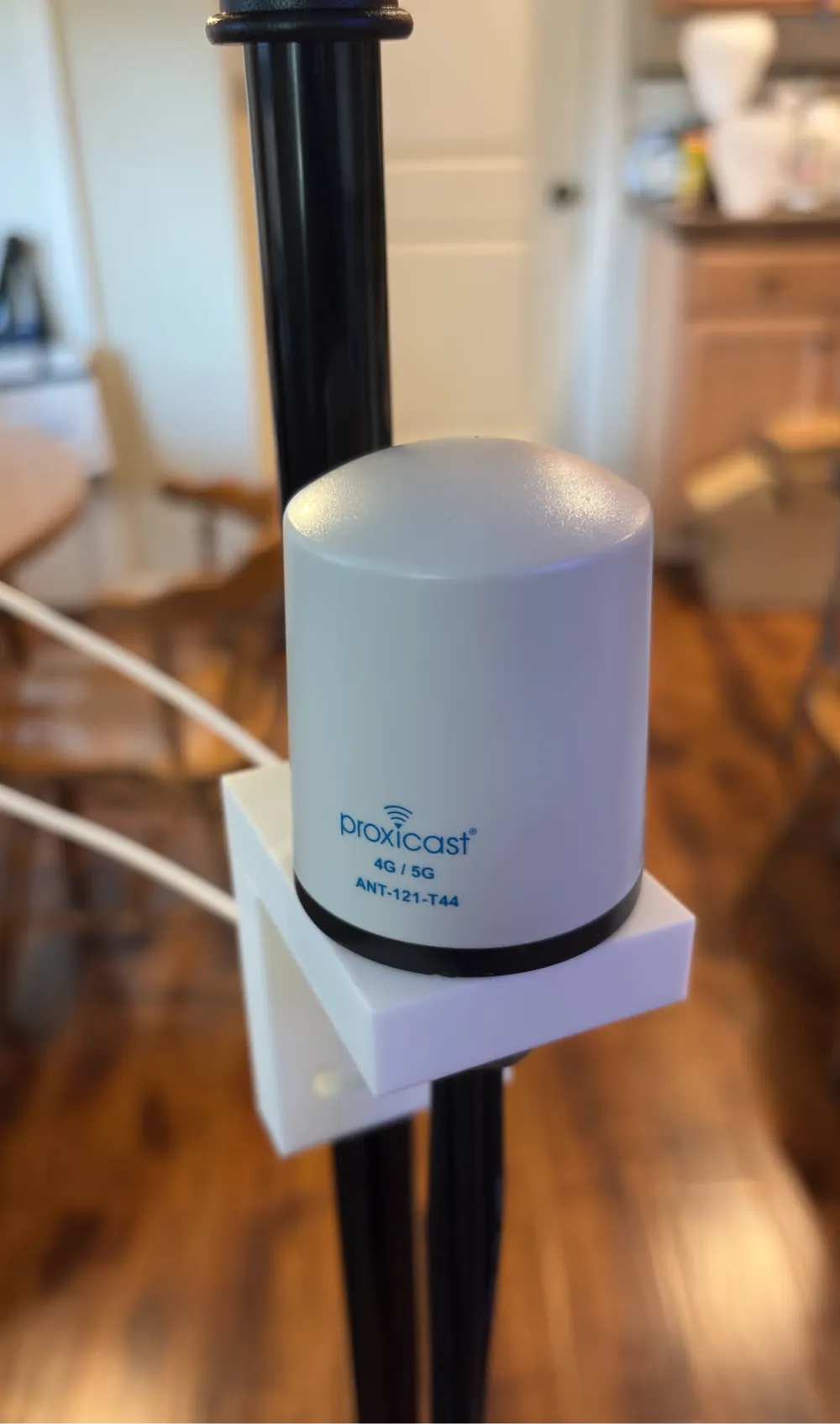

I purchased an antenna for my LTE router/modem, but I couldn't find anything that would allow me to mount it the way I wanted it to be.  I was going to mount this to a light pole/tripod so I could get the antenna as high as possible for my use case (markets).  So I designed one in Shapr3D and it does exactly what I needed it to.

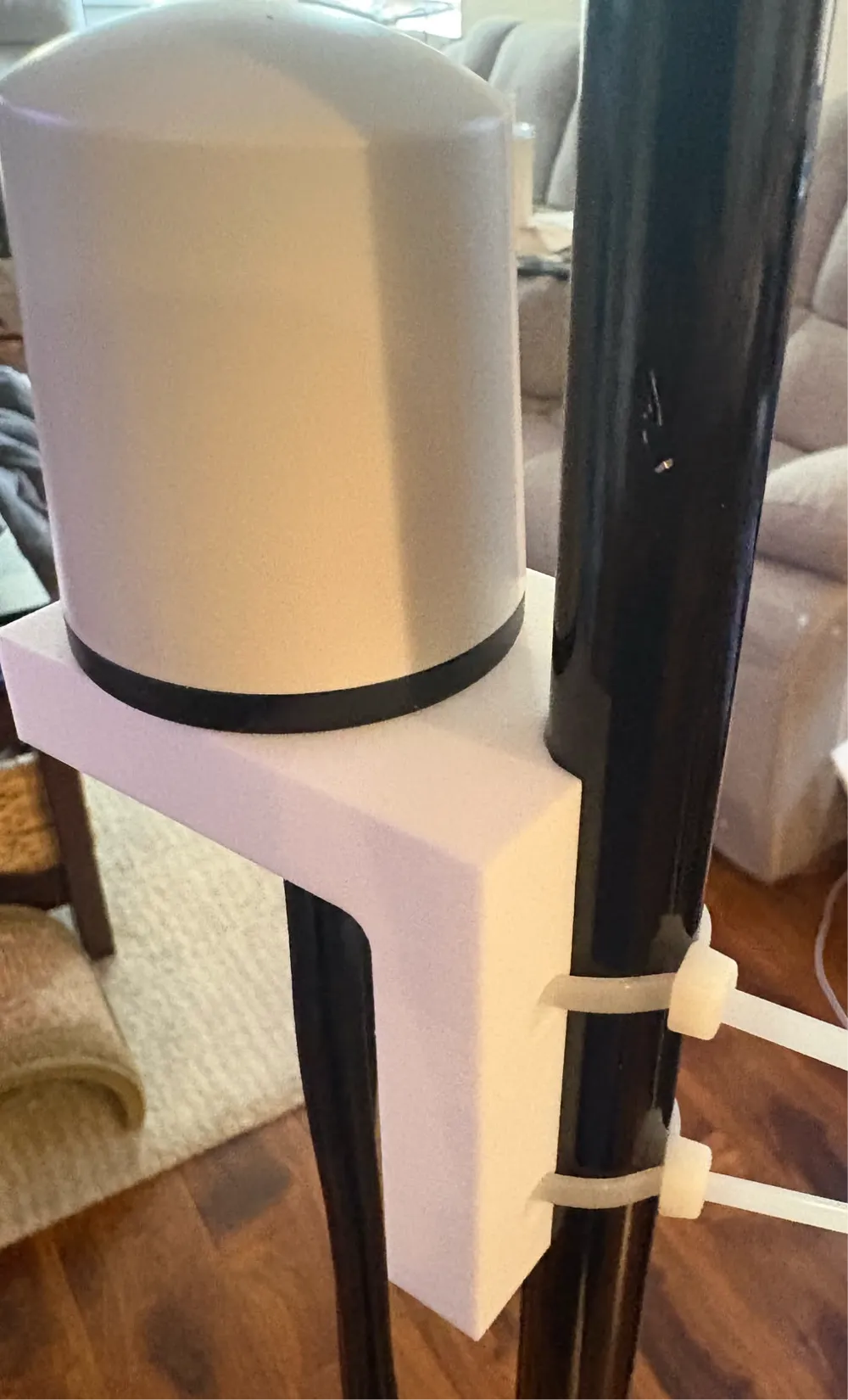

Printed in PETG and it came out great!  The mount will go around a ¾ inch diameter pole.  I secured the mount on the tripod using 2 zipties.
