Mini robot MG90S (cost less than 10 € or $)
Print Profile(1)
Description

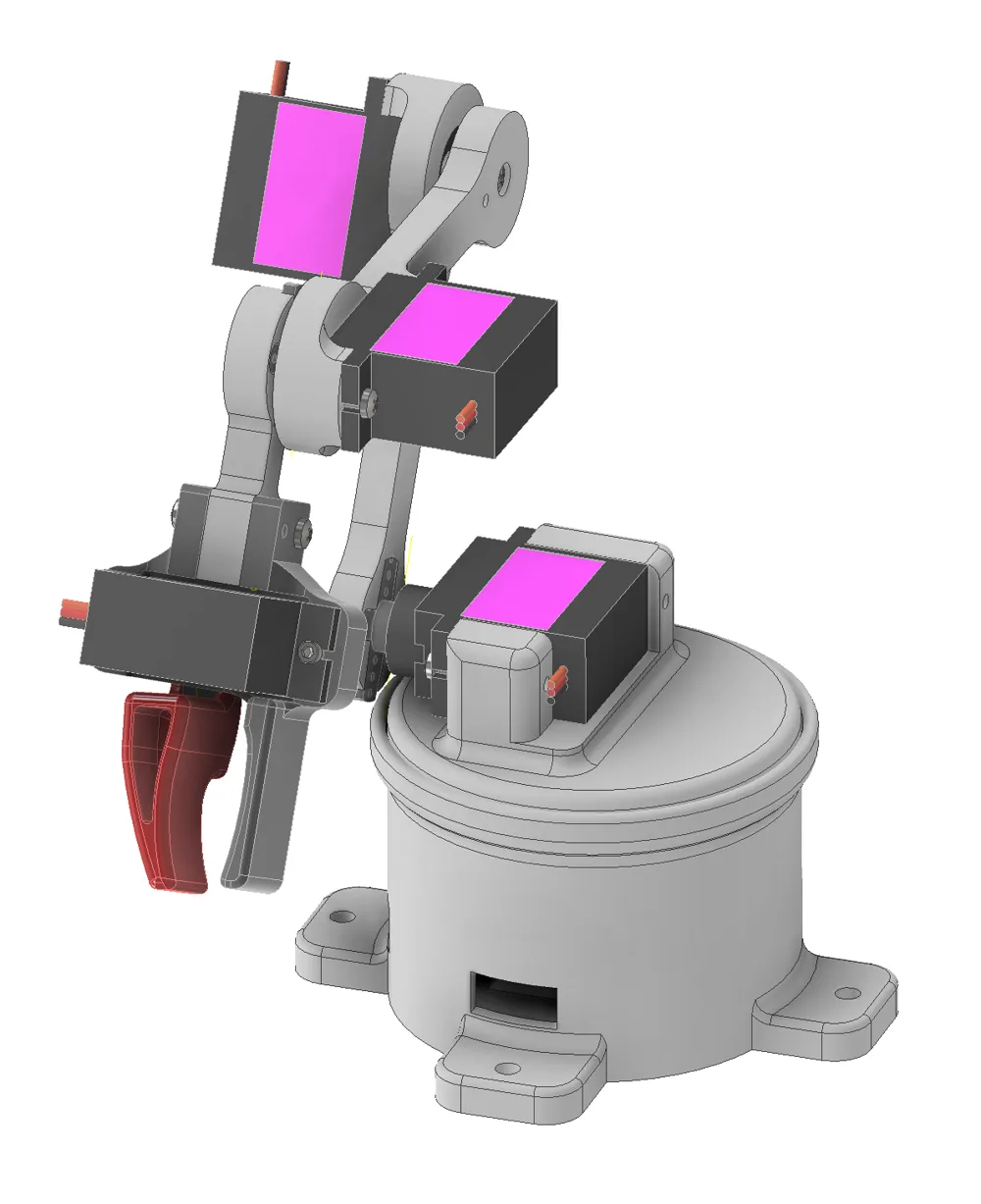

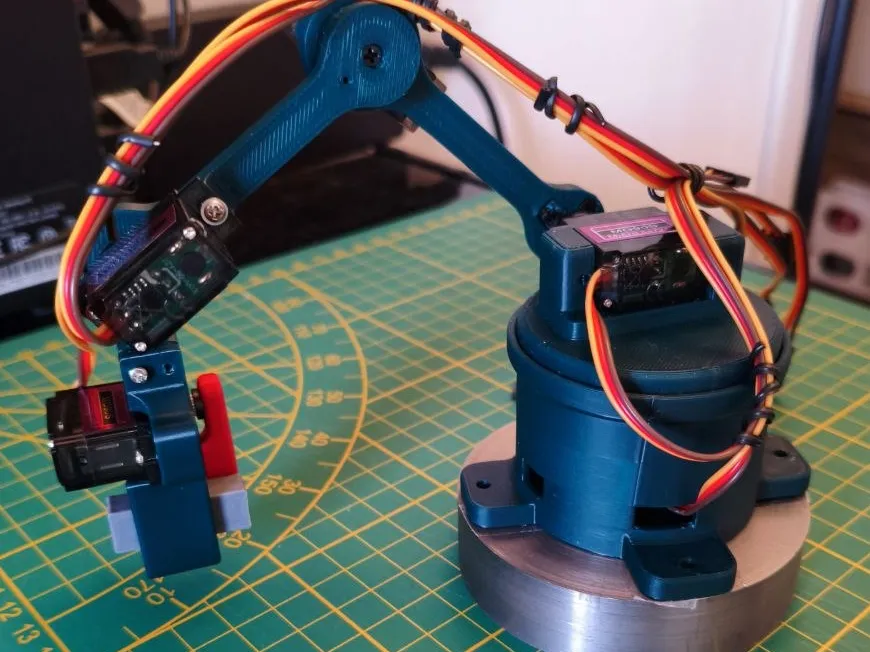

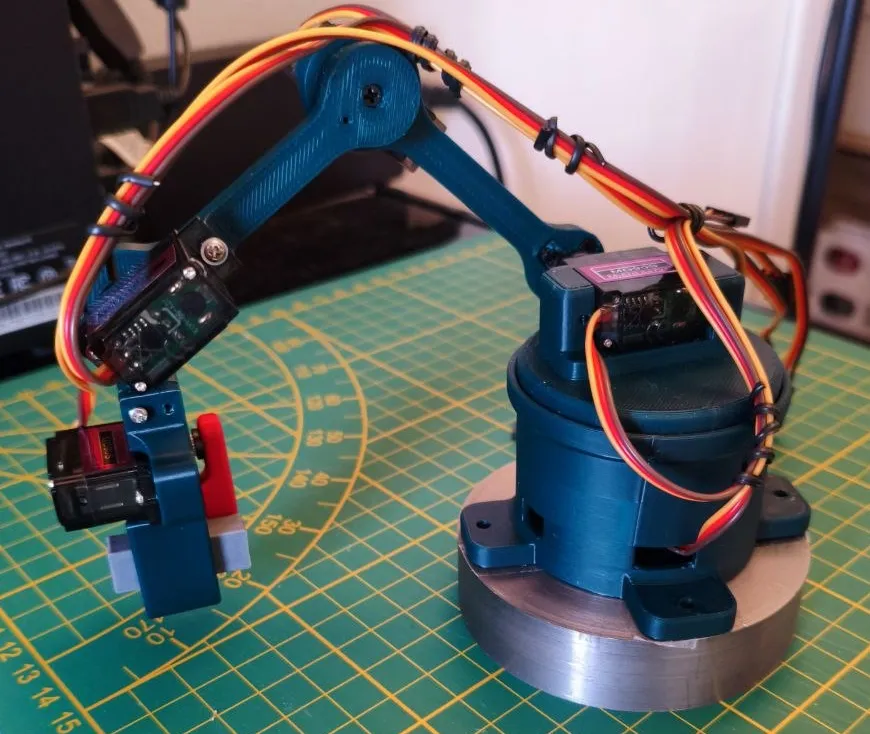

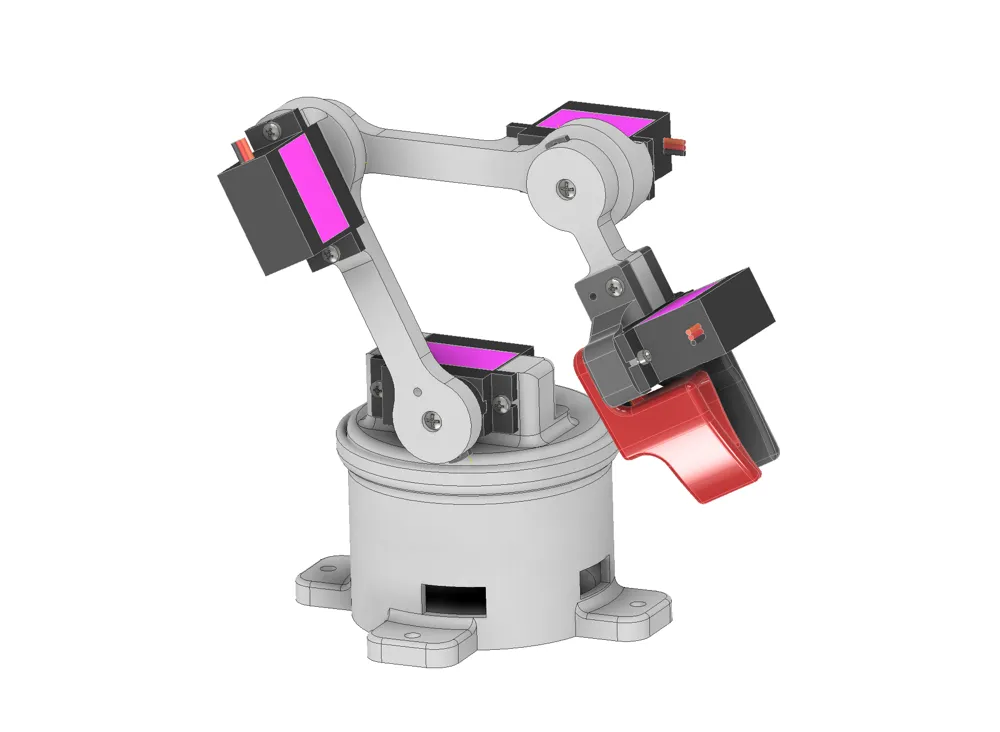

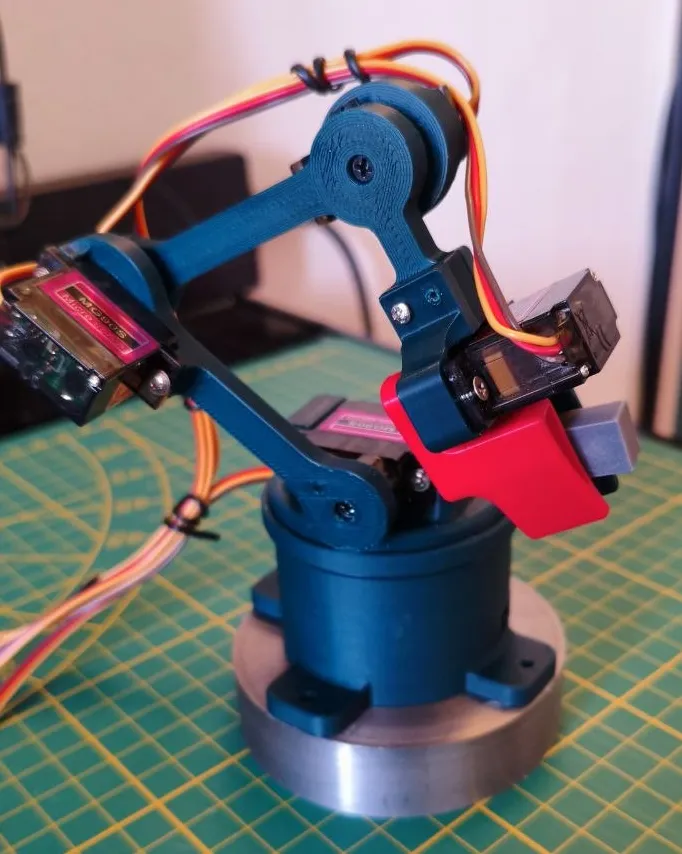

Mini anthropomorphic robot.
Total cost less than 10 euros.
Uses five MG90S servo motors and a few screws.
The most economical for educational use.
M2.5 x 8mm screw to secure the motor arm (the one included is too short!).
Self-tapping screws included with the servo to secure it to the printed parts.

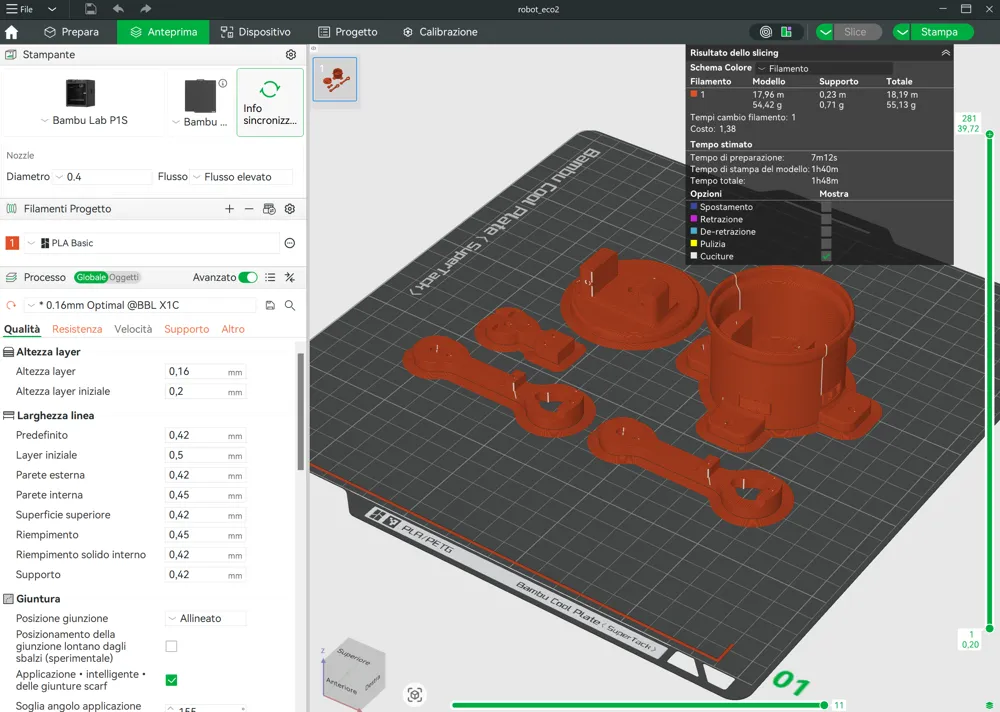

Optimized for 3D printing.
The only supports to be aware of are in the main cylinder.
NB:

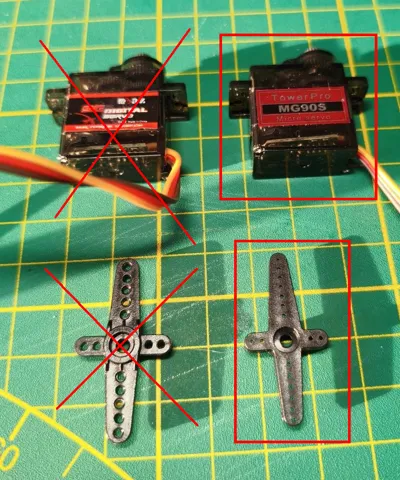

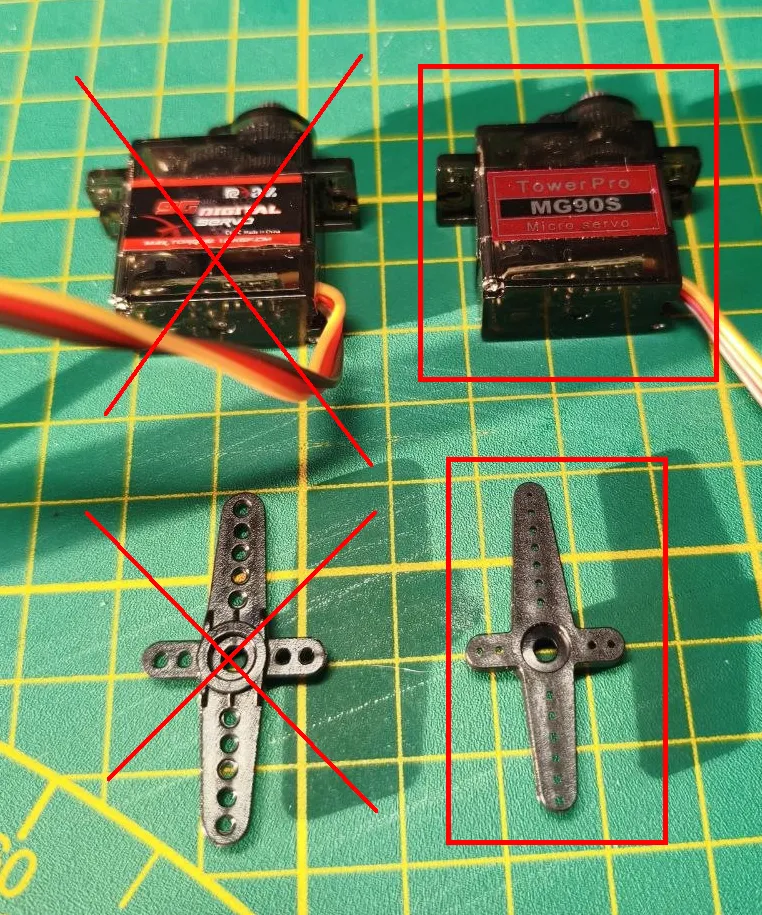

Pay attention to the MG90S servo arm model. There are two versions: one flat and one non-flat.
This model uses the flat arm.
If you have a non-flat arm or an RCXAZ 9g servo, use the V2 model instead of the MG90S.
