Design
It often happens that you need a mounting point for an SMA connector. This was also the case with my OpenEPaperLink AP. Two networks (WLAN/network) in the same frequency band do not get along particularly well in the long run at a distance of 2-3 cm.
This holder is also very practical and versatile as a fixed connection point for an antenna cable.

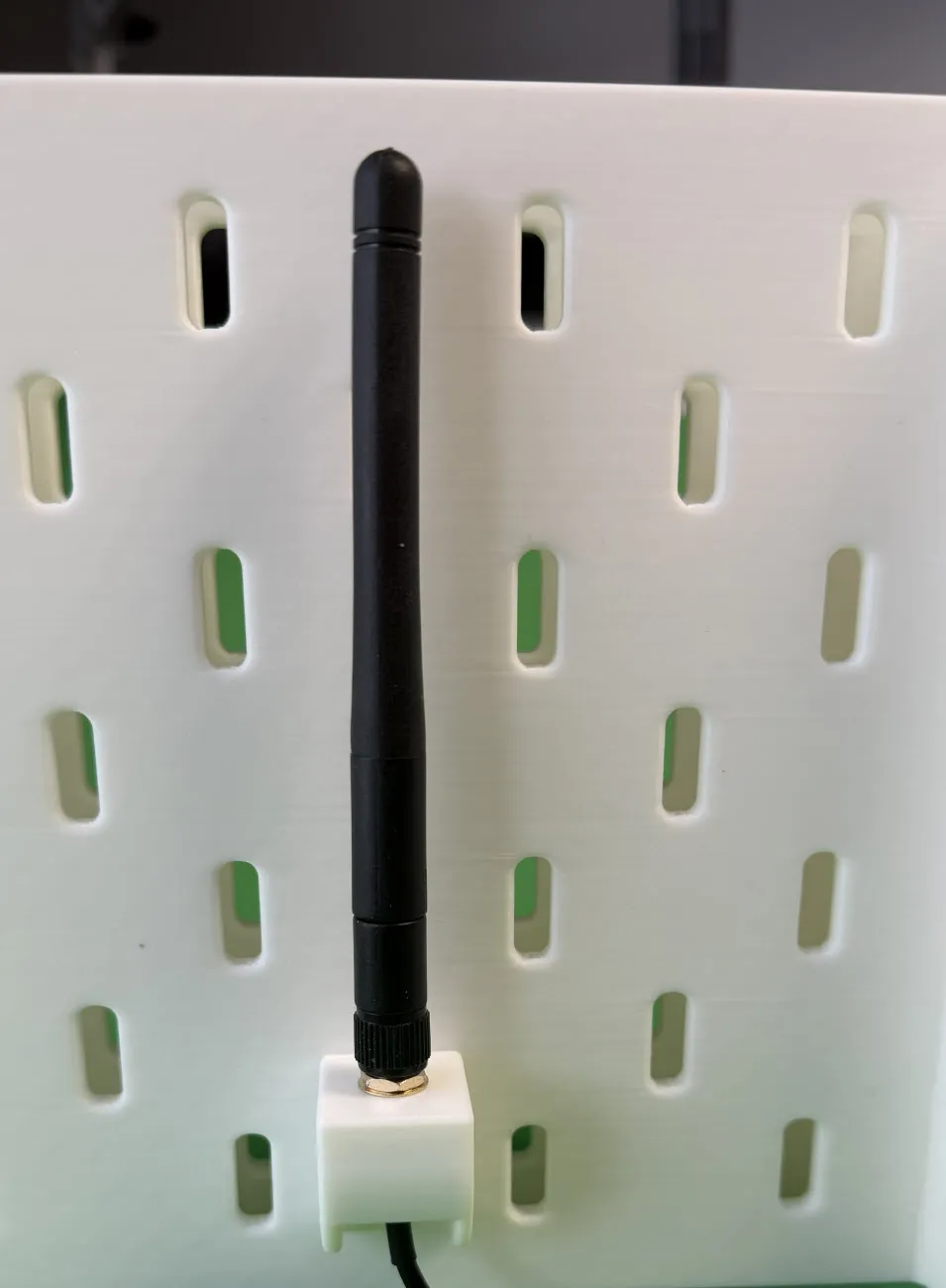

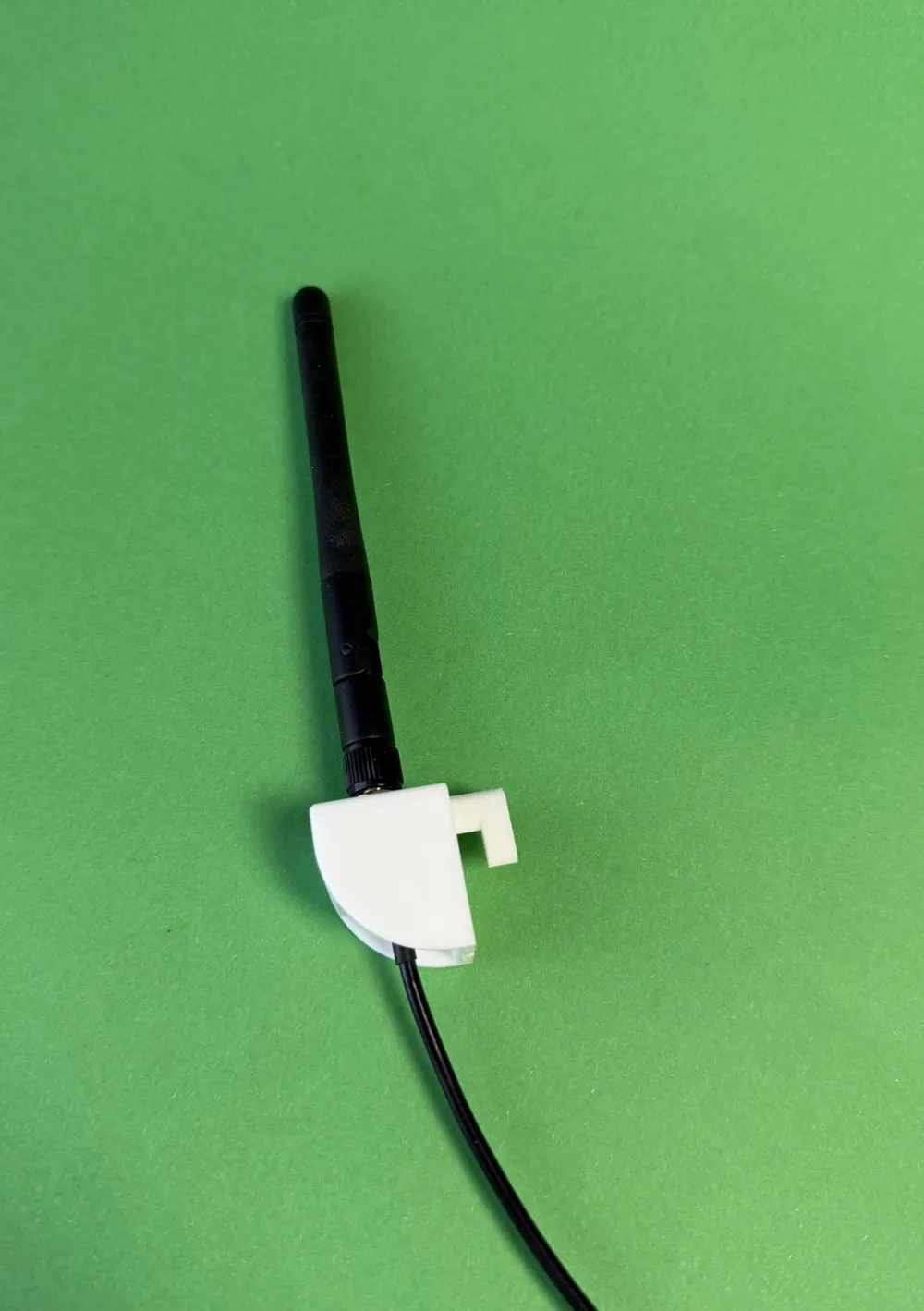

I have created two variants: one for adhesive mounting and one suitable for the IKEA SKÅDIS wall. If there is interest in a screw-mounted version, please let me know.
Dimensions

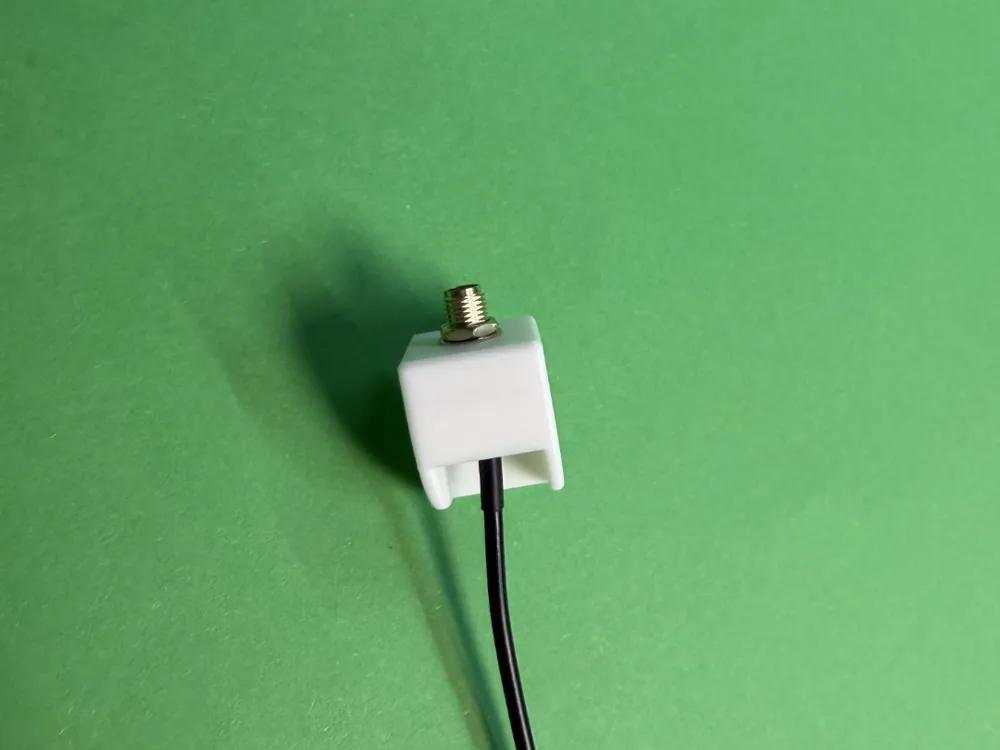

The adhesive variant has a base area of 20x20mm
I used PLA Basic from BambuLab – works great.
PLA or PETG from other manufacturers should also work without problems.
Supports: No
Links
Antenna Extension Coaxial Cable 50cm *: https://amzn.to/4mdp31n
Antenna Extension Coaxial Cable 1 m *: https://amzn.to/4s9X6st
More Models
My other models related to ePaper can be found here: epaper
All my models can be found here: MakerWorld
