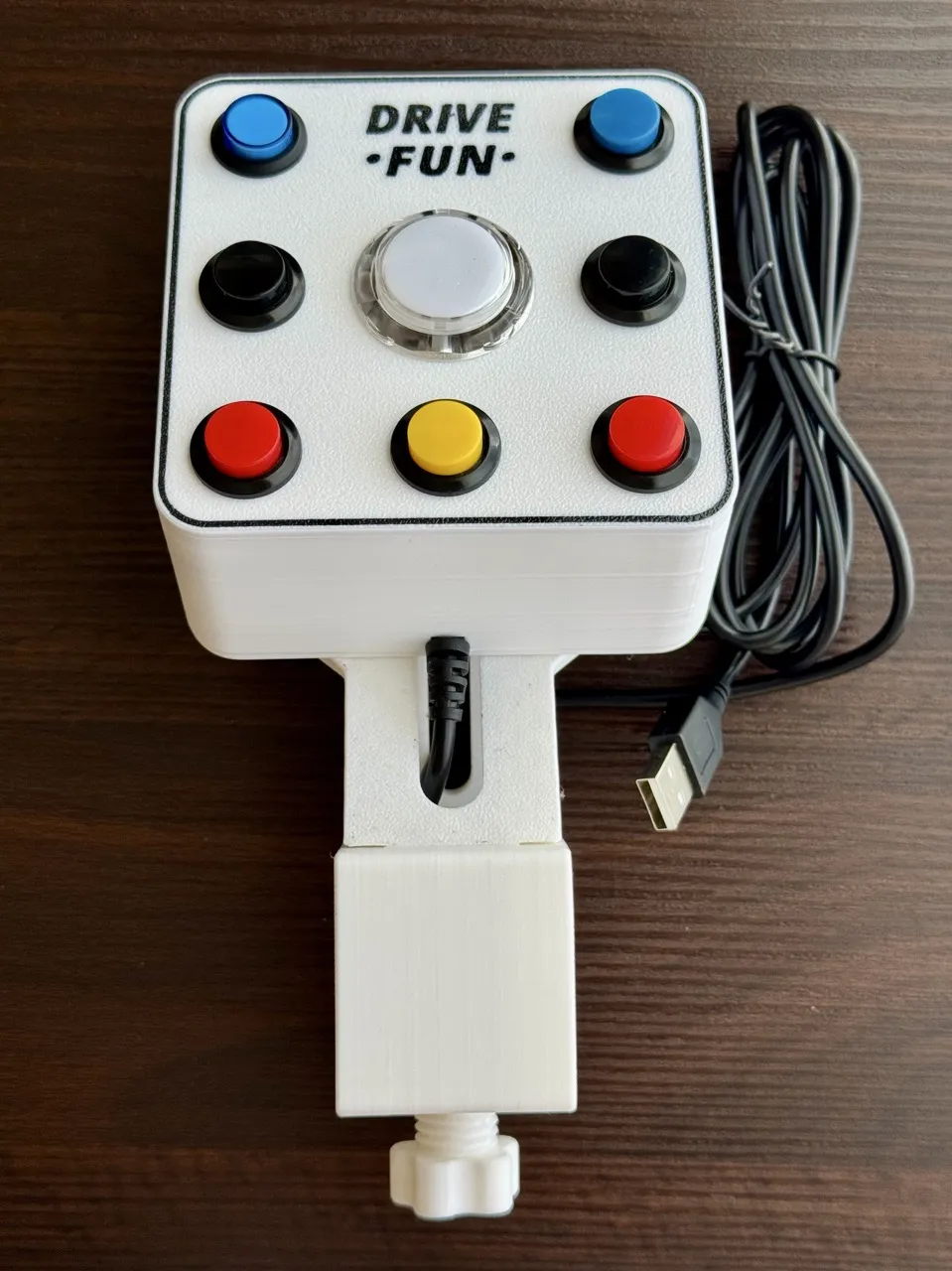

USB Button Box with Clamp Stand

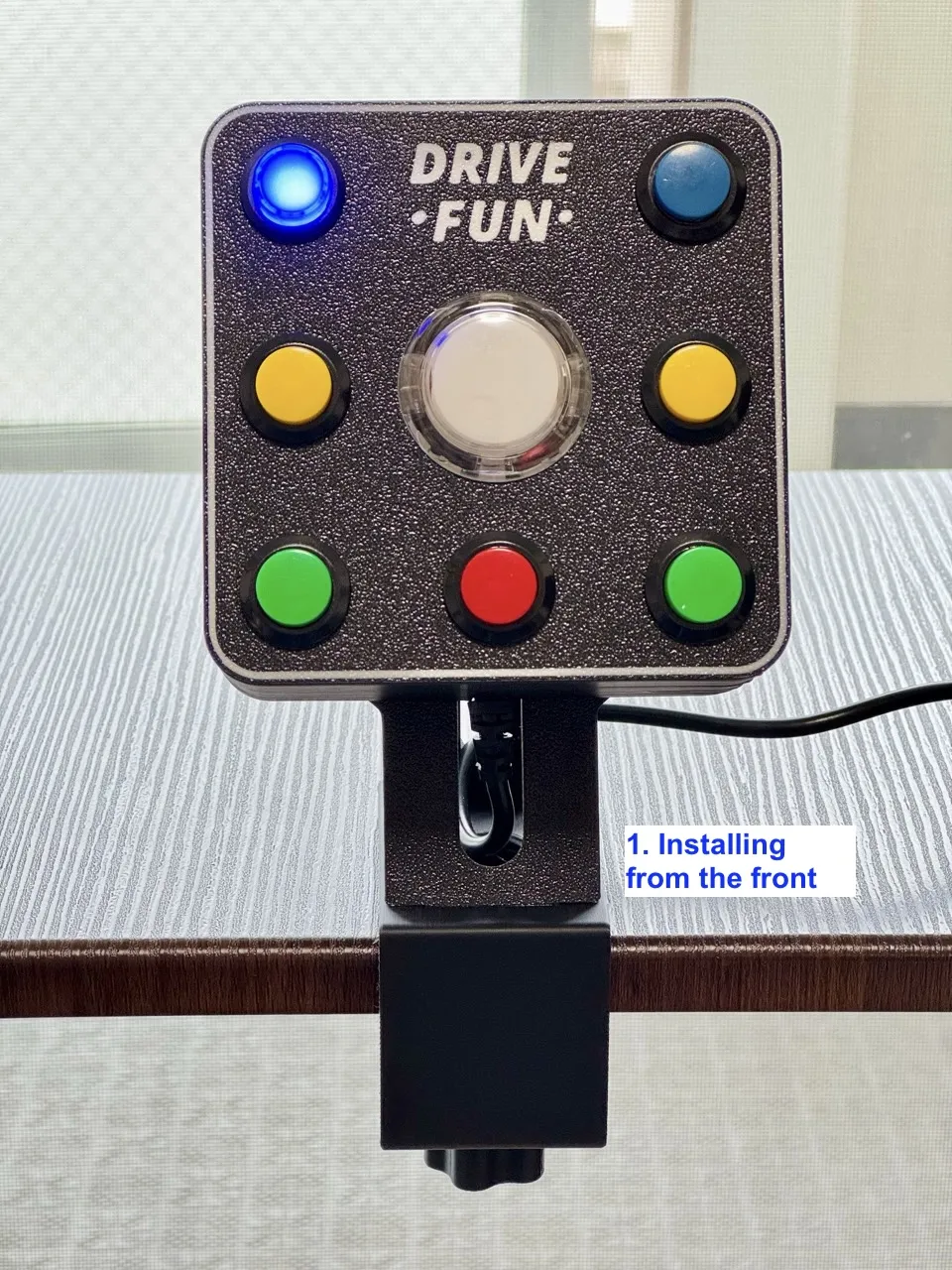

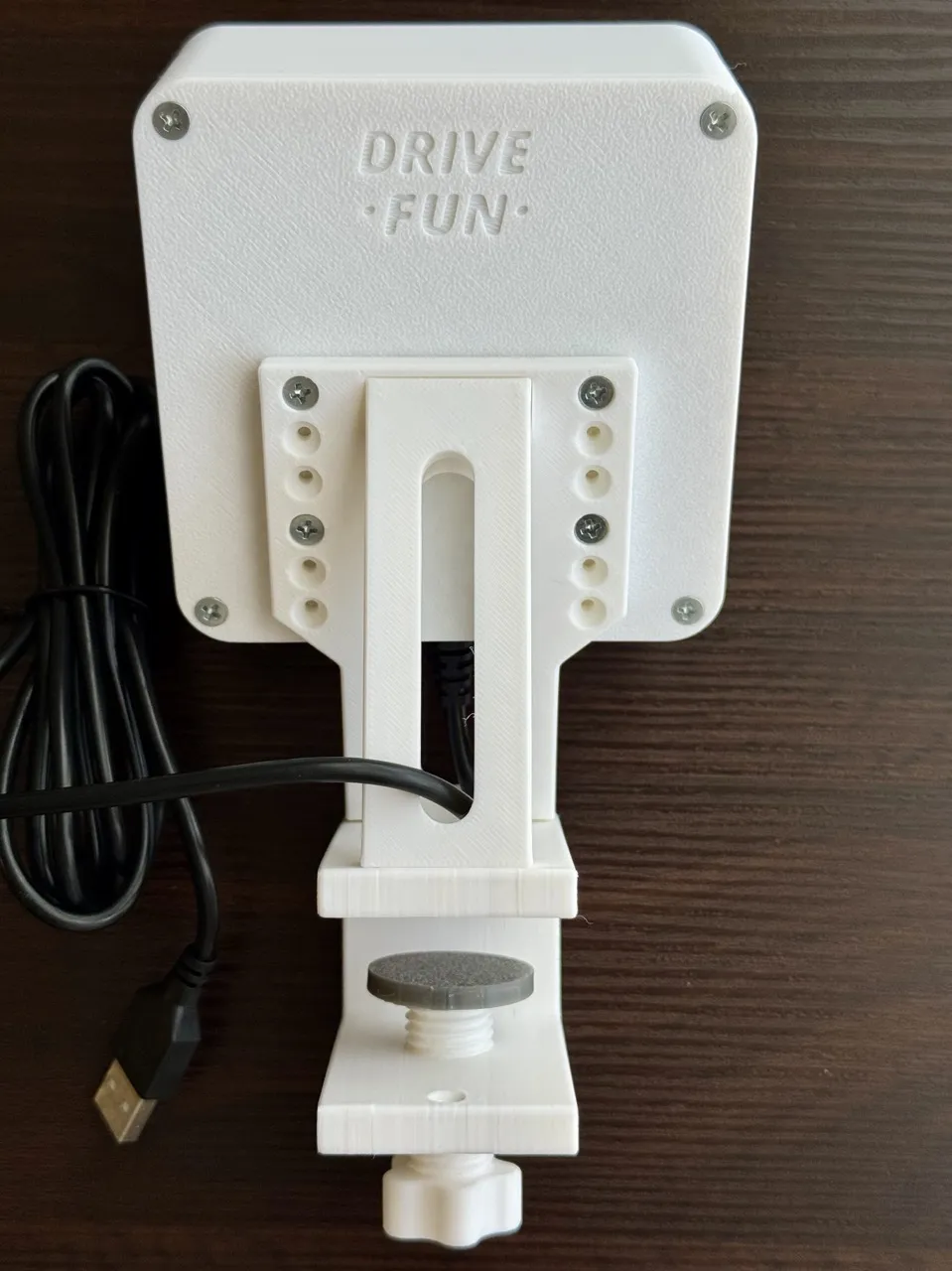

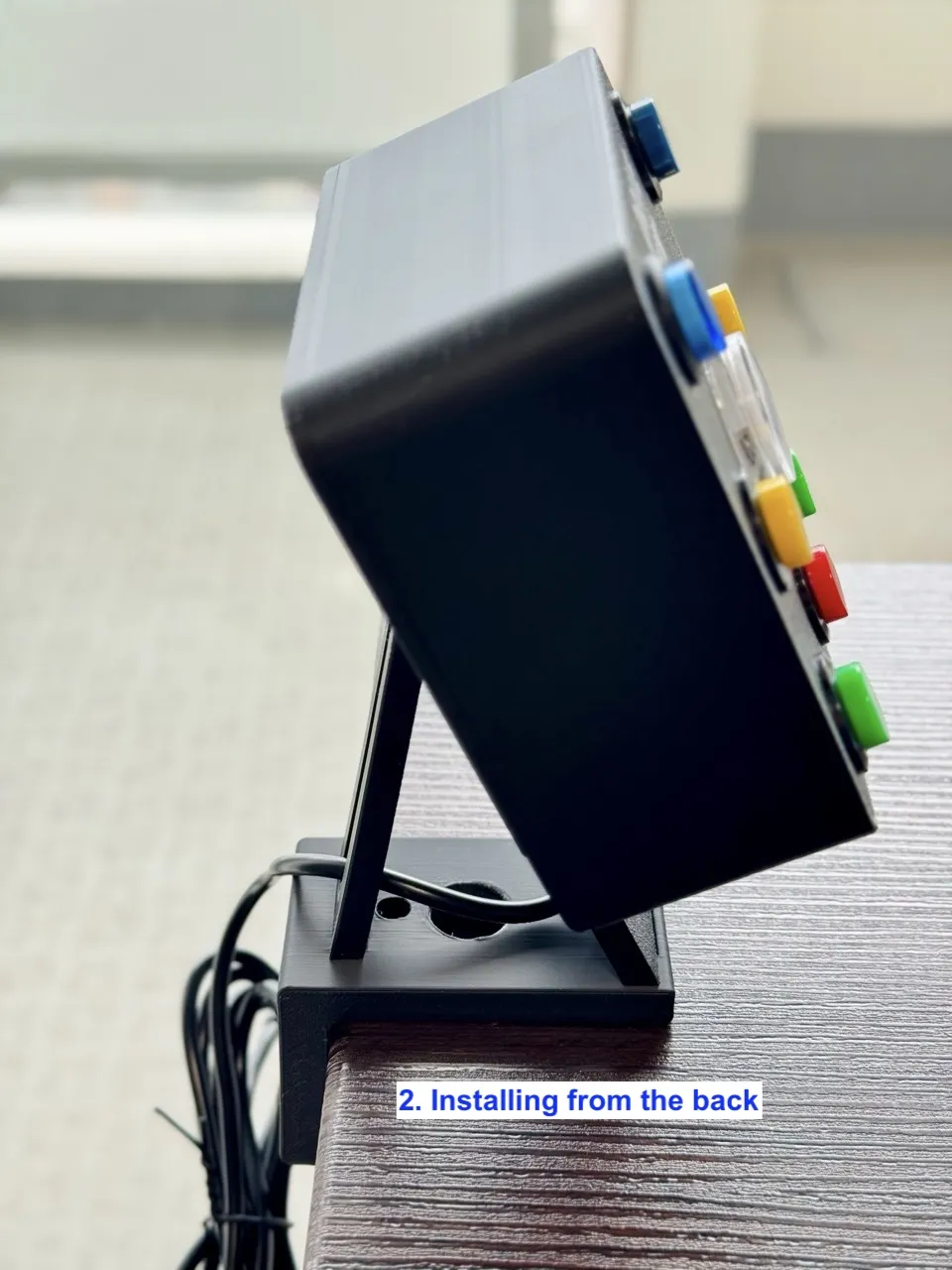

I designed this sleek and functional USB button box and its clamp stand that can be installed from the front and back.

Required components are;

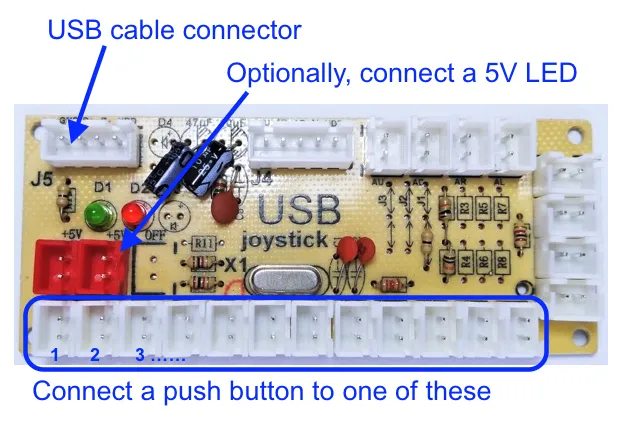

1. 1 x Zero Delay Arcade USB Encoder Board
   FYI, I bought the board and buttons from alixpress.

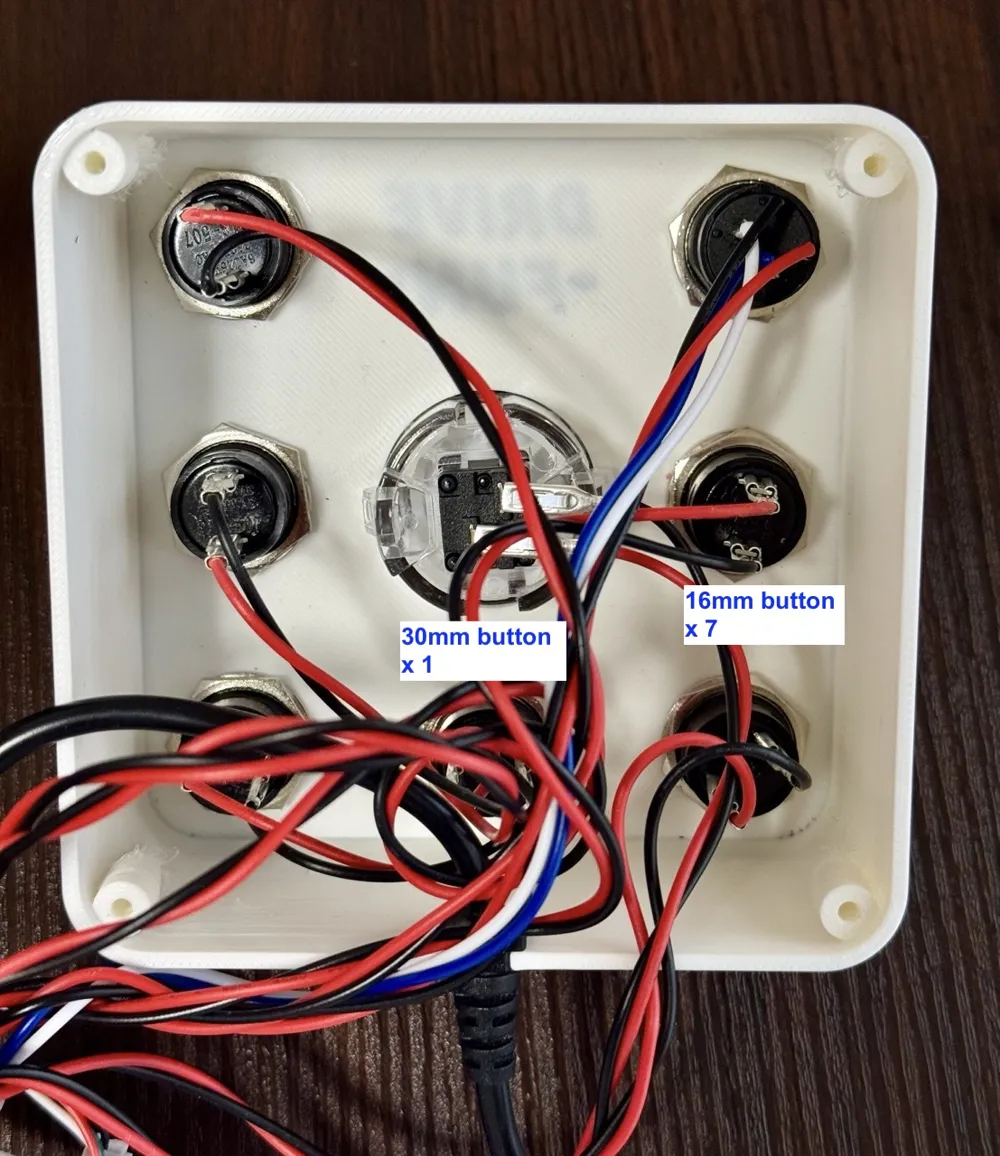

2. 7 x 16mm momentary push buttons

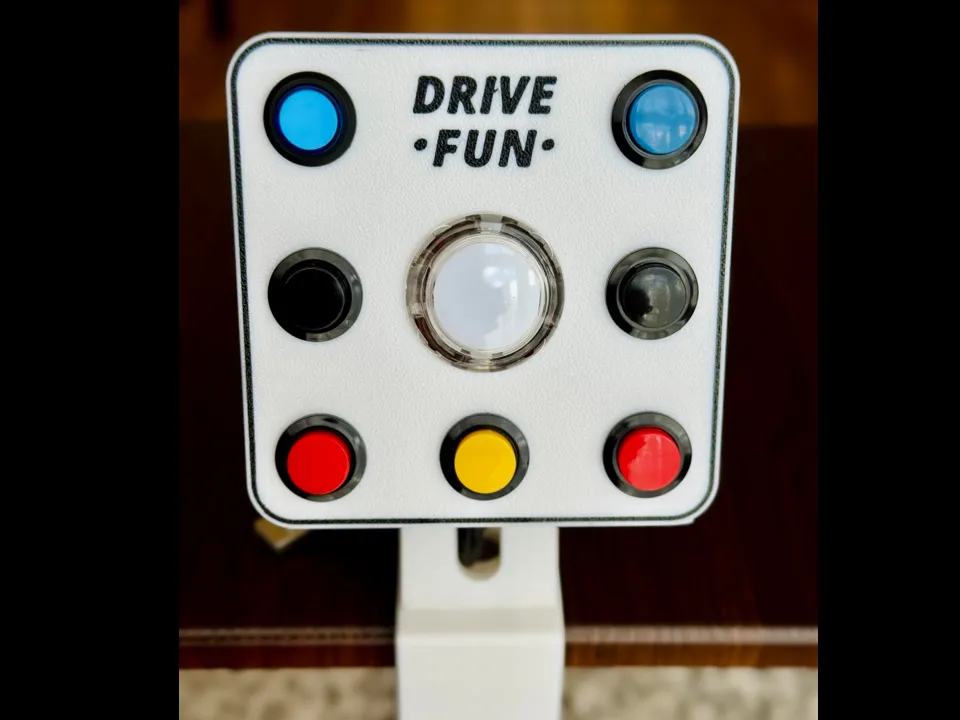

   In the photo, I used one LED button.
3. 1 x 30mm momentary push button

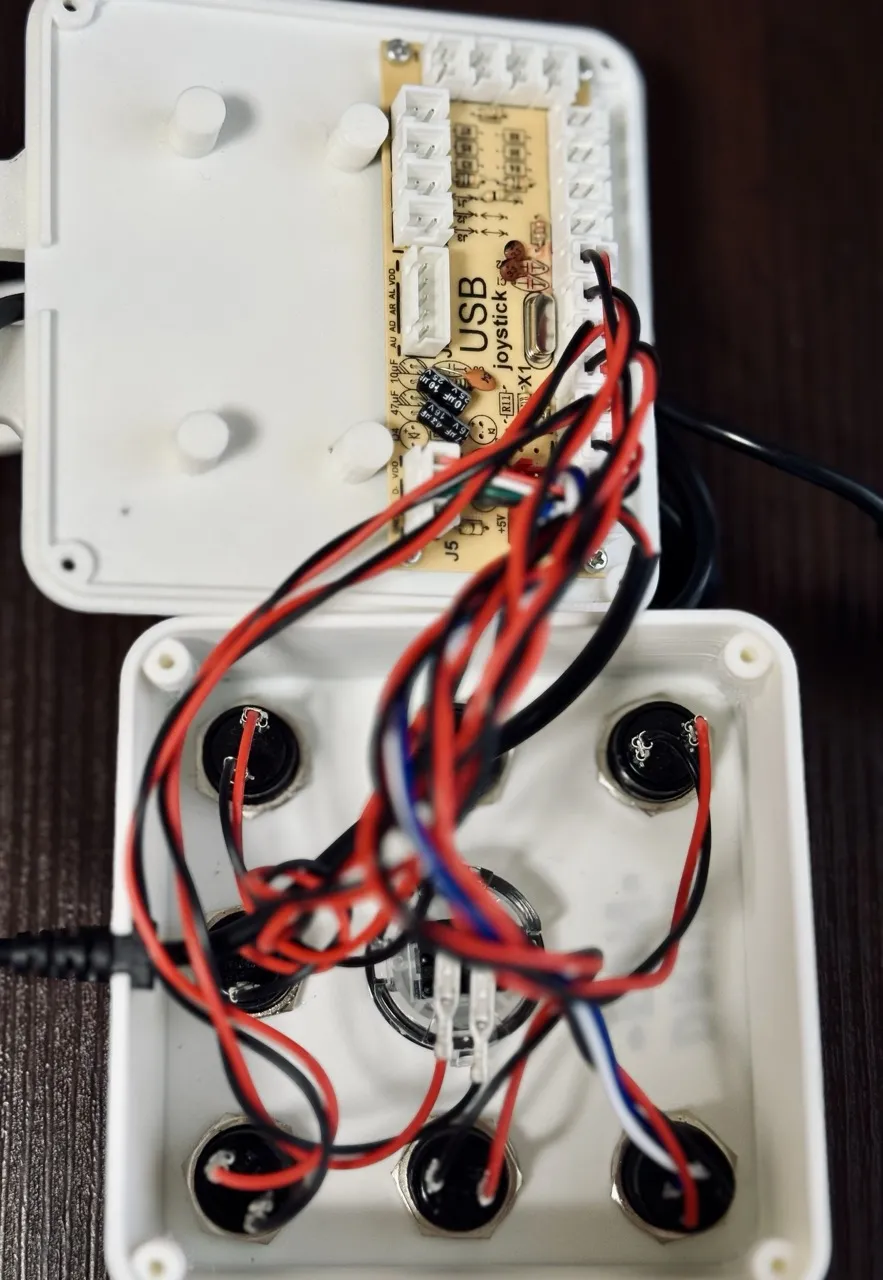

4. 8 x wire to connect the buttons and board

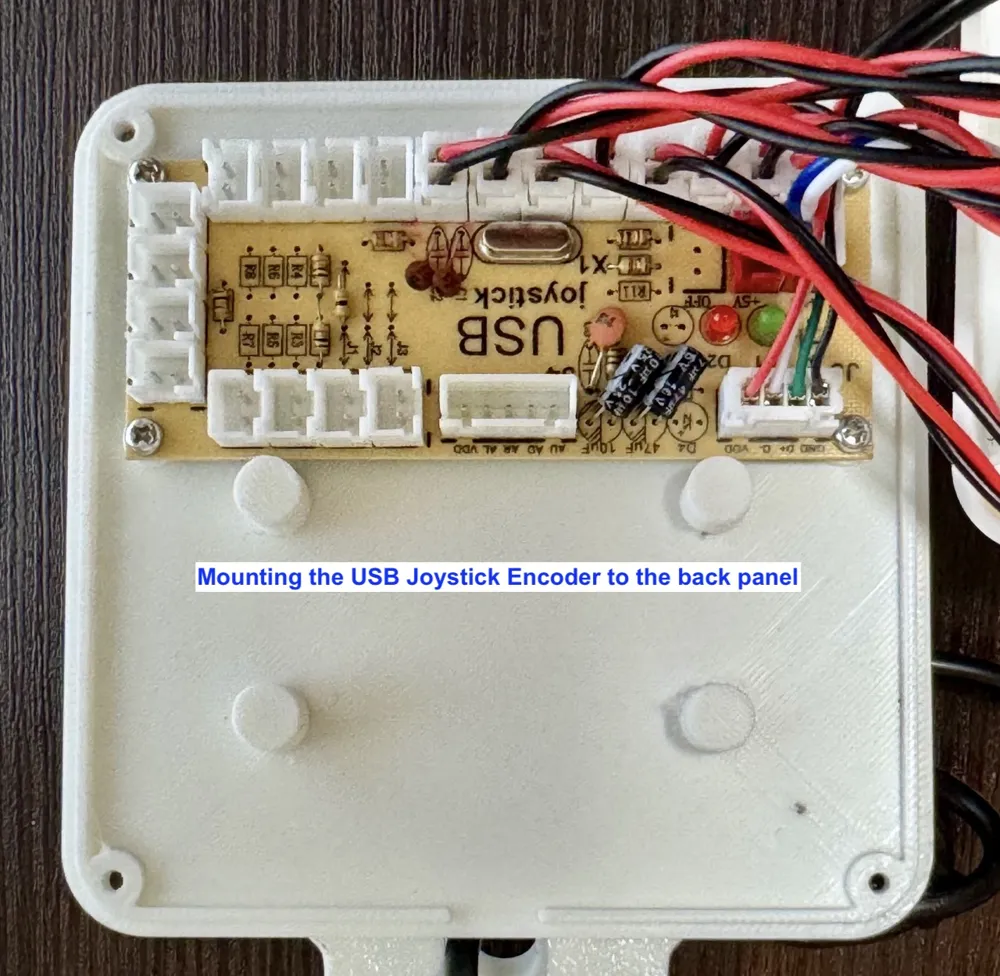

5. 4 x 7mm M2.5 screw to mount the board on the back panel

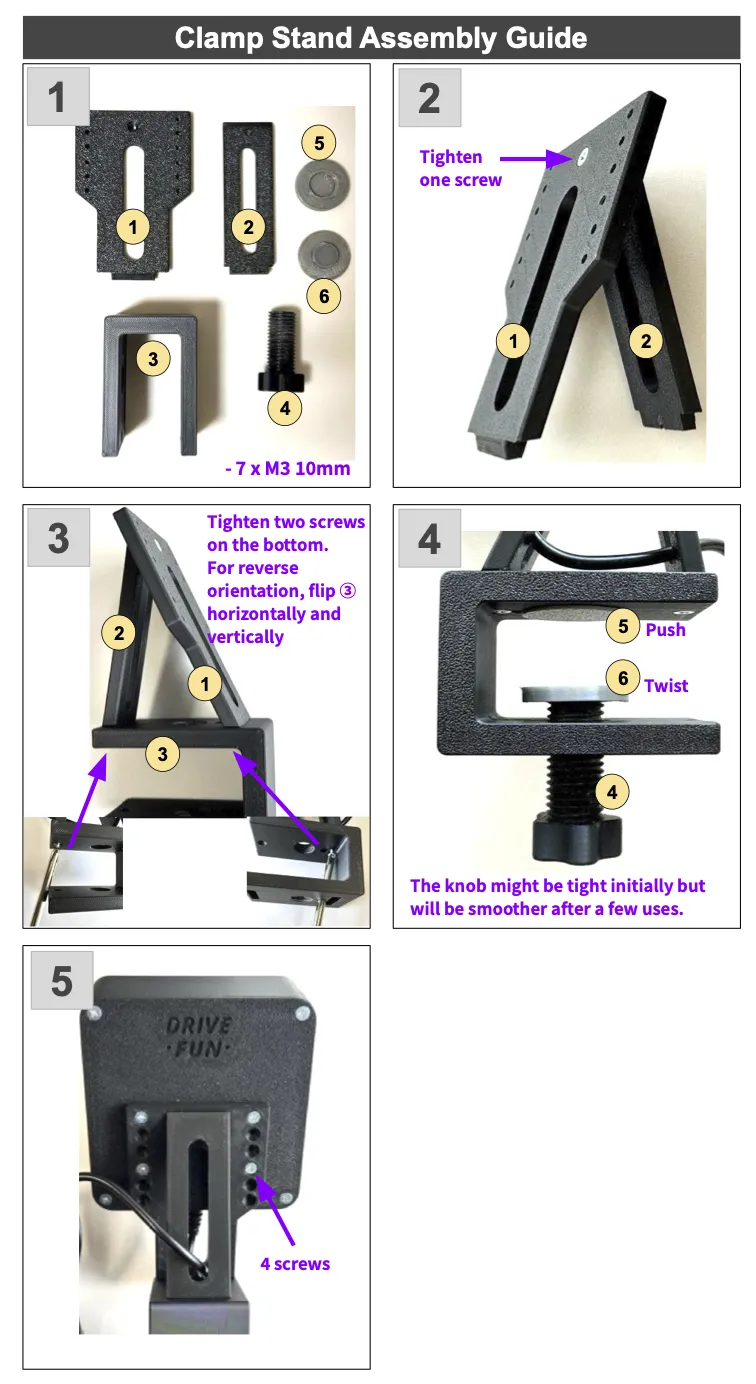

6. 11 x 10mm M3 screw
   - 4 screws for the button box assembly
   - 3 for the stand assembly
   - 4 to attach the stand and the box

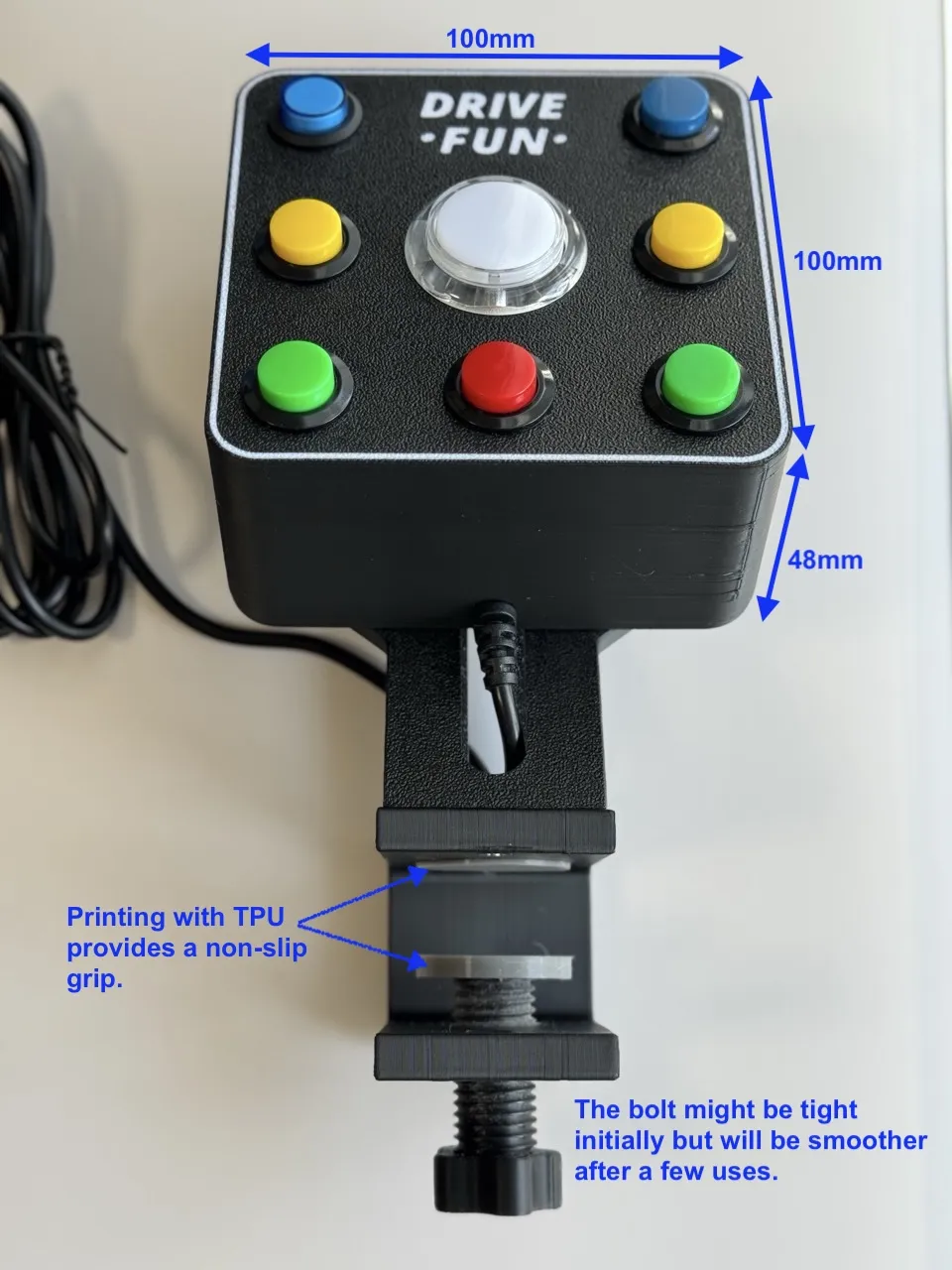

7. Optionally, it helps nonslip grip if two small pads are printed with TPU filament

If you have any questions or suggestions, please leave a comment. It would be greatly appreciated if you could share a photo or some feedback after printing, though it’s certainly not required!

Have fun with sim racing! 🏁
